UNREAL 60 - High power 60.000 mW RGB laser projector with RSL Gen.4 modules, precise 38 kpps scanning, IP65 outdoor ready housing, advanced thermal management, integrated FB4/Art Net control

High power 60.000 mW RGB laser projector with RSL Gen.4 modules, precise 38 kpps scanning, IP65 outdoor ready housing, advanced thermal management, integrated FB4/Art Net control

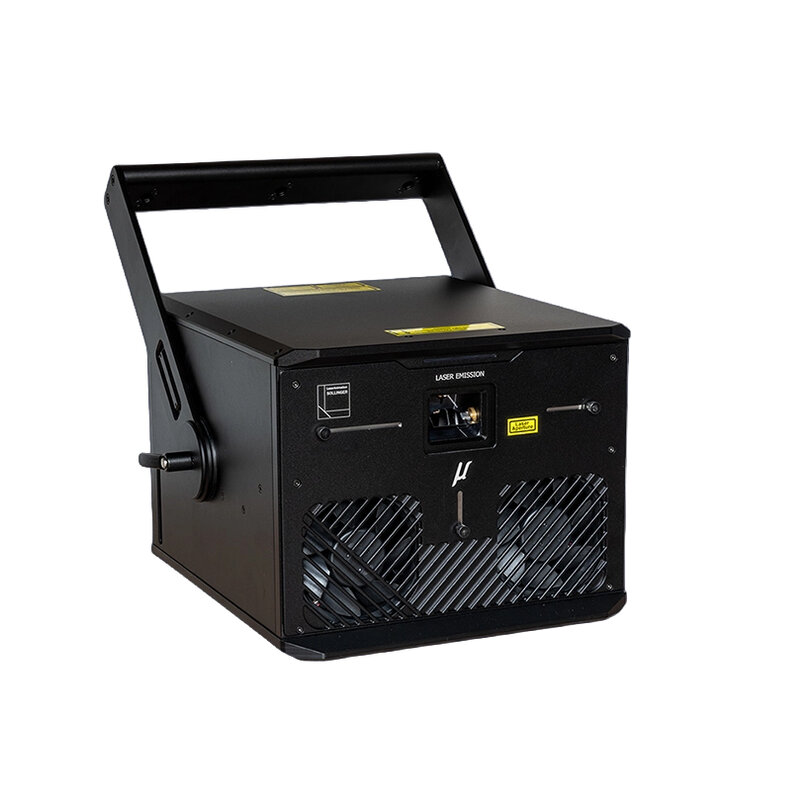

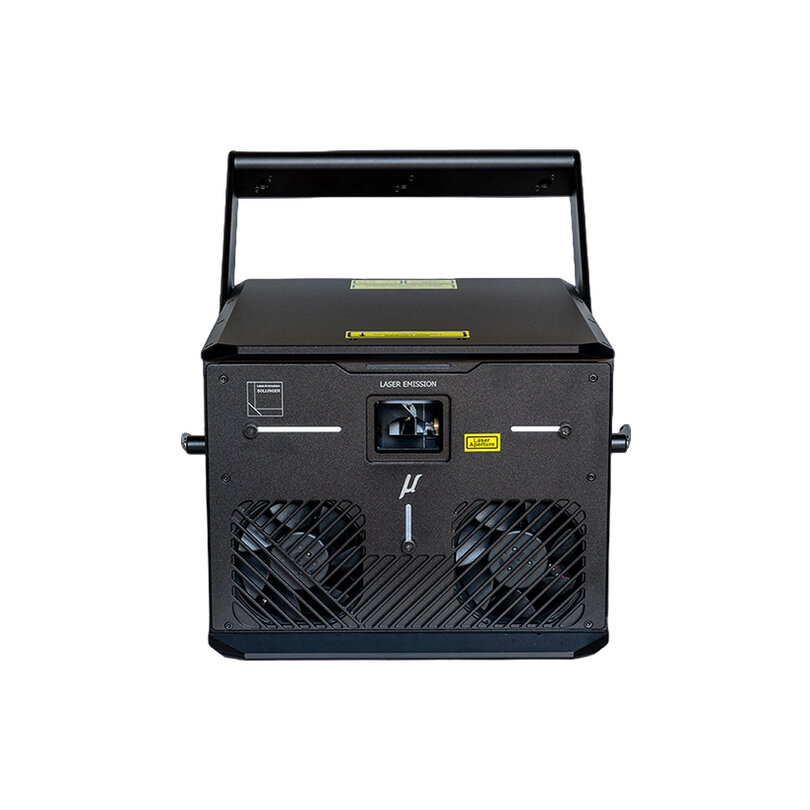

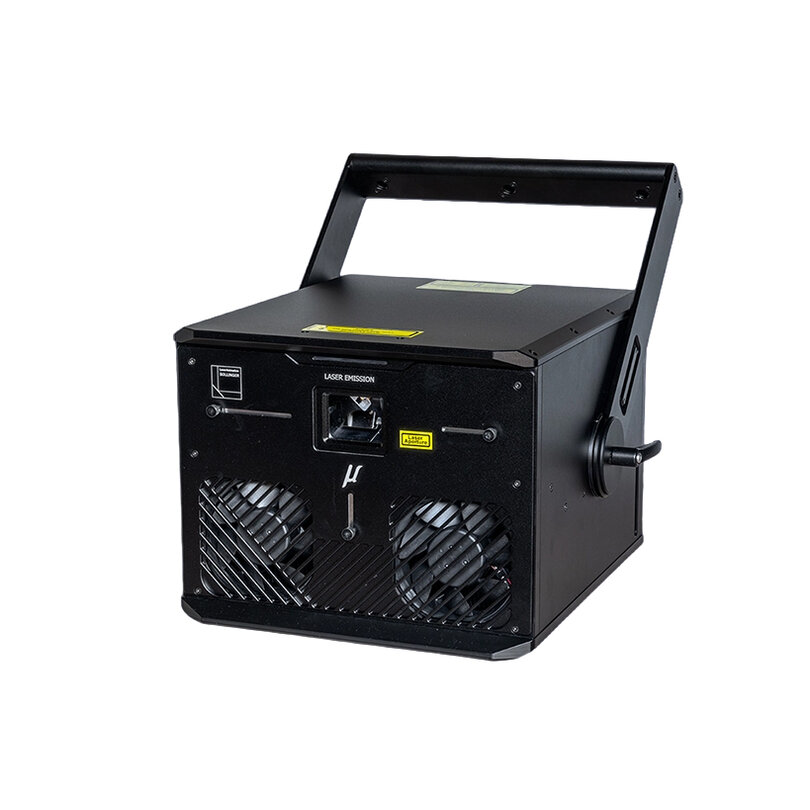

The UNREAL 60 is a high-performance RGB laser projector designed for use in large-scale events and permanent installations, with a guaranteed optical power of 60,000 mW. The system uses RSL Gen. 4 laser modules developed and manufactured in-house by LaserAnimation Sollinger, with a red source at 637 nm, green at 525 nm, and blue at 455 nm, ensuring consistent beam quality and stable color rendering even over long distances.

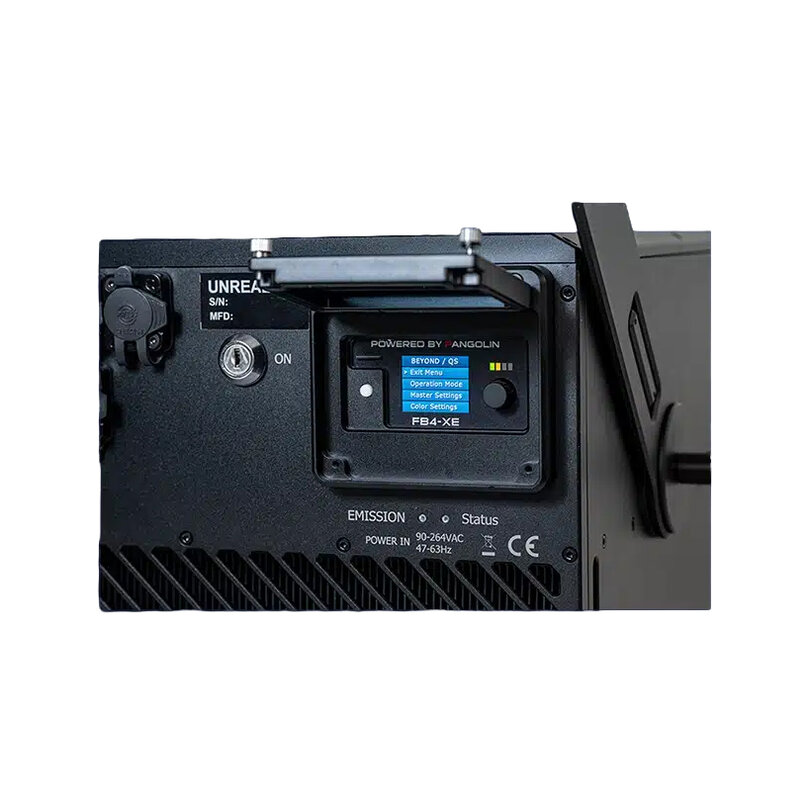

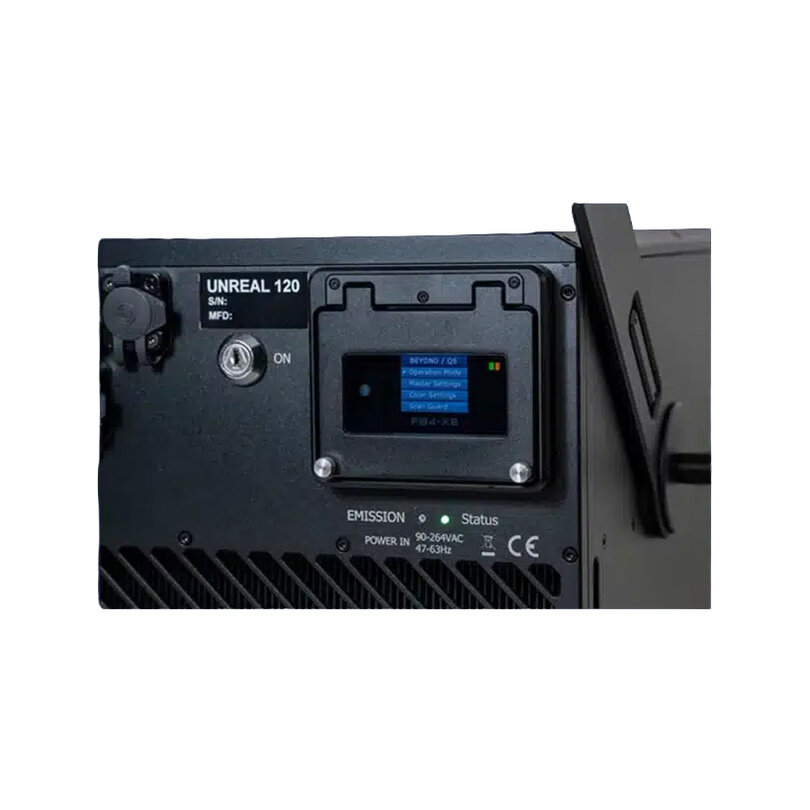

This CW analog modulation laser is combined with a scanner capable of reaching 38 kpps with a maximum beam angle of 48°, enabling both complex graphic projections and high-speed beam effects. Control is integrated via an FB4 interface, stand-alone player, and Art-Net, with advanced color management and security features via the LA.toolbox software. An AVB card and the LAS LAN Disable Button for remote laser deactivation are available as options.

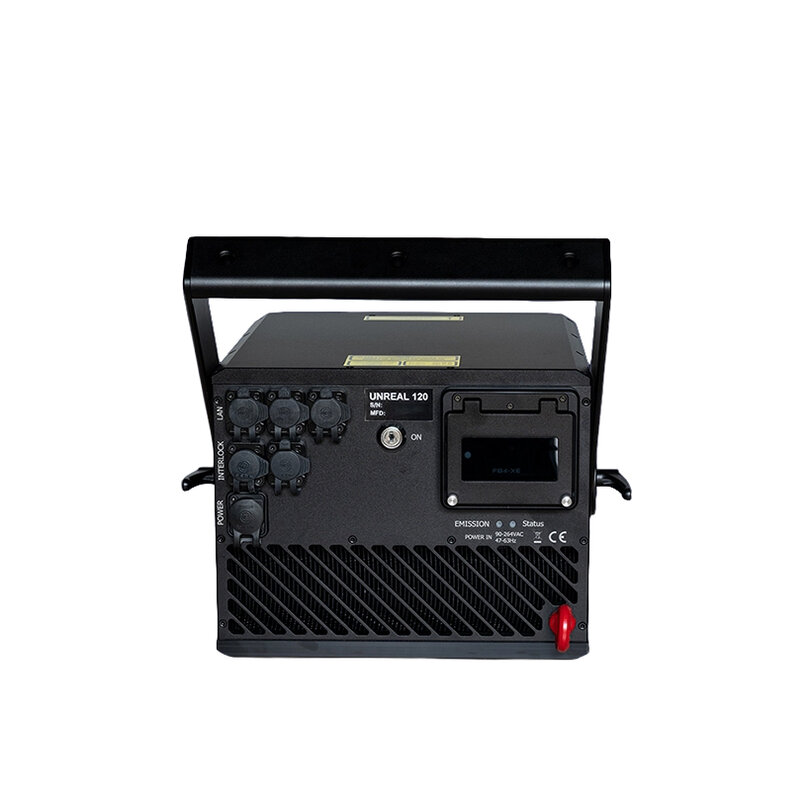

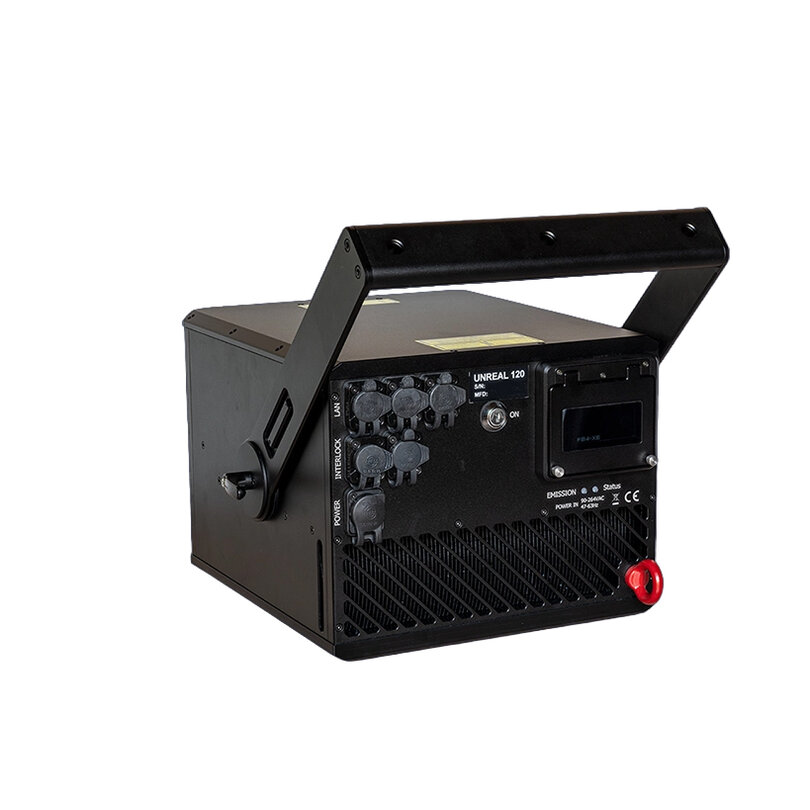

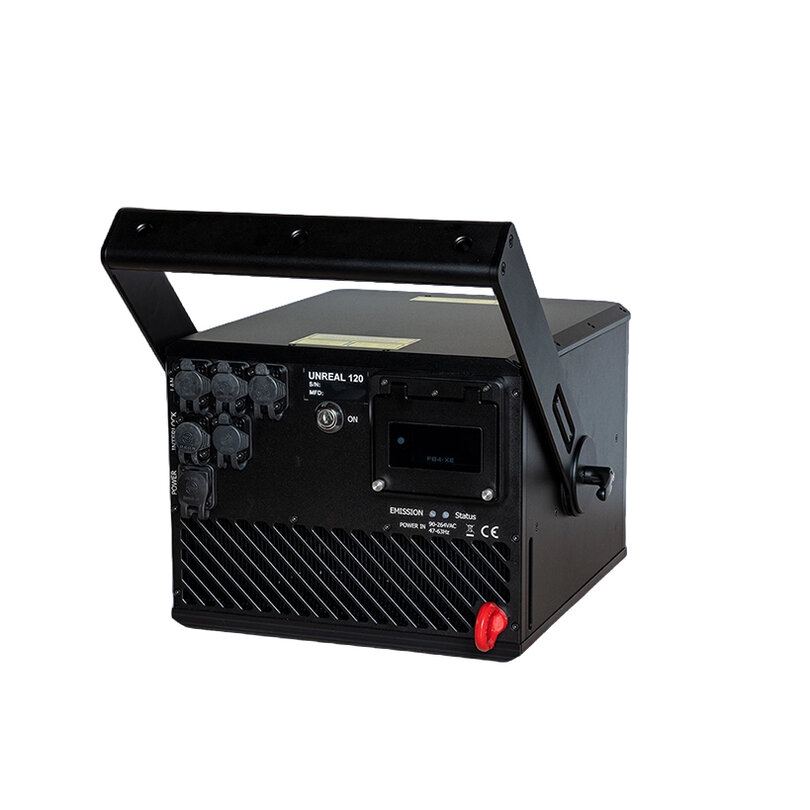

The projector is IP65-rated, making it completely protected from dust and water and suitable for outdoor use in an ambient temperature range of −10 to 40 °C. Thermal management is handled by a generously sized heatsink, Peltier elements for active heating and cooling, and temperature-controlled fans, ensuring reliable operation even under continuous use. Despite its high power, the UNREAL 60 weighs only 15.5 kg and measures 34.5 × 28.1 × 22.3 cm, making it significantly more compact and lighter than other systems in its power class, offering significant advantages in terms of transportation, rigging, and touring.

Standardized connectors allow for immediate integration into existing setups, making the UNREAL 60 an ideal solution for large events, complex shows, and installations where uncompromisingly convincing results are required.

User benefits

• Guaranteed 60 W optical power for visible results even in large venues
• Consistent beam quality thanks to in-house developed RSL Gen. 4 modules
• Stable graphic projections with scanners up to 38 kpps and a maximum angle of 48°
• Control via integrated FB4, stand-alone player, and Art-Net
• Maximum safety with scanfail circuit, adjustable beam blocker, key switch, and interlock
• IP65 certification and operation from −10 to 40°C
• Continuous thermal stability with oversized heat sink, Peltier cells, and temperature-controlled fans
• Low weight of 15.5 kg in relation to the power and ultra-compact body

Areas of use

• Large events and shows, indoor and outdoor
• Permanent installations in professional settings
• Concerts, festivals, and live productions
• Touring thanks to the low weight and ultra-compact body that simplify transport and assembly
• Complex shows that Requires immediate integration with FB4 control systems, Art-Net, and stand-alone players
• Outdoor applications in harsh environmental conditions
