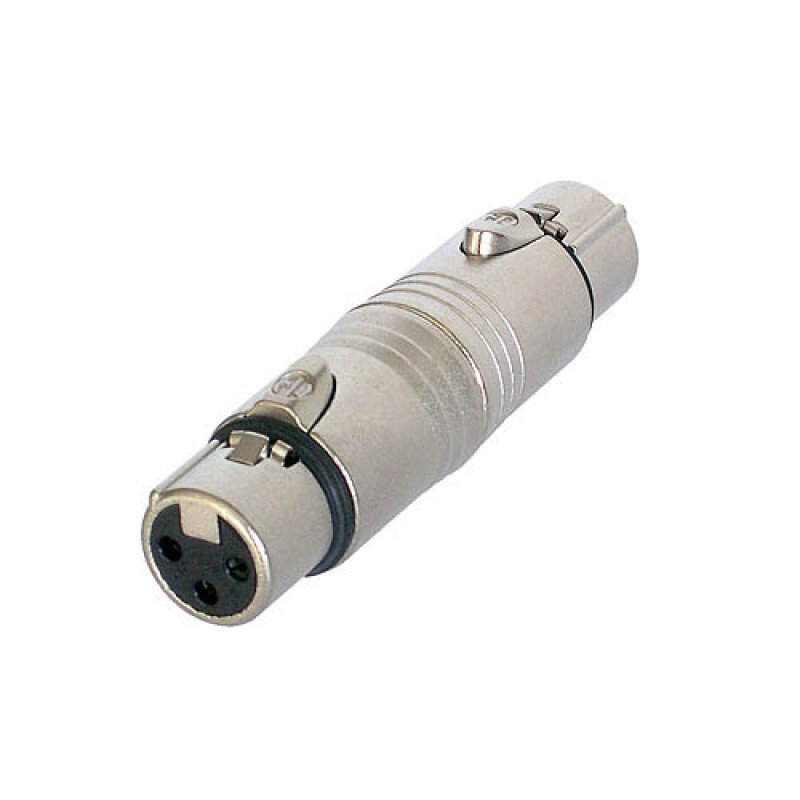

Adapter 3 pole XLR female - 5 pole XLR female (gender conversion adapter)
Adattatore XLR 3 poli femmina / XLR 5 poli femmina. Serie Circular. Adattatore versatile, pre-cablato e pronto all’uso. Design compatto, basato sulla Serie XX. Robusto chassis pressofuso per migliorarne l’affidabilità.
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability.
Product
- Title NA3F5F
- Connection Type Adapter
- XLR-3F to XLR-5F
Electrical
- Contact resistance ≤ 3 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 2 Gohm
- Rated current per contact 3 A
Mechanical
- Insertion force < 20 N
- Withdrawal force < 20 N
- Lifetime > 1000 mating cycles
- Wiresize
- Locking device Latch lock
Material
- Contact plating 2 µm Ag
- Contacts Brass (CuZn39Pb3) (5 pole female)
- Insert Polyamide (PA 6.6 30 % GR)
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating Nickel
Environmental
- Temperature range -30 °C to +80 °C
