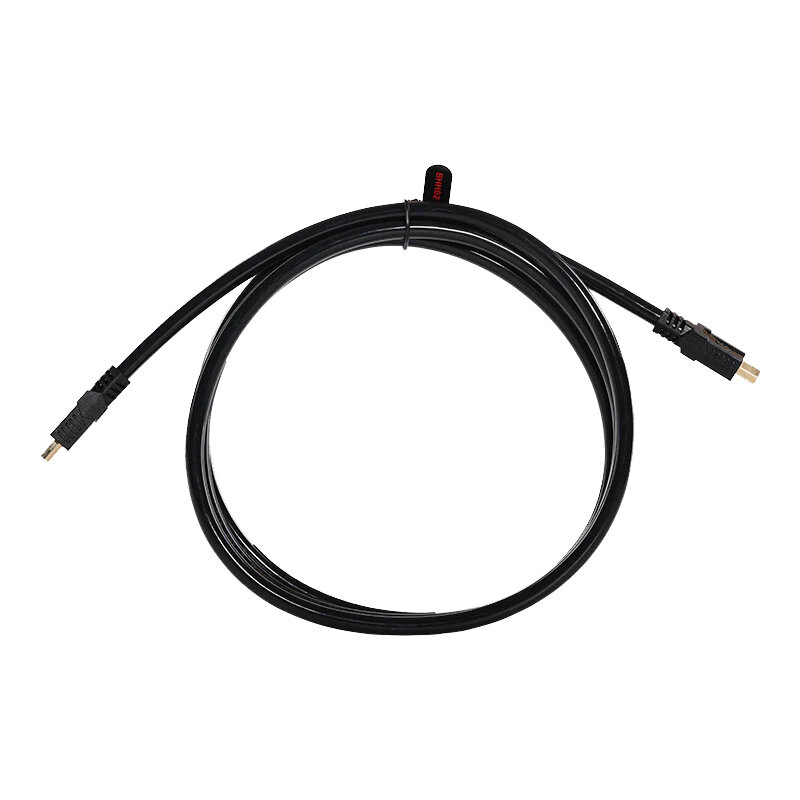

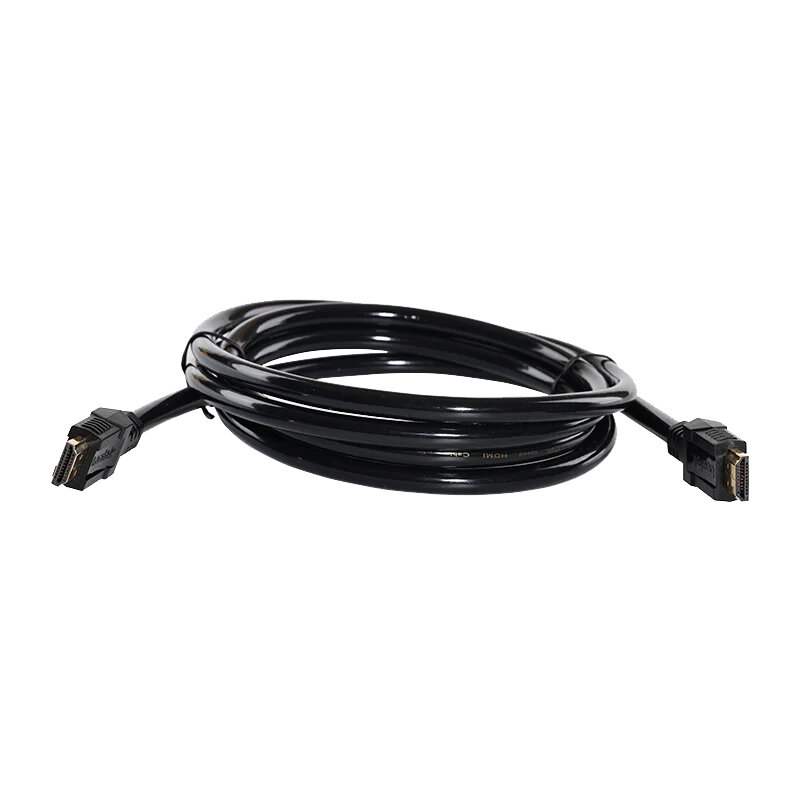

4K HDMI 2.0 high-speed copper cable, 10 m
Il cavo HDMI 2.0 in rame Beetek supporta la risoluzione 4K @ 60 4:4:4 a 18 Gbps, la trasmissione EDID trasparente, Ethernet ad alta velocità, ARC-CEC e 3D. Lunghezza: 10 m.
Adatto per applicazioni rental, eventi dal vivo, residenziali e di sorveglianza.
Caratteristiche principali
- Supporta risoluzioni fino a 4K @ 60 4:4:4
- Supporta HDCP 2.2, ARC, HDR e CEC
- I connettori in rame placcati in oro garantiscono una connessione stabile e duratura
- Guaina a doppio strato con schermatura intrecciata al 95%
Technical characteristics
- Signal type: HDMI 2.0
- Lenght: 10 m

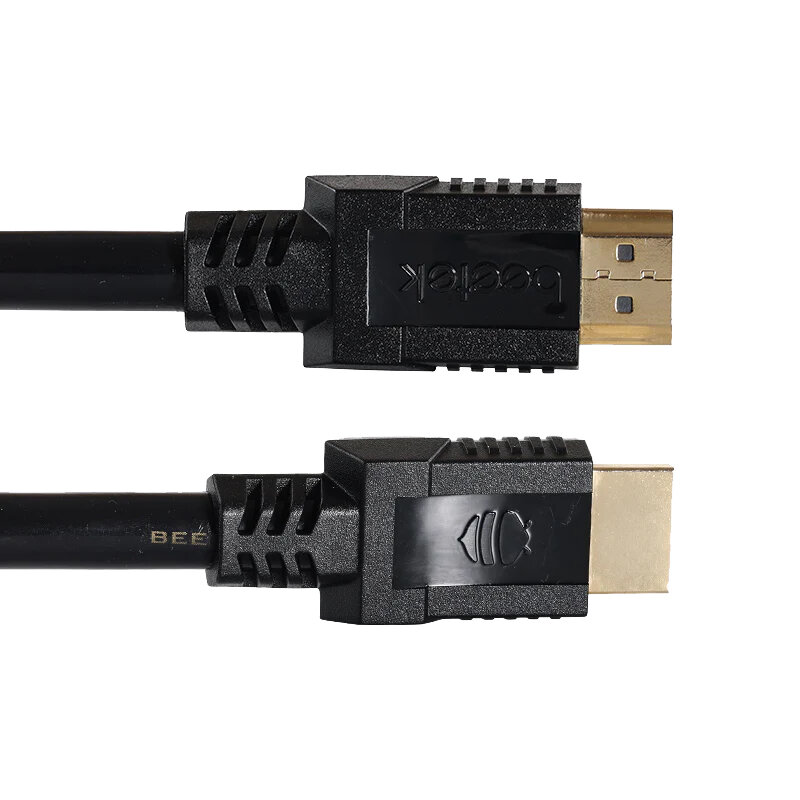

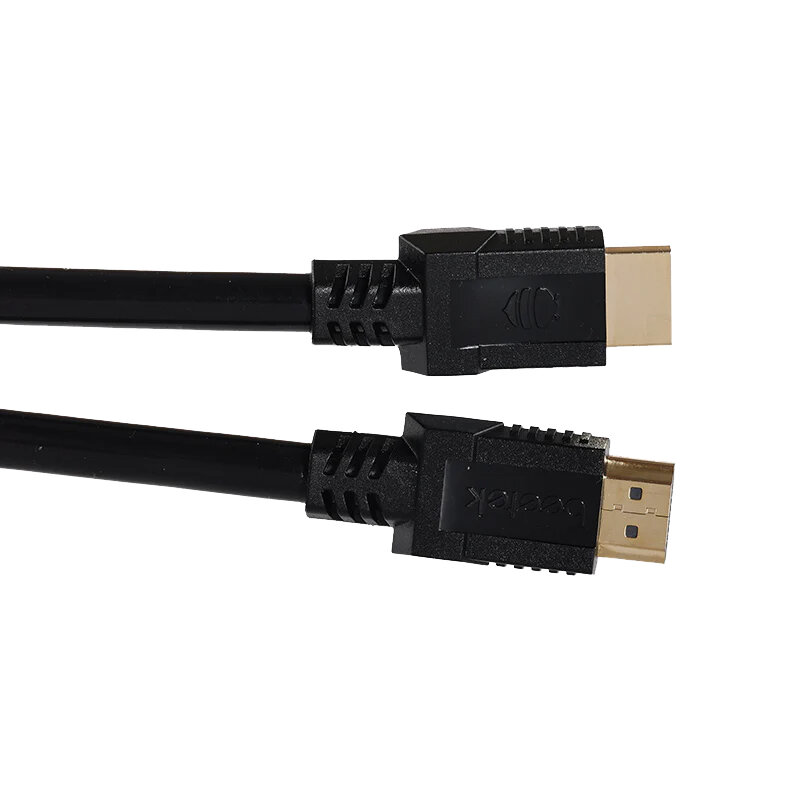

- Input connector type: HDMI Type A male - HDMI Type A male
- Environmental info: RoHS 2.0 compliant
- Connector gold plating: 1 μm
- Connector dimensions: 49.4 x 20 x 12 mm
- Connector structure: plug plate + inner mold + copper foil + shell
- Inner mold: PE material filled inner mold
- Copper foil: double-sided conductive copper foil
- Shell: 45P PVC injection molded shell (UL, RoHS)
- Components: conductor + copper foil + mylar + braid + jacket
- Conductor material: single core tinned copper
- Conductor diameter: 26AWG
- Braid material: 144 aluminum-magnesium braids
- Shielding rate: 95% shielding rate
- Jacket material: black PVC + transparent PVC dual-layered outer jacket (UL, RoHS)
- Cable diameter: 8.5 mm
- Cable color: gloss black
- Cable meter marking: waterproof yellow text
- EDID: yes
- DDC channel: yes
- HDMI audio: yes
- 3D: yes
- CEC: yes
- ARC: yes
- HDCP: yes
- HDR: yes
- XvYCC color space: yes
- Compatibility: backward compatible with HDMI and DVI-SL
- Supported resolutions: 3840 x 2160 @ 60 Hz
- Clock bandwidth: 600 MHz × 3
- Transmission rate: 18 Gbps
- Plug & Play: yes
- Delay: zero
- Deep color: yes
- Sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
- Compression: none
- Electrical test (voltage): 300 VDC
- Impedance test (insulation): insulation resistance ≥ 10 Mohm
- Impedance test (continuity): on-resistance ≤ 2 ohm
- Tensile strength: ≤ 400 N
- Bending angle: 90°
- Operating temperature: -20 to 75 ℃
