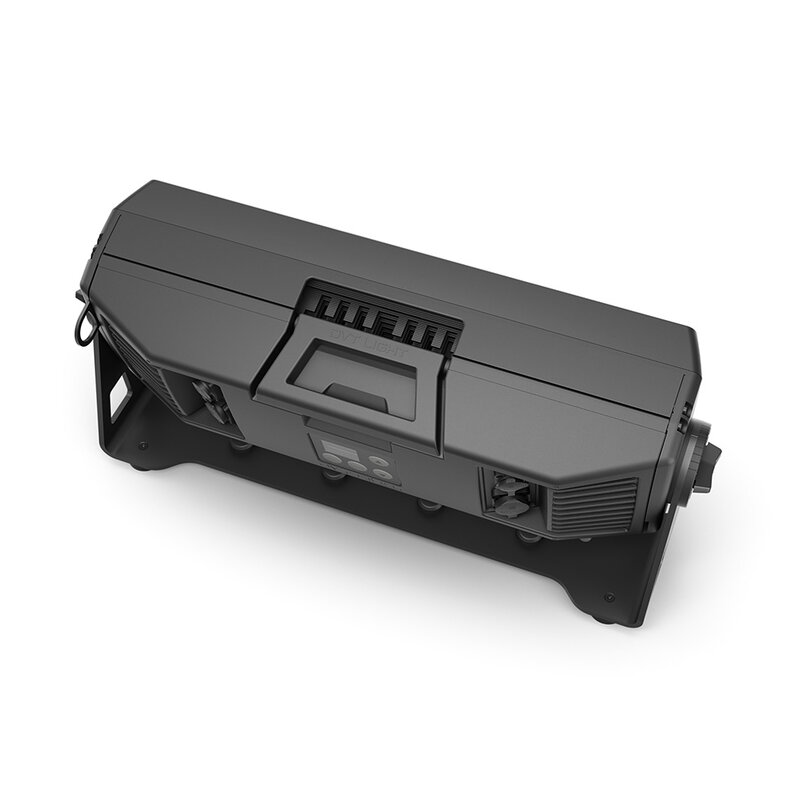

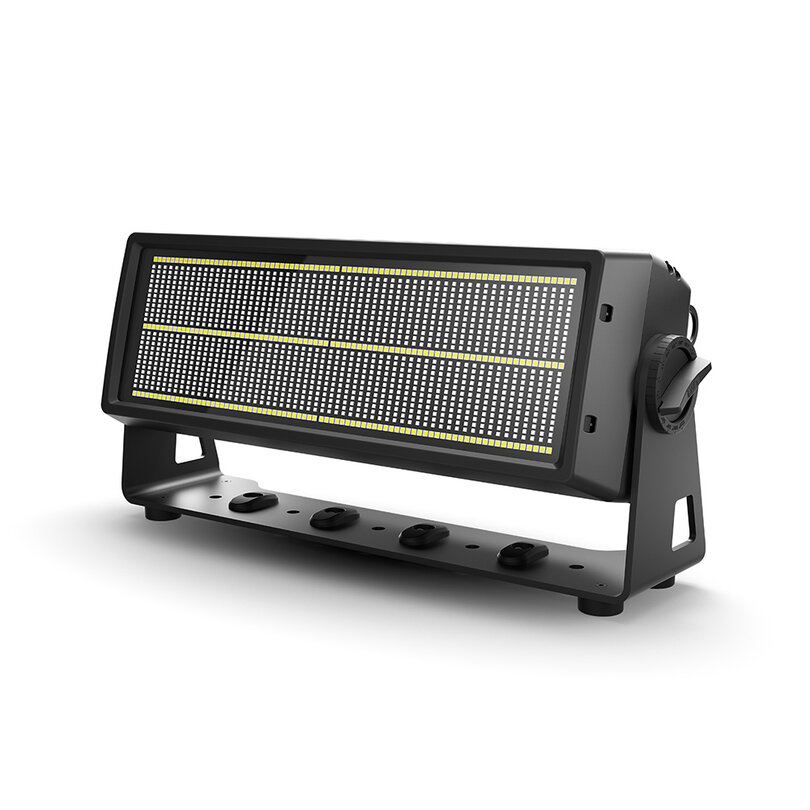

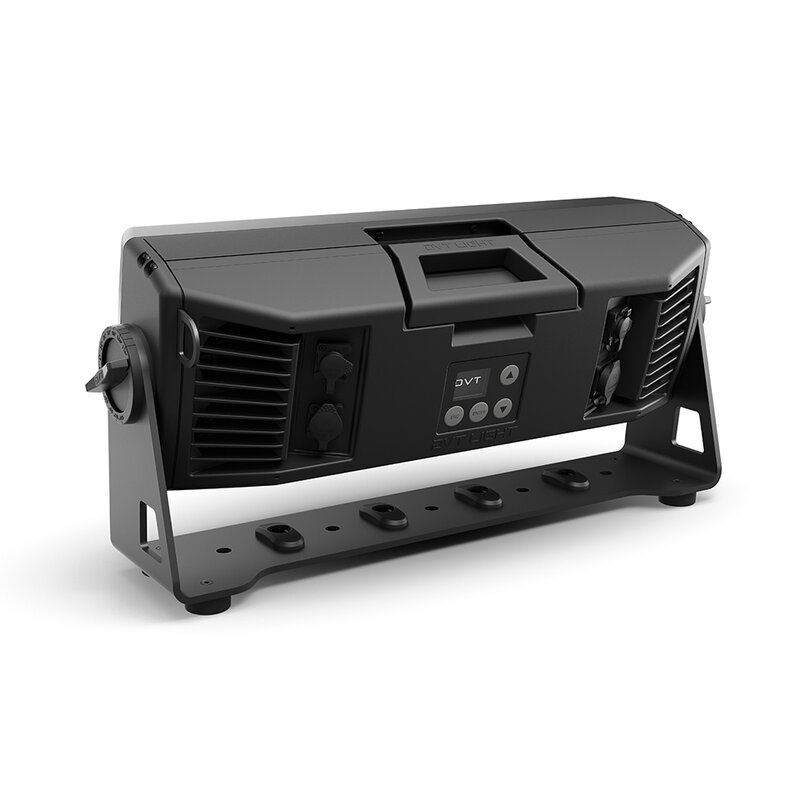

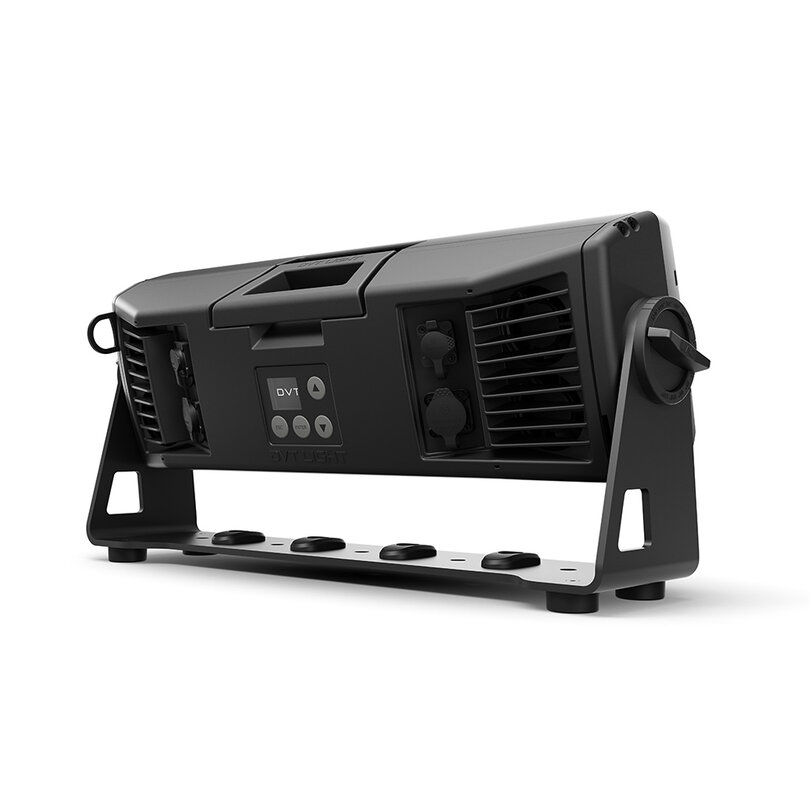

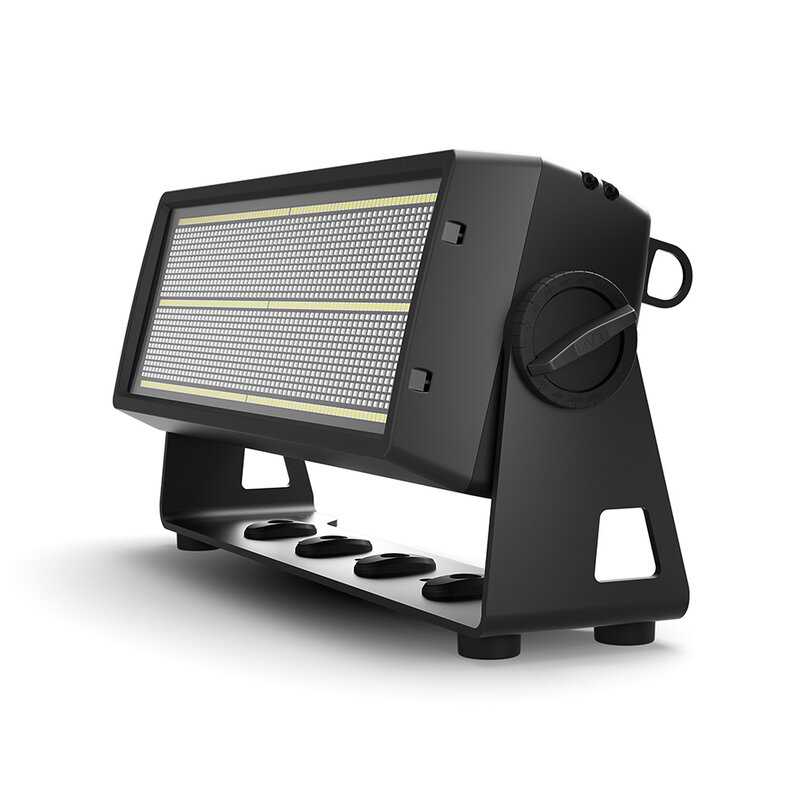

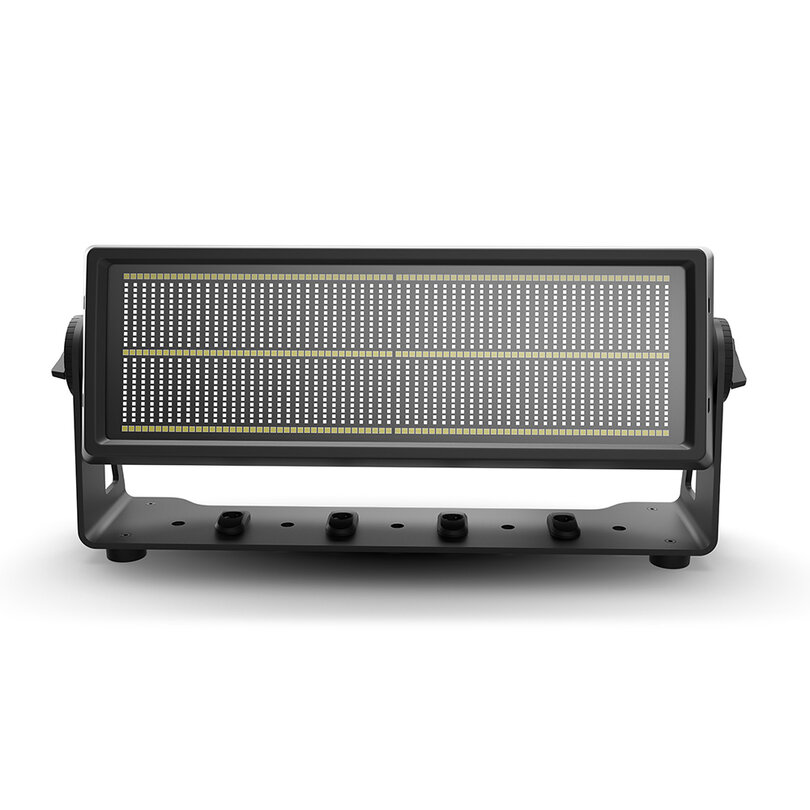

MB-8 RGBW POI Black - High-power 600 W floodlight delivering 100,000 lumens with 154 lm/W efficiency, IP66 rating, wireless DMX / RDM, 4 RGB and 12 white pixel segments, black

High-power 600 W floodlight delivering 100,000 lumens with 154 lm/W efficiency, IP66 rating, wireless DMX / RDM, 4 RGB and 12 white pixel segments, black

MB-8 genera un flusso luminoso di 100.000 lumen, rendendolo il proiettore floodlight più potente mai realizzato da DVT Light. Con una potenza di 600 W e un'efficienza luminosa impressionante di 154 lm/W, garantisce prestazioni elevate in ogni contesto. La sua struttura è classificata IP66 per assicurare una resistenza eccezionale agli agenti atmosferici e alla polvere.

Il faro è dotato di controllo wireless DMX e compatibilità RDM, offrendo massima flessibilità nella gestione remota. Il fascio luminoso ha un’ampiezza di 120°, ideale per coprire ampie superfici in modo uniforme.

MB-8 integra 4 segmenti di pixel RGB e 12 segmenti pixel bianchi, tutti controllabili individualmente, racchiusi in un unico corpo compatto e potente. Inoltre, sfrutta le tecnologie proprietarie DVT Light, che ne potenziano ulteriormente le prestazioni e la versatilità operativa.

Technical characteristics

Photometric

• LED type: 1440 RGB + 240 White LEDs
• Luminous flux: 90,833 lm
• Red: 4723 lm
• Green: 10,933 lm
• Blue: 2068 lm
• Efficiency: 154 lm/W
• Color Rendering Index (CRI): > 75
• CCT: 2000 - 10,000 K
• Beam angle: 120°
• Color: full RGBW spectrum
• LED lifetime: 50.000 hours (min.)

Construction

• Protection rating: IP66
• Impact resistance: IK07
• Corrosion resistance: C5-M
• Housing material: plastic, aluminum, rubber, steel
• Housing color: black
• Lens material: tempered glass

Control and programming

• Intensity: 0 - 100%
• Control protocol: DMX 512, Wireless DMX (CRMX), RDM enabled
• DMX modes: multiple (refer to latest DMX charts)
• Wireless DMX: built-in CRMX system
• Control interface: OLED display with control panel (UP, DOWN, ESC, ENTER buttons)
• Control interface POI: no, only through RDM
• DMX connection: 5-pin XLR IN and OUT
• DMX connection POI: 5 m cable with bare ends
• Number of segments: 12 white + 4 RGB individually controllable segments
• Stand-alone control: yes
• Control resolution: 16-bit RGBW
• Dimmer resolution: 16-bit
• DMX channels: 7 / 12 / 27 / 50
• DMX compliance: USITT DMX 512A
• RDM compliance: ANSI / ESTA E1.20
• Firmware update: serial upload via DMX

Thermal

• Operating temperature: -40 to 50 °C
• Max. ambient temperature (Ta max.): 50 °C
• Cooling system: active (cooling fans)
• Minimum distance to normal flammable: 0.5 m
• Minimum distance to illuminated surface: 0.5 m
• Automatic temperature control (safety feature): yes

Electrical specifications

• Power: 600 W max. power consumption
• Input voltage: 100 - 240 V_AC 47 - 63 Hz
• Power factor: > 0.99 @ 100 V, > 0.95 @ 230 V
• Inrush current: 60 A / 230 V
• Power connection: TRUE1 type IN and OUT
• Power connection POI: 5 m cable with bare ends

Approvals

• ETL: UL Std. 1573 (pending)
• CE: yes
• RoHS: yes

Installation

• Orientation: any
• Mounting std.: 2 x quarter-turn locking points for omega brackets
• Mounting POI: 5 x 12 mm holes for fixed installation
• Tilt fixation POI: 2 x stainless steel M8 bolt + washer

Enviromental

• RoHS: compliant
• REACH: compliant
• WEEE: compliant

Accessories

• Uploader dongle

Physical dimensions

• 17 x 63.6 x 28.6 cm
• Weight: 17 kg
• Tilt range: 0 - ±120°
