Disponibile
MADRIX LUNA 8 è un nodo di rete affidabile e di facile utilizzo: un'interfaccia Art-Net Node / USB 2.0 DMX-512 con 8 x DMX-OUT, 1 x DMX-IN, per montaggio su rack da 19''.
Sviluppato e prodotto in Germania, MADRIX LUNA 8 distribuisce in modo affidabile i dati DMX-512 su lunghe o brevi distanze utilizzando la rete Ethernet o USB. La sua modalità di sincronizzazione assicura che gli effetti di luce appaiano al meglio sui LED.
Questo dispositivo converte i dati Art-Net dalla rete Ethernet a DMX-512. Qualsiasi progetto di piccole o grandi dimensioni trae grande vantaggio da una distribuzione affidabile dei dati e da un funzionamento efficiente. Le porte XLR (5-pin, femmina) distribuiscono lo stesso numero di universi DMX per unità. Una porta XLR (5-pin, maschio) può essere utilizzata per l'ingresso DMX. Usa semplicemente più unità contemporaneamente per progetti più grandi.
Il software e l'hardware MADRIX consentono di sincronizzare i dati Art-Net per tutte le porte di uscita e anche su più dispositivi per ottenere un'immagine ottimale sui LED senza interruzioni visive.
MADRIX LUNA 8 è conforme alle specifiche ufficiali Art-Net e può essere utilizzato come una normale unità Art-Net con altre console, controller o soluzioni software.
Il dispositivo è caratterizzato da un design senza ventola, silenzioso e a basso consumo energetico, una custodia in metallo resistente e prese Neutrik. 2 staffe premontate rendono possibile il montaggio a rack. 5 indicatori mostrano lo stato del dispositivo. Il dispositivo è pronto entro pochi secondi dall'avvio.
Il Merging in HTP è automaticamente disponibile per due sorgenti Art-Net. Il suo firmware è aggiornabile per futuri upgrade. Accedi e modifica le impostazioni specifiche del dispositivo utilizzando la pagina di configurazione web incorporata.
Art-Net Node / USB 2.0 DMX-512 interface, 8 x DMX-OUT, 1 x DMX-IN, 19", power cord EU or US
The MADRIX LUNA 8 reliably distributes DMX-512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.
Art-Net node
This device converts Art-Net data from Ethernet network to DMX-512. Any small or large project greatly benefits from dependable data distribution and efficient operation.
8 DMX-OUT + 1 DMX-IN

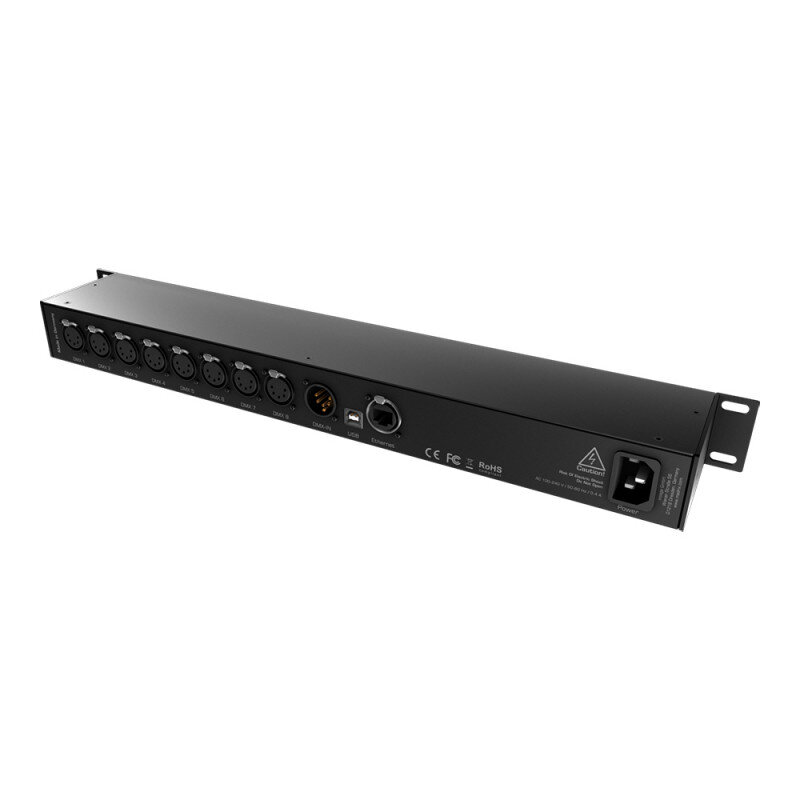

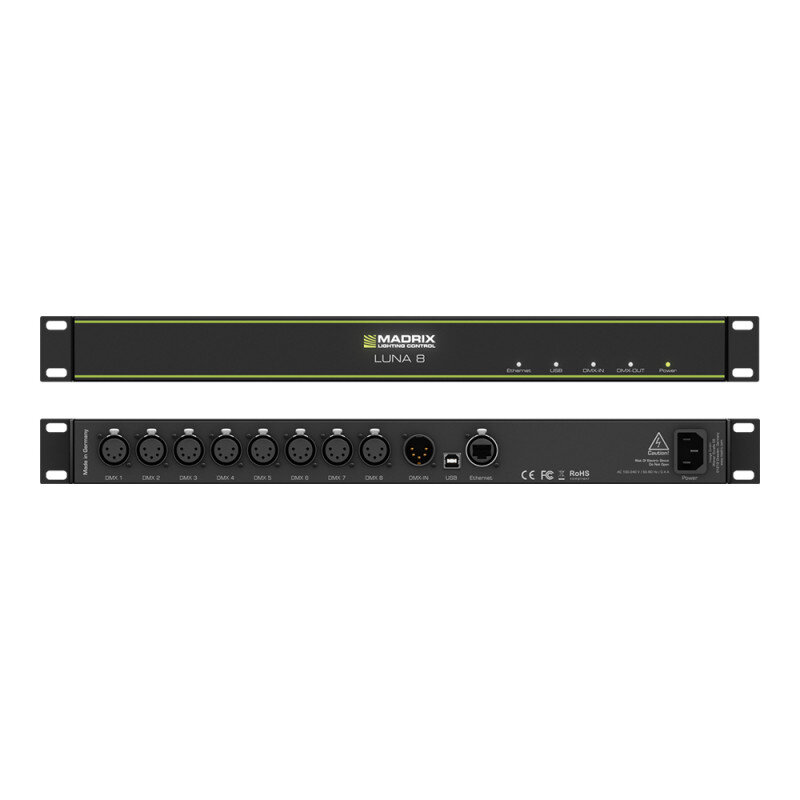

8 XLR ports (5-pin, female) distribute the equal number of DMX universes per unit. 1 XLR port (5-pin, male) can be used for DMX input. Simply use several units at the same time for larger projects.
MADRIX DMX-512 USB interface
Alternatively, you can choose to connect the unit as a Plug & Play solution to your computer and the MADRIX software using any USB 2.0 port.
Sync mode
MADRIX software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions.
Easy configuration
MADRIX LUNA 8 offers powerful features, especially in combination with MADRIX software. Take full advantage of pixel mapping and voxel mapping. The installation of the device is still quick and easy.
3rd-party controllers
MADRIX LUNA 8 complies with the official Art-Net specifications and can be used as a regular Art-Net unit with your other consoles, controllers, or software solutions.
Quality design

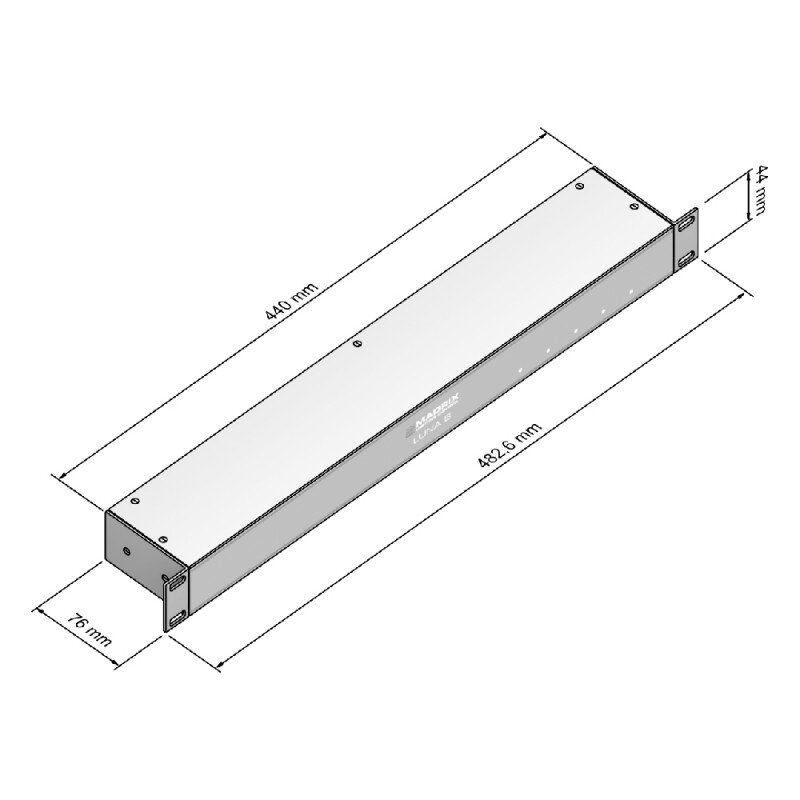

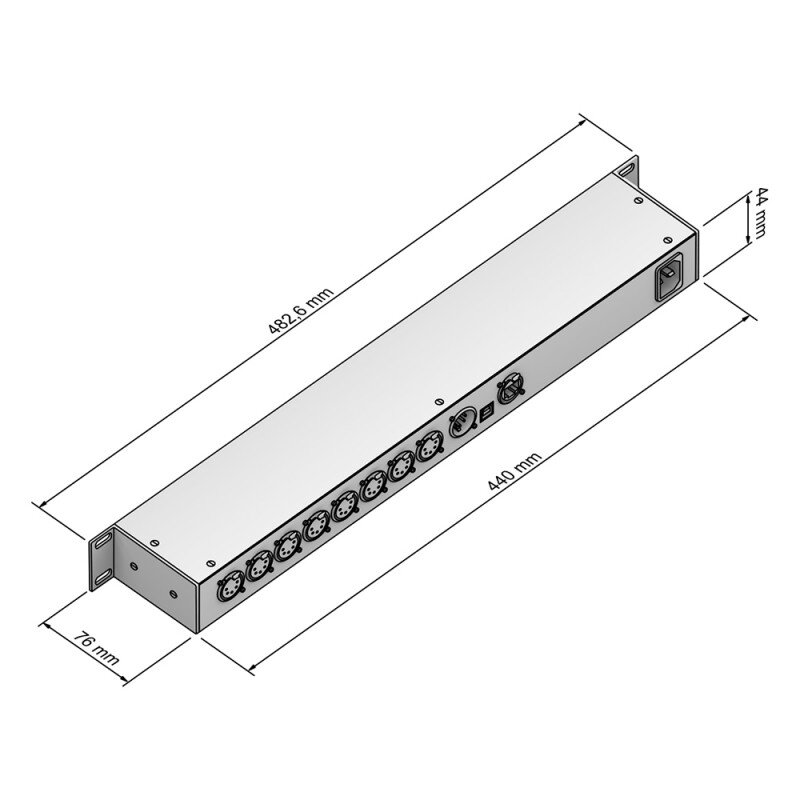

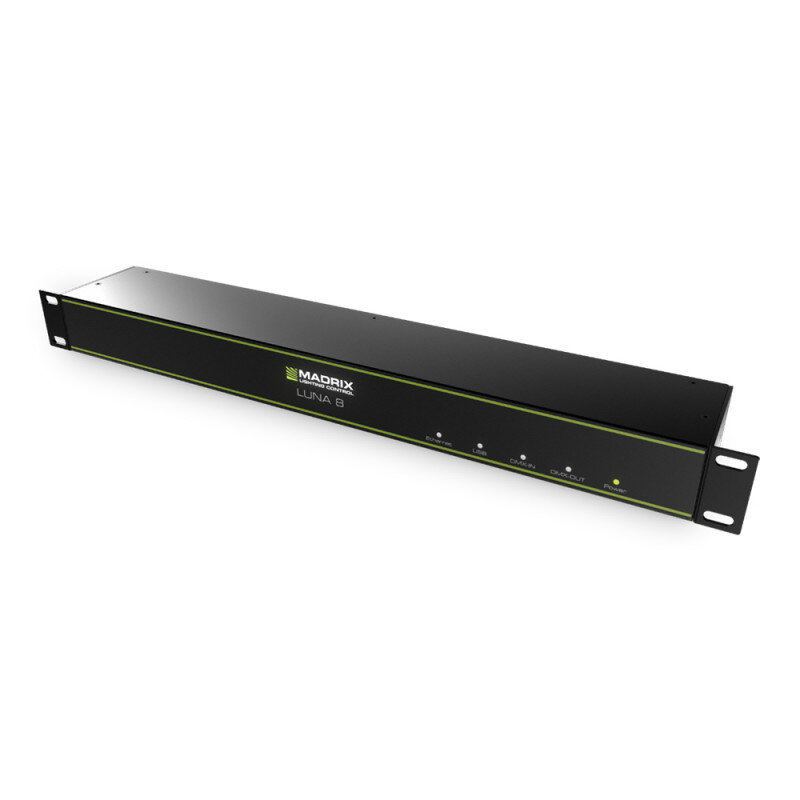

Device is built 19" x 1U. It features a fanless, noiseless, low-energy design, a durable metal case, and Neutrik plugs. 2 premounted brackets make rack mounting possible. 5 indicators quickly show the status of a device.
Invaluable features
The device is ready within seconds after startup. HTP Merging is automatically available for two Art-Net sources. Its firmware is upgradable for future enhancements. Access and change specific device settings using the built-in web configuration page.
Connectivity
