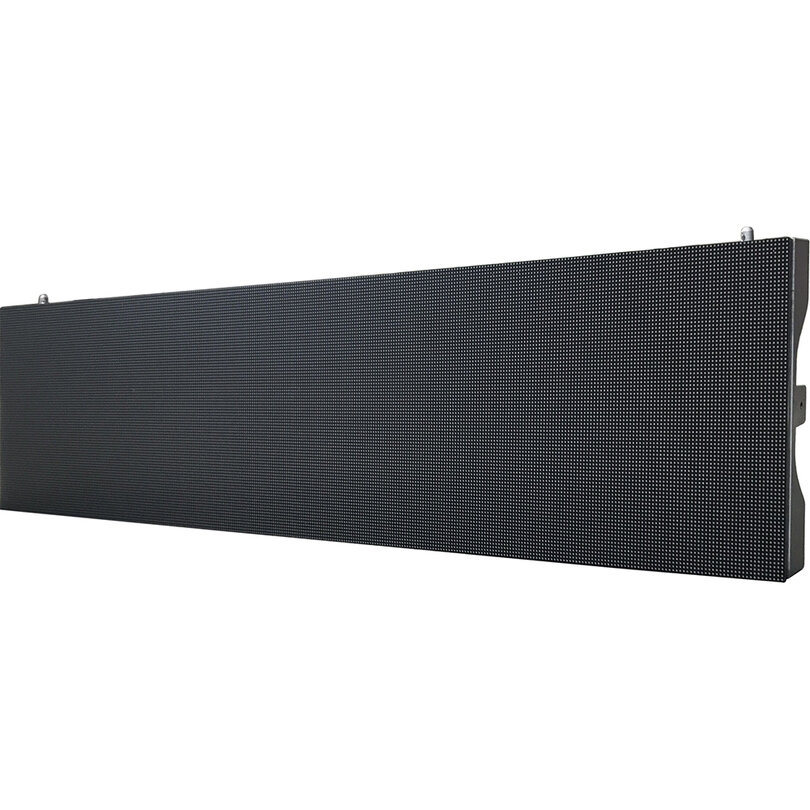

Display LED P2.5 con cabinet da 1000 x 250 mm, LED SMD1515 1R1G1B, IC CFD435A, per installazioni fisse indoor (1000 nit).

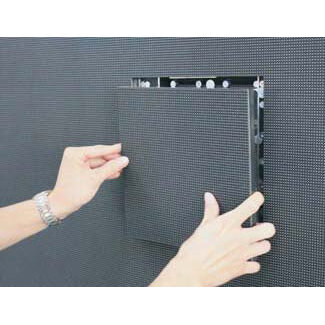

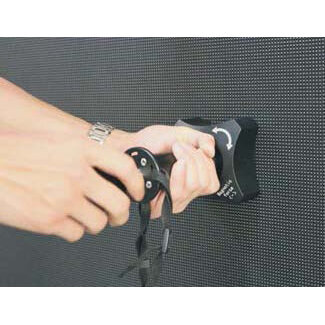

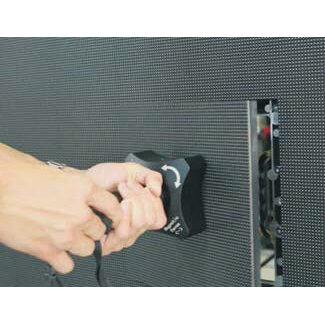

Il nuovo formato smart offre numerose possibilità di personalizzazione. Manutenzione frontale grazie ai moduli magnetici facilmente estraibili apposito estrattore a vuoto.
Vantaggi per gli utenti
Ambiti di utilizzo
Technical characteristics
| Pixel pitch | 2.5 mm |
| IC | CFD435A |
| LED type | SMD1515 |
| LED Configuration | 1R1G1B |
| Cabinet resolution | 400 x 100 pixel |
| Physical density | 160,000 pixel/m2 |
| Brightness | ≥ 1000 cd/m2 |
| Scan method | 1/25 |
| Max. power consumption | 400 W/pc |
|
Ave power consumption |
140 W/pc |
| Refresh rate | ≤ 3840 Hz |
| Control mode | synchronous display with control PC by DVI |
| IP rating | IP40/IP21 indoor |
| Dimension | 1000 x 250 mm |
| Cabinet weight | 5.8 kg/pc |
