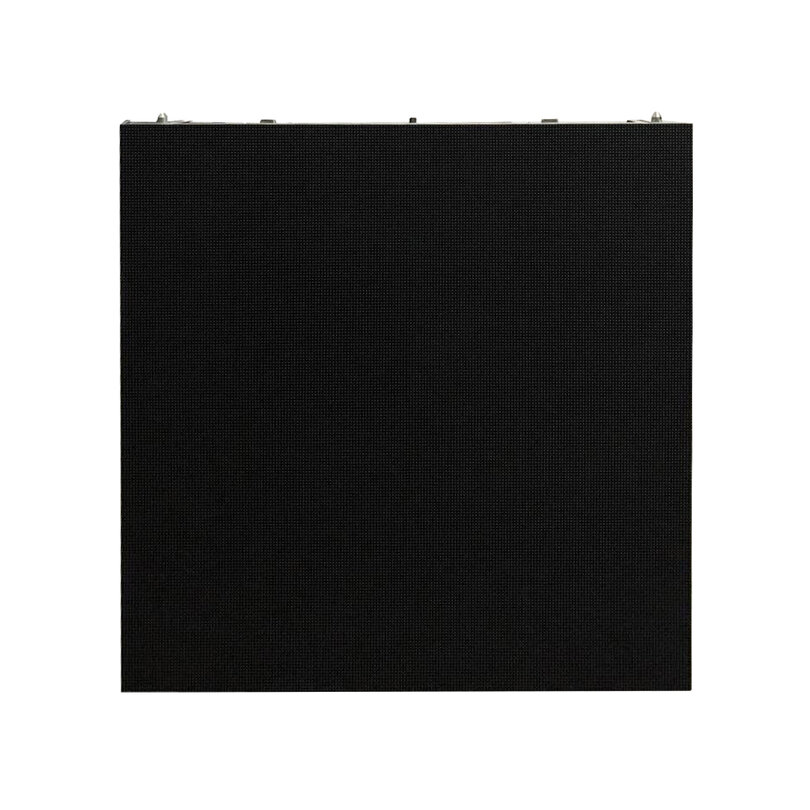

Display LED P2,6 rental da 500 x 500 mm, LED SMD1010 1R1G1B, IC MBI5124, per utilizzo indoor (1000 nit).

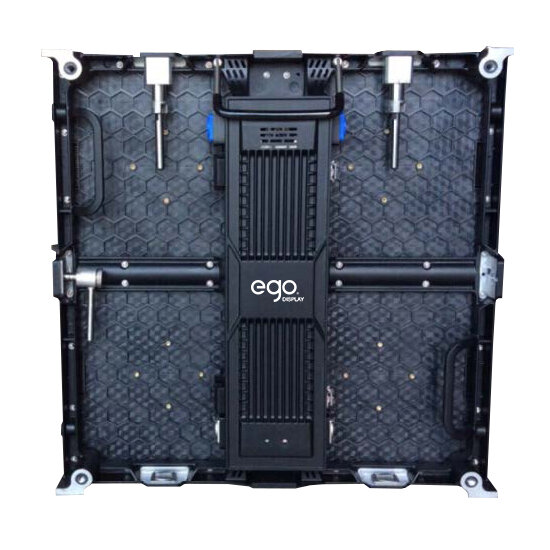

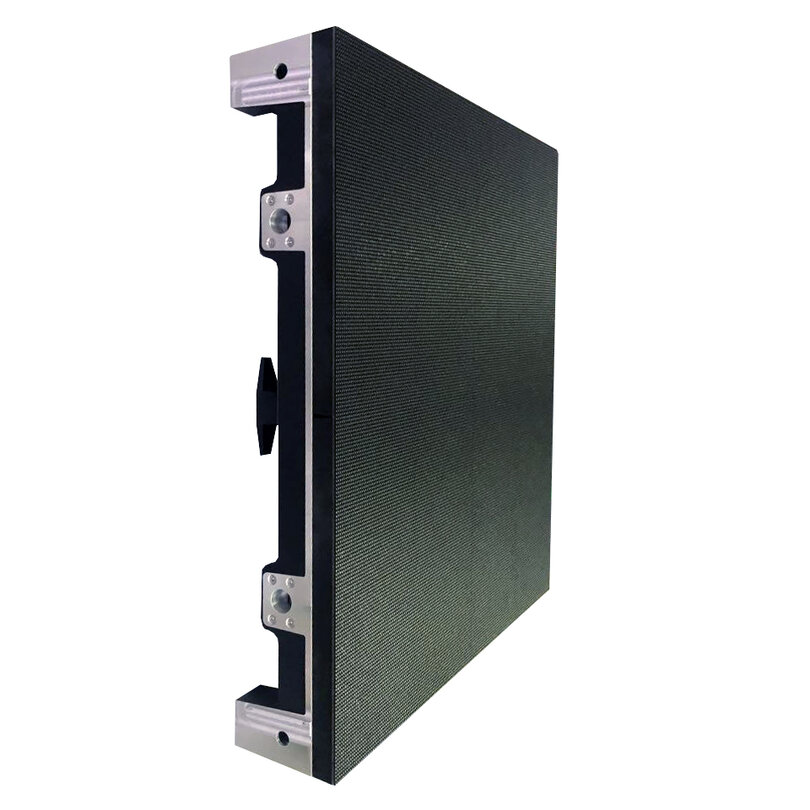

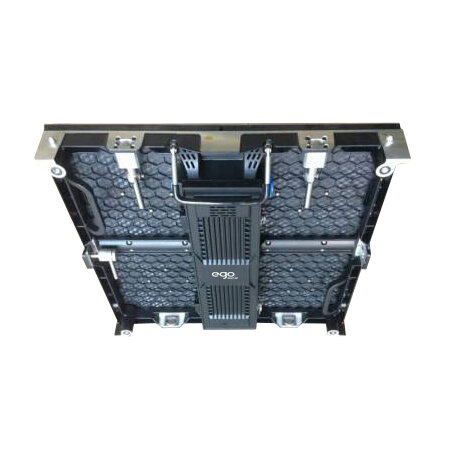

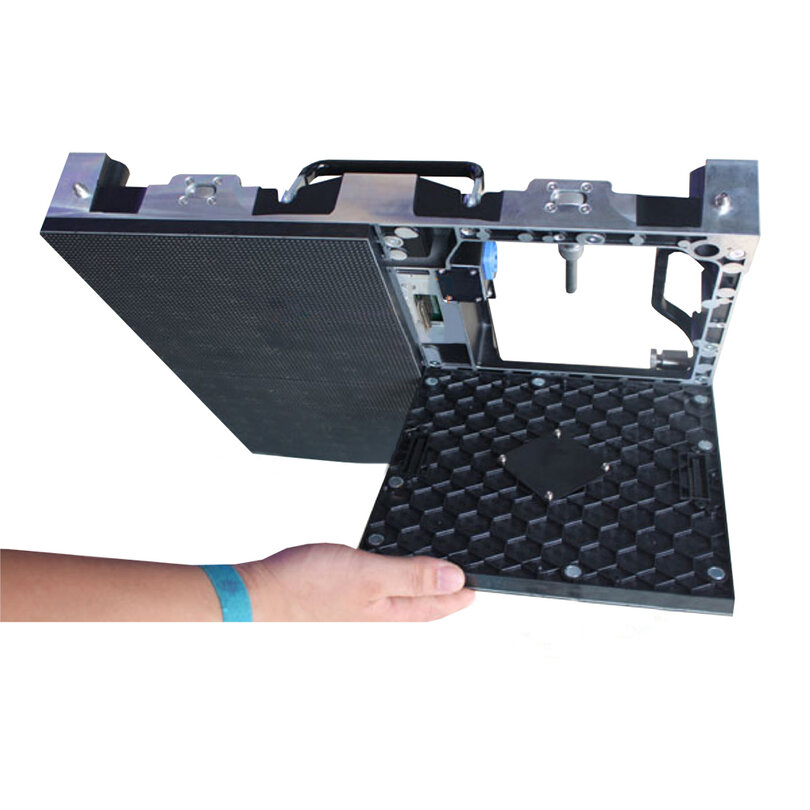

Il cabinet adotta perni per un allineamento preciso, una maniglia integrata per un trasporto facile e sicuro e il modulo LED è a fissaggio magnetico. Manutenzione frontale.
Ambiti di utilizzo
Technical characteristics

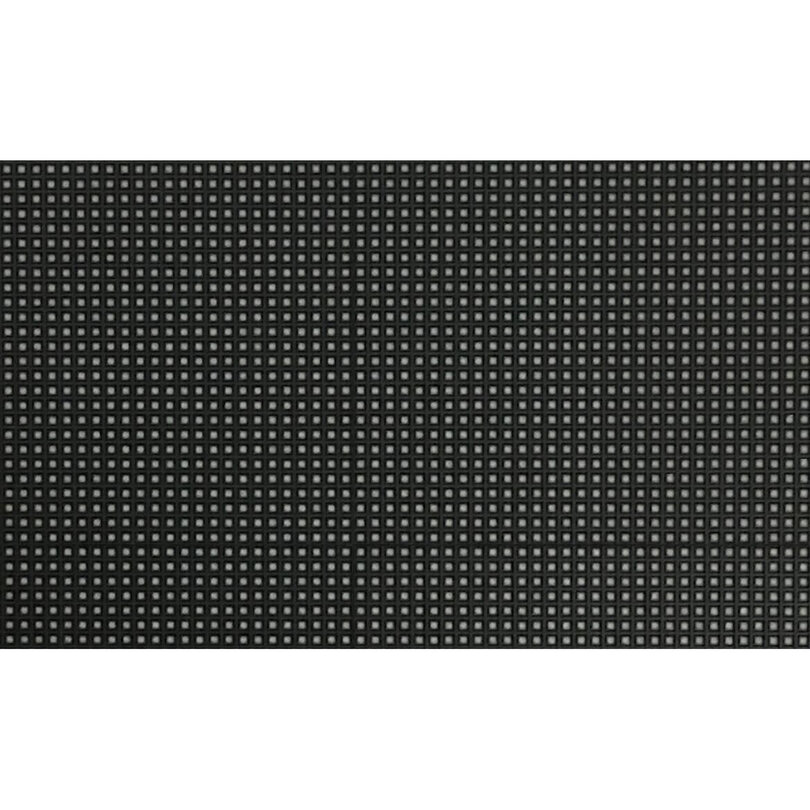

| Pixel pitch | 2.6 mm |
| IC | MBI5124 |
| Dimension | 500 x 500 mm |
| LED type | SMD1010 |
| LED configuration | 1R1G1B |
| Panel resolution | 192 x 192 pixel |
| Physical density | 147,456 pixel/m2 |
| Brightness | ≥ 1000 cd/m2 |
| Scan method | 1/32 |
| Max. power consumption | 300 W/panel |
| Ave. power consumption | 100 W/panel |
| Weight | 8 kg/panel |
| Refresh rate | ≤ 3000 Hz |
| Contrast | ≥ 2000:1 |
| Control mode | synchronous display with control PC by DVI |
| Protection level | IP40 / IP21, indoor |
