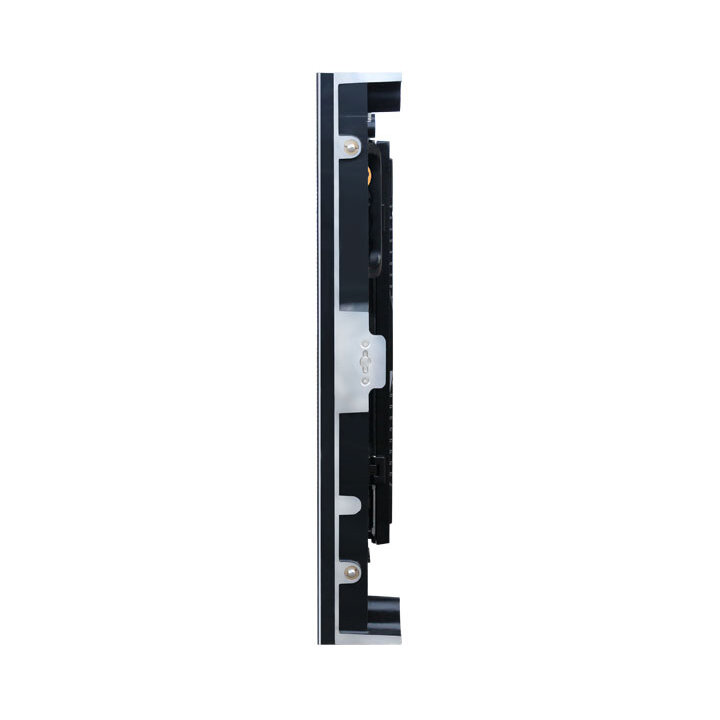

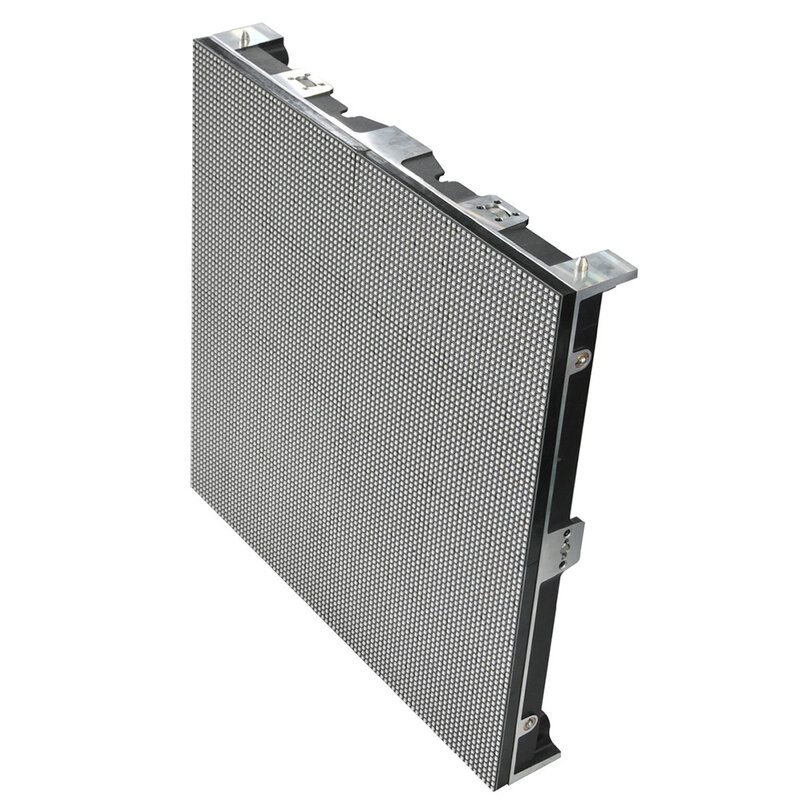

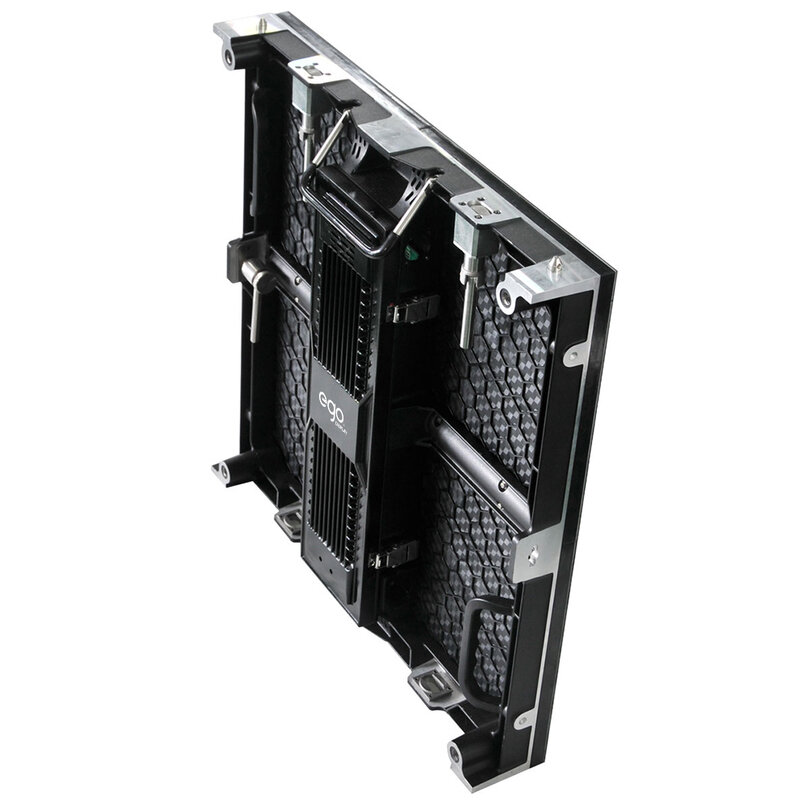

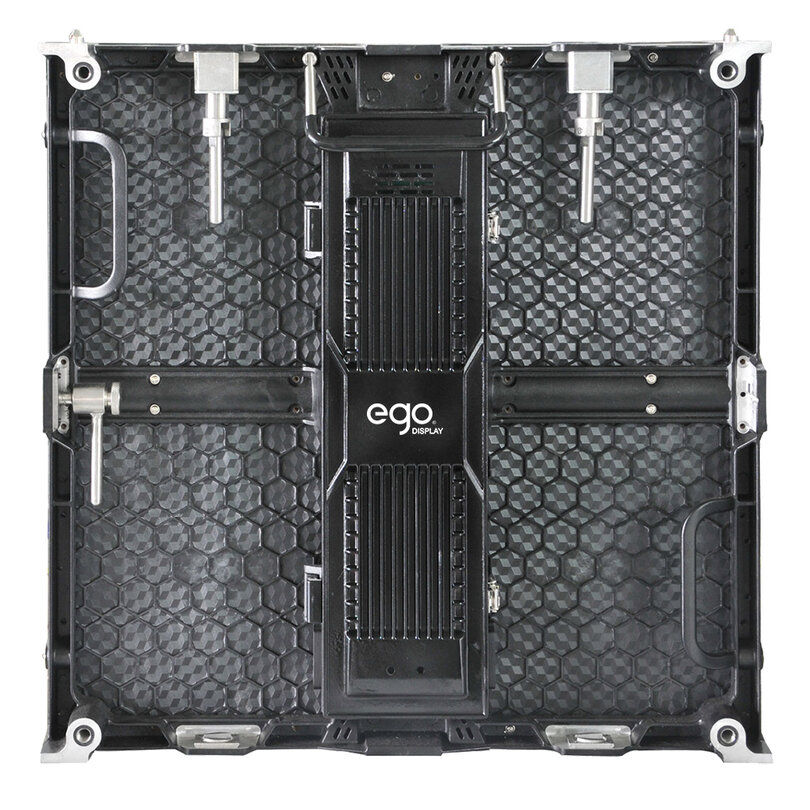

Display LED P3.91 rental da 500 x 500 mm, LED SMD1921 NationStar 1R1G1B, IC CFD435A, per utilizzo outdoor (≥ 5000 nit).
Il cabinet è caratterizzato da una struttura in alluminio pressofuso robusta e impermeabile e dispone di blocco di sicurezza rapido. L’elevata frequenza di aggiornamento di 3840 Hz garantisce un’ottima esperienza visiva.
Certificato IP65/IP54, può essere utilizzato in esterni per concerti, eventi vari, fiere, broadcasting, discoteche, pubblicità e digital signage in generale.
Technical characteristics
| IC | CFD435A |
| Pixel pitch | 3.91 mm |
| LED shape | SMD1921 NationStar |
| LED configuration | 1R1G1B |
| Minimum view distance | 4 m |
| Cabinet resolution | 128 x 128 pixel |
| Physical density | 65,536 pixel/m2 |
| Viewing angle (H/V) | 140° / 140° |
| Brightness | ≥ 5000 cd/m2 |
| Contrast | ≥ 2000:1 |
| Gray scale | 12 bits / 4096 level |
| Scan method | 1/16 |
| Color capacity | 1.67 billion |
| Max. power consumption | 800 W/m2 |
| Ave. power consumption | 200 - 300 W/m2 |
| Refresh rate | ≥ 3840 Hz |
| Power supply | G-energy |
| Input voltage | 110 - 220 VAC 50/60 Hz |
| Working temperature | -20 to 50 °C |
| Operating humidity | 10 - 90% RH |
| Maintenance | back service |
| Life span | 100,000 h |
| Protection level | IP65/54, outdoor |
| Dimension | 500 x 500 mm |
| Weight | 8.5 kg/panel |
EGO Display
EGO CASE - Flight case without spare parts area
EGO Display
WOODBOX - Wooden case
EGO Display
HANGING500 - Hanging beam (metal, 500 mm)
EGO Display
P3.91 outdoor LED display ext - Outdoor, IC CFD435A, SMD1921, ≥4500 nit, ≤3840 Hz, 500 x 1000 mm, 14 kg
EGO Display
P4.81 outdoor LED display - Outdoor, IC MBI5124, SMD1921, ≥5500 nit, ≤1920 Hz, 500 x 500 mm, 8.5 kg
EGO Display
P4.81 outdoor LED display ext - Outdoor, IC CFD435A, SMD1921, ≥5500 nit, ≤3840 Hz, 500 x 1000 mm, 14 kg
EGO Display
P5.95 outdoor LED display - Outdoor, IC MBI5124, SMD2727, ≥5500 nit, ≤1920 Hz, 500 x 500 mm, 8.5 kg
EGO Display
P5.95 outdoor LED display ext - Outdoor, IC MBI5124, SMD2727, ≥5500 nit, ≤1920 Hz, 500 x 1000 mm, 14 kg
EGO Display

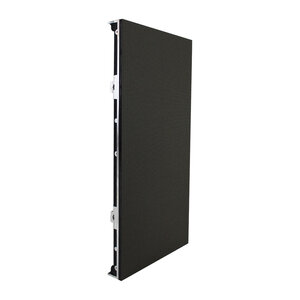

P2.97 outdoor LED display - Outdoor, IC CS2033, SMD1415, ≥4500 nit, ≤3840 Hz, 500 x 500 mm, 8.5 kg
EGO Display

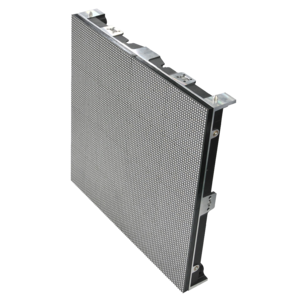

P2.6 outdoor LED display - Outdoor, IC MBI5124, SMD1415, ≥4200 nit, ≤1920 Hz, 500 x 500 mm, 8.5 kg
