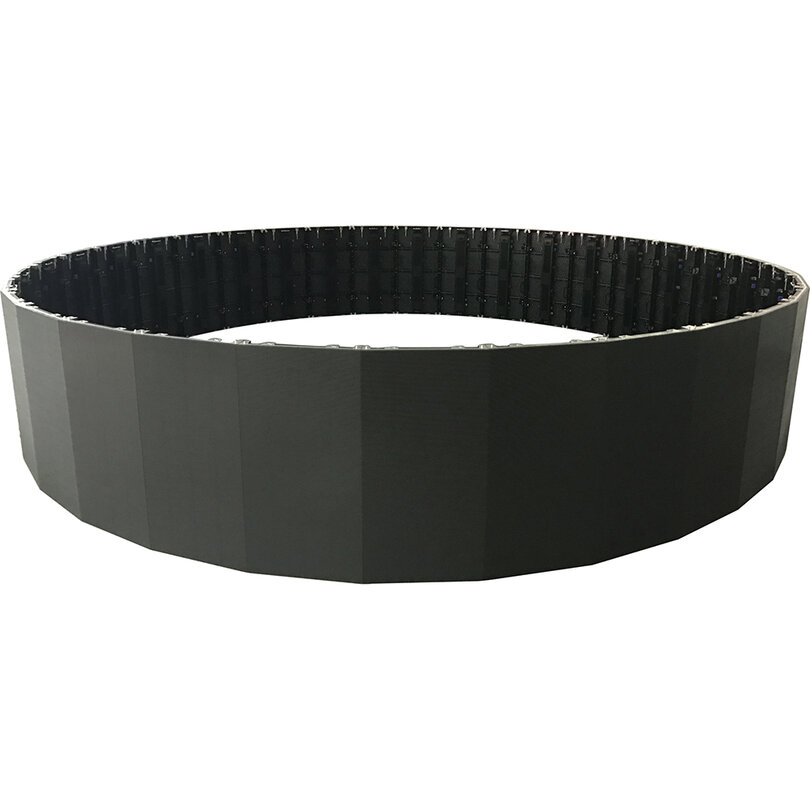

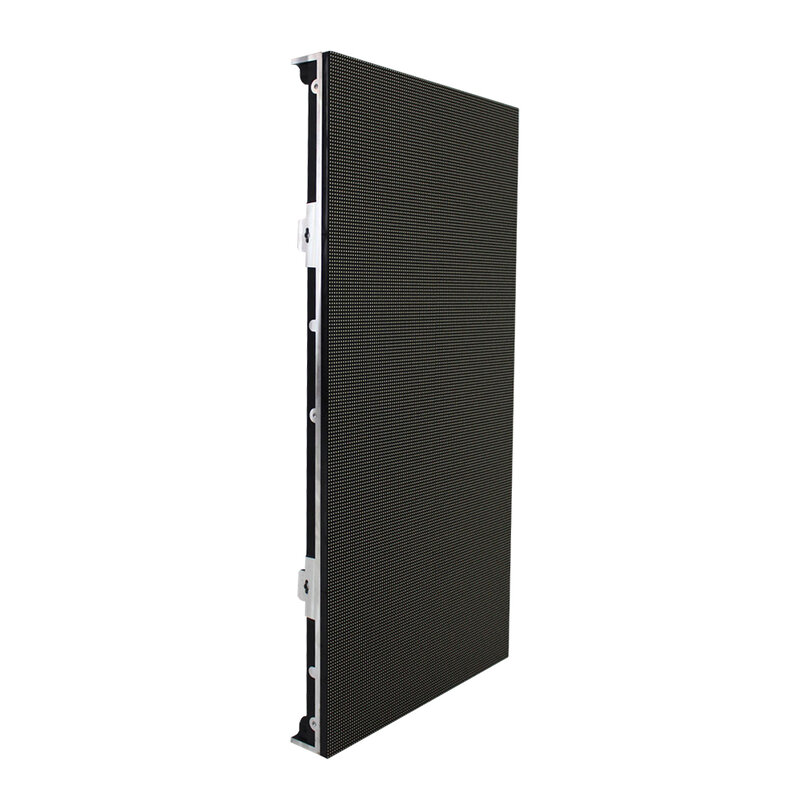

Display LED P3.91 rental con connettori sagomati per la realizzazione di LED wall curvi (±10°), 500 x 1000 mm, LED SMD1921 NationStar, IC CFD435A, per utilizzo outdoor (≥ 5000 nit).

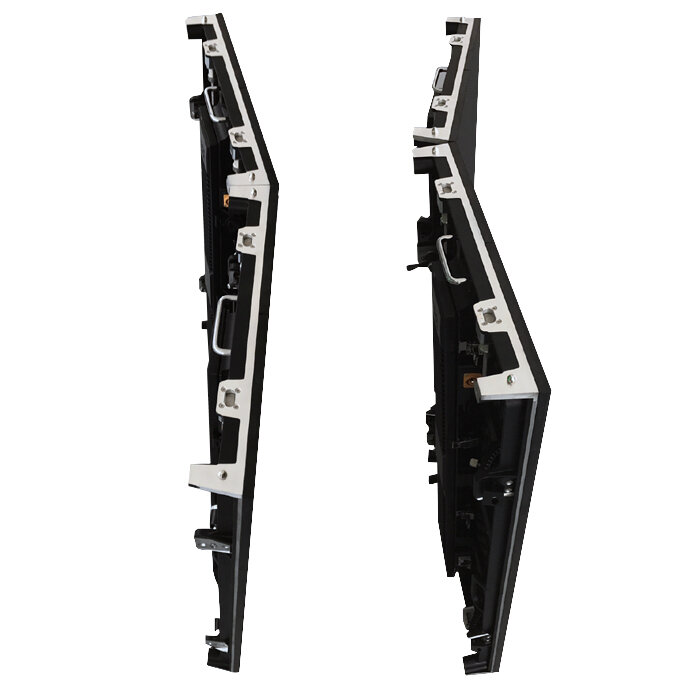

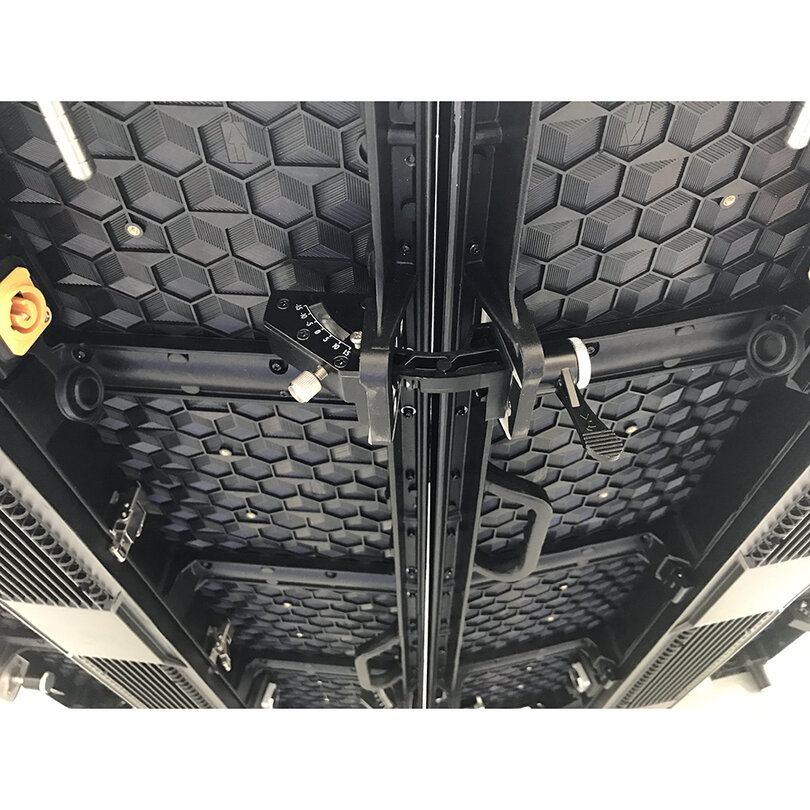

Il cabinet adotta un meccanismo di regolazione continua e precisa, un connettore sagomato per la configurazione curva e un blocco di sicurezza rapido.
Certificato IP65/IP54, può essere utilizzato in esterni per concerti, eventi vari, fiere, broadcasting, discoteche, scenografie e pubblicità.
Technical characteristics
| IC | CFD435A |
| Pixel pitch | 3.91 mm |
| LED shape | SMD1921 NationStar |
| LED configuration | 1R1G1B |
| Minimum view distance | 5 m |
| Curved angle | +15°, -10° |
| Panel resolution | 128 x 256 pixel |
| Physical density | 65,536 pixel/m2 |
| Viewing angle (H/V) | 140° / 140° |
| Brightness | ≥ 5000 cd/m2 |
| Contrast | ≥ 2000:1 |
| Gray scale | 12 bits / 4096 level |
| Scan method | 1/16 |
| Color capacity | 1.67 billion |
| Max. power consumption | 800 W/m2 |
| Ave. power consumption | 200 - 300 W/m2 |
| Refresh rate | ≥ 3840 Hz |
| Control mode | synchronous display with control PC by DVI |
| Power supply | G-energy |
| Input voltage | 110 - 220 VAC 50/60 Hz |
| Working temperature | -20 to 50 °C |
| Operating humidity | 10 - 90% RH |

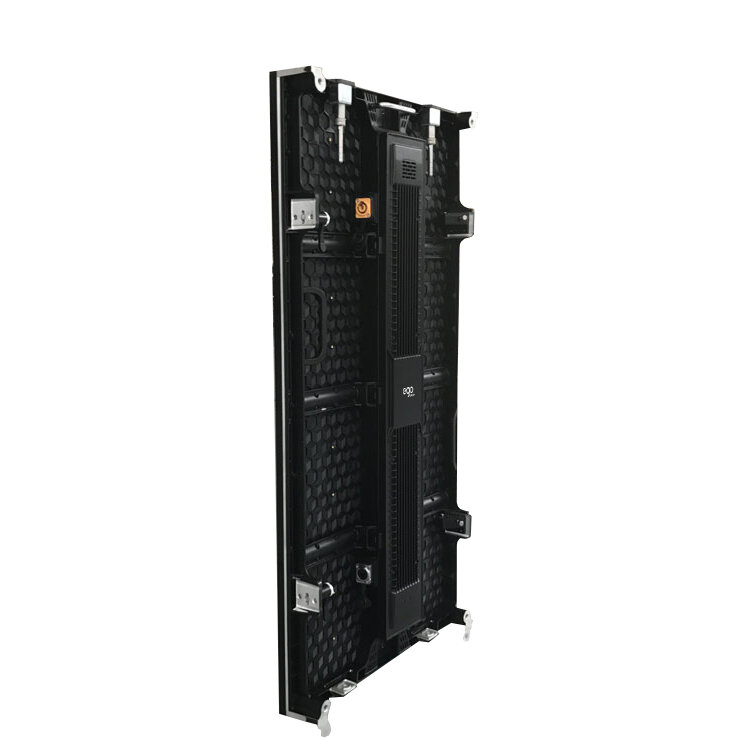

| Maintenance | back service |
| Life span | 100,000 h |
| Protection level | IP65/54, outdoor |
| Dimension | 500 x 1000 mm |
| Weight | 14 kg/panel |
