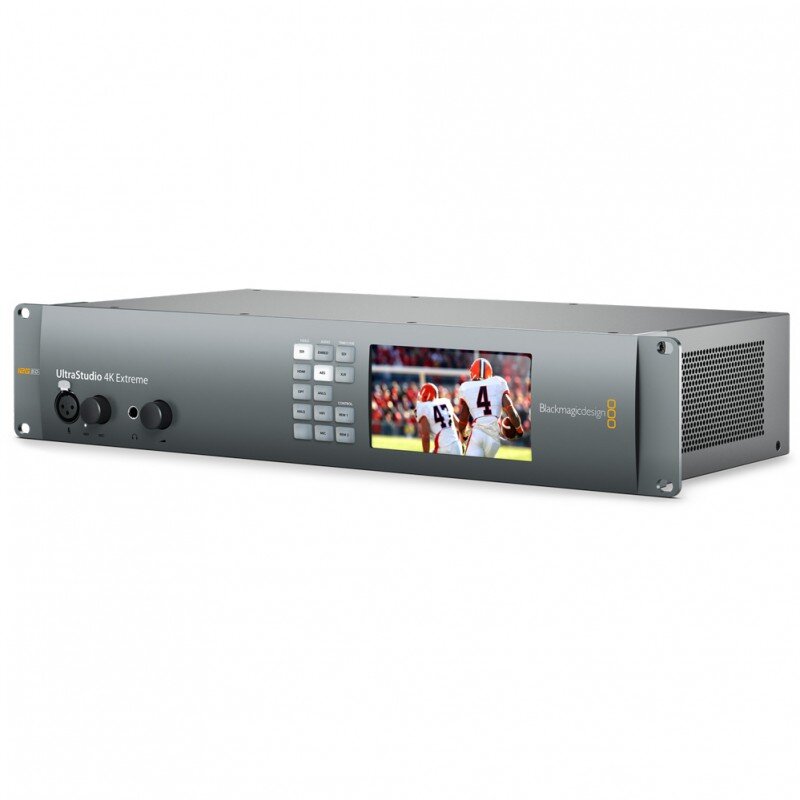

UltraStudio 4K Extreme 3 - Incredibly powerful capture and playback box. Includes 12G‑SDI, HDMI, YUV/composite video, audio

Incredibly powerful capture and playback box. Includes 12G‑SDI, HDMI, YUV/composite video, audio

La soluzione di acquisizione e riproduzione più avanzata al mondo per computer con PCI Express e Thunderbolt. UltraStudio 4K Extreme 3 dispone di Thunderbolt 3 a 40Gb/s incredibilmente veloce, connessioni avanzate 12G-SDI e HDMI 2.0 per lavorare fino a 60fps con colori profondi, RGB a 12bit, supporto per flussi di lavoro HDR tramite HDMI 2.0a e dimensioni dei frame 4K estremamente grandi. La più ampia gamma di connessioni analogiche e digitali rende UltraStudio 4K Extreme 3 compatibile praticamente con qualsiasi telecamera, deck, router o display. Inoltre, è supportata la codifica H.265 in tempo reale, grazie al suo encoder hardware integrato estremamente potente.

• Acquisizione e riproduzione Thunderbolt 3 in un design per rack.
• Connessioni 12G-SDI, HDMI, analogiche.
• Ideale per montaggio e correzione colore professionali.
• SD, HD e Ultra HD fino al 2160p60.
• 4:2:2 e 4:4:4, acquisizione e riproduzione 3D dual stream.

Connections

SDI Video Inputs 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/ 4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI Video Outputs 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/ 4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI Rates 270Mb, 1.5G, 3G, 6G, 12G.

Optical SDI Supports 2 optional SMPTE modules.

SDI Video Loop 4 x reclocked SD/HD/2K/4K linked to corresponding inputs.

SDI Video Repeated Outputs 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/ 4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

Analog Video Inputs 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.

Analog Video Outputs 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.

Analog Audio Inputs 4 CHannels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.

Analog Audio Outputs 4 CHannels of professional balanced analog audio via XLR connectors.

Optical Fiber Inputs/Outputs (Optional) 2 x 12Gb/s Optical Fiber.

AES/EBU Audio Inputs 2 Channels unbalanced with sample rate converter on BNC connector.

AES/EBU Audio Outputs 2 Channels unbalanced on BNC connector.

SDI Audio Inputs 16 Channels embedded in SD/HD/2K/ 4K.

SDI Audio Outputs 16 Channels embedded in SD/HD/2K/ 4K.

HDMI Video Inputs HDMI 2.0 type A connector with support for 2160p60

HDMI Video Outputs HDMI 2.0 type A connector with support for 2160p60

HDMI Audio Inputs 8 Channels embedded in SD/HD/4K.

HDMI Audio Outputs 8 Channels embedded in SD/HD/4K.

Mic Input 1 x 48V microphone input via XLR connector. Phantom Power switchable via software control.

Time Code Input 1 x XLR Input.

Time Code Output 1 x XLR Output.

Sync Input 1 x Reference input. Tri-Sync or Black Burst.

Sync Output 1 x Reference Loop Output. Tri-Sync or Black Burst.

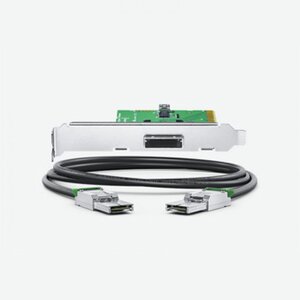

Computer Interface ThunderboltTM 3 (Mac OS and Windows), PCI Express 4 lane generation 2.

Power 2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60 Hz.

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8?bit 4:2:2, Uncompressed 10?bit 4:2:2, Uncompressed 10?bit 4:4:4.

Software

Software Included DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
