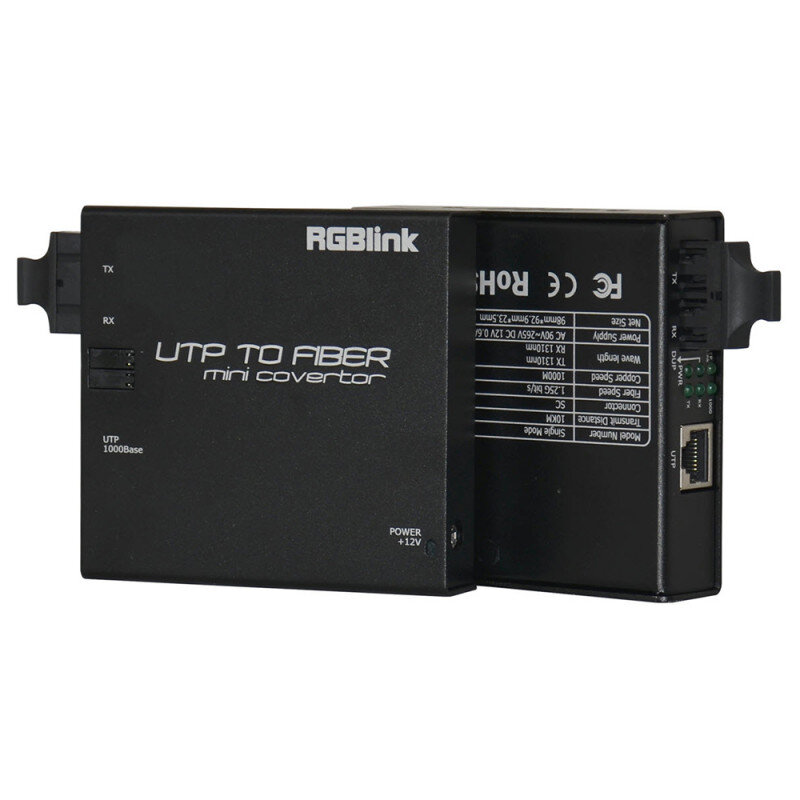

Set di extender ethernet su fibra multimodale. MSP209M è pienamente conforme a IEEE802.3ab 1000Base-T e IEEE802.3z 1000Base-LX, supportando il Gigabit Ethernet. MSP209M viene fornito "pronto all'uso". Supporto multimodale fino a 1Km con 2 cavi multimodali.
• Single mode fiber and CAT5 converter. 2 pieces for 1 set
• Auto-adaptation rate and full/half-duplex mode supported at network port
• Auto MDI/MDIX supported without need of cable selection
• Up to 6 LEDs for status indication of optical power port and UTP port
• External and built-in DC power supplies provided
• Conflicting frames detection in half-duplex and flow control in full duplex supported
• All-in-one Transmitter and Receiver
Connectors:
Network Port: RJ45
Fiber: SC
Performance:
Transmission Rate:
• Network Ports: 10/100/1000Mbps
• Fiber 1000Mbps
Transmission Range:
• Single-Mode: 10 KM/20 KM
• Multi-Mode: 550M
Wavelength:
• Single-Mode: 1310nm
• Multi-Mode: 850nm
Receiving Sensitivity
• Single-Mode: ≤-24dBm
• Multi-Mode: ≤-19dBm
Supported Standards:
• IEEE 802.3Z/AB
• 1000Base-T/SX/LX/ZX
Power:
Input voltage: AC 220 V | DC + 12 V
Environment:
Temperature: 0℃～50℃
Storage Temperature: -20% ~ 70%
Humidity: 5% ～ 90%
Physical:
Weight: Net 0.18 kg, Packaged 0.18 kg
Dimension: Net 108 mm x 93 mm x 24mm, Packaged 170 mm x 120 mm x 80 mm
