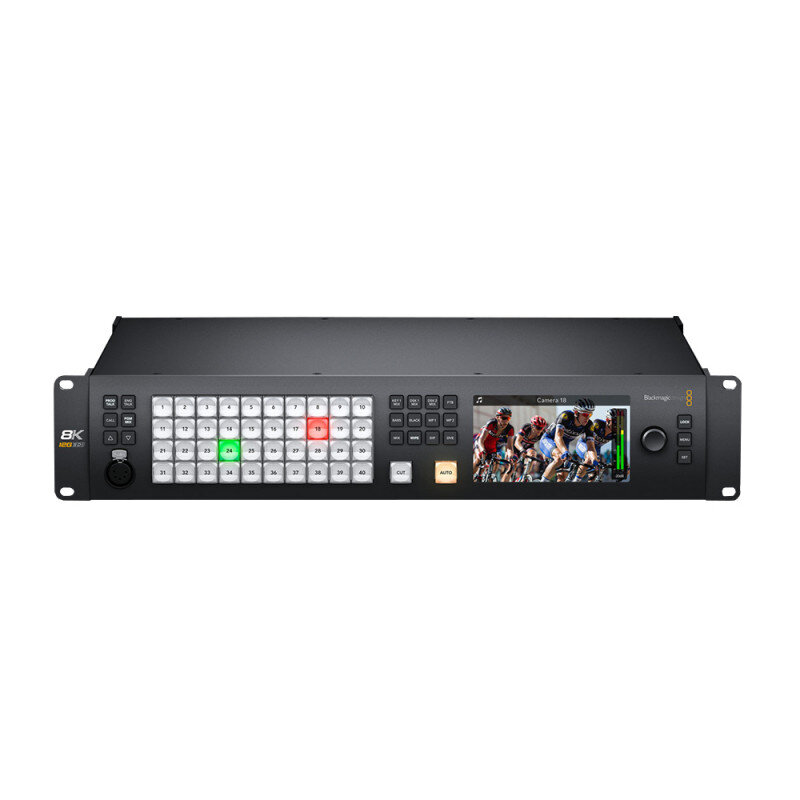

8K live production switcher with DVE, SuperSource, Chroma Keys and 8K multiviewers
ATEM Constellation 8K è uno switcher 4 M/E di produzione live Ultra HD incredibilmente potente di Blackmagic Design.
Include 40 ingressi 12G-SDI, 24 uscite ausiliarie 12G-SDI, 4 DVE, 16 ATEM Advanced Chroma Keyers, 4 media player, 4 multi viewer Ultra HD indipendenti, 2 processori SuperSource e persino la conversione degli standard su tutti gli ingressi.
Quando si passa a lavorare in 8K, è possibile combinare tutte queste caratteristiche e ottenere un potente switcher 8K nativo. Inoltre, dispone di talkback integrato e persino un mixer audio Fairlight professionale a 156 canali con EQ e dinamica.
Caratteristiche principali
- 40 ingressi 12G-SDI multi-rate con conversione up / cross
- 24 uscite 12G-SDI indipenenti e assegnabili
- Ideale per programmi ed eventi multi-camera live su larga scala
- 40 sorgenti fino a 2160p 59.94 o 10 sorgenti 4320p 59.94 8K
- Transizioni 8K, DVE, grafica, talkback, audio Fairlight
Technical characteristics
Connections
- Total video inputs: 40 x up to Ultra HD / 10 x in 8K
- Total video outputs: 28 x up to Ultra HD / 7 x in 8K
- Total aux outputs: 24 x up to Ultra HD / 6 x in 8K
- SDI rates: 1.5G, 3G, 6G, 12G
- Total audio inputs: 2 x balanced 1/4" jack, 1 x 32 stereo channel BNC MADI IN
- Total audio outputs: 2 x balanced 1/4" jack, 2 x 32 stereo channel BNC MADI OUT
- Time Code connections: none
- Reference input: Tri-Sync or Black Burst
- Video input re-Sync: on all 40 inputs
- Frame rate and format converters: on all 40 inputs
- SDI video inputs: 40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable
- Extra audio outputs: 1 x 5-pin XLR Talkback
- SDI audio outputs: 16 CH embedded into SDI output on all outputs
- Extra audio inputs: 1 x 5-pin XLR Talkback
- SDI program outputs: any of the 24 SDI outputs
- Down converted SDI program output: none
- SDI preview outputs: any of the 24 SDI outputs
- Total multi views: 4 x up to Ultra HD / 1 x in 8K
- SDI multi view outputs: 4
- HDMI multi view outputs: none
- Remote: RJ12 supports RS-422
- Control panel connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
- Internal Time Code generator: yes
- Talkback: RJ45 for 3rd party talkback systems
- Tally output: added via Ethernet connection to Blackmagic Design GPI and Tally interface product (not included)
- Computer interface: 1 x USB 2.0 port
Standards
- SD video standards: none
- HD video standards: 720p 50, 720p 59.94, 720p 60; 1080i 50, 1080i 59.94, 1080i 60; 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 50, 1080p 59.94, 1080p 60
- Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 50, 2160p 59.94, 2160p 60
- 8K video standards: 4320p 23.98, 4320p 24, 4320p 25, 4320p 29.97, 4320p 50, 4320p 59.94, 4320p 60
- SDI compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12
- Video sampling: 4:2:2
- Color precision: 10-bit
- Color space: REC 709, REC 2020
- SDI auto switching: automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode
Product specifics
- Upstream keyers: 16 x up to Ultra HD / 4 x in 8K with Chroma / Linear / Luma key
- Downstream keyers: 4 x up to Ultra HD / 2 x in 8K
- Advanced chroma keyers: 16 x up to Ultra HD / 4 x in 8K
- SuperSource: 2
- Talkback support: yes
- Mix Minus support: yes
- Linear / Luma keyers: 21 x up to Ultra HD / 7 x in 8K
- Transition keyer (Stinger /DVE): 4 Stinger, 4 DVE
- Total number of layers: 28 x up to Ultra HD / 7 x in 8K
- Pattern generators: 21 x up to Ultra HD / 9 x in 8K
- Color generators: 2
- DVE with 3D borders & drop shadow: 4 x up to Ultra HD / 1 x in 8K
- Control panel: front fascia emergency switching, software or optional hardware panel
- Routable windows: 64 x up to Ultra HD / 16 x in 8K
- Tally: red for program and green for preview indication
- Windows source labels: yes
Multi View Monitoring
- Multi view monitoring: 4 x 16 multi view pattern options for up to 64 total views
- Multi view video standard: select HD, Ultra HD or 8K
Media player
- Media players: 4 x up to Ultra HD / 1 x in 8K
- Channels: fill and key for each media player
- Media pool still image capacity: 64 x up to Ultra HD / 24 x in 8K with fill and key
- Media pool clip capacity: 4 x up to Ultra HD / 2 x in 8K with fill and key
- Media player clip length in 720 HD: 3200 frames
- Media player clip length in 1080 HD: 1600 frames
- Media player clip length in Ultra HD: 400 frames
- Media player clip length in 8K: 100 frames
- Media pool still image format: PNG, TGA, BMP, GIF, JPEG and TIFF
- Media pool video file format: TGA sequence
- Media pool audio file format: WAV, MP3 and AIFF
Display
- Interface: minimum monitor resolution of 1366 x 768
- Front panel: built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button
Processing
- Processing delay: < 7 lines in up to Ultra HD / in 10 lines in 8K
- Audio mixer: 156 channel mixer, selectable ON / OFF / audio-follow-video, level and peak metering, master gain control, 6 band parametric EQ, dynamics including expander, gate, compressor and Limiter
- Down conversion: none
Software
- Control panel included: ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit
- Software updates: using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility
- Configuration: set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis
Operating systems
- Mac 13.0 Ventura, Mac 14.0 Sonoma or later
- Windows 10 and 11
Power requirements
- Power supply: 2 x internal 100 - 240 VAC
- Power usage: 300 W
Environmental specifications
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 60 °C
- Relative humidity: 0 to 90% non-condensing
Physical specifications

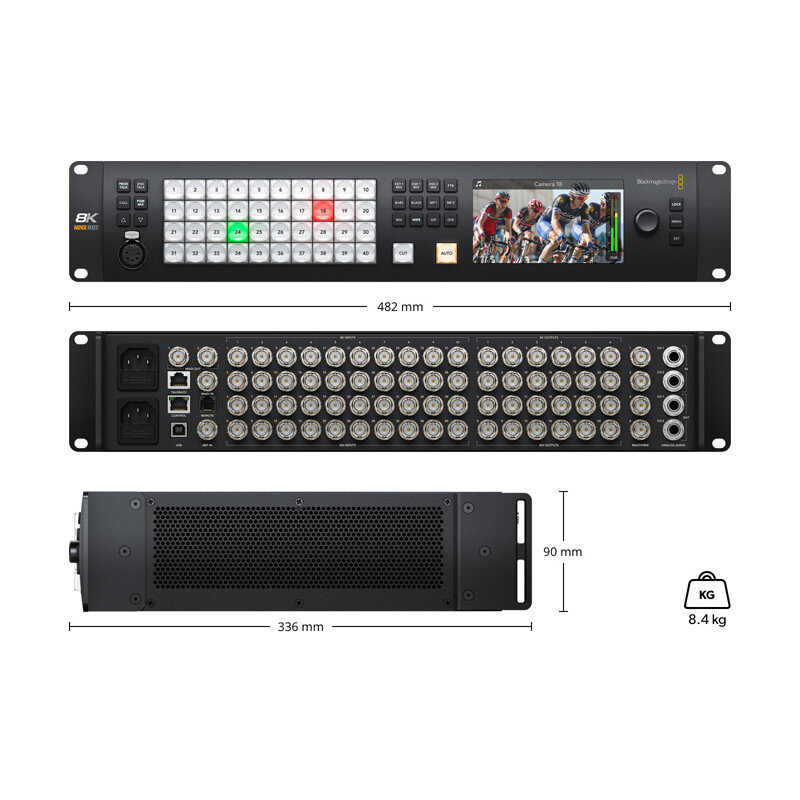

- Physical installation: 2U
- Dimensions: 48.2 x 9 x 33.6 cm
- Weight: 8.4 kg
What's in the box
- ATEM Constellation 8K
- Welcome wallet with QR code for software download
