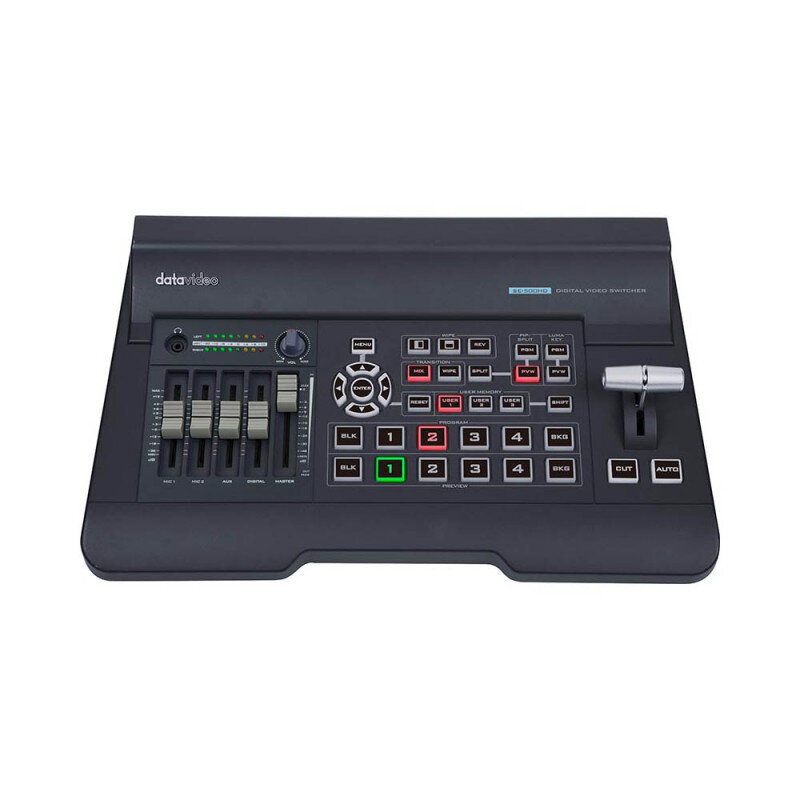

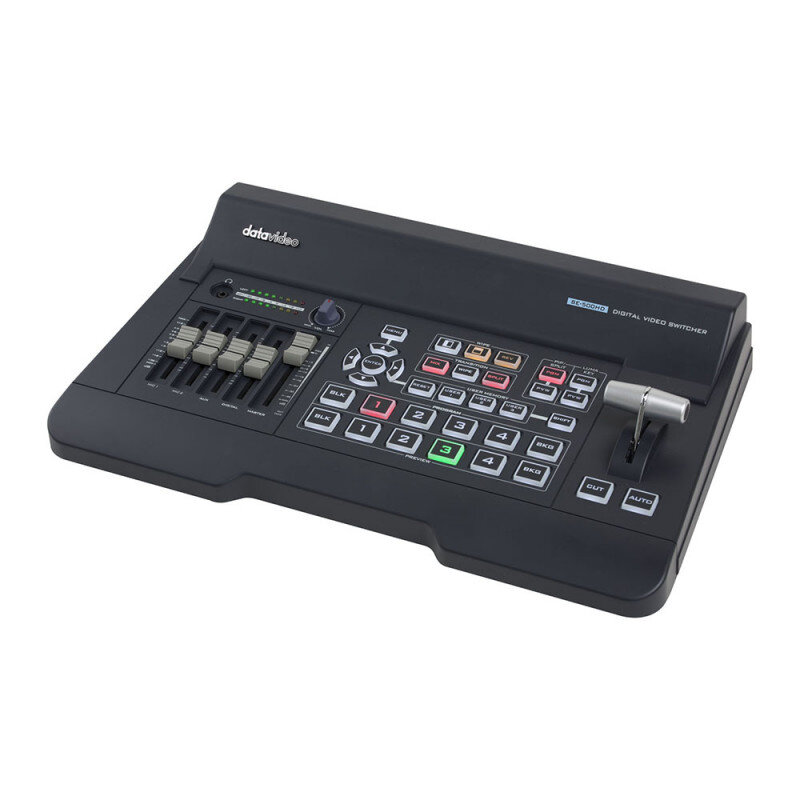

SE-500HD è un piccolo ed economico switcher video HD / SD con funzioni professionali e di facile utilizzo.
Offre 4 ingressi HDMI e 2 uscite HDMI, supporta formati video fino a Full HD 1080p, un mixer audio con microfono e ingressi audio RCA sbilanciati, uscite audio RCA e altre caratteristiche tra cui Luma keyer, PIP, WIPE generator e Tally.
Technical characteristics
| Video standards | Full HD & SD |
| Video formats | 1080p 50 / 59.94 / 60 Hz 1080i 50 / 59.94 / 60 Hz 720p 50 / 59.94 / 60 Hz 576i 50 Hz 480i 59.94 Hz |
| Video processing | HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 |

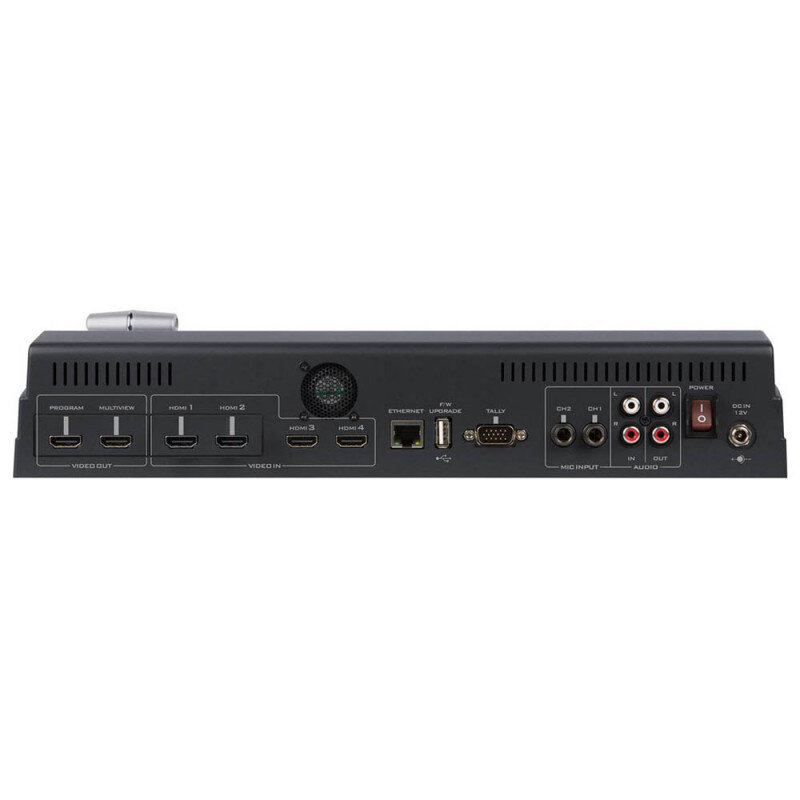

| Video input | 4 x HDMI |
| Mix. hd & sd source | yes |
| Computer graphic interface | 4 via HDMI |
| Video output | 2 x HDMI (1 is MV, 1 is PGM) |
| Down-converted output | yes |
| Built-in multi-view monitoring out | HDMI |
| Analogue audio input | 1 x stereo RCA (L/R) 2 x mono microphone |
| Analogue audio output | 1 x stereo RCA (L/R) 1 x stereo headphone (mini-jack with volume control) |
| Embedded audio support | input 2 channels, output 2 channels |
| A+V switching | yes |
| USK | lumakey |
| Picture in picture | 1 |
| Effects | FTB, cut, wipe with border |
| Sync / reference IN/OUT | Built-in genlock (internal) |
| Tally output | 1 x D-sub 15-pin, dual color |
| Built-in audio mixer | yes, 4 channels |
| Special features | built-in video scaler for mixed resolution inputs |
| Chassis | unibody |
| Power | 12 VDC 29 W |
| Operating temp. range | 0 - 40 °C |
| Options | CB-46 / 47 / 60 / 61 / 62 |
| What's in the box | 1 x SE-500HD product 1 x AD switch DC 12 V with AC cord 1 x thank you card |
| Dimension (L x W x H) | 40 x 25 x 8.2 cm |
| Weight | 1.7 kg |
