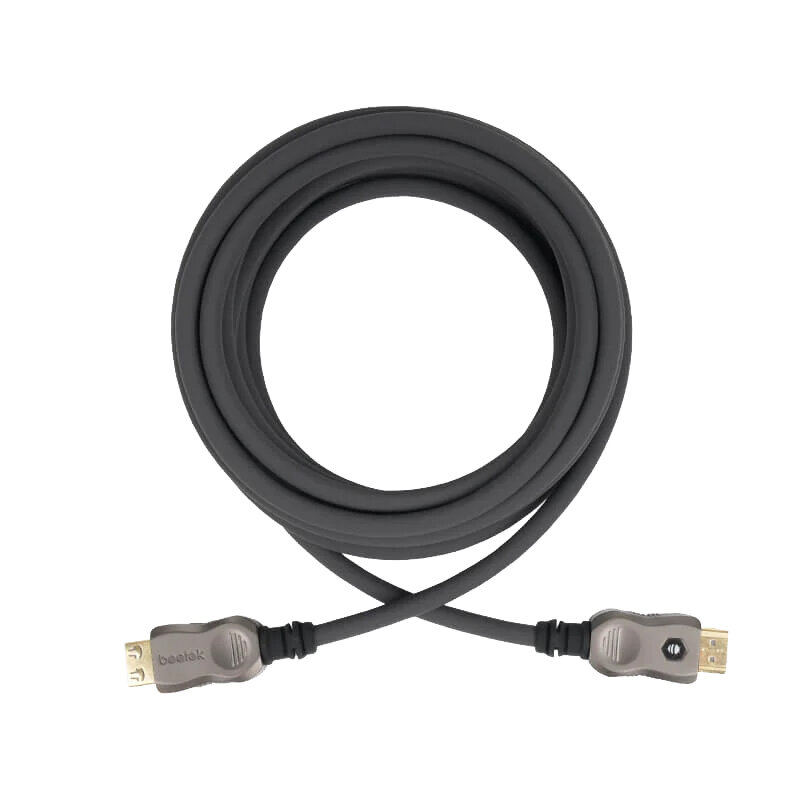

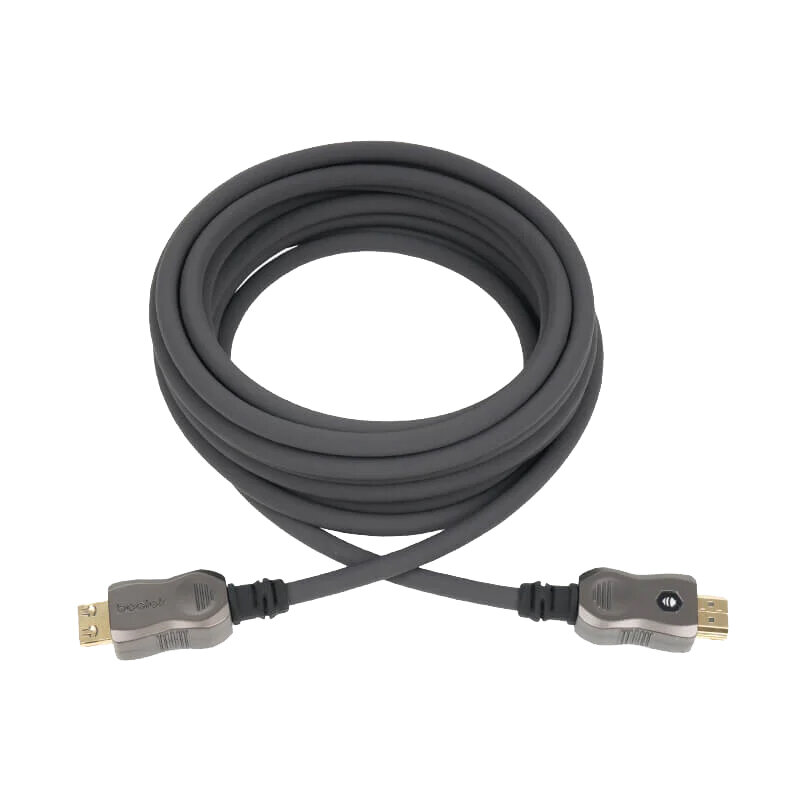

H20-FLEX-EXEC-5MB - 4K Executive Series HDMI cable, 5 m, dark grey

4K Executive Series HDMI cable, 5 m, dark grey

Beetek Executive Series HDMI Cable 5 m long, designed to meet the needs of boardrooms and conference rooms. Featuring gold-plated connectors and plug-sure technology, it ensures a stable and secure connection, ensuring flawless performance.

The ultra-premium silicone outer jacket is designed to withstand repeated bending without compromising durability, offering a tangle-free and dust-resistant solution. The elegant design also enhances the professional aesthetic of any environment.

Make your conference room a place of excellence, with unmatched reliability and sophistication.

Main features

• A sleek HDMI cable designed for laptop connectivity in boardrooms and conference rooms

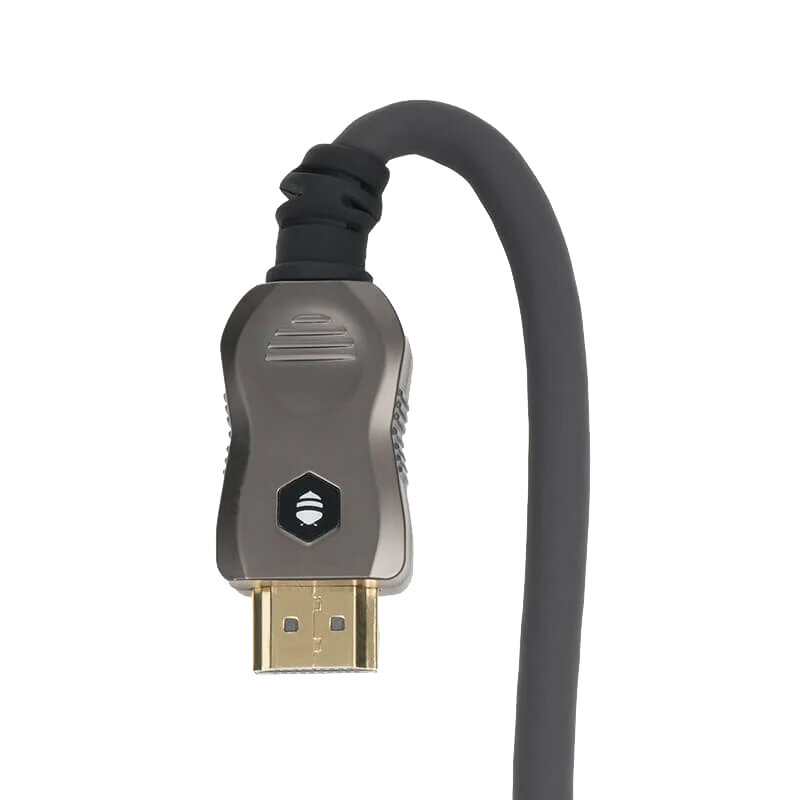

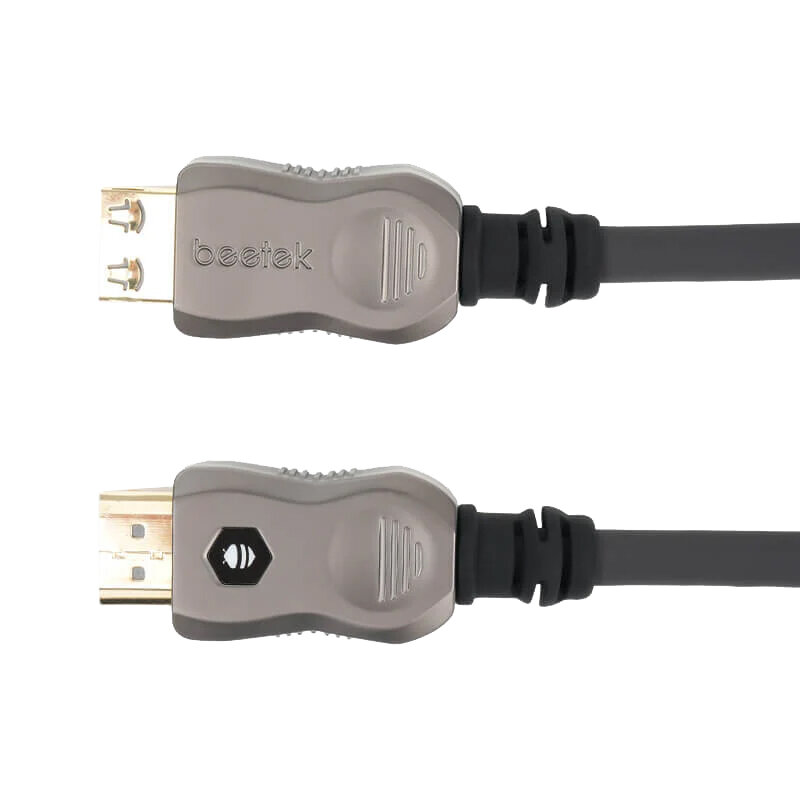

• Ergonomic connection head for easy insertion and removal
• Plug-sure HDMI connectors ensure reliable connections
• Flexible silicone outer jacket and strain relief (SR) allow the cable to withstand repeated bending without compromising cable integrity
• Slim form factor makes it easy to install in even the tightest spaces
• 15 μm gold-plated pins designed to withstand over 1000 insertion cycles
• Available in 2, 3, and 5 m lengths

Technical characteristics

• Lenght: 5 m
• Signal type: HDMI 2.0

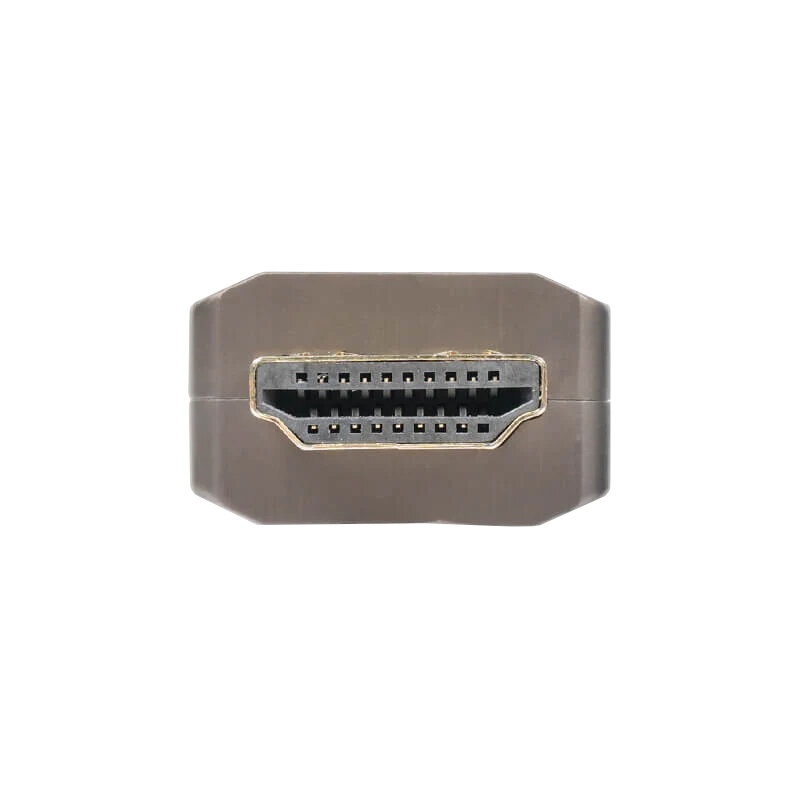

• Connector type: HDMI TypeA male - HDMI TypeA male
• Environmental info: RoHS 2.0 compliant
• Connector gold plating: 15 μm
• Connector size: 42 x 22 x 12 mm
• Connector structure: plug plate + inner mold + copper foil + shell
• Connector fastening type: plug-sure type HDMI connector
• Shell: zinc alloy
• Components: conductor + drain (copper) + PTFE tape + aluminum foil + mylar + braid + silicone jacket
• Conductor material: tinned copper stranded
• Conductor gauge: 28AWG
• Braid material: braided copper wire
• Shield coverage: 70%
• Jacket material: silicone
• Cable diameter: 6.5 ±0.2 mm
• Cable color: dark grey
• Strain relief (SR): silicone
• EDID: yes
• DDC: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• XvYCC color space: yes
• Compatibility: backward compatible with HDMI and DVI-SL
• Supported resolutions: 3840 x 2160 @ 60 Hz
• Clock bandwidth: 600 MHz x 3
• Transmission rate: 18 Gbps
• Plug and play: yes
• Delay: zero
• Deep color: yes
• Sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Compression: none
• Electrical test (voltage): 300 V_DC
• Impedance test (insulation): insulation resistance ≥ 10 Mohm
• Impedance test (continuity): on-resistance ≤ 2 ohm
• Tensile strength: ≤ 400 N
• Bending angle: 90°
• Operating temperature: -20 to 80 ℃
• Uninterrupted duration: 7 × 24 × 365
• Optional length: 0.5, 1, 2, 3, 5 m
• Bag size: 37 x 29 cm
• Carton size: 46 x 33 x 26 cm
• Weight (per bag): 388 g
• Applications: rental and staging, fixed installation and IT peripherals
