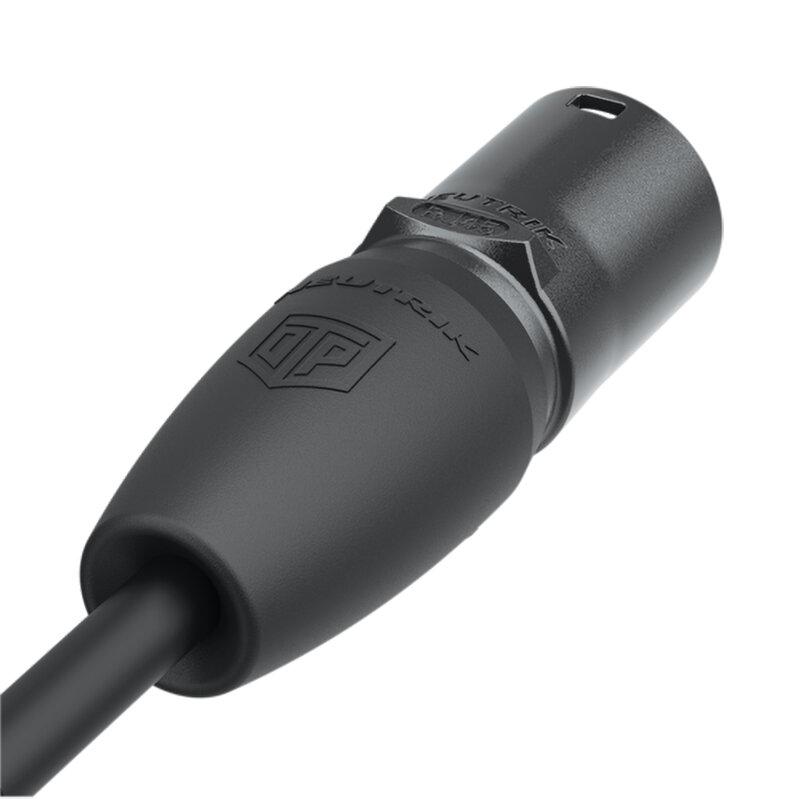

NE8MX-B-TOP-14-D - Cable connector carrier consists of a black chromium shell, chuck and boot, 8 - 10 mm cable diameters, IP65 with related cable or chassis connector of the XLR TOP range, disassembled

$ 8,68

prices may have variations due to the currency fluctuation

SKU: NE8MX-B-TOP-14-D

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Cable connector carrier consists of a black chromium shell, chuck and boot, 8 - 10 mm cable diameters, IP65 with related cable or chassis connector of the XLR TOP range, disassembled

Connector support for cable consisting of a black chromed shell, chuck and boot for non-pre-assembled cables with cable gland with a diameter between 8 and 10 mm. This connector carrier does not include RJ45 plug.

IP65 protection rating and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.

Caution: Does not mate with NE8FDY-C6 and NE8FDY-C6-B chassis CAT6 connectors.

Main features

RJ45 system for harsh and demanding environments
Cable connector carrier accepts the most common RJ45 connectors (list available)
IP65 protection rating and TOP approval in consideration of UL50E
Rugged diecast shell and unique chuck type strain relief
Protects Ethernet connections in a variety of commercial applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
Allows the assembly of non-pre-assembled RJ45 cables

Technical characteristics

Product

Connection type: etherCON
Gender: male
Important: cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Mechanical

Cable O.D.: 8.0 – 10.0 mm 
Insertion force:  ≤ 20 N 
Withdrawal force: ≤ 20 N 
Lifetime: > 1000 mating cycles

Material

Boot: thermoplastic elastomer (TPE)
Insert: polyamide (PA66)
Shell: zinc diecast (ZnAl4Cu1)
Shell coating: black KTL
Strain relief: polyacetal (POM)

Environmental

Protection class: IP65 (mated) 
Temperature range: -30 to 80 °C
