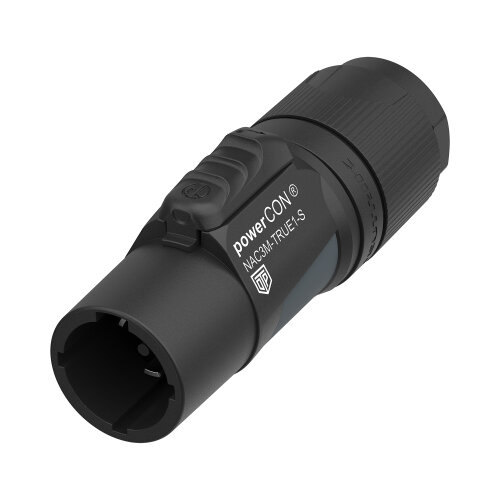

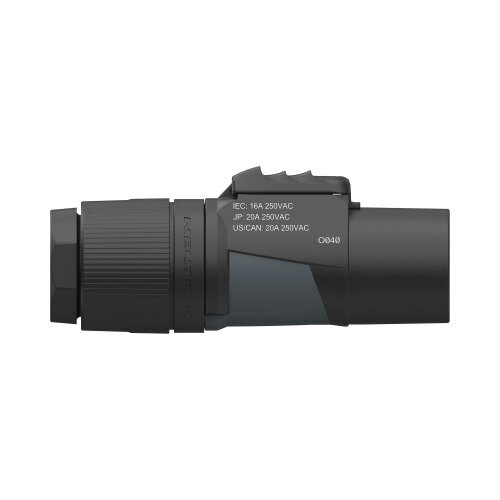

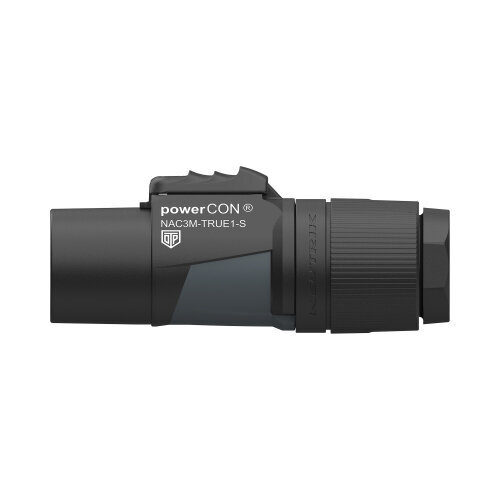

NAC3M-TRUE1-S - Rugged powerCON TRUE1 male connector with CBC capability, rated 16 – 20 A / 250 V AC, IP65 / IP67 protection, UV‑resistant PA66 housing, silver‑plated contacts and over 5000 mating cycles

$ 15,45

prices may have variations due to the currency fluctuation

SKU: NAC3M-TRUE1-S

Available

40 Available items Available in Italian warehouse

Add to cart To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Rugged powerCON TRUE1 male connector with CBC capability, rated 16 – 20 A / 250 V AC, IP65 / IP67 protection, UV‑resistant PA66 housing, silver‑plated contacts and over 5000 mating cycles

PowerCON TRUE1 series male power connector, designed for harsh conditions requiring maximum robustness, safety, and reliability. Like the entire series, it is a true breaking capacity (CBC) power connector, meaning it can be connected and disconnected even under load or voltage, an essential feature in live sound, touring, and critical installations.

The housing is made of highly impact- and UV-resistant materials, while the twist-lock system ensures stable and secure mating even in the presence of vibration or mechanical stress. The connector guarantees IP65/IP67 protection when mated or with the cap closed, making it ideal for outdoor use and environments exposed to adverse conditions.

It is certified according to ENEC, VDE, UL, and CSA standards, ensuring international compatibility and compliance with the most stringent electrical regulations.

Technical characteristics

Product family: powerCON TRUE1
Contact resistance: ≤ 2 mohm
Dielectric strength: 4 kV_DC / 2.8 kV_AC
Insulation resistance: > 0.1 Gohm (after damp and heat test IEC 68-2-30)
Number of electrical contacts: 2 + PE
Rating Europe: 16 A / 250 V_AC (EN IEC 60320-1)
Cable O.D.: 6 – 12 mm
Lifetime: > 5000 mating cycles
Wiresize: 1.5 – 2.5 mm²
Wiresize: 14 AWG
Contact plating: 2 μm Ag
Locking element: polyamide PA66
Contacts: copper alloy
Insert: polyamide PA66
Shell: polyamide PA66
Strain relief: polyketon
Flammability: UL 94 V-0
Protection class: IP65 / IP67 (mated or with closed caps)
UV resistance: F1 rated material
Temperature range: -30 to 80 °C (IEC 61984), -5 to 40 °C (IEC 60320-1)
