AU-D2 - Bi‑directional digital audio converter for coaxial and optical formats, re‑clocking, simultaneous dual‑format output

CYP AU-D2 AU-D2
CYP AU-D2 AU-D2 - 1
CYP AU-D2 AU-D2 - 2
CYP AU-D2 AU-D2 - 3
CYP

$ 102,47

prices may have variations due to the currency fluctuation

prices may have variations due to the currency fluctuation

SKU: AU-D2
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Bi‑directional digital audio converter for coaxial and optical formats, re‑clocking, simultaneous dual‑format output

The AU-D2 is a bidirectional digital audio converter that converts between coaxial and optical signals, with simultaneous distribution to both outputs.

Thanks to its re-clocking function, it ensures signal stability even with longer cables and supports audio formats from PCM 2.0 to Dolby Digital and DTS.

Main features

  • Bidirectional coaxial/optical digital audio converter
  • Two-way conversion: coaxial to optical or optical to coaxial
  • Re-clocking function allows for the use of long cables
  • Inputs accept audio signals from 2 channel PCM up to 5.1
  • Output signal follows input signal

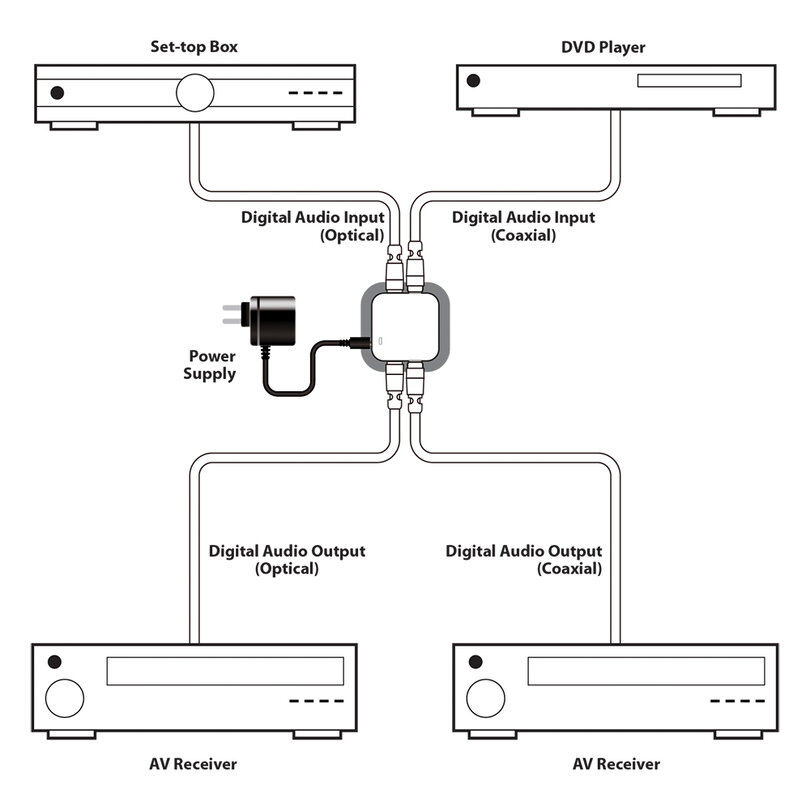

  • Selects between input ports and distributes the audio signal to both coaxial and optical output ports simultaneously

User benefits

  • Instant conversion between coaxial and optical digital formats
  • Simultaneous signal distribution to both outputs
  • Greater signal stability thanks to the re-clocking function
  • Compatible with PCM 2.0, Dolby Digital, and DTS audio
  • Easy installation in any digital AV system

Areas of use

  • Home Theater installations
  • Meeting rooms and corporate environments with mixed optical/coaxial sources
  • AV integration in hotels and hospitality facilities
  • Shops and showrooms requiring digital conversion
  • Residential AV systems with soundbars, TVs and decoders that are not compatible with each other

Technical characteristics

  • Inputs:
    • 1 × RCA (1 × coaxial DTS / Dolby Digital / 2 channel LPCM)
    • 1 × Toslink (1 × optical DTS / Dolby Digital / 2 channel LPCM)
  • Outputs:
    • 1 × RCA (1 × coaxial DTS / Dolby Digital / 2 channel LPCM)
    • 1 × Toslink [1 × optical DTS / Dolby Digital / 2 channel LPCM]
  • PSU: 5 VDC 1.2 A
  • Dimensions (W × H × D): 58 × 24 × 46 mm
  • Weight: 20 g
CYP

$ 102,47

prices may have variations due to the currency fluctuation

SKU: AU-D2
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Download

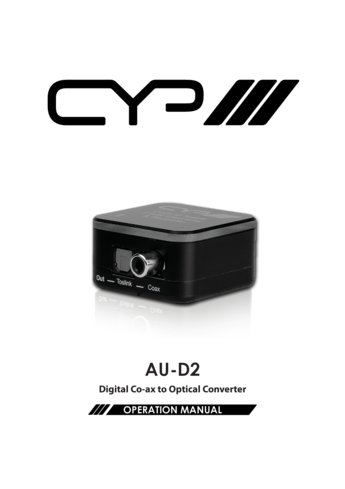

EN Instruction manual
