AU-D3-192 - Digital to analog converter (DAC), 24 bit - 192 kHz

CYP AU-D3-192 AU-D3-192
CYP AU-D3-192 AU-D3-192 - 1
CYP AU-D3-192 AU-D3-192 - 2
CYP AU-D3-192 AU-D3-192 - 3
CYP

$ 97,85

prices may have variations due to the currency fluctuation

prices may have variations due to the currency fluctuation

SKU: AU-D3-192
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Digital to analog converter (DAC), 24 bit - 192 kHz

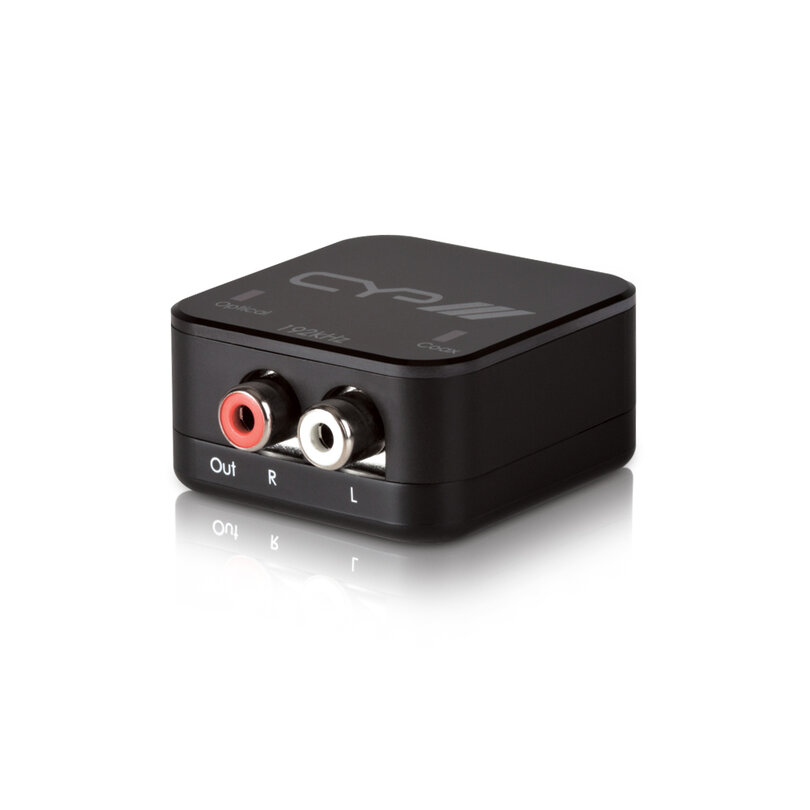

The AU‑D3‑192 is a 24-bit, 192 kHz digital-to-analog (D/A) audio converter that accepts both electrical and optical S/PDIF digital input signals and converts them to analog stereo L/R audio on RCA connectors. It supports uncompressed stereo digital signals and a wide range of sampling rates with 16 or 24-bit resolution, ensuring compatibility and high performance in both home and professional installations.

Main features

  • 16- or 24-bit resolution with sampling rates of 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz
  • Built-in digital interpolator
  • Digital audio input (Coaxial / Toslink) and analog audio output (L/R)
  • Accepts uncompressed digital stereo audio signals

User benefits

  • Supports sampling rates up to 192 kHz for superior audio quality
  • Compatible with a wide range of consumer digital devices, including TVs, set-top boxes, and media players
  • Plug & Play, no configuration required
  • Very compact dimensions

Areas of use

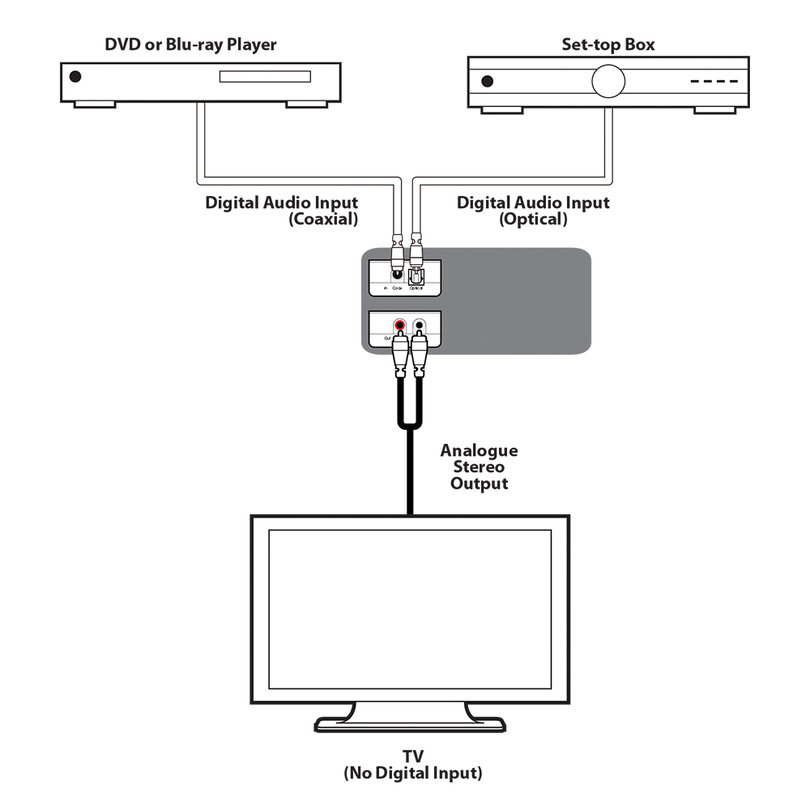

  • Audio conversion from TVs, decoders, or media players to analog amplifiers or Hi-Fi systems
  • Integration into home or semi-professional AV systems requiring digital-to-analog conversion
  • Installations in meeting rooms, multimedia classrooms
  • Installations in the hospitality sector

Technical characteristics

  • Input ports: 1 × Toslink (S/PDIF audio), 1 × RCA (S/PDIF audio)

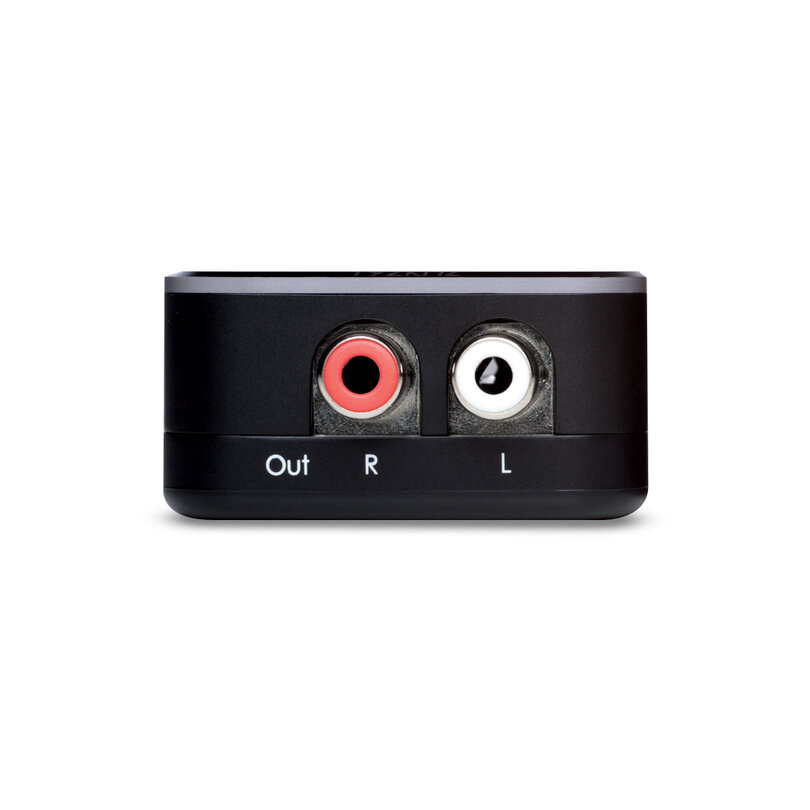

  • Output ports: 2 × RCA (stereo audio)
  • Power supply: 5 VDC 1.2 A
  • Power consumption: 0.74 W
  • Chassis material: plastic
  • Chassis colour: black
  • Dimensions (case only): 46 × 22.5 × 45.5 mm
  • Dimensions (all inclusive): 56 × 22.5 × 46 mm
  • Weight: 30 g
CYP

$ 97,85

prices may have variations due to the currency fluctuation

SKU: AU-D3-192
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Download

EN Instruction manual
