Versatile 8‑channel, 4‑zone mixer, fully assignable routing and independent zone control, remote wall panels and paging consoles support

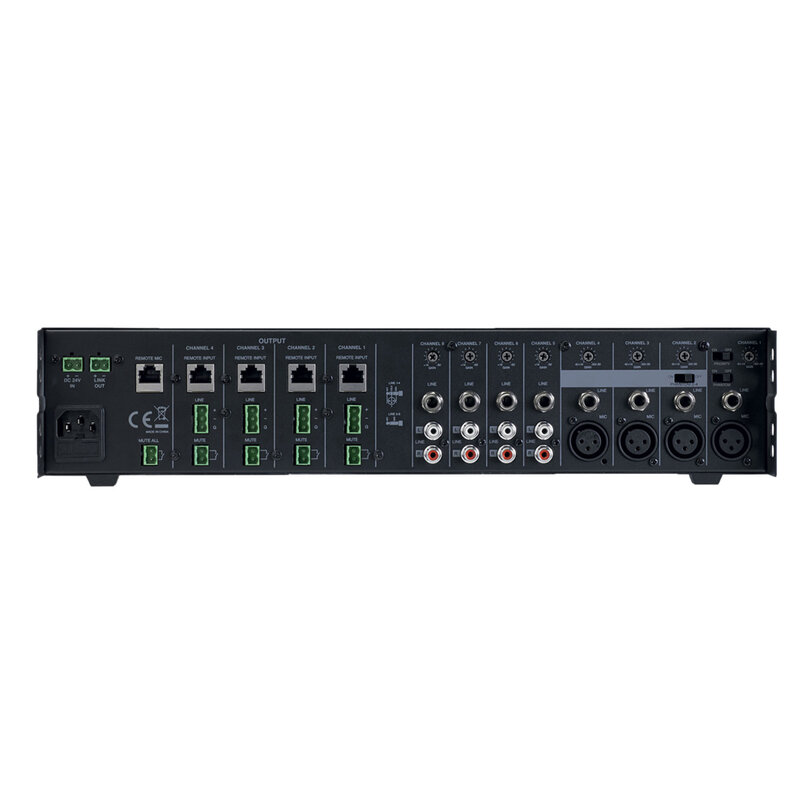

PREZONE444 MKII is an 8-channel 19" rack-mount mixer designed for multi-zone sound reinforcement systems. It offers four independent output zones, each freely assignable from any input, allowing for flexible and precise audio management.

It is compatible with WP1 controllers (for remote volume and input control in a zone) and with the MIC-DESK4 microphone console, which allows for selective announcements in the desired zones.

User benefits

Independent management of four audio zones
Flexible source routing, with the ability to send any input to any zone
Compatible with same-brand controllers for remote volume and input control in a zone
Compatible with same-brand paging microphone consoles for selective announcements in one or more zones
Professional reliability for continuous use in commercial establishments and public spaces

Areas of use

Restaurants
Shops
Cafés
Hospitality facilities
Public and corporate spaces

Technical characteristics

Frequency response: 20 Hz – 20 kHz (-1 dB)
T.H.D (1 kHz nominal power): < 0.1%
Equalizer: high ±15 dB @ 12 kHz, mid ±15 dB @ 2.5 kHz, low ± 15 dB @ 80 Hz
4 balanced MIC / line inputs on XLR and jack 6.35 mm (TRS)
4 stereo inputs on RCA or mono on 6.35 jack
4 balanced link out per zone on Phoenix plug
Priority microphone on input 1
Phantom power supply for inputs 1 to 4
Gain and tone control (3 bands) on channels 1 to 4
Gain adjustment on all inputs
Tone control (2 bands) per zone
RJ45 connector for WP-1 wall controller (remote input) and MIC-DESK desk (remote mic) on each zone
Mute contact possible on each output
Zone assignment 1 to 4 on each input channel
Signal and peak display on each input channel
Output level display per zone via 5 LED meter
Headphone output with volume control (zones and PFL)
Front monitor loudspeaker
Access to settings dedicated to the installer (via screwdriver)
Power supply: 100 - 240 V_AC 50/60 Hz or +24 V_DC
Power consumption: 17 W
24 V_DC emergency power supply with link out
Dimensions: 48.2 x 8.8 x 32 cm, 19" rackable, height 2U
Weight: 4.7 kg
