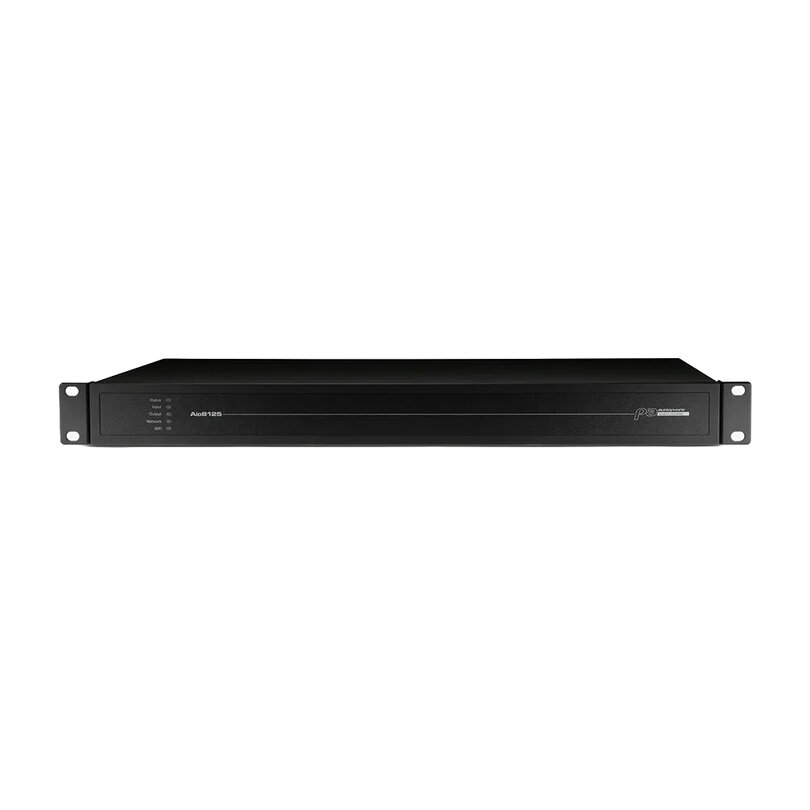

SKU: H11855The Aio8125 is an all-in-one 8 × 8 amplified matrix system designed for multi-zone installations. In a compact 1U full-rack format, it integrates a mixer, intelligent matrix routing, advanced DSP, and high-quality amplification. Pascal UMAC amplifier technology ensures high performance with 8 × 125 W @ 4 ohms or 4 × 250 W in bridge mode/100 V, maintaining extremely low harmonic distortion (THD+N < 0.05%) even under demanding conditions.
The DSP operates on three levels—input, zone, and output—allowing for parametric equalization, compression, filters, delay, and phase correction, with lockable presets to protect the system from tampering and ensure consistent performance over time.

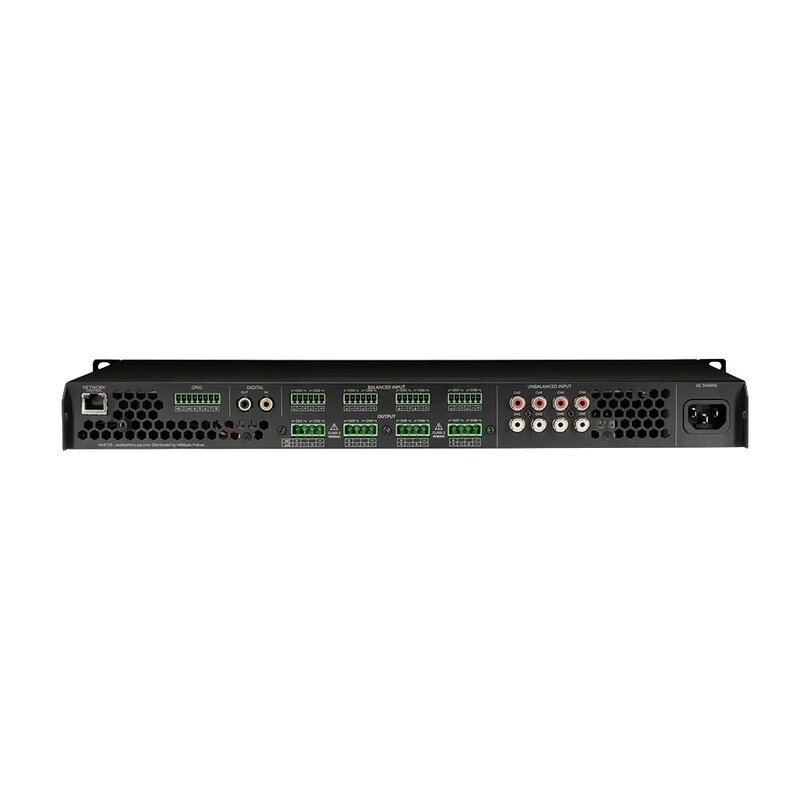

Configuration is via an HTML5 interface accessible from any browser, without dedicated software, with routing, priority, custom mix, and zone limitations. Comprehensive connectivity: balanced/unbalanced inputs, S/PDIF, GPIO, Wi-Fi, and Ethernet, with compatibility with AioCTL wall controllers from the same brand for simple and intuitive control by users and staff.
User benefits
Areas of use
Technical characteristics
