DMF-iAMP2300 - 2 x 300 W output mixer / amplifier, fanless design, USB / BT media player, MIC priority, emergency functions, 70 / 100 V - 4 / 8 ohm compatibility, Wi-Fi audio streaming

2 x 300 W output mixer / amplifier, fanless design, USB / BT media player, MIC priority, emergency functions, 70 / 100 V - 4 / 8 ohm compatibility, Wi-Fi audio streaming

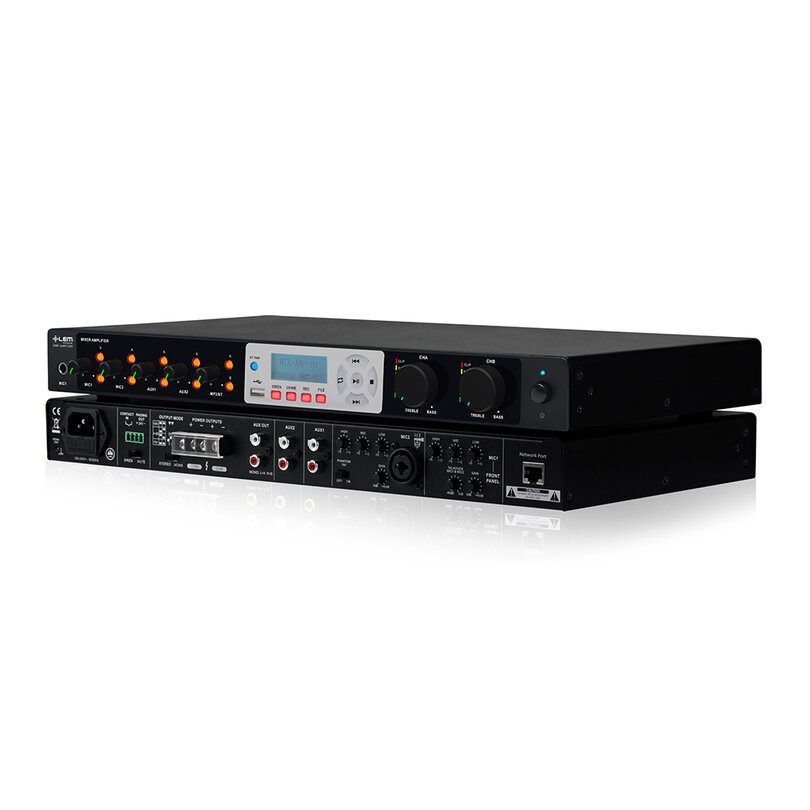

The DMF-iAMP2300 is a 300 W per channel mixer / amplifier with a built-in media player, designed for commercial applications requiring high audio quality, reliability and maximum versatility.

It features two priority microphone inputs, two AUX inputs, a media player with USB / BT and recording function, as well as an auxiliary output and two independent amplifier channels with volume, bass, and treble controls. The output can be configured in mono or stereo mode (TWO independent MONO channel operation or ONE channel for stereo music / announcement) and supports both low impedance loudspeakers (4 / 8 ohms) and 70/100 V constant voltage lines, making it compatible with any commercial PA system.

In this Wi-Fi version, it allows audio streaming via a local network, supporting protocols such as DLNA, AirPlay, and Spotify Connect, as well as multi-room management via a dedicated App. This integration allows you to send audio content from a smartphone, tablet, or PC without additional wiring.

The DMF-iAMP2300 includes advanced features such as a chime (warning signal), siren (audible alarm), dry contact emergency message management, a 24 V_DC output for paging, and an LCD display showing status, playback mode, and internal PCB temperature.

Thanks to the completely fanless design, operation is silent and suitable for environments where background noise must be kept to a minimum.

Users benefits

• Full compatibility with both low-impedance systems and 70/100 V lines
• Integrated media player with USB, Bluetooth, and recording function
• Wi-Fi audio streaming with DLNA / AirPlay / Spotify Connect support and multi-room management
• Prioritized microphone inputs with dedicated EQ controls
• Advanced emergency management
• Complete protection against overvoltage, overcurrent, overheating, and short circuits
• Fanless operation for silent installations even in sensitive environments

Areas of use

• Corporate (conference rooms, meeting rooms, offices)
• Retail (shops, shopping centers)
• Hotels, restaurants, bars, and clubs
• Schools, public facilities, and conference centers
• Museums and exhibition spaces

Technical characteristics

• Rated power: 2 x 300 W @ 70/100 V - 4 / 8 ohm
• MIC input:
  • MIC1 – Gain (0 – 40 dB), balanced / unbalanced, 1/4" TRS connector
  • MIC2 – Gain (0 – 40 dB), balanced / unbalanced, +15 V Phantom power, Combo XLR/TRS
• AUX input: 2 x RCA, unbalanced, mono / stereo selectable
• Multimedia player: USB or Bluetooth audio playback, REC recording function
• AUX output: 0 dB, 560 ohm unbalanced, stereo RCA connector
• Minimum operating impedance:
  • 4 ohm output: 4 ohm
  • 8 ohm output: 8 ohm
  • 70 V output: 16 ohm
  • 100 V output: 32 ohm
• Protection circuits: AC fuse, overheat, overvoltage, overcurrent, short circuit, DC protection
• EQ of master output:
  • Treble ±15 dB @ 5 – 20 kHz
  • Bass ±15 dB @ 20 – 500 Hz
• Input sensitivity: MIC 10 mV_RMS, line 0.316 V_RMS
• Frequency response:
  • 70/100 V: 70 Hz – 17 kHz (±3 dB)
  • 4 / 8 ohm: 20 Hz – 20 kHz (±2 dB)
• SNR: 95 dB (A‑weighted)
• THD: < 1% (70/100 V), < 0.5% (4 / 8 ohm)
• Phantom power: +15 V_DC
• Control I/O: 1 dry contact trigger input; 1 x 24 V_DC / 2 A controlled output
• Power source: 100 – 240 V_AC 50/60 Hz
• Power consumption: 660 W at rated power
• Operating temperature / humidity: –20 to 50 °C, < 95%
• Dimensions (W x H x D): 48.2 x 5 x 25.4 cm (with rack brackets and rubber feet)
• Net weight: 3.83 kg
