OMNImini5 - All‑weather 2‑way loudspeaker, ABS enclosure, IP55 rated, 5" woofer + 1" tweeter, 70/100 V / 8 ohm, multiple mounting options, stainless steel grille

All‑weather 2‑way loudspeaker, ABS enclosure, IP55 rated, 5" woofer + 1" tweeter, 70/100 V / 8 ohm, multiple mounting options, stainless steel grille

The OMNImini5 is a multifunctional loudspeaker for indoor and outdoor applications, thanks to its IP55 rating, making it resistant to rain, dust, sun and harsh environmental conditions.

The 2-way system with a 5" woofer and 1" tweeter delivers balanced sound, with clear highs and deep bass, ideal for both music and vocals.

The high-strength ABS enclosure, stainless steel grille, and corrosion-resistant screws ensure long-lasting durability even in permanent installations. The speaker operates at both 70/100 V constant voltage and low impedance (8 ohms), with a rotary selector for power selection.

OMNImini5 offers three installation options — wall-mounted, suspended, or in-ground — making it extremely versatile. The package includes three mounting systems as standard: a swivel wall bracket, an eyelet for hanging from above with a rope (ceiling), or a spike for ground / garden mounting.

A single product covers three different applications!

User benefits

• Good reproduction of both music and voice
• IP55 protection for permanent installations both indoors and outdoors
• Rugged ABS construction with stainless steel grille and corrosion-resistant components
• Operates at both 70/100 V and low impedance
• Versatile installation with wall-mounted, suspended, or in-ground options
• It integrates easily into any environment

Areas of use

• Shopping centers, supermarkets, and shops
• Hotels, restaurants, bars
• Airports, stations, and public spaces
• Conference rooms, offices, and corporate environments
• Parks, gardens, terraces, and outdoor areas
• Exhibitions, museums, and exhibition spaces

Technical characteristics

• Speaker units: 5” woofer + 1” tweeter
• Rated power: 40 W @ 100 V; 60 W @ 8 ohm
• Max. power: 60 W @ 100 V; 90 W @ 8 ohm
• Constant voltage impedance: 125, 250, 500, 1000, 2000 ohm
• Constant voltage power selection:
  • 100 V: NC, 40 / 20 /10 / 5 W
  • 70 V: 40 / 20 / 10 / 5 / 2.5 W
• SPL: 89 dB/W/m
• Max. SPL (rated/1 m): 107 dB @ 100 V; 108 dB @ 8 ohm
• Frequency response (-10 dB): 65 Hz – 23 kHz
• Mounting method: pendant (steel wire), wall-mounted (bracket), inground (mounting chassis)

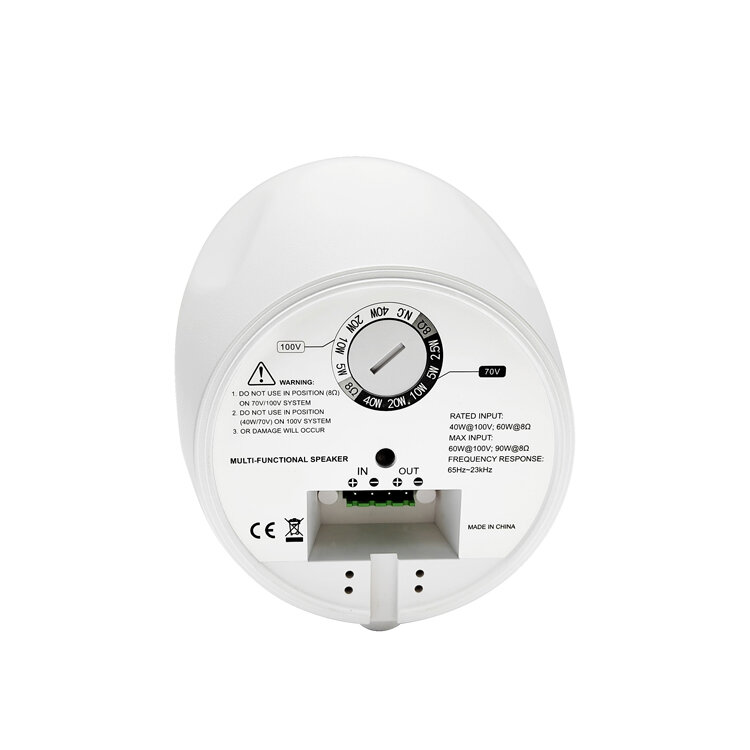

• Power selection method: rotary selector switch
• Material: ABS enclosure, stainless steel mesh, iron underground chassis
• Operating temperature / humidity: -20 to 55 °C, < 95%
• Waterproof / dustproof grade: IEC529 IP55
• Dimensions: Ø 17 × 24.2 cm
