MIC-404 - 4 zone remote call station microphone for MX-404 series

$ 441,26

prices may have variations due to the currency fluctuation

SKU: 02783

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

4 zone remote call station microphone for MX-404 series

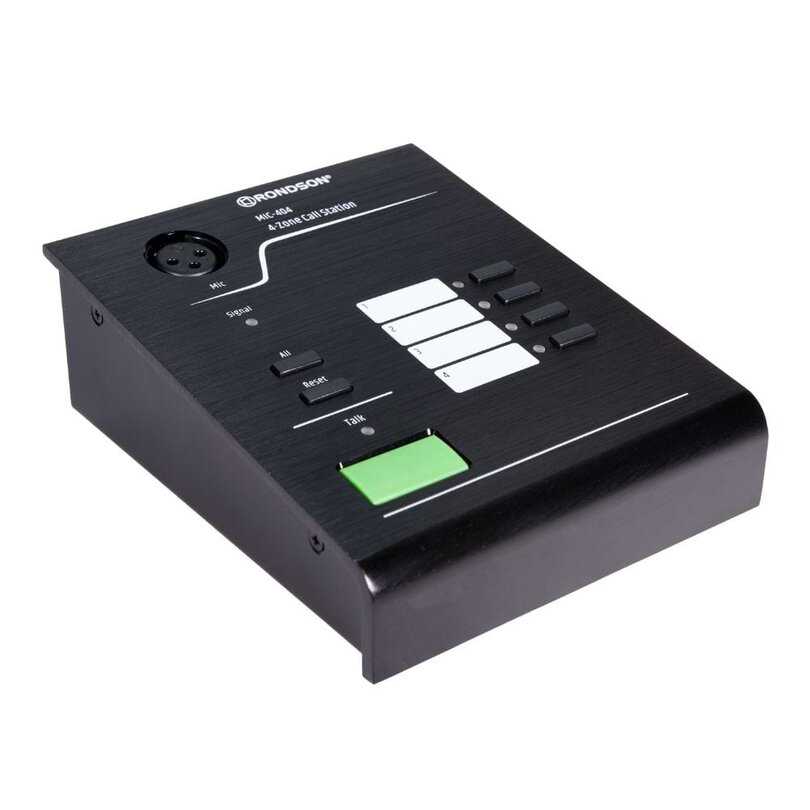

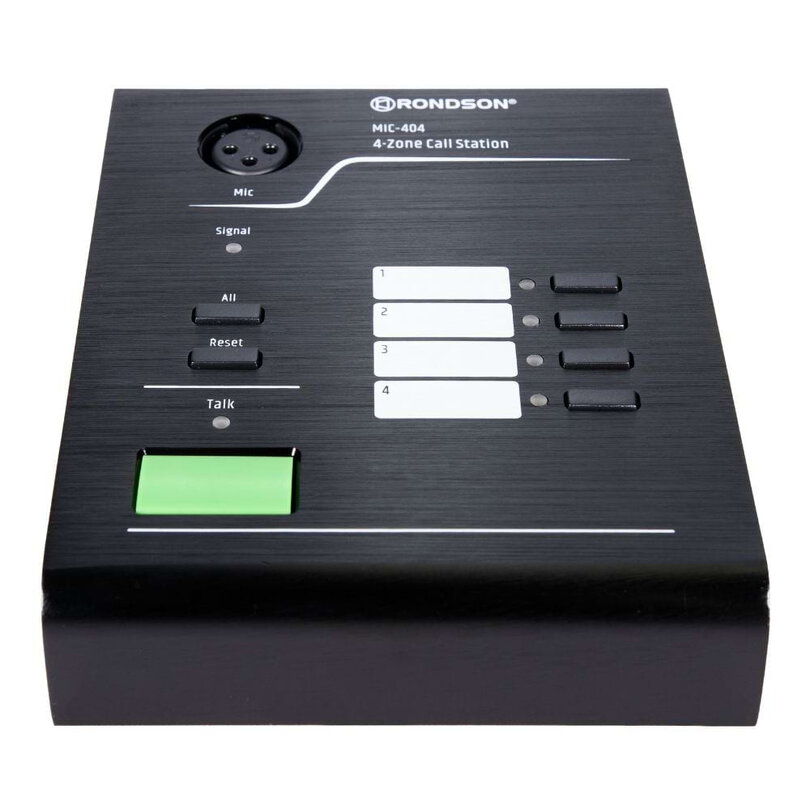

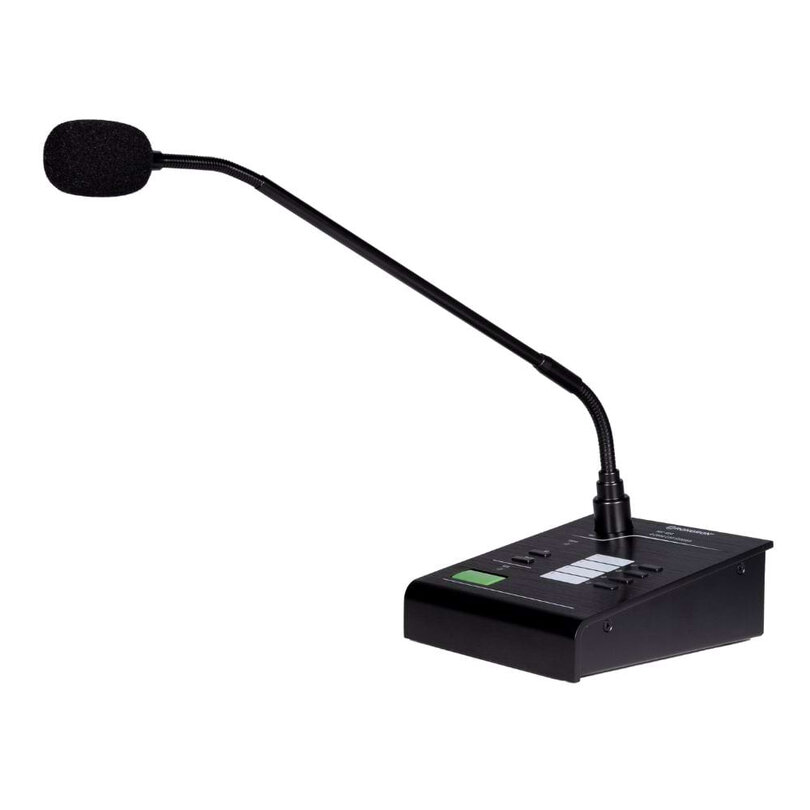

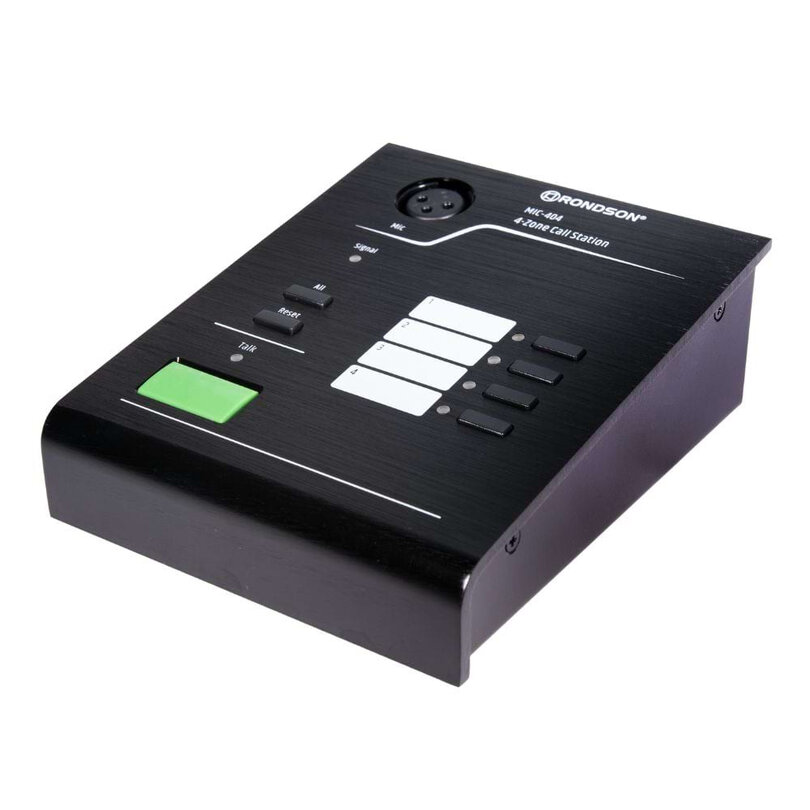

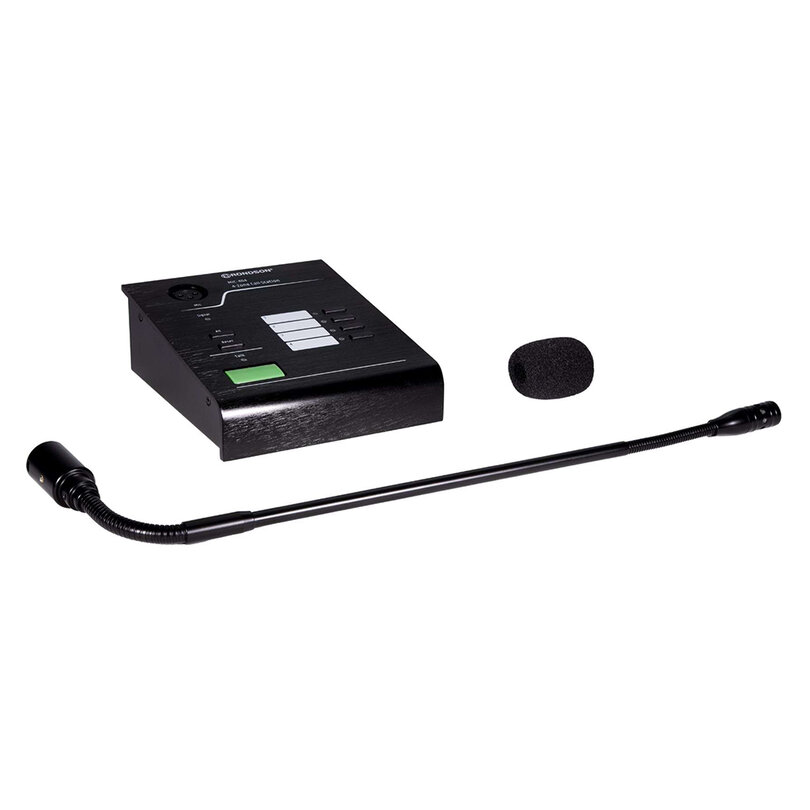

The MIC-404 is a multi-zone, desktop call microphone designed to work with the Rondson MX-404 preamplifier.

It features a unidirectional microphone and allows the selection and management of (up to) four independent zones using dedicated controls. It includes a chime activation switch and a priority / slave switch, allowing use in systems with call priority. The “Talk” button activates the microphone signal and automatically enables the 24 V input on the amplifier, activating the priority mode.

Up to thirty-two MIC-404 microphone stations can be daisy-chained using UTP-CAT5 cabling with RJ45 connectors, simplifying installation. Advanced features include surge protection, faulty microphone detection and a power saving system in stand-by mode.

It includes a DC adapter power input and integrates a low voltage detector, ensuring reliability even in unstable power conditions.

User benefits

Possibility to select and manage up to four zones independently
Daisy chain up to 32 microphones, with simple wiring via UTP-CAT5
Integrated chime switch and priority / slave switch, ideal for public environments where an acoustic signal is needed
before announcements
DC input with insufficient voltage detection

Areas of use

General and selective call in public environments, schools, shopping centers
Any context where controlled audio diffusion for multiple zones is required

Technical characteristics

Multi-zone unidirectional microphone console
Supports up to 32 daisy-chained microphone units
Chime ON/OFF switch
Priority / Slave mode selector
Faulty microphone detection (short circuit, open, fault)
Overvoltage protection circuit with ON/OFF interlock
Power-saving circuit with stand-by mode
Low voltage detection

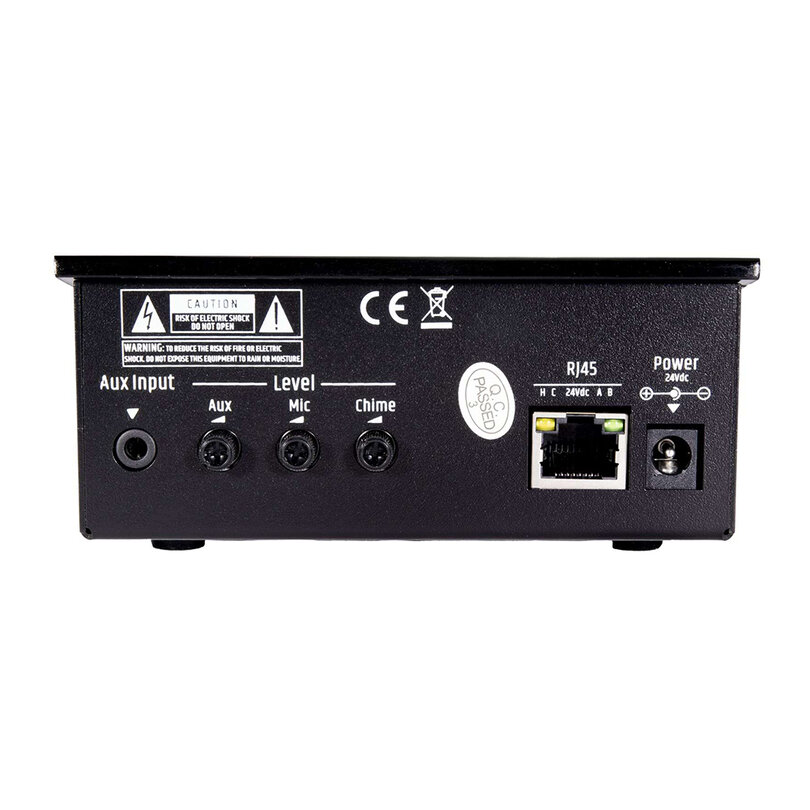

DC adapter input socket
Uses UTP-CAT5 cable with RJ45 connectors
Zone selection buttons
