AME-60-2Z - 60 W, 2-zone, 100 V or low impedance integrated amplifier with FM tuner, USB and TF reader, Bluetooth

60 W, 2-zone, 100 V or low impedance integrated amplifier with FM tuner, USB and TF reader, Bluetooth

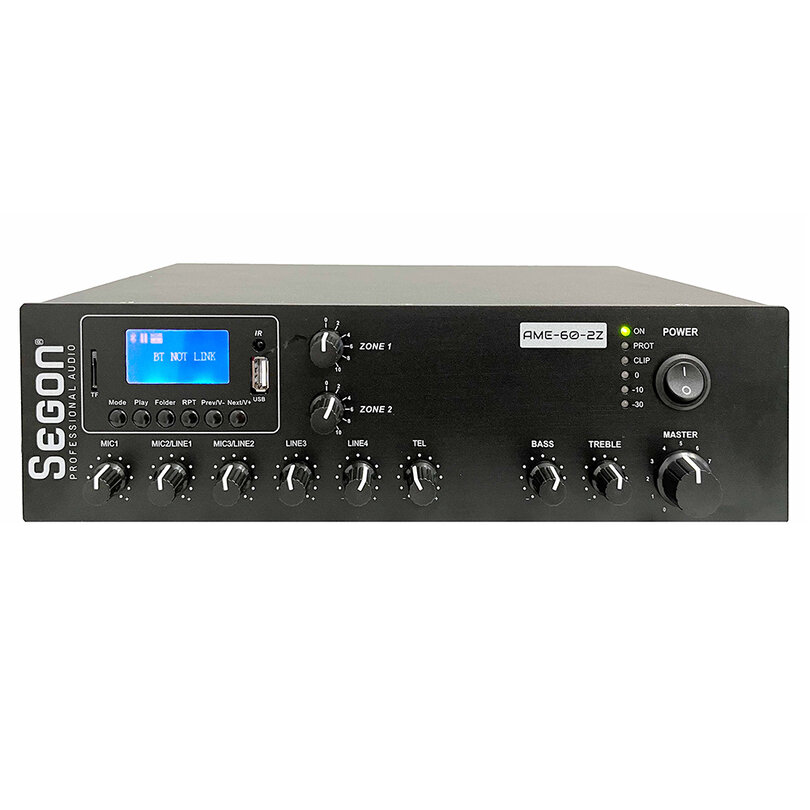

AME-60-2Z is ​​a two-zone integrated amplifier capable of delivering 60 W of output power and driving both low impedance (4 ohms) and 100 V line loudspeakers. It works with 230 V mains power or 24 V_DC and integrates a multimedia module with USB port for playing MP3 or WMA files from pen drive or TF card, with a maximum capacity of 16 GB in FAT32 format, and RDS FM tuner + Bluetooth interface. It is possible to record simple tracks directly from some inputs to a USB stick or TF card.

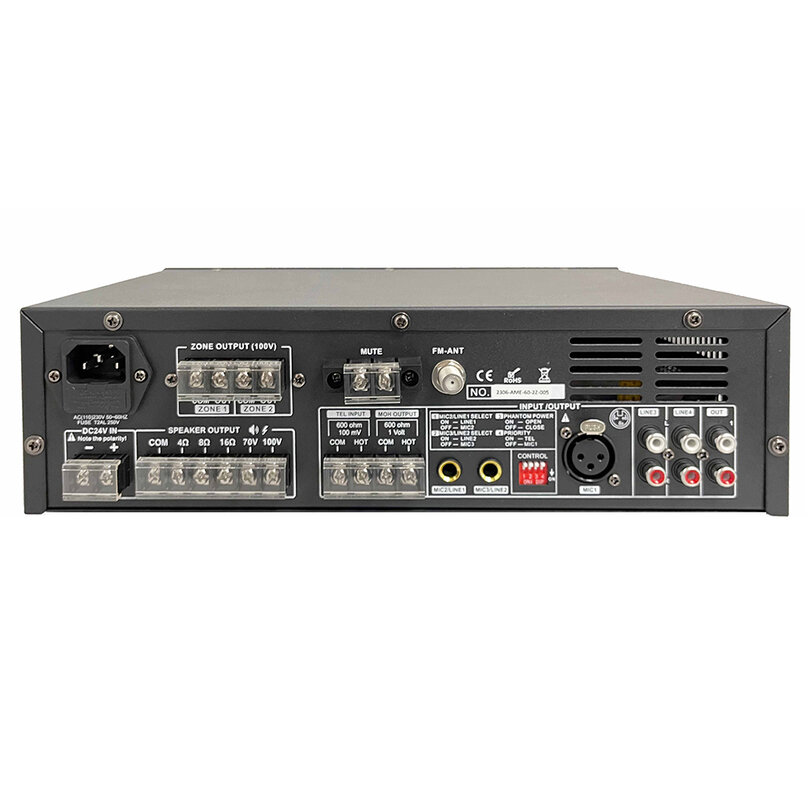

It offers six total inputs with individual gain controls on the front panel and bass / treble tone control. The MIC1 input is on a balanced XLR connector, MIC2 / LINE1 and MIC3 / LINE2 on jack connectors. LINE3 and LINE4 are on stereo RCA, as is the pre out output, and a 100 mV / 600 ohm telephone input.

Features include Phantom power for microphones and priority and output for two 100 V zones, as well as a main output for 70 / 100 V or 4, 8 and 16 ohm speakers. The device includes an LCD display, power indicators, VU meter, clip and protection.

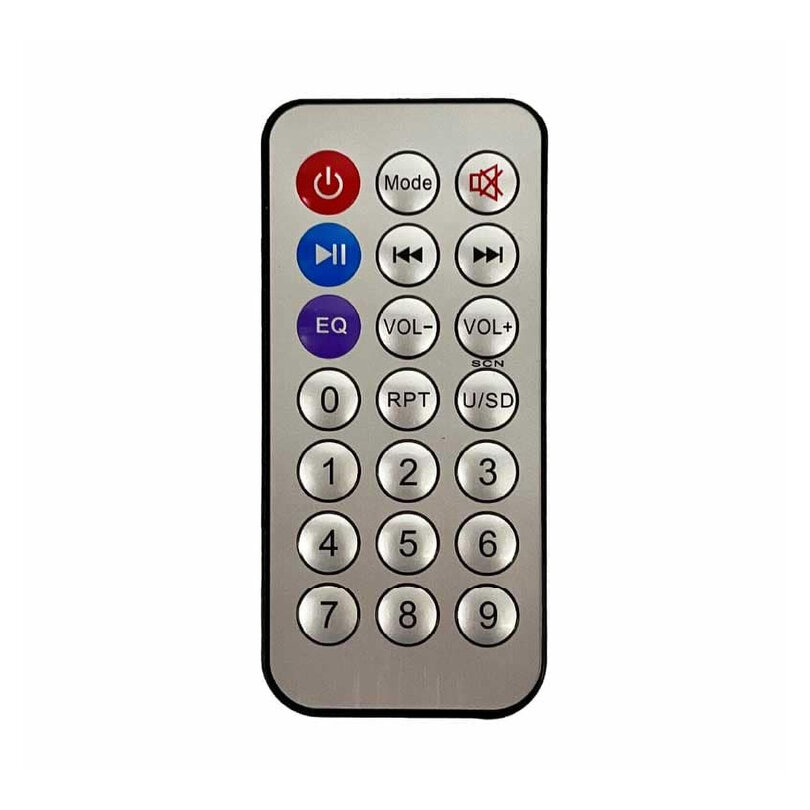

Protections are against overheating, short circuits and overloads. Supplied with remote control.

User benefits

• Six inputs in total between microphone and line, including a telephone input
• Multimedia section with MP3 file player from USB sticks / TF cards
• Outputs on both 100 V line and low impedance
• Two zones with independent volume control
• Possibility of being powered at 24 V_DC

Areas of use

• Bars, restaurants, and in general places where there are up to two zones to be sounded independently

Technical characteristics

• Type: integrated amplifier with tuner, MP3, USB, TF audio sources
• Power supply: 230 V_AC 50/60 Hz
• Output power: 60 W
• Loudspeaker outputs: low impedance 4 ohm; 70 V and 100 V line
• Inputs / sensitivity:
  • MIC: -50 dB to -6 dB / 20 kohm symmetrical (channels 1 – 3)
  • Line: -30 dB to +14 dB / 20 kohm asymmetrical (channels 4 – 6)
  • Tele-input: 100 mV / 600 ohm
• Pre AMP OUT: 0 dB / 600 ohm asymmetrical
• THD: 0.1%
• Frequency response: 80 Hz – 18 kHz
• SNR: greater than 81 dB
• Dimensions (W x D x H): 42 x 32 x 8.8 cm
• Weight: 6.3 kg
