Splitter 6 - 1 > 6 DMX splitter, isolated outputs, signal amplifier

$ 164,88

prices may have variations due to the currency fluctuation

SKU: EVOSPLITTER6

Available

50 Available items Available in European warehouse

Add to cart To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

1 > 6 DMX splitter, isolated outputs, signal amplifier

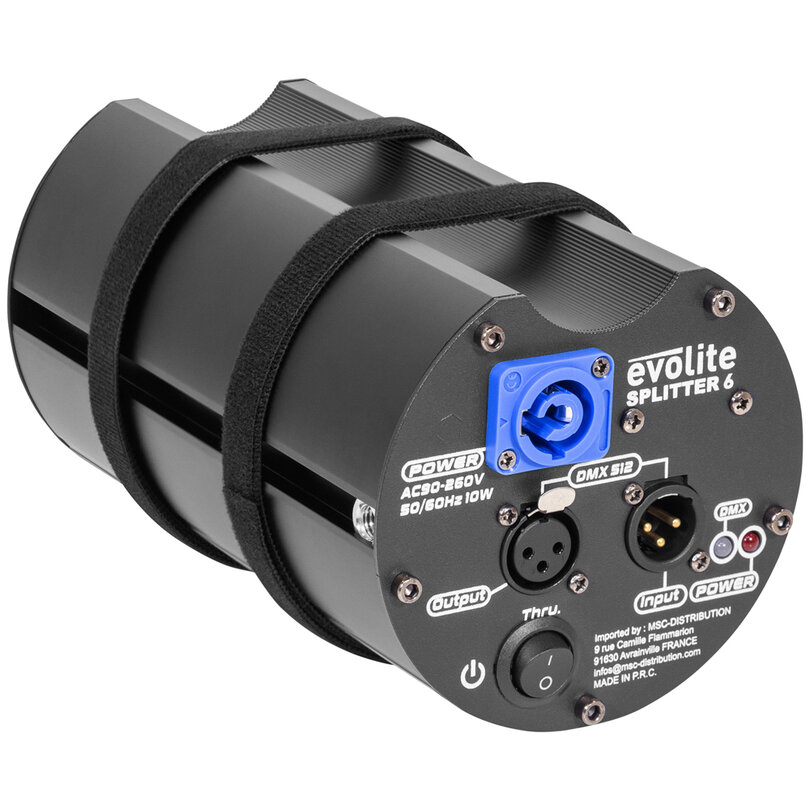

The Evolite Splitter 6 is a uniquely designed DMX distributor designed to split a single signal into 6 independent outputs.

Thanks to its built-in amplification, the device ensures the signal remains strong and readable even over long distances or in complex structures, avoiding the problems typical of long DMX chains or serial connections. Each output is electrically isolated from the input, a feature that protects the entire system from local faults such as a faulty projector or an unstable connection, allowing any problems to be quickly identified.

It complies with the DMX-512 standard and is therefore compatible with most entry-level and mid-range consoles used in event settings.

Customer benefits

Stable and clean DMX signal distribution even over long distances
Isolated outputs protect the system from local failures
Greater reliability than serial DMX chains
Universal compatibility thanks to the DM-X512 standard
Quick and easy installation, ideal for those who frequently set up and dismantle the system
Integrated amplification maintains a strong signal even over long distances

Areas of use

Live events, DJ sets, and private parties
Fixed installations in bars, clubs, event halls, or public venues
Media façades and structures with projectors distributed across multiple zones
Stages, theaters, and scenic areas with multiple groups of LED PARs
Temporary installations for weddings, conventions, and corporate events

Technical characteristics

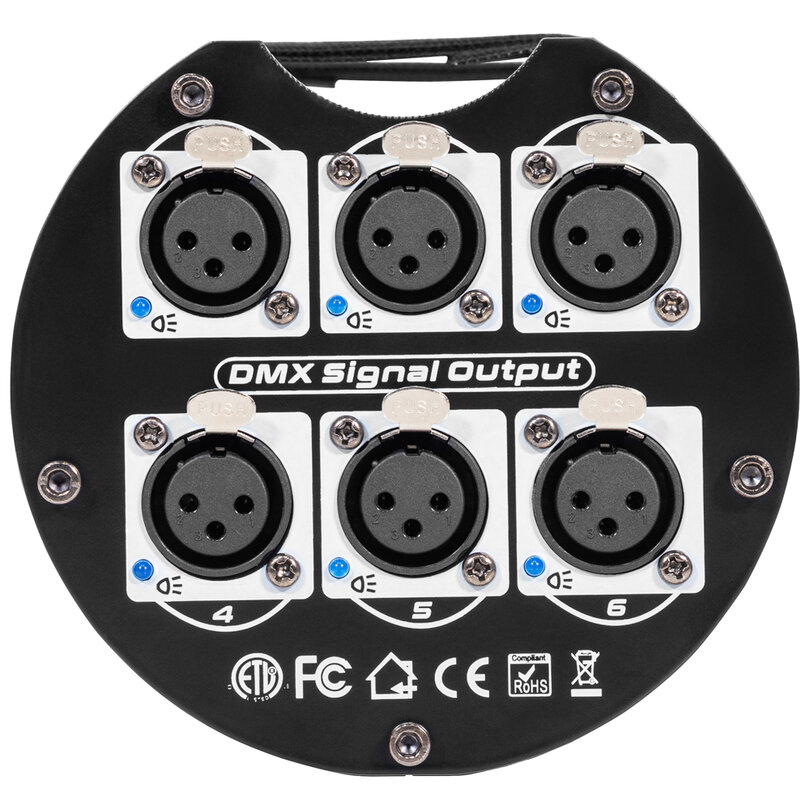

1 input and 6 outputs
All outputs isolated from input
Internal fuse: F 500 mA / 250 V PTC
Power consumption: 10 W
Supply voltage: 110 - 240 V_AC 50/60 Hz
Dimensions: 20 x 15 x 15 cm
Net weight: 1.5 kg
