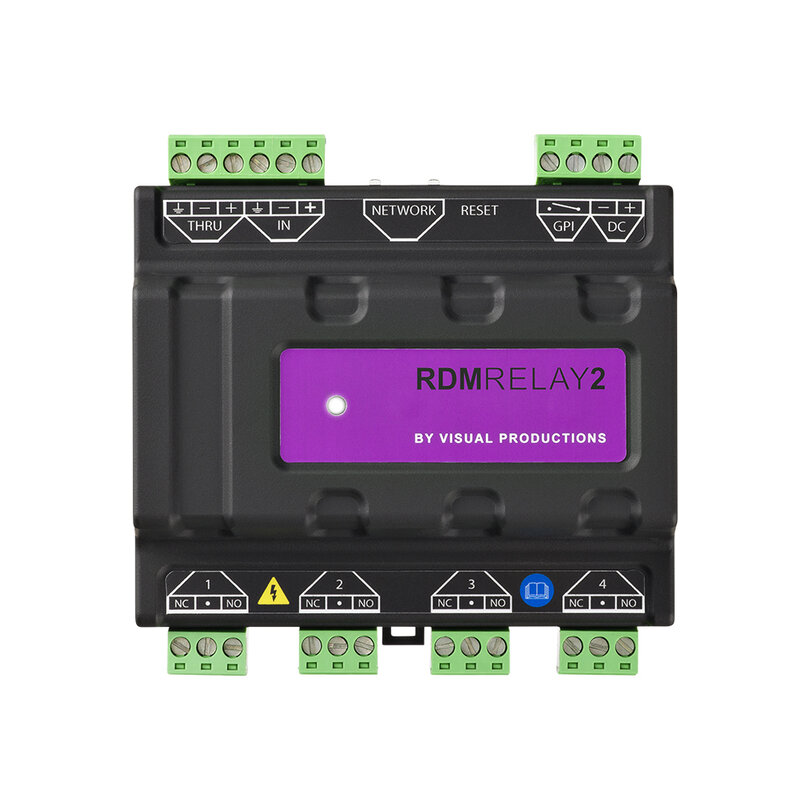

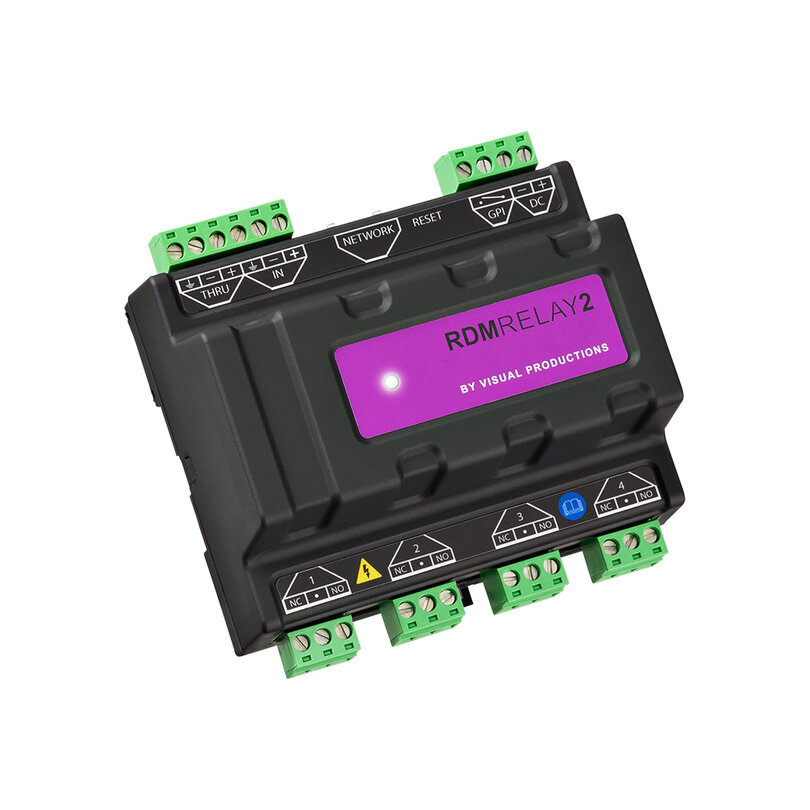

Networked 4‑channel DIN‑rail relay with DMX, RDM and Ethernet control, real‑time load monitoring, web‑based configuration

The RdmRelay2 is a DIN-rail relay interface with four independent relays, controllable via DMX, RDM, and TCP/IP. It supports Art-Net, sACN, OSC, UDP, and TCP protocols, offering flexible integration into modern lighting and automation systems.

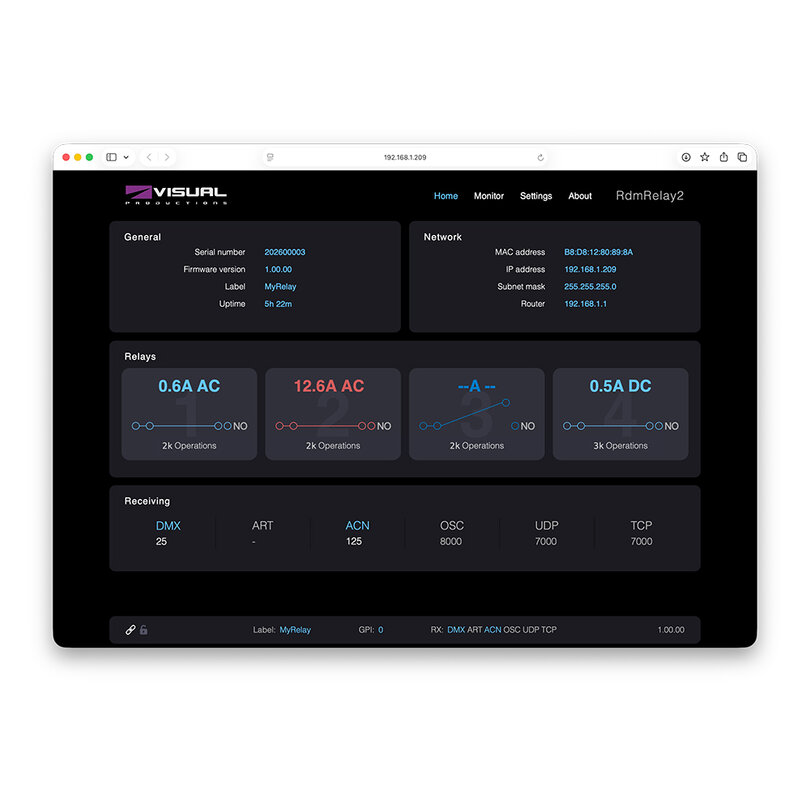

Each relay is rated for loads up to 12 A at 110 – 230 V, making it ideal for controlling non-DMX equipment, managing auxiliary devices or safely de-energizing fixtures during periods of inactivity. The device integrates a web interface for configuration, monitoring, and real-time reading of each channel's current, while RDM provides access to DMX addresses, operating modes, and load measurements.

With network compatibility and an integrated API, the RdmRelay2 can communicate with third-party controllers and systems, simplifying integration into complex installations. Its compact DIN-rail form factor facilitates installation in electrical panels and racks.

User benefits

Compact size (DIN rail)
RDM compatibility for configuration and monitoring
Load monitoring with integrated current sensors
Control via DMX, Art-Net, sACN, OSC, TCP, and UDP
Device management via integrated web interface
Integration with CueCore3 for remote monitoring via PurpleCloud

Areas of use

Safe power outage for lighting systems in venues and theaters
Control of non-DMX equipment in mixed installations
Integration with AV systems for motor and curtain control
Remote load monitoring via web interface or RDM
Management of audio racks with inrush control and sequential power-on

Technical characteristics

DIN rail mounting
DMX512-A (ANSI E1.11)
RDM (ANSI E1.20)
Art-Net & sACN
OSC, UDP, TCP API
4 relays, each max load:
- 12 A 250 V_AC resistive
- 12 A 30 V_DC resistive
- 6 A 250 V_AC inductive
- 6 A 30 V_DC inductive
Operating temperature: -20 to 50 °C
Operating humidity: 10% – 80% non-condensing
Compliance: CE, ROHS, UKCA, FCC, UL pending
Power input: 9 – 24 V_DC 5 W (PSU optional)

$ 609,40

prices may have variations due to the currency fluctuation

SKU: RdmRelay2

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

RdmRelay2 - Networked 4‑channel DIN‑rail relay with DMX, RDM and Ethernet control, real‑time load monitoring, web‑based configuration

$ 609,40

Networked 4‑channel DIN‑rail relay with DMX, RDM and Ethernet control, real‑time load monitoring, web‑based configuration

$ 609,40

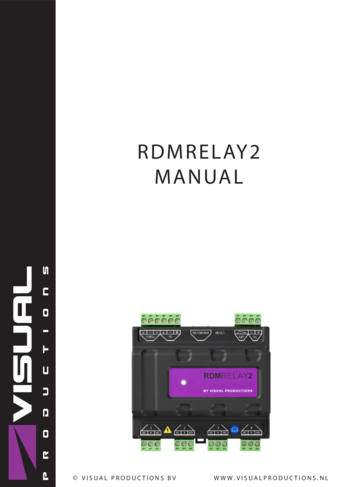

Download
