D9-215 console (flight case) - 15 + 2 motorised fader lighting console shipped in a flight case

15 + 2 motorised fader lighting console shipped in a flight case

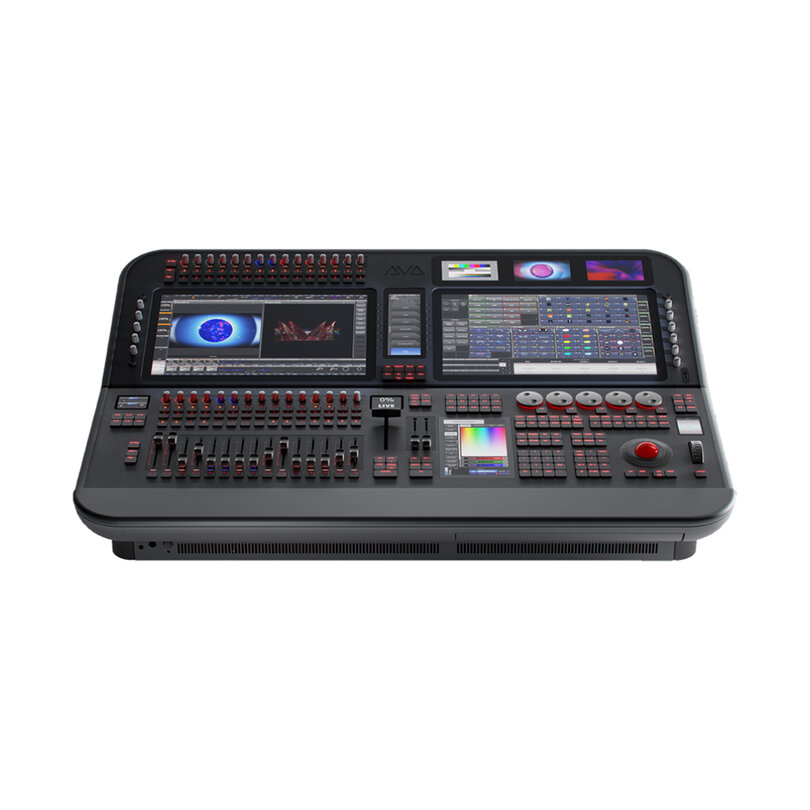

The new Avolites Diamond D9-215 is a more compact version of the flagship lighting controller in the new Avolites range, the D9-330.

Developed using over forty years of experience designing professional lighting control systems, the D9-215 introduces a completely redesigned interface, a larger display area, and advanced multimedia integration, enabling unified management of all visual elements of the show.

Handcrafted in London, it builds on Avolites' heritage of quality and reliability. This console uses touch-sensitive Penny & Giles motorized faders, high-resolution optical rotary faders, and short-throw flash buttons with positive tactile control for perfect timing. The fader and encoder level meters can be color-coded to make grouping even easier and quickly recognize controls when it matters. Each fader features an 11-segment RGB level meter that tracks the playback halo color, especially useful on rotary faders when switching pages. Plus, there are additional macro buttons with a dedicated screen right in the playback section, flashing buttons under the faders, perfectly aligned labeling, and page banks for each section.

A T-bar is used for super-smooth transitions, offering more refined control with even smoother manual fades. Combined with the exclusive Scene Master feature, it offers maximum creativity. With its contact-free design, the fader remains as precise as ever, even after years of use. The Scene Master feature is complemented by a double-width Commit button and four additional control buttons, as well as a dedicated LCD screen for continuous status data. With two motorized faders, eight control buttons, and a Go button, theatrical cue list performance is at your fingertips.

A key feature of this console, which makes it unique, is the presence of a 1 GB LC Quad opticalCON fiber port for connection to the Titan switch (network switch with fiber port) and thus creating a fully fiber-optic system. Avolites is currently the only brand offering this type of technology for a lighting console.

The console is shipped in a flight case.

Main features

• 15 + 2 Penny & Giles touch sensitive faders
• 40 assignable optical rotary encoders with push function
• 2 x 15.6" capacitive touchscreens, 1000 nits of brightness each with FHD resolution and adjustable brightness
• 3 x 4.3" preview touch screens, 1000 nits brightness, 800 x 480 pixel resolution for multimedia or workspaces

Technical characteristics

Control surface

• 15 + 2 motorised touch-sensitive Penny & Giles faders - designer fader cap
• 11-segment RGB LED level indicator alongside each fader
• Halo RGB indicatorfor each playback
• 40 optical rotary touch sensitive playback encoders with push function - designer knob
• 11-segment RGB LED level indicator alongside each encoder
• RGB halo indicator for each encoder
• 90 C&K playback function buttons with positive haptics for timing - designer button cap
• 2 x 15.6" 1000 nits 1920 x 1080 capacitive touchscreens with adjustable brightness
• 3 x 4.3" 1000 nits 800 x 1280 programming screen
• Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
• X, Y, Z, optical trackball
• 21 backlit Macro / Executor keys, all screen-labelled
• Supports two additional HDMI 1920 x 1080 touchscreens

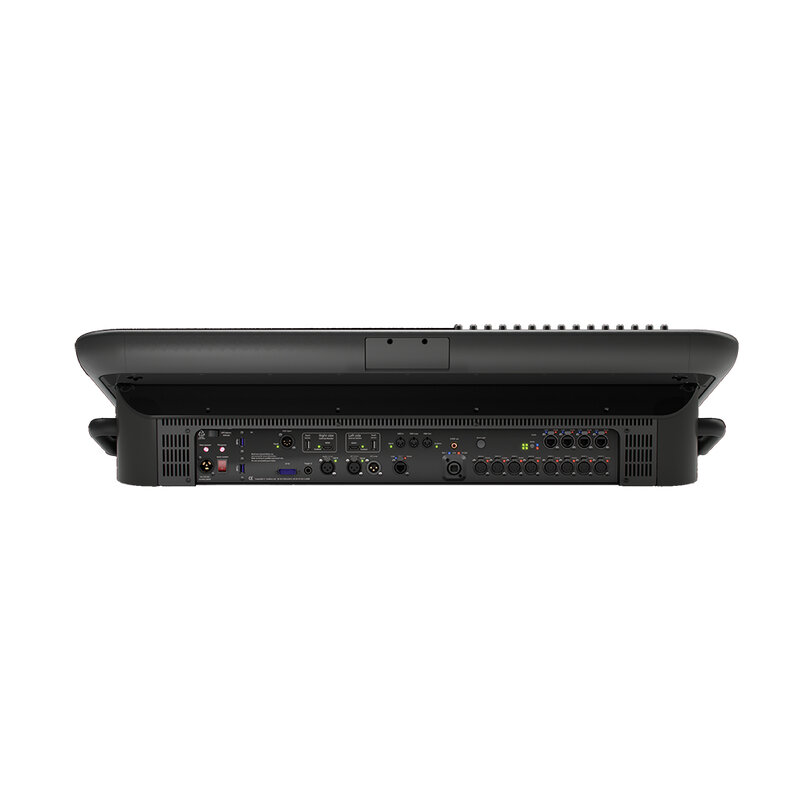

DMX

• 8 x Neutrik 5-pin XLR
• Optically and galvanically isolated with halo assignment indicators

Network

• 4 x 1 GBE Neutrik etherCON, internally switched and managed
• 1 x Quad opticalCON 1 GBE LC Connection
• 1 x 1 GB etherCON, network 2
• Optional upgrade to add: 1 x 10 GBE connection to opticalCON, 1 x 10 GBE Neutrik etherCON

Data & peripherals

• 1 x USB 3.1 (under armrest)
• 1 x USB 3.1 (on front panel)
• 2 x USB 3.1 (back panel)
• 2 x USB 2.0 (assigned for external touchscreens)

External display

• 2 x HDMI (up to 1920 x 1080)

SMPTE

• 1 x 3-pin Neutrik XLR transformer isolated input with signal indicator plus 3-pin XLR loop out

Trigger inputs

• GPIO 4 IN / 4 OUT, isolated, and dry contacts
• 1/4" jack for foot switch
• DMX-512 dedicated input with indicator
• Audio input 3-pin XLR with indicator

MIDI

• IN, THRU, OUT on 5-pin DIN with signal and enabled indicators
• USB MIDI supported

Audio out

• Digital S/PDIF RCA

Mains power

• Neutrik TRUE1

Power

• Work light switch controlling connector panel illumination
• Neon indicator for mains supply and PSU energized
• Internal UPS for console and internal data switch
• 110 - 240 V_AC mains supply max. draw of 650 W

Computer

• Intel i7-9700 K processors
• 16 GB RAM
• AMD WX5100 GPU

Dimensions and weight

• Width: 99.5 x 45.5 (with screens raised) / 24 (with screens lowered) x 64 (with screens raised) / 70.5 (with screens lowered) cm
• Weight: 54 kg
