Compact 10" WXGA capacitive touchscreen interface designed for Titan systems, 4 playback zones, 8 macros, PoE-powered connectivity via RJ45

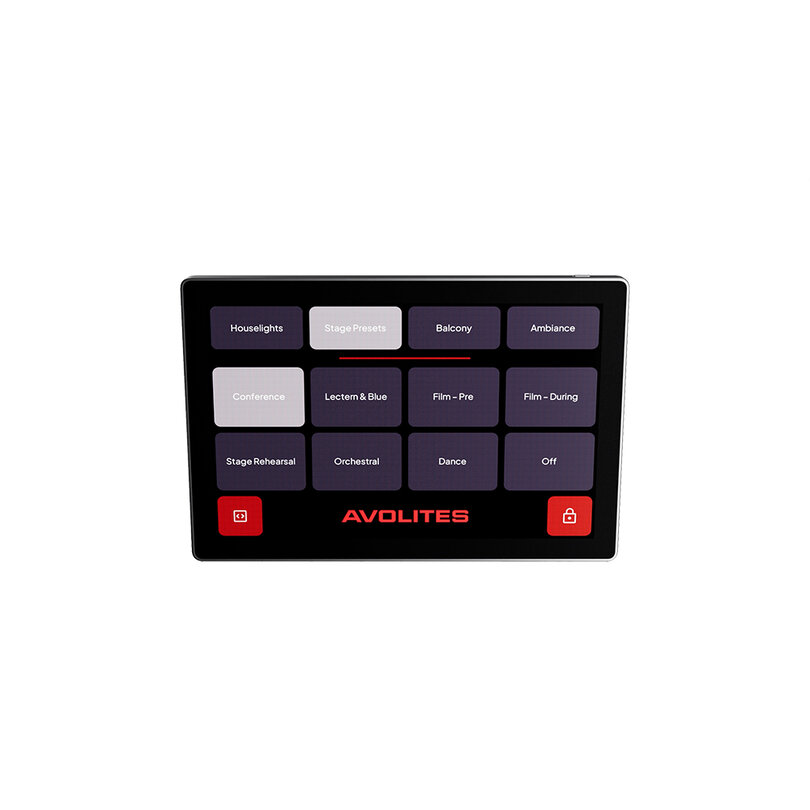

D3 Touch is a preconfigured touchscreen interface designed for easy control of Titan systems.

It was specifically designed for environments where operators – even non-technical ones – need quick access to essential functions, such as show playback or room lighting presets.

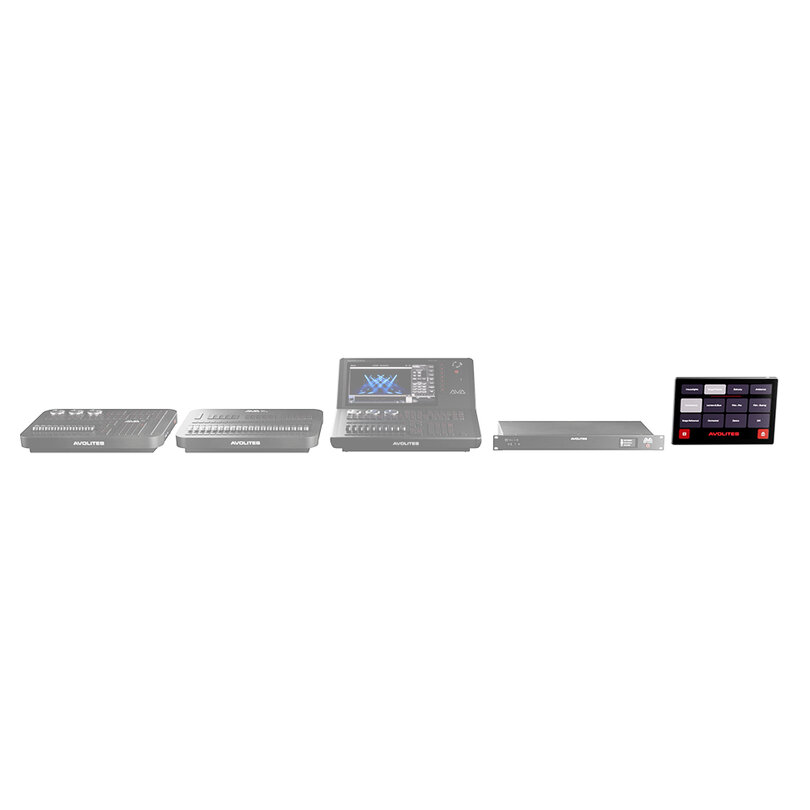

Integration with Titan is complete: D3 Touch is Plug & Play, responsive and intuitive, making the user experience seamless and immediate. It can be paired with a D3 Core or other Titan consoles, offering direct touch access to playback and macros, without the need for complex configuration.

User benefits

Immediate and simplified access to the Titan system's main functions
Intuitive touch interface
Plug & Play
Supports all Titan consoles except the T1

Areas of use

Theaters
Event halls
Fixed installations

Technical characteristics

Control surface

Internal screen: 1 x 10", WXGA capacitive touchscreen

Software

Supports: all Titan consoles (excluding T1)
Zones: 4 x Titan playback groups - user numbers 1001 - 1004 (more can be added using macros to change user numbers)
Scenes per zone: 8 x Titan playbacks within each playback group (more can be added using macros to change contents of playback groups)
Macros: 8 x Titan macros - user numbers 1001 - 1008
Lock screens: yes, via Titan
Unlock code: yes, via Titan (numeric only, requires Titan v19 or above)

Connectivity

Gigabit ethernet: 1 x RJ45

Hardware

Power connector (PoE): RJ45 (IEEE 802.3AF-2003, negotiates CLASS 2)
Soft power button: yes
IP rating: IP20 (indoor use only)
Power consumption: 6 W max.
Operating temperature: 0 to 40 °C
Humidity: 90% non-condensing

Certification and safety

Conformity: CE, WEEE, ROHS

Physical

Dimensions (W x D x H): 24.6 x 2.7 × 16.4 cm
Weight: 0.9 kg
Packaging: cardboard

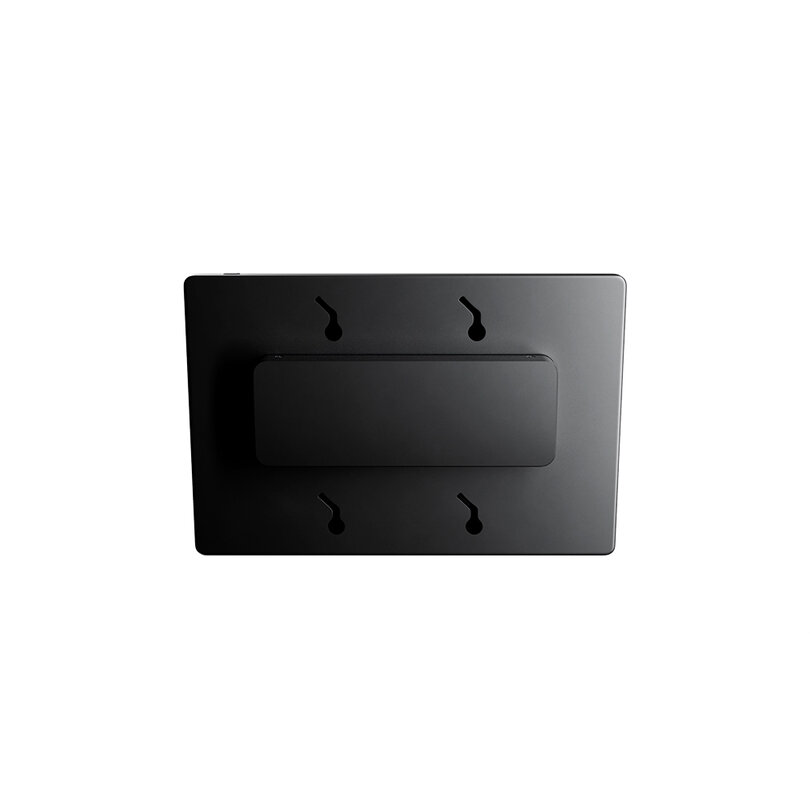

Mounting depth: 20 mm (no backbox), 47 mm (with backbox)
