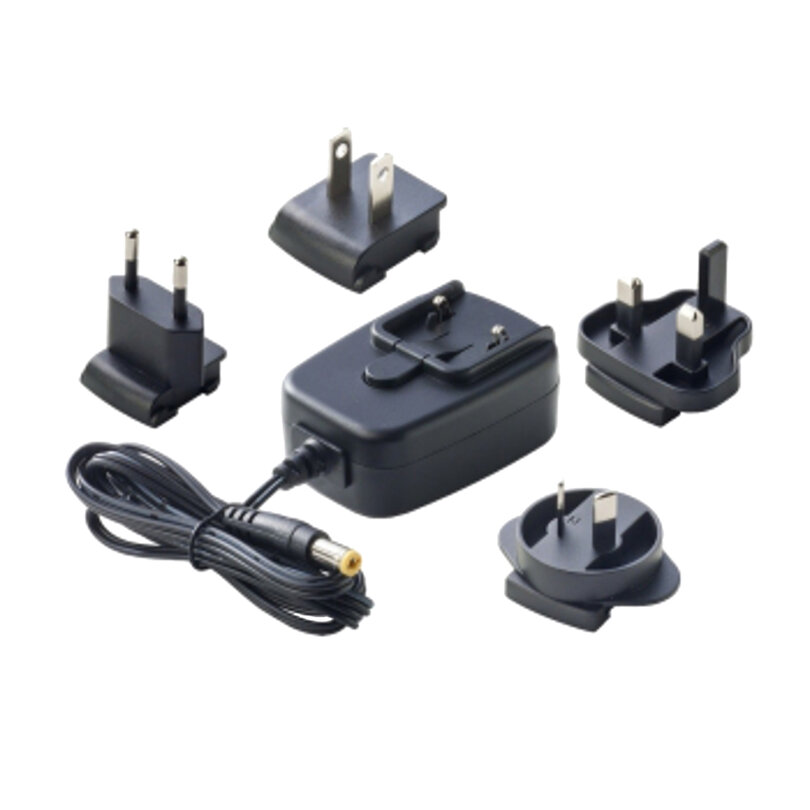

SKU: 12V PSU - SYS 1561Switching power supply capable of providing a stabilized 12 VDC output. Compact, efficient, and compliant with Energy Efficiency Level VI, it is ideal for powering compatible Visual Productions products.
The unit accepts a wide input voltage range (90 – 264 VAC), making it suitable for international use. It features comprehensive electronic protections — SCP (short circuit), OPP (overload), and OVP (overvoltage) — ensuring safe and reliable operation.
The output connector is a classic DC 5.5 × 2.1 mm, center-positive, and the output cable is 1.37 m long, sufficient for most lightweight professional installations.
The power supply body is compact (64 × 45 × 30 mm) and lightweight, making it easy to use in small spaces or on power strips.
Technical characteristics
| Type of power supply | switching, plug-in |
| Input voltage | 90 – 264 VAC |
| Output voltage | 12 VDC |
| Max. output current | 1 A |
| Output power | 12 W |
| Output connector | DC plug 2.1 × 5.5 × 11 mm (positive inner pin) |
| Protections | OPP (overload), OVP (overvoltage), SCP (short circuit) |
| Energy efficiency | level VI |
| Body dimensions | 64 × 45 × 30 mm |
| Output cable length | 1.37 m |
| Operating temperature | 0 to 40 °C |
| Weight | 72 g (gross) |
| Connector variant | straight |
| Region | EU plug |
