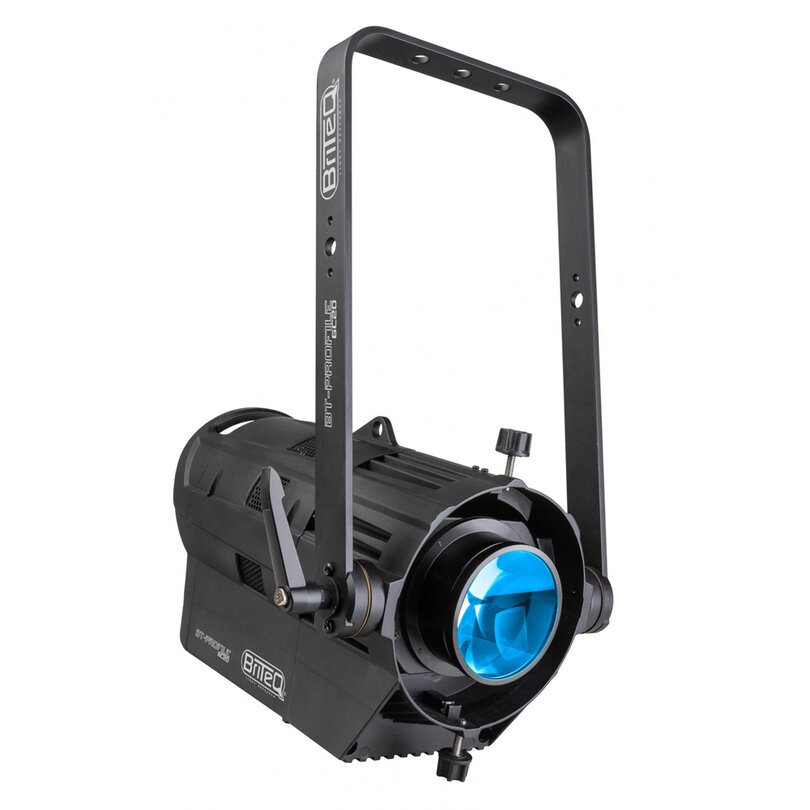

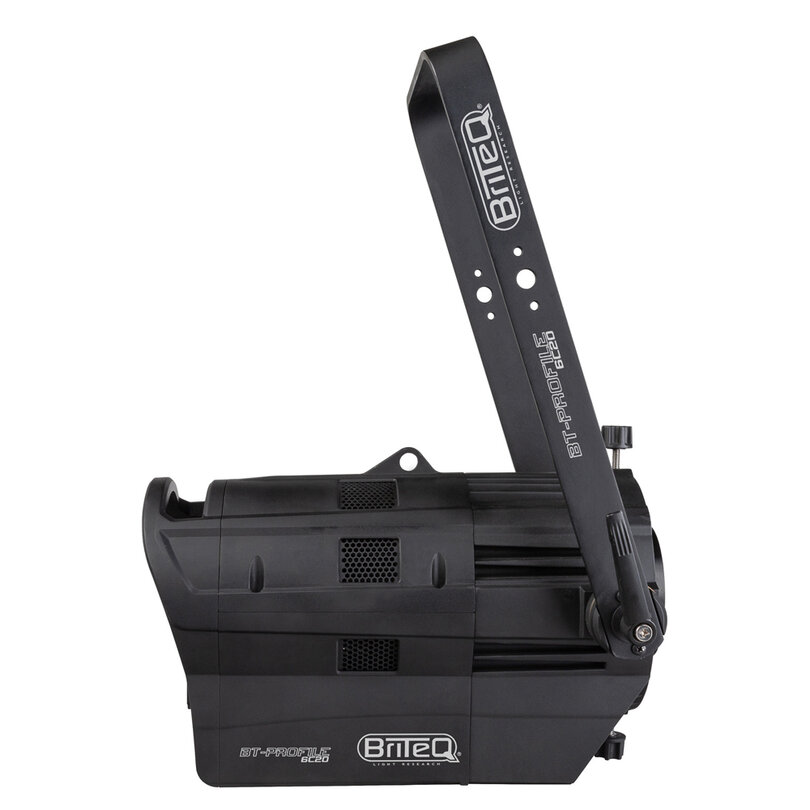

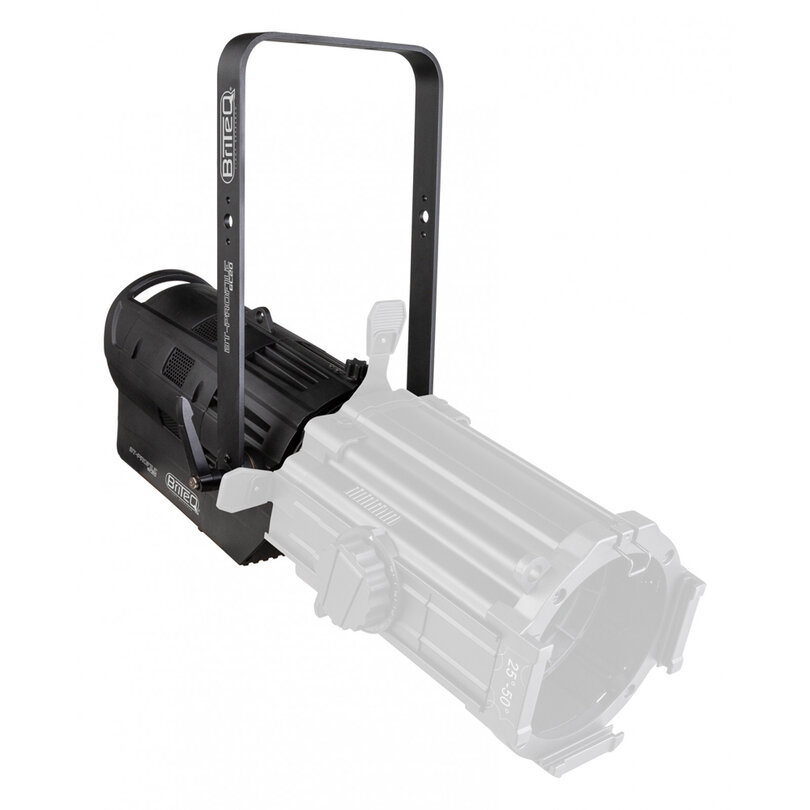

BT-PROFILE 6C20 ENGINE - Full color + white 280 W LED-module for theatre "profile spot"

Full color + white 280 W LED-module for theatre "profile spot"

280 W color + white LED module for theater profile spot (2 kW halogen alternative). Compatible with "ETC source four" optics.

Main features

• 280 W LED Spotlight with powerful multi-color LED technology
• 6-color RGBALC LED cluster (red, green, blue, amber, lime, cyan) ensures:
  • Perfect white presets between 1800 K and 10,000 K with high CRI >90 Ra
  • Rich color selection with the exact same color presets as BT-THEATRE HD2 and BT-PROFILE HD
  • Very realistic amber drift emulation (from soft to warm) of traditional halogen lamps
• Color calibration system makes color differences between different batches a thing of the past
• Very quiet operation with low-noise cooling fan and different fan presets (live, studio, power)
• Can be used in stand-alone mode, without any DMX control
• DMX controlled: 8 different channel modes for maximum flexibility
• RDM functionality for easy remote installation
• TV shooting without flicker-free thanks to adjustable high-speed LED refresh rate
• Fast and slow dimming response
• OLED display for easy navigation in the setup menu
• Lock function to prevent unwanted changes of settings
• 5-pin DXM inputs / outputs + powerCON TRUE1 compatible inputs / outputs for easy daisy-chaining
• The perfect replacement for energy-hungry 2 kW halogen lamps in cinemas!

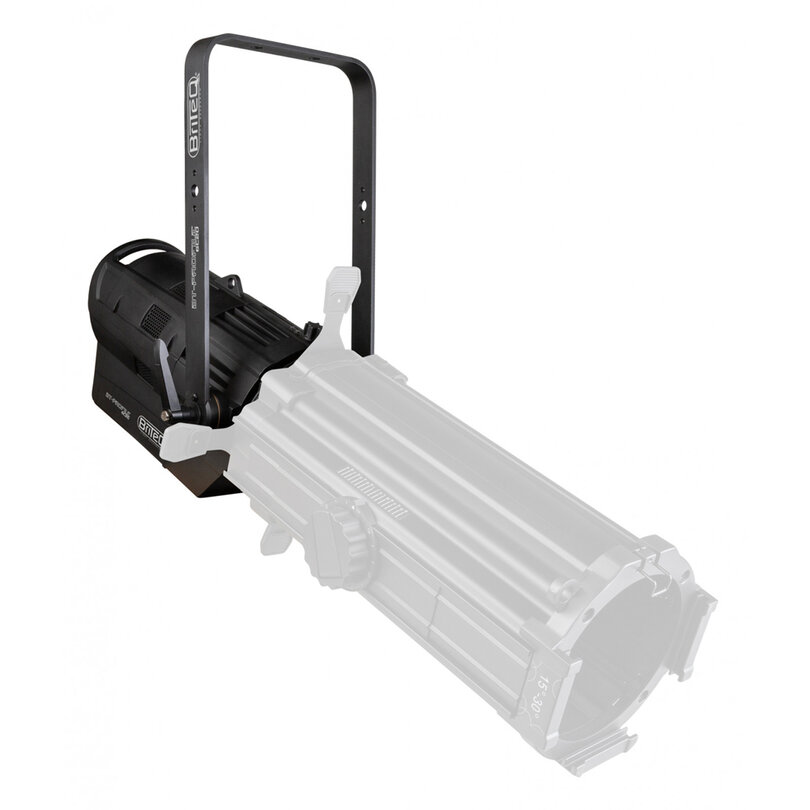

• Multiple lenses available (ETC source four compatible):
• BT-PROFILE 1530 LENS (zoom range 15 - 30°)

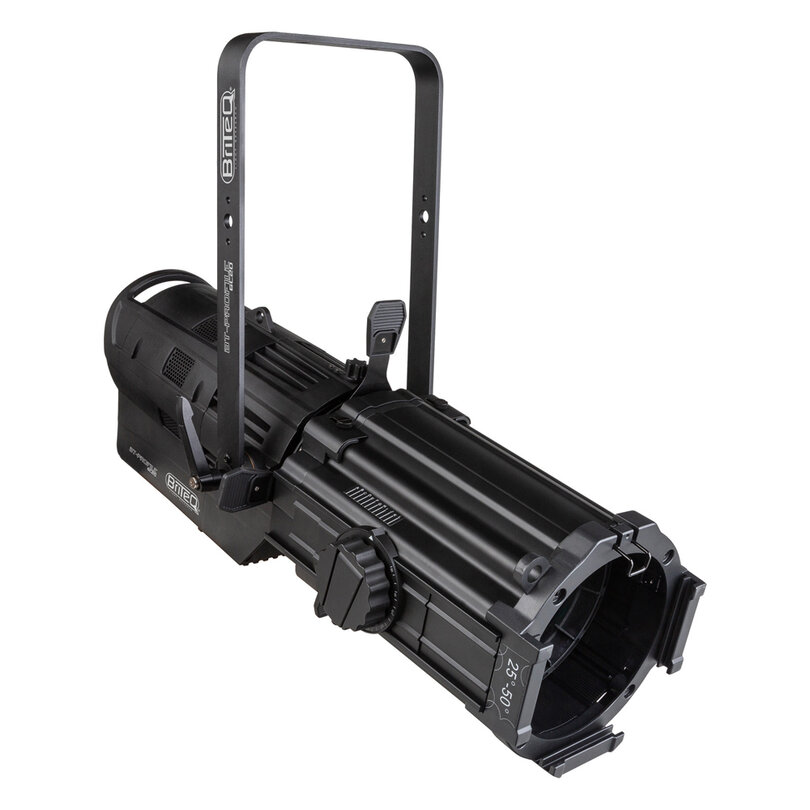

• BT-PROFILE 2550 LENS (zoom range 25 - 50°)
• Fixed aperture lens only on special order

Technical characteristics

• Power input: 100 - 240 V_AC 50/60 Hz
• Power consumption: 290 W
• Color: black
• Display: OLED
• Fixation: optional standard clamp
• IP rating: indoor
• Modes: manual, DMX
• Protocol: DMX, RDM
• Minimum DMX channels: 4
• Maximum DMX channels: 21

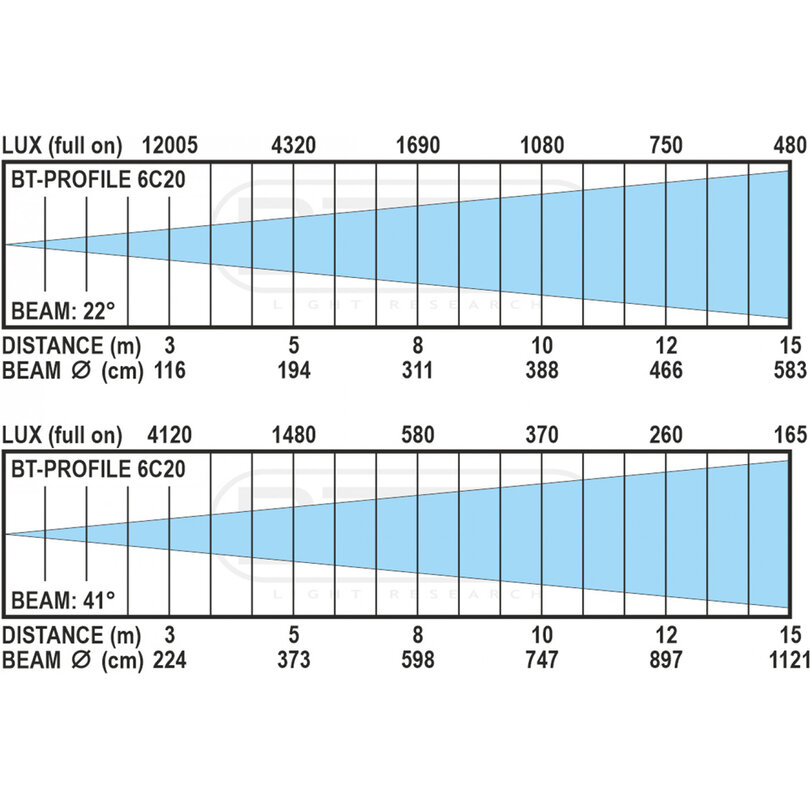

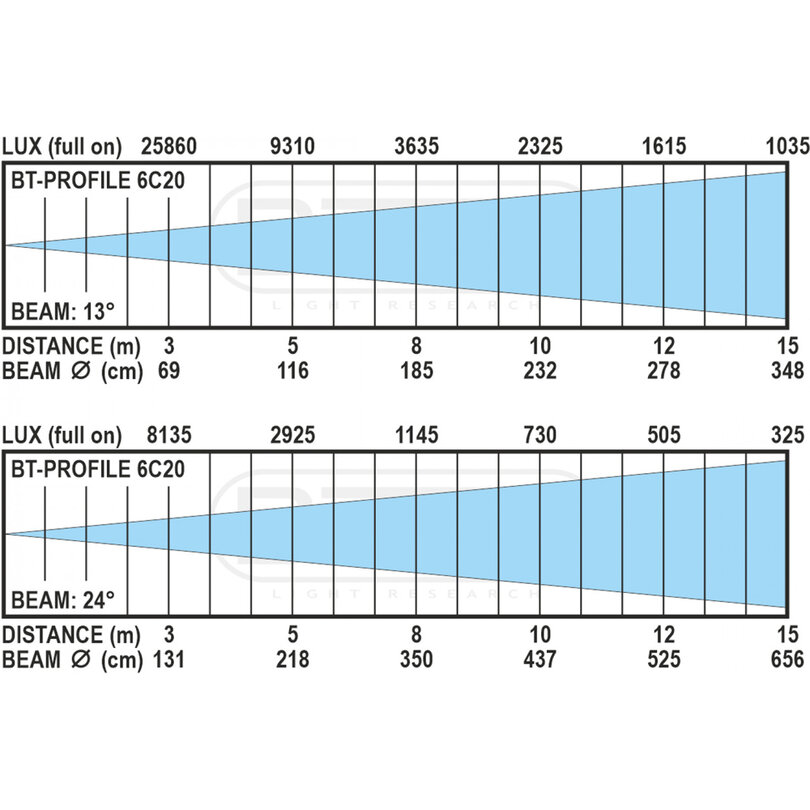

• Lux: 9310 @ 5 m (beam 13°) / 4320 @ 5 m (beam 22°)
• Lamp: LED
• Min. color temperature: 1800 K
• Max. color temperature: 10,000 K
• CRI: 90
• Colors: red, green, blue, amber, lime, cyan, RGBALC
• Mix colors: yes
• Functions: manual focus, manual zoom, optional iris, 4 blade framing shutter
• Max. refresh rate: 25 kHz
• Input: 5-pin XLR, powerCON TRUE1 or compatible
• Output: 5-pin XLR, powerCON TRUE1 or compatible

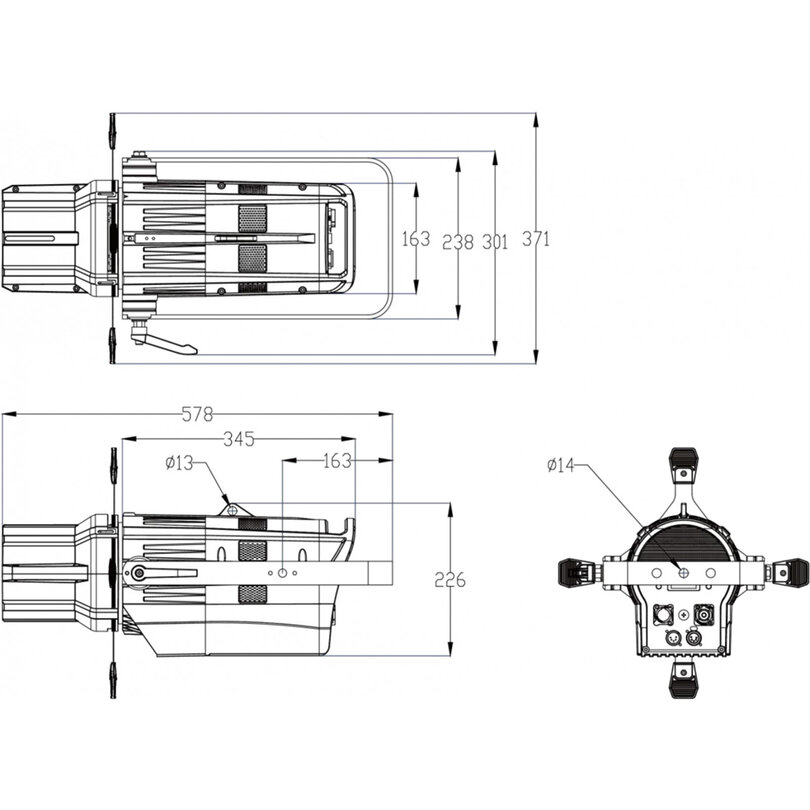

• Dimensions: 30.1 x 57.8 x 22.6 cm (engine without lens)
• Weight: 6.54 kg
