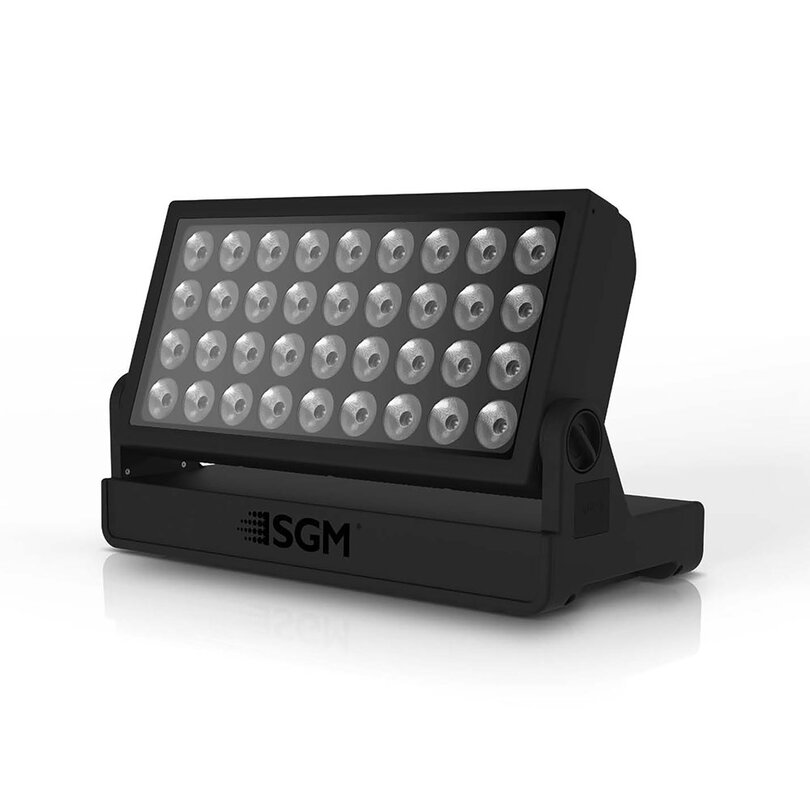

PALCO 6 - High-output RGBL Wash fixture with 36 x 40 W LEDs and Color Boost Technology, 34,000 lumens, foldable design, 6 segments control, IP65 protection, wireless / NFC configuration

High-output RGBL Wash fixture with 36 x 40 W LEDs and Color Boost Technology, 34,000 lumens, foldable design, 6 segments control, IP65 protection, wireless / NFC configuration

PALCO 6 is the new professional standard for high-power Wash lights, designed for live events, temporary productions, and rental applications.

Equipped with 36 x 40 W RGBL LEDs with Color Boost technology, it offers a calibrated output of ca. 34,000 lumens and superior color rendering with a CRI > 85 at 5600 K. The choice of RGBL LEDs (L = Lime) allows for very high quality and color accuracy. With six individually controllable segments, PALCO 6 guarantees creative flexibility and precise light control.

One of PALCO's key strengths is absolute color consistency across all fixtures, regardless of purchase date or product version, whether compact, mid-range, or high-end. This is crucial for industry professionals, as it allows for consistent visual output even in mixed installations or subsequent upgrades. To achieve this level of precision, SGM employs a sophisticated individual calibration process: every single LED within the fixture is individually powered and measured during manufacturing. This meticulous approach ensures that each unit meets the same color standards, delivering predictable, stable, and perfectly aligned colors across the entire product line.

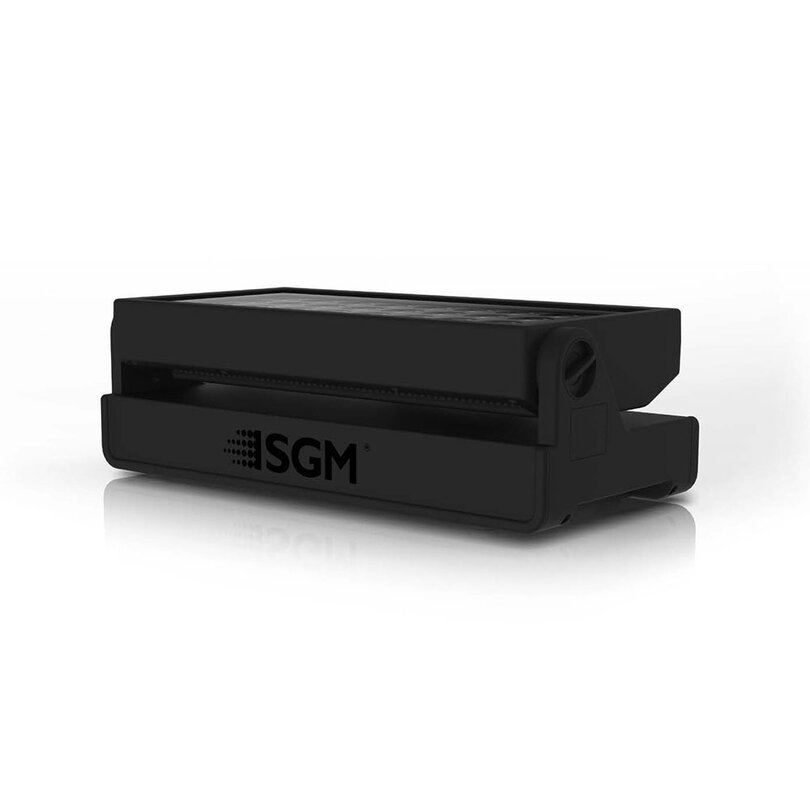

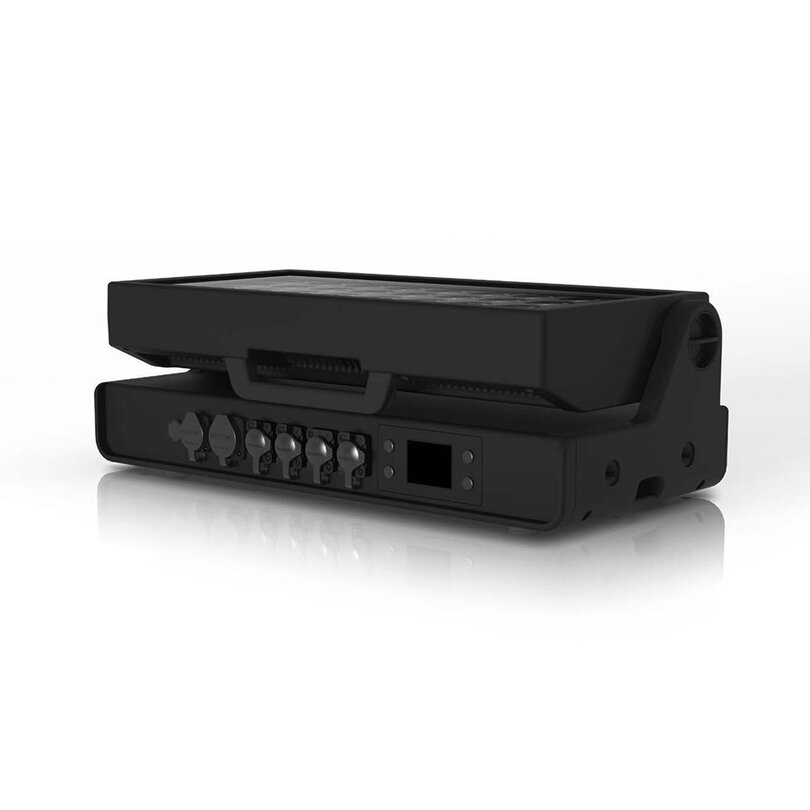

The foldable structure allows for a volume reduction of up to 50%, facilitating transport, storage, and installation, while the low weight is reflected in the fact that many more can be mounted on suspension.

It is designed to withstand extreme environmental conditions thanks to its rugged construction (made of recycled aluminum) and IP65 rating. It supports all major control protocols, including DMX, RDM, Art-Net, sACN, and wireless DMX, and can be configured via NFC via a mobile App (iOS and Android) even without power and even when hundreds of pieces are assembled.

The universal 100 – 240 V_AC power supply and versatile mounting options make it ideal for mobile and quick installations. Each unit includes rubber inserts for flight cases (foam shell) and ¼-turn omega brackets.

PALCO 6 represents the perfect combination of light output, operational efficiency, and sustainability, offering high performance in a smart and compact format.

User benefits

• Compact size in relation to brightness
• Intense light output
• High rendering of white and primary colors superior to any other direct competitor
• Predictable light and color quality
• Adaptable to all control systems
• Useful for productions where cabling is problematic
• Allows quick setup and addressing, even in the flight case
• Universal mains power supply
• Complete mounting flexibility
• Savings on set-up costs
• Three-year warranty

Areas of use

• Most temporary installations, including outdoor
• Live events and theatrical performances
• Concerts and festivals
• Temporary productions
• Complex logistical situations
• Rental companies

Techical characteristics

• 36 x 40 W RGBL LED with Color Boost Technology
• LED expected lifetime: 50,000 hours
• Peak calibrated output: 33,357 lumens
• Color rendering index (CRI): 85+ @ 5600 K
• Native beam angle: 11°
• 6 individually controllable segments
• Max. power consumption: 850 W
• Standby power consumption: 25 W
• IP65-rated for outdoor use
• Control protocols: DMX512, RDM, Art-Net, sACN
• Wireless control: LumenRadio CRMX built-in
• NFC configuration via proprietary iOS / Android App
• Input voltage: 100 – 240 V_AC

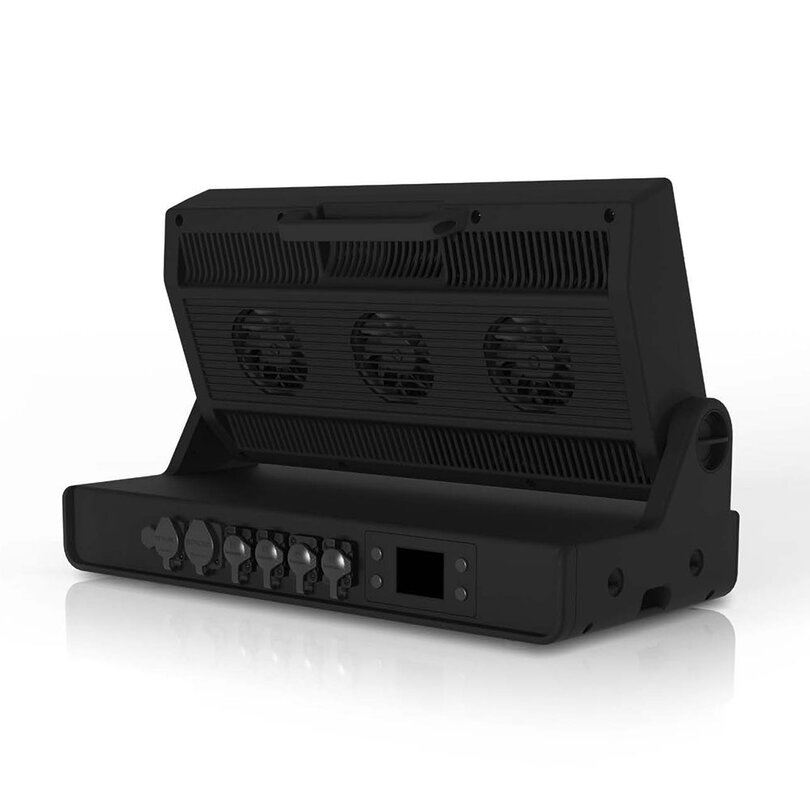

• Cooling: combined forced air and convection system
• Housing: cast in recycled aluminum
• Lens material: PMMA
• Mounting: multiple rigging options including vertical hanging
• Included accessories: rubber foam flight case insert and two ¼-turn omega brackets
• Max. humidity: 98%
• Temperature range, operating / start-up: -20 to 50 °C
• Dimensions (unfolded): 49.8 x 31.7 x 23.2 cm
• Dimensions (folded): 49.8 x 16.5 x 23.2 cm
• Weight: 13 kg
