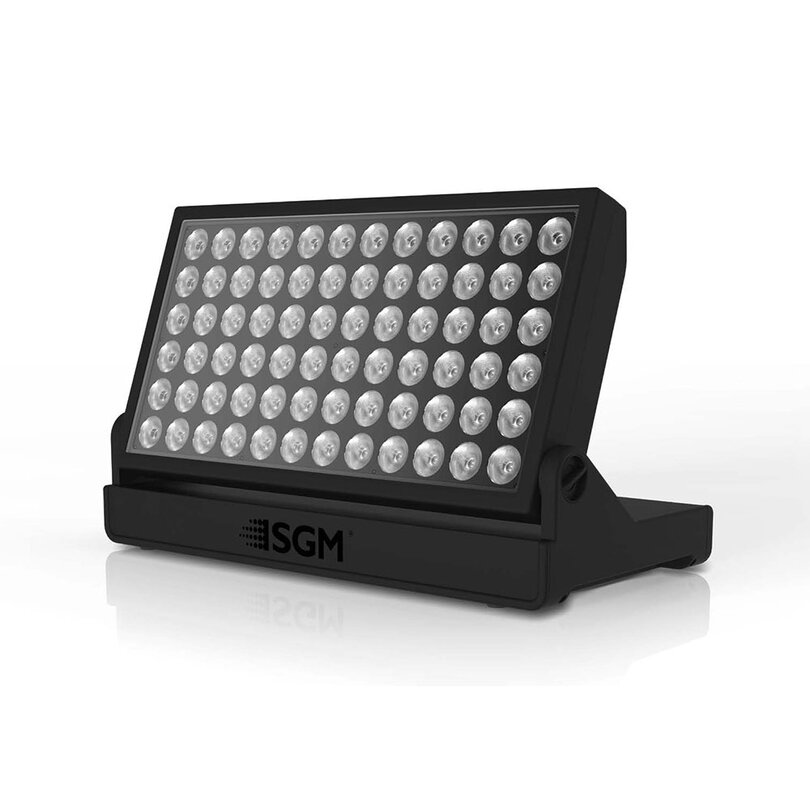

PALCO 12 - Powerhouse RGBL Wash fixture with 72 x 40 W LEDs and Color Boost Technology, over 60,000 lumens, foldable design, 12 segments control, IP65 protection, wireless / NFC configuration

Powerhouse RGBL Wash fixture with 72 x 40 W LEDs and Color Boost Technology, over 60,000 lumens, foldable design, 12 segments control, IP65 protection, wireless / NFC configuration

PALCO 12 is the PALCO family's ultra high-power Wash light, designed for large events, outdoor productions, and temporary installations where light output is crucial.

Equipped with 72 x 40 W RGBL LEDs and Color Boost technology, it offers over 60,000 lumens of calibrated output and excellent color rendering with a CRI above 85. The choice of RGBL LEDs (L = Lime) allows for very high quality and color accuracy. Its 12 individually controllable segments allow for advanced creative light management.

One of PALCO's key strengths is absolute color consistency across all fixtures, regardless of purchase date or product version, whether compact, mid-range, or high-end. This is crucial for industry professionals, as it allows for consistent visual output even in mixed installations or subsequent upgrades. To achieve this level of precision, SGM employs a sophisticated individual calibration process: every single LED within the fixture is individually powered and measured during manufacturing. This meticulous approach ensures that each unit meets the same color standards, delivering predictable, stable, and perfectly aligned colors across the entire product line.

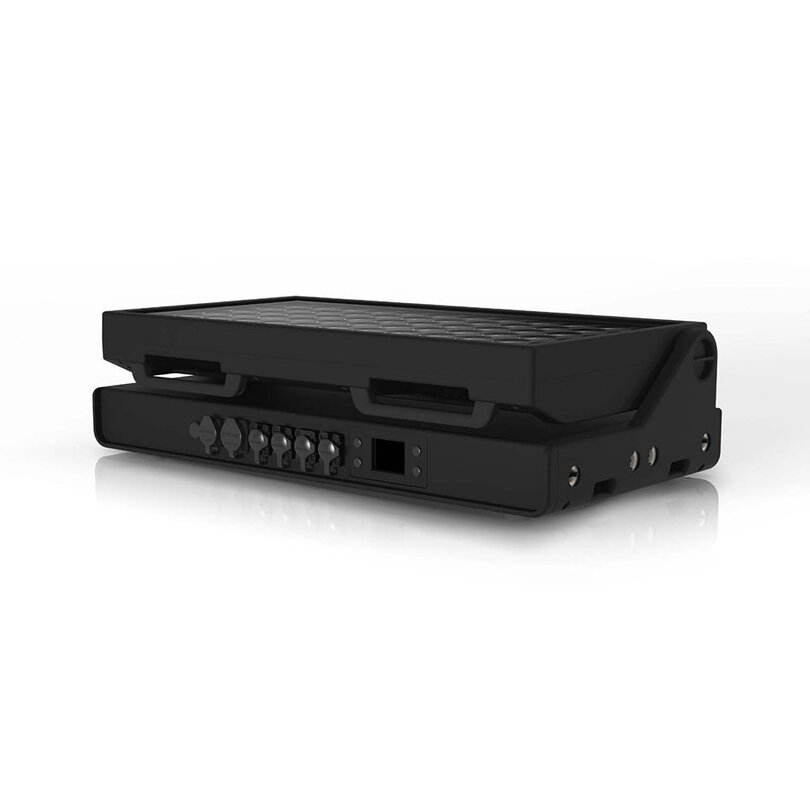

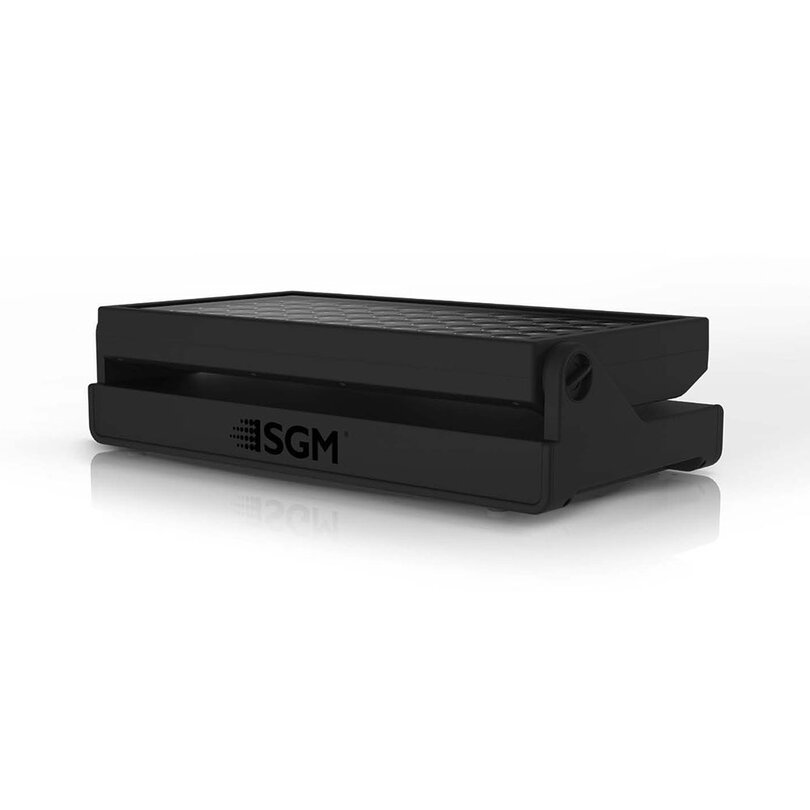

Its foldable structure allows for up to 50% volume reduction, simplifying transportation, storage, and installation, while the low weight is reflected in the fact that many more can be mounted on suspension.

PALCO 12 is built to withstand the harshest environments, with IP65 protection and rugged materials (recycled aluminum). It supports all major control protocols, including DMX, RDM, ArtNet, sACN, and wireless DMX, and can be configured via NFC via a mobile App (iOS and Android) even without power and even when hundreds of pieces are assembled.

The universal 100 – 240 V_AC power supply and versatile mounting options make it ideal for rental and touring productions. Each unit includes rubber inserts for flight cases (foam shell) and ¼-turn omega brackets.

PALCO 12 represents the ultimate expression of power, efficiency, and versatility in a foldable and sustainable format.

User benefits

• Compact size in relation to brightness
• Intense light output
• High rendering of white and primary colors superior to any other direct competitor
• Predictable light and color quality
• Adaptable to all control systems
• Useful for productions where cabling is problematic
• Allows quick setup and addressing, even in the flight case
• Universal mains power supply
• Complete mounting flexibility
• Savings on set-up costs
• Three-year warranty

Areas of use

• Most temporary installations, including outdoor
• Live events and theatrical performances
• Concerts and festivals
• Temporary productions
• Complex logistical situations
• Rental companies

Techical characteristics

• 72 x 40 W RGBL LED with Color Boost Technology
• LED expected lifetime: 50,000 hours
• Peak calibrated output: > 60,000 lumens
• Color rendering index (CRI): 85+ @ 5600 K
• Native beam angle: 13°
• 12 individually controllable segments
• Power consumption: 1600 W
• IP65-rated for outdoor use
• Control protocols: DMX512, RDM, Art-Net, sACN
• Wireless control: LumenRadio CRMX built-in
• NFC configuration via proprietary iOS / Android App
• Input voltage: 100 – 240 V_AC

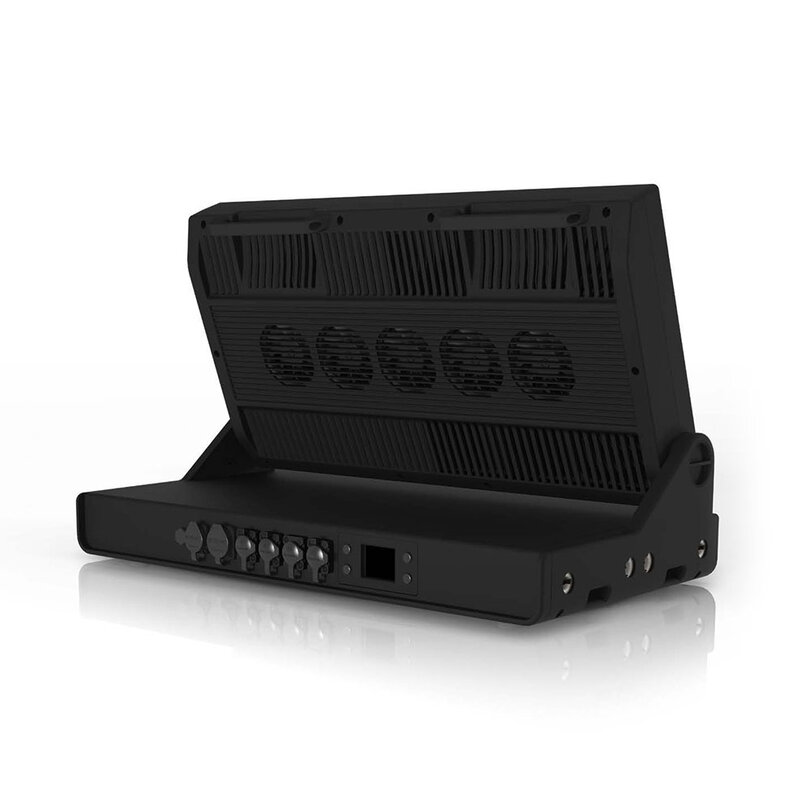

• Cooling: combined forced air and convection system
• Housing: cast in recycled aluminum
• Lens material: PMMA
• Mounting: multiple rigging options including vertical hanging
• Included accessories: rubber foam flight case insert and two ¼-turn omega brackets
• Max. humidity: 98%
• Temperature range, operating / start-up: -20 to 50 °C
• Dimensions (unfolded): 64.2 x 41 x 32.4 cm
• Dimensions (folded): 64.2 x 16.5 x 32.4 cm
• Weight: 24 kg
