PL-10 FB4 - 10,000 mW RGB diode laser system with RSL2 module technology, IP65 outdoor housing, 45 kpps scanners, 5.5 mm / 0.9 mrad beam, full DMX / Art‑Net / LAN / ILDA control with integrated Pangolin FB4

10,000 mW RGB diode laser system with RSL2 module technology, IP65 outdoor housing, 45 kpps scanners, 5.5 mm / 0.9 mrad beam, full DMX / Art‑Net / LAN / ILDA control with integrated Pangolin FB4

The PL‑10 FB4 is a 10,000 mW Purelight series professional RGB laser system based on RSL2 technology, developed for a sharper beam, improved optical quality, and an extremely compact and lightweight enclosure. Thanks to its IP65 rating, the PL‑10 FB4 is ideal for permanent outdoor installations, tours, and productions requiring maximum reliability even in harsh environmental conditions.

The system uses high-performance 45 kpps @ 8° scanners with a maximum scanning angle of 50°, making it suitable for projecting professional graphics, logos, text, and complex effects. The beam has specifications of approximately 5.5 mm / 0.9 mrad, ensuring high visibility and precision.

Each unit integrates the Pangolin FB4 interface, which allows control via DMX, Art‑Net, LAN, and ILDA, as well as the ability to recall shows and effects directly from the internal memory. The device is compatible with professional software such as QuickShow (included) and BEYOND, offering an advanced workflow for creating and managing complex laser shows.

The PL‑10 FB4 comes with a waterproof flight case and Pangolin QuickShow software, ensuring a professional and immediately operational working environment.

User benefits

• RSL2 technology for superior optical quality
• Compact housing
• 10,000 mW RGB power
• 5.5 mm defined beam with low divergence (0.9 mrad)
• 45 kpps professional scanners suitable for complex graphics
• IP65 rating

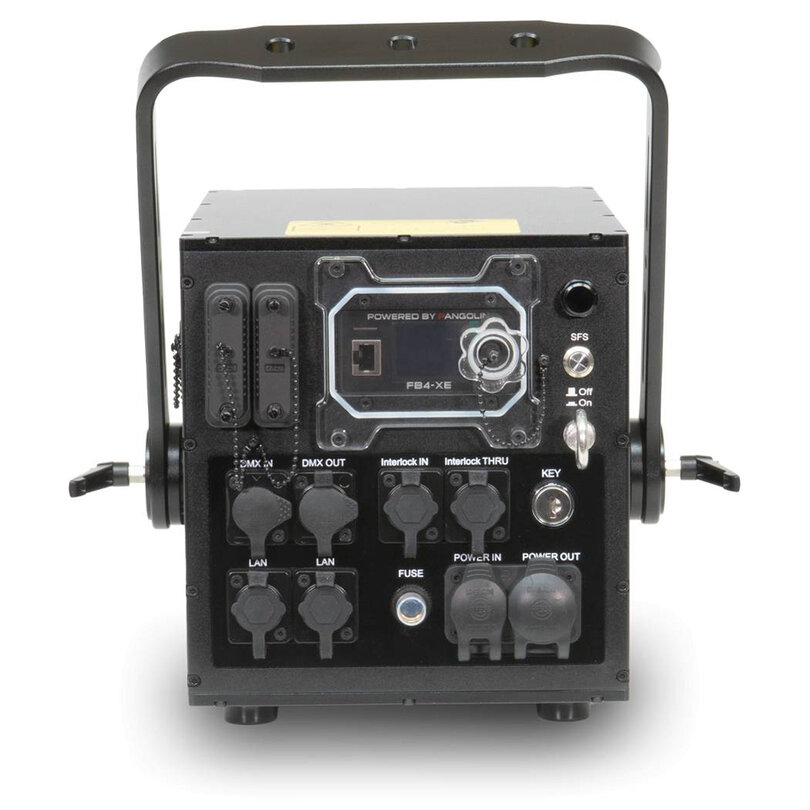

• Pangolin FB4 interface with DMX, Art-Net, LAN, and ILDA control
• Internal memory for shows and effects recalled via DMX or Art-Net
• Includes waterproof flight case and Pangolin QuickShow software

Areas of use

• Permanent outdoor installations
• Medium- and large-sized clubs and venues
• Touring
• Productions
• Graphic projections, logos, and customized content
• Corporate events and multimedia shows
• Small- and medium-scale outdoor shows

Technical characteristics

• Guaranteed power at aperture: 9800 mW
• Red output: 3000 mW / 638 nm
• Green output: 2800 mW / 520 nm
• Blue output: 5000 mW / 450 nm
• Beam specifications: approx. 5.5 mm / 0.9 mrad
• Scanner: 45 kpps @ 8°
• Max. scan angle: 50°
• Laser source: diode
• Laser class: 4

• Operation modes: FB4, ILDA, DMX
• Basic patterns: available for download
• Integrated control: Pangolin FB4 interface

• IP rating: 65
• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 120 W

• Dimensions (L x W x H): 31.3 × 20 × 21.2 cm
• Weight: 14 kg
• What's in the box:
  • Laserworld PL‑10 FB4
  • Waterproof flightcase
  • Power cable
  • Interlock
  • Key
  • Manual
  • Pangolin QuickShow software (included)
