PIKO 65 - 65,000 mW guaranteed output power RGB laser with ShowNET, uniform 10 mm / 0.8 mrad beam, IP65 housing, RSL modules

65,000 mW guaranteed output power RGB laser with ShowNET, uniform 10 mm / 0.8 mrad beam, IP65 housing, RSL modules

The RTI PIKO 65, made in Germany, is a compact professional laser system housed in a rugged IP65-rated housing, ideal for high-end applications in any environment. It is built with the latest RTI RSL semiconductor laser modules, designed to maintain identical spot size and divergence on both axes, avoiding the typical X- and Y-axis differences found in traditional modules. The modules integrated into the RTI PIKO 65 are different: the spot and beam shape are uniform for all colors and on both axes.

The beam specifications of the new RTI PIKO 65 include a diameter of approximately 10 mm and a divergence of 0.8 mrad, values ​​that apply to both axes. The extremely small diameter allows the use of very small mirrors, resulting in reduced inertia and significantly improved scanning performance.

The RTI PIKO 65 offers a guaranteed RGB output of 65,000 mW. High visibility is achieved thanks to RSL laser modules with optimized wavelengths: 19,000 mW / 637 nm for a very bright red, 26,000 mW / 525 nm for a highly visible green, and 30,000 mW / 455 nm for a deep blue. These modules, with their extremely low divergence and homogeneous beam shape, make the RTI PIKO 65 a high-end laser system.

The beam diameter of just 10 mm allows the use of small mirrors, reducing inertia and enabling faster scanning speeds. This is particularly important because the RTI PIKO 65 can be used in any type of laser application: extremely sharp beams and vivid colors for large-scale concerts and festivals, but also a perfectly controlled beam for sharp graphics.

RSL laser modules are maintenance-free and do not lose internal alignment. Standard scanners can operate at up to 38 kpps @ 8° ILDA, with a maximum angle of 48°.

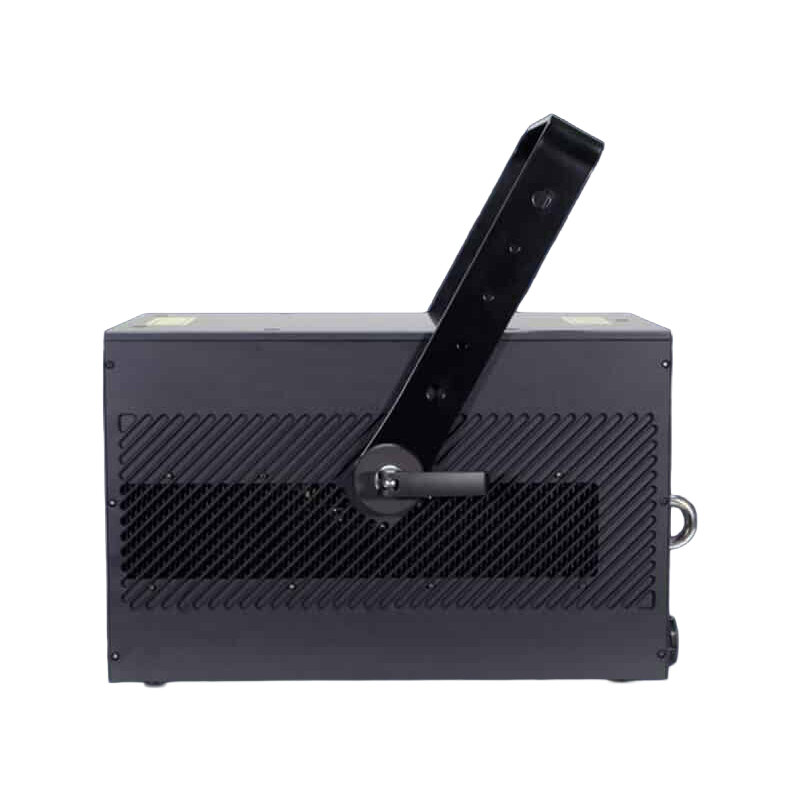

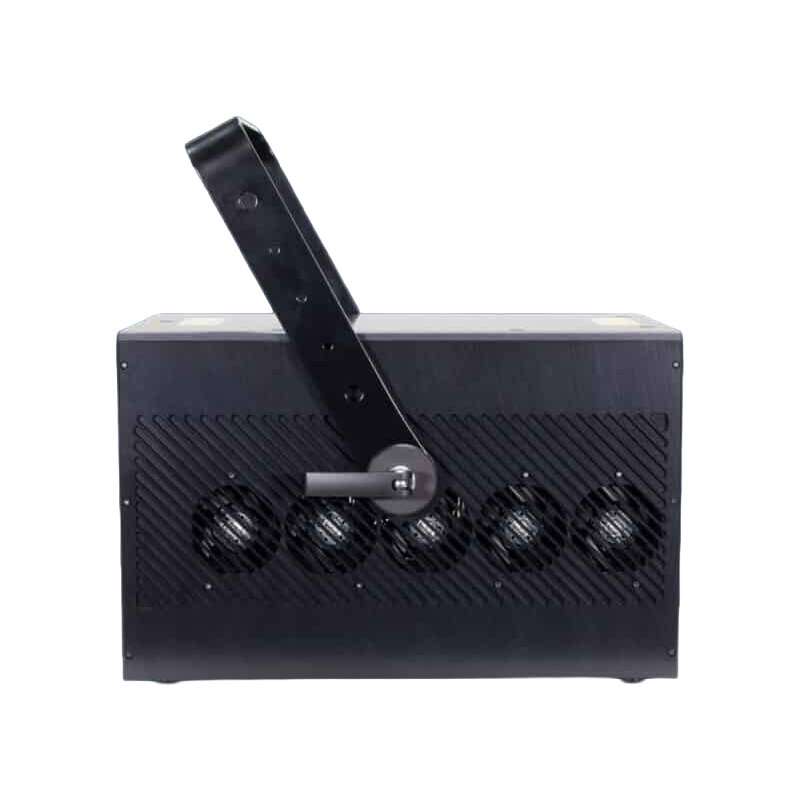

The housing is extremely robust and ideal for touring. Thanks to IP65 protection, maintenance is minimal, and the device is perfectly suited for harsh conditions and dusty or weather-exposed environments.

The new 360° brackets can be quickly fixed in the desired position thanks to the quick-lock system. Complex graphic projections or long-distance projections are possible without difficulty thanks to the excellent beam divergence.

Solinger LaserAnimation Mainboard and ShowNET (included)

The intelligent Sollinger LaserAnimation Mainboard is integrated into the RTI PIKO 65 and offers the laser operator a wide range of control and configuration options (e.g., via the LA.toolbox software) and various transmission modes, such as AVB. Along with the integrated ShowNET laser mainboard, ILDA, LAN (software), DMX, and ArtNET control, ILDA streaming, standalone operation, and much more are available, ensuring maximum operational flexibility.

Control signals can be cascaded directly via the integrated network switch.

If the laser is used in high-temperature conditions (above 35°C), we recommend contacting your sales representative for the necessary accessories.

Main features

• RTI RSL technology with uniform spot and divergence on both axes
• Extremely small beam for superior scanning performance
• Rugged, IP65-rated housing, ideal for touring and outdoor use
• Maintenance-free laser modules with no risk of misalignment
• Brilliant colors and optimized wavelengths for maximum visibility
• High performance for both beam effects and graphics
• 360° brackets with quick-lock system
• Sollinger LaserAnimation mainboard with LA.toolbox software
• Control via integrated FB4, DMX, Art-Net, LAN (software)
• AVB/TSN support for ILDA streaming via Ethernet (optional)
• Integrated network switch for signal loop-through

User benefits

• Extremely sharp and stable beam, ideal for precision shows
• No need for internal realignment
• Minimal maintenance thanks to the IP65 housing
• Maximum control flexibility for any professional setup
• High performance in both beam and graphics
• Touring reliability even in harsh environments

Areas of use

• Large events, festivals, and outdoor concerts
• Permanent installations in harsh environments
• Long-distance projections
• High-intensity show beams
• High-definition laser mapping and graphics
• Corporate events, set design, and television productions

Technical characteristics

• Guaranteed power at aperture: 65,000 mW
• Power red: 19,000 mW / 637 nm
• Power green: 26,000 mW / 525 nm
• Power blue: 30,000 mW / 455 nm
• Beam specifications: 10 mm / 0.8 mrad
• Scanner: 38 kpps @ 8° ILDA, max. scan angle 48°
• Laser source: RTI RSL modules
• Laser Class: 4
• Operation Modes: FB4 (LAN software), DMX, ArtNET; optional AVB/TSN interface for ILDA data streaming via Ethernet; AIFF player function; stand‑alone player; control software “LA.toolbox” for PC / Mac included
• Basic patterns: over 120 (layers, tunnels, fences, waves, etc.)
• IP rating: IP65
• Power supply: 86 – 264 V_AC 47 – 63 Hz
• Power consumption: 2500 – 2800 W (depending on model)
• Dimensions: 50.9 x 27.1 x 29.6 cm
• Weight: ca. 39 kg
• What's in the box:
  • RTI PIKO 65 laser
  • Flight case
  • Rain cover
  • Interlock connector
  • Key
  • Power cable
  • Manual
  • LA. toolbox software
