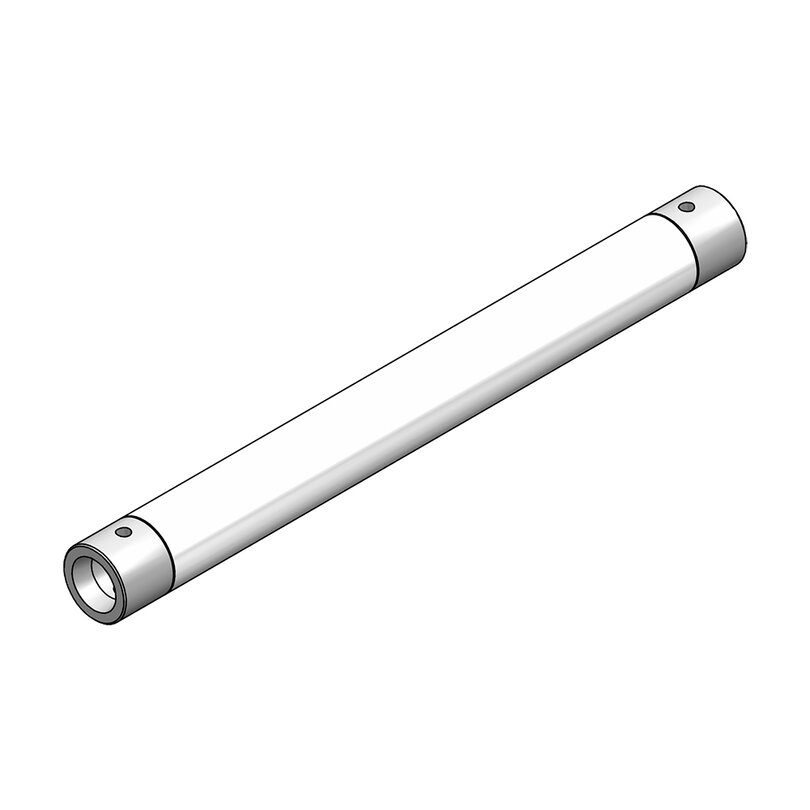

RAB580 - Aluminium tube 50 × 3 mm, integrated bushes, length 500 mm, made from alloy 6082‑T6 and manufactured according to Litec specifications for structural truss components

$ 85,63

prices may have variations due to the currency fluctuation

(Tax excluded) SKU: RAB580

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Aluminium tube 50 × 3 mm, integrated bushes, length 500 mm, made from alloy 6082‑T6 and manufactured according to Litec specifications for structural truss components

Structural aluminum tube made of 6082 T6 alloy, designed as an accessory component for truss systems and light carpentry applications.

The profile has an external diameter of 50 mm, a thickness of 3 mm, and a length of 500 mm, with integrated bushings. The construction complies with standards EN 10204, EN 573-3, and EN 755-2, with certified mechanical strength and chemical composition values.

The tube includes 0.5 × 45° chamfers, a surface roughness of Ra 3.2, and general tolerances to ISO 2768-m, ensuring dimensional accuracy and compatibility with Litec structures. The component weighs 1.419 kg.

Technical characteristics

Material: aluminium alloy 6082‑T6
Profile type: round tube with bushes
Outer diameter: 50 mm
Wall thickness: 3 mm
Chamfers: 0.5 × 45°
Surface roughness: Ra 3.2
General tolerances: ±0.1 mm for linear dimensions, ISO 2768‑m for angular dimensions
Inspection certificates: EN 10204 – 3.1
Chemical composition standard: EN 573‑3
Mechanical properties standard: EN 755‑2
Tensile and hardness tests: UNI EN ISO 6892‑1, UNI EN ISO 6506‑1
Length: 500 mm
Weight: 1.419 kg
