Powerful all-in-one LED processor supporting up to 13 Mpixels, 20 Ethernet outputs, 2 x 10G fiber ports, HDMI inputs up to 4K @ 60 Hz, Android OS, advanced video management, wireless projection, AI-driven image optimization

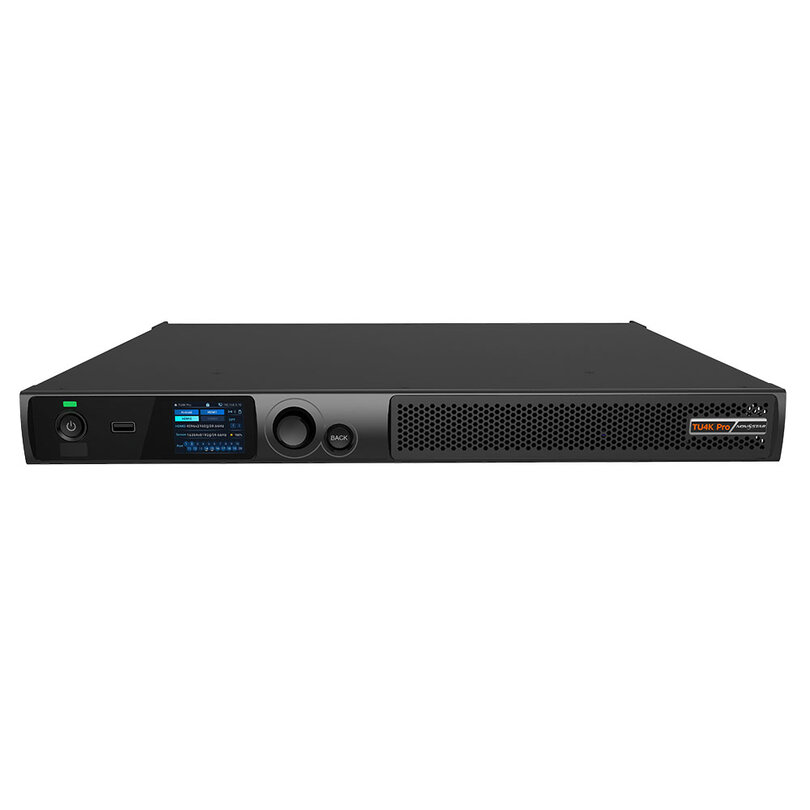

TU4K Pro is an all-in-one LED processor designed to deliver high performance and intelligent content management on LED screens of any size.

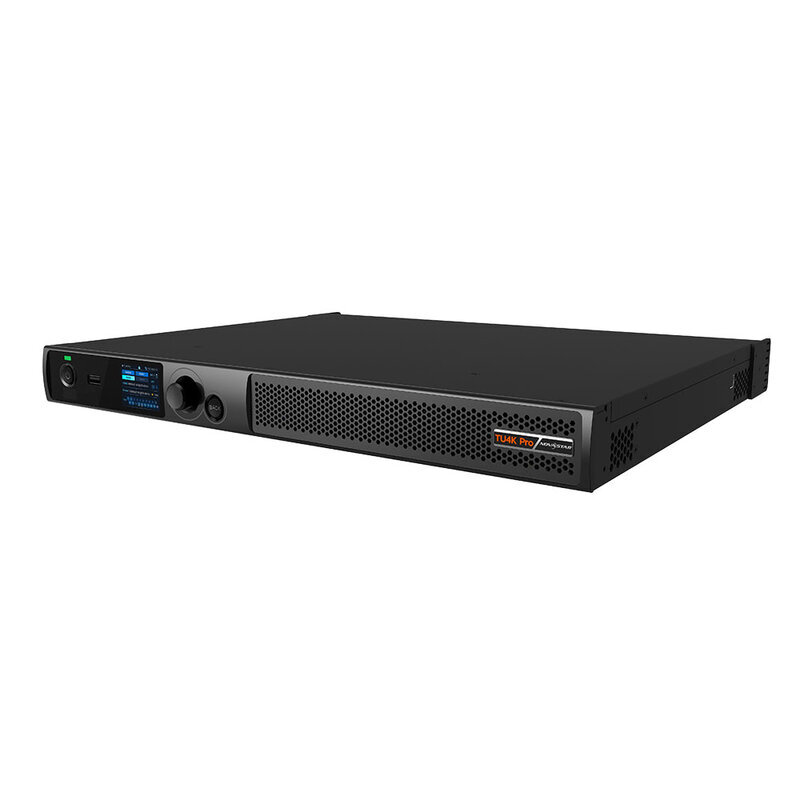

It is a compact, 1U rack-mountable, yet powerful solution that integrates the Android operating system, video management, data transmission, and advanced interactivity features. Capable of handling up to 13 Mpixels, the TU4K Pro ensures flawless images even on large, ultra-high-resolution displays, thanks to its 20 Ethernet output ports and two 10G fiber optic ports that ensure stability and flexibility for even the most complex installations.

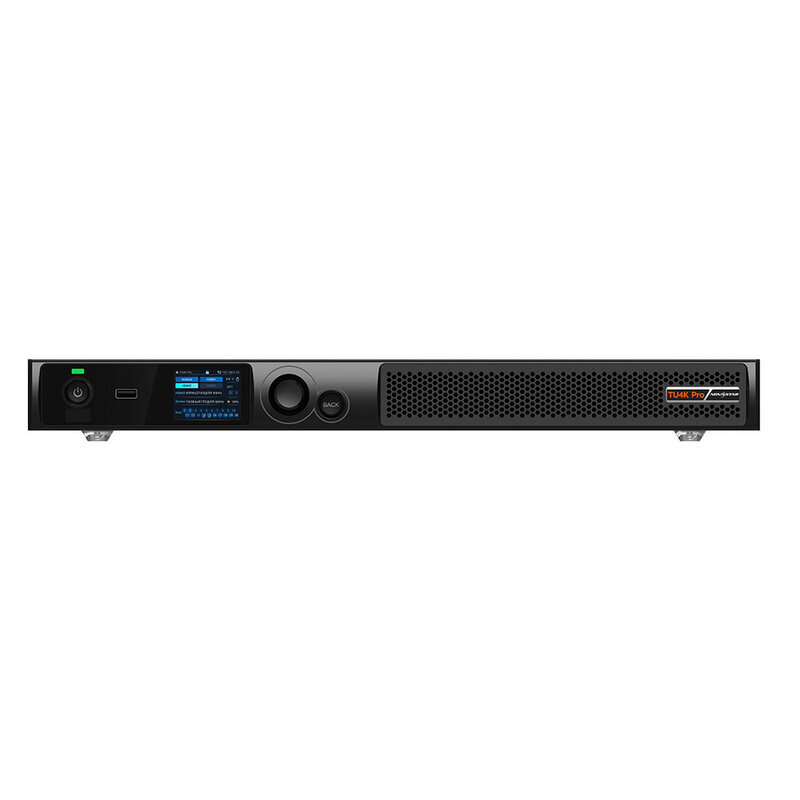

It offers comprehensive connectivity and exceptional versatility, with support for HDMI inputs up to 4K @ 60 Hz, USB 2.0 and 3.0 ports for direct media playback, dual-band Wi-Fi, Bluetooth, and a built-in local hotspot, as well as remote control via dedicated Apps. The user interface is intuitive and accessible thanks to the 2" LCD display and multifunction knob, with the option of controlling it via Bluetooth remote control or mobile Apps.
The device offers advanced functions for direct playback of images, videos, and documents, playlist creation and scheduling, intelligent control of input signals, and support for wireless projection from smartphones, PCs, and tablets. Visual quality is optimized by a dynamic engine and artificial intelligence algorithms that enhance the image, with dedicated modes for meetings, photography, and cinema, as well as selectable visual effects that adapt to different application contexts.
User benefits
- Up to 13 Mpixels
- 20 Ethernet ports and 2 10G fiber optic ports
- Extensive connectivity: HDMI inputs, USB ports, dual-band Wi-Fi, Bluetooth, and integrated local hotspot
- Remote control via dedicated Apps (Screen Elf and Screen Boss)
- Advanced functions for direct playback of images, videos, and documents
- Creating and scheduling playlists
- Support for wireless projection from smartphones, PCs and tablets
Areas of use
- Digital Signage
- Live events
- Trade fairs and temporary installations
- Conference rooms
- Broadcast and television studios
- Corporate environments
Technical characteristics
Inputs
- 2 x HDMI 2.0, up to 4096 x 2160 @ 60 Hz, HDR supported
- 1 x HDMI 1.3, up to 1920× x 1200 @ 60 Hz
- USB: 1 x USB 3.0, 2 x USB 2.0

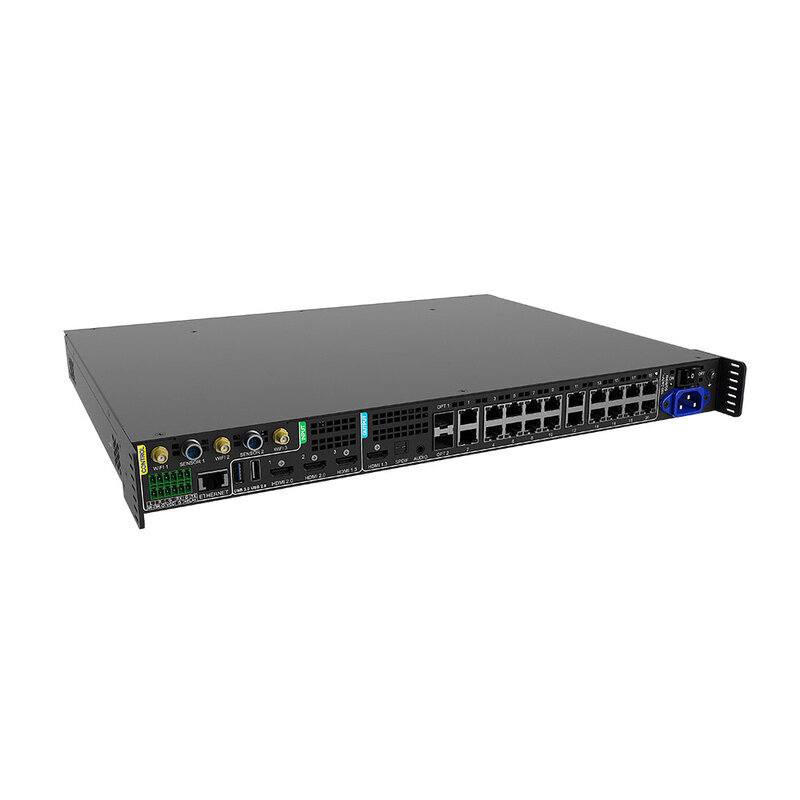

Outputs
- Ethernet: 20 x Gigabit Ethernet ports
- Fiber: 2 x 10G OPToptical outputs
- Monitoring: 1 x HDMI 1.3
- Audio: SPDIF, 3.5 mm, HDMI eARC, Phoenix connector
Processing performance
- CPU: ARM quad-core A73 + quad-core A53 @ 2.2 GHz
- Decoding: H.264 up to 4K @ 30 Hz, H.265 up to 4K @ 60 Hz
- Playback capability: 1 x 8K stream, 2 x 4K streams, 4 x 1080p streams, 9 x 720p streams, 16 x 480p streams, 20 x 360p streams
System functions
- OS / UI: Android 13.0-based UI, supports third-party apps
- Wireless screen mirroring: Windows, macOS, iOS, Android up to 3840 x 2160 @ 30 Hz
- Image optimization: AI image enhancement, HDR video decoding, dynamic engine for contrast and detail
- Display modes: Standard, Meeting, Vivid, Skin
- Comfort & connectivity: eye comfort mode, dual Wi-Fi modes, Bluetooth 5.1 (up to 7 devices)
- Control: front panel LCD, Bluetooth remote, mobile Apps (ViPlex Handy, VNNOX Care)
Others
- Load capacity: up to 13 Mpixels (8.8 million for pixel-to-pixel display)
- Input voltage: 100 - 240 VAC, 50/60 Hz, 2.5 A max.
- Rated power consumption: 53.9 W
- RAM: 8 GB
- Internal storage: 128 GB
- IP rating: IP20
- Certifications: CE, FCC, RoHS, IC
- Optional accessories: whiteboard activation code, MEEXUS Dongle TB1304: Type-C mirroring dongle with adapter
- Operating environment: - 20 to 50 °C, 5% to 85% RH (non-condensing)
- Storage environment: –20 to 70 °C, 5% to 95% RH (non-condensing)
- Dimensions: 44.5 x 5 x 38.18 cm
- Net weight: 4.60 kg
- What's in the box:
- TU4K Pro unit
- Power cord
- Bluetooth voice remote
- Ethernet cable
- HDMI cable
- 2 x Phoenix connectors (6 pins)
- 3 x antennas
- 2 x hanging brackets
- Certificate of approval
