MX_4x12G SDI input card - Input card, 4 x 12G-SDI ports, supporting ST-2082 (12G) and other industry standards, to use with NovaStar's MX series

€ 5.185,18

SKU: M02090008

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Input card, 4 x 12G-SDI ports, supporting ST-2082 (12G) and other industry standards, to use with NovaStar's MX series

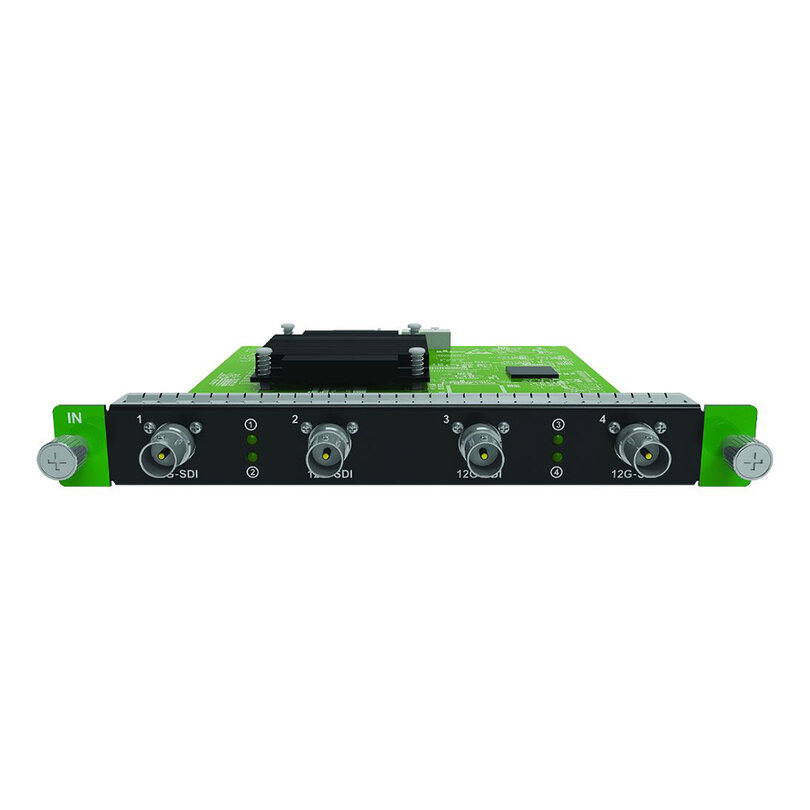

The MX_4x12G-SDI input card is designed to deliver top-level video performance with four 12G-SDI inputs compatible with the ST-2082 standard and other industry standards.

It supports a maximum resolution of 4096 x 2160 at 60 Hz and ensures superior visual quality thanks to HDR10 and HLG compatibility, complying with the SMPTE ST 2084 and ST 2086 standards. It can also convert interlaced signals to progressive signals. For optimal performance, we recommend using Belden 12G SDI cables, which support lengths up to 50 meters.

This card is ideal for integration into NovaStar MX Series systems, offering a reliable and versatile solution for professional high-definition video applications.

Technical characteristics

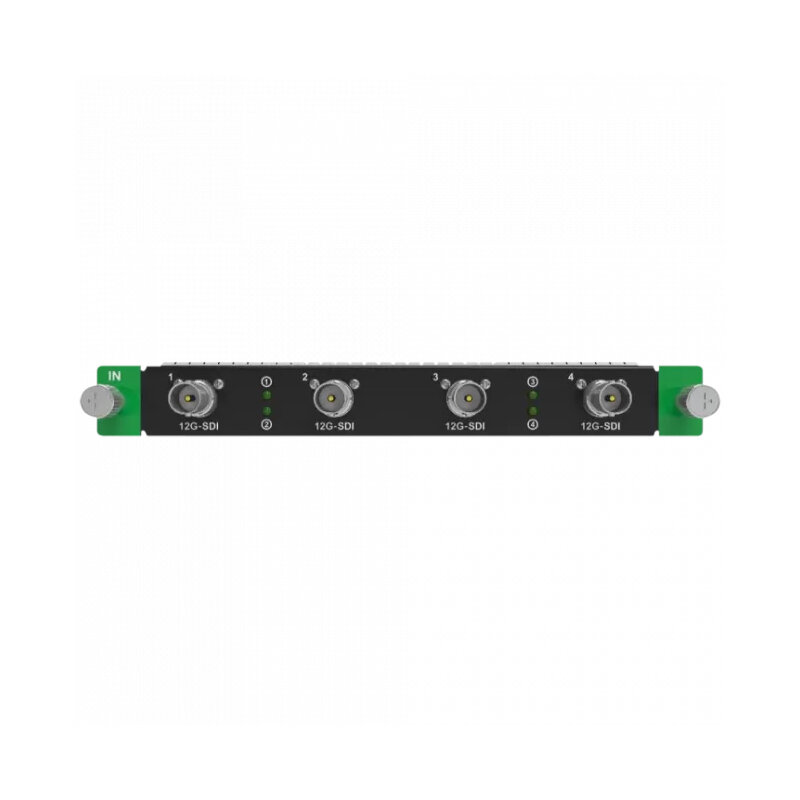

4 x 12G-SDI input ports
Standards:
- Supports ST-2082 (12G), ST-2081 (6G), ST-424 (3G), and ST-292 (HD) standard video inputs
- Supports 3G-Level A/Level B (DS mode)

Maximum resolution: 4096 x 2160 @ 60 Hz

Frame rates: up to 60 Hz
HDR:
- HDR10

- Complies with SMPTE ST 2084 and SMPTE ST 2086 standards
- HLG

Supports conversion of interlaced signals to progressive signals

Belden 12G SDI standard cables are recommended, cable lengths up to 50 m
