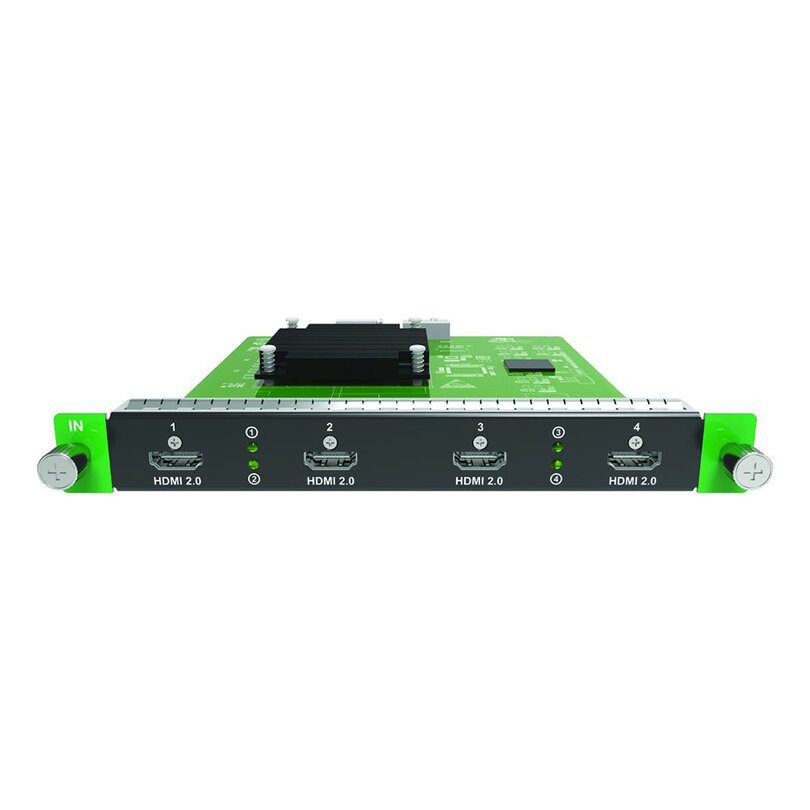

MX_4xHDMI2.0 input card - Input card, 4 x HDMI 2.0 ports, up to 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced), HDR10, HLG, HDCP 2.3 compliance, customizable EDID management

$ 5.809,54

SKU: M09100147

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Input card, 4 x HDMI 2.0 ports, up to 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced), HDR10, HLG, HDCP 2.3 compliance, customizable EDID management

The MX_4xHDMI2.0 is an input card designed for Novastar MX Series LED controllers, including the MX2000 Pro and MX6000 Pro.

It features four HDMI 2.0 ports and supports resolutions up to 4096 x 2160 at 60 Hz or 8192 x 1080 at 60 Hz (forced). The maximum width and height reach 8192 pixels, respectively. It is compatible with a wide range of refresh rates, from 23.98 to 240 Hz. It supports HDR10 and HLG, complying with SMPTE ST 2084 and ST 2086 standards.

EDID management allows standard resolutions up to 3840 x 2160 at 60 Hz, as well as custom resolutions. It also complies with HDCP 2.3 and is backward compatible with HDCP 2.2, 1.4, and 1.3. Does not support interlaced video signals.

Technical characteristics

4 x HDMI 2.0 inputs
Resolution:
- Max. resolution: 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced)
- Min resolution: 800 x 600 @ 60 Hz
Max. width / height (forced):
- Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
- Max. height: 8192 pixels (1080 x 8192 @ 60 Hz)
Frame rates: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
HDR:
- HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards
- HLG
EDID management:
- Support standard resolutions, up to 3840 x 2160 @ 60 Hz
- Support custom input resolutions
HDCP: HDCP 2.3 compliant, backwards compatible with HDCP 2.2 / HDCP 1.4 / HDCP 1.3
Interlaced signal inputs: not supported

Compatability: MX Series LED display controllers, including MX2000 Pro and MX6000 Pro

$ 5.809,54

SKU: M09100147

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

MX_4xHDMI2.0 input card - Input card, 4 x HDMI 2.0 ports, up to 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced), HDR10, HLG, HDCP 2.3 compliance, customizable EDID management

$ 5.809,54

Input card, 4 x HDMI 2.0 ports, up to 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced), HDR10, HLG, HDCP 2.3 compliance, customizable EDID management

$ 5.809,54
