MX_4xDP1.2 input card - Input card, 4 x DP1.2 ports, up to 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced), HDR10, HLG, HDCP 1.3 compliance, customizable EDID management

NovaStar

kr 58.772,19

SKU: M09100160
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Input card, 4 x DP1.2 ports, up to 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced), HDR10, HLG, HDCP 1.3 compliance, customizable EDID management

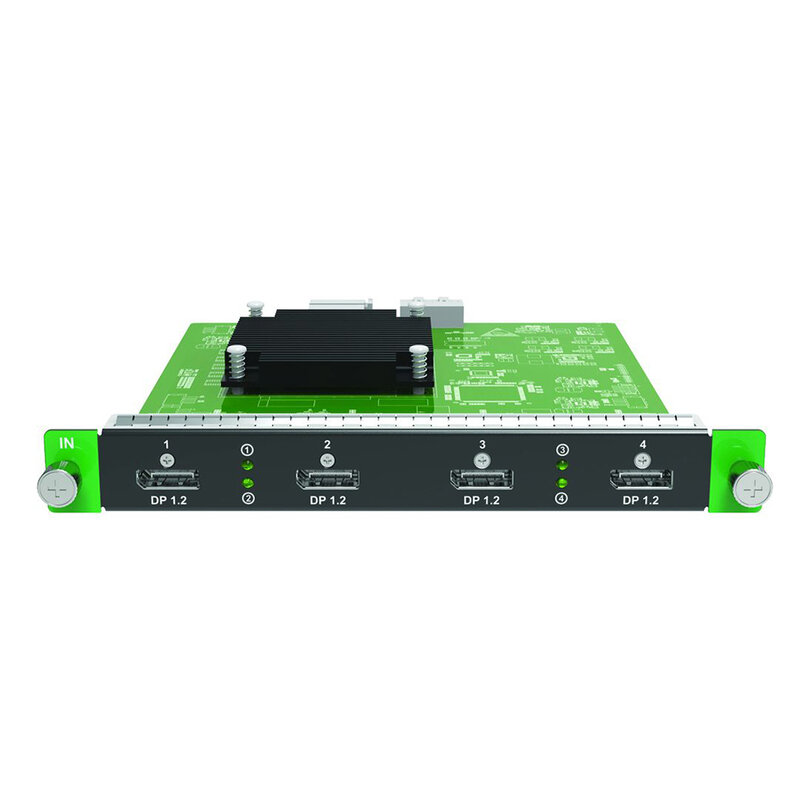

MX_4xDP1.2 is an input card designed for Novastar MX series LED controllers, such as the MX2000 Pro and MX6000 Pro.

It features four DisplayPort 1.2 ports and supports a forced maximum resolution of 4096 x 2160 at 60 Hz or 8192 x 1080 at 60 Hz, with a minimum resolution of 800 x 600 at 60 Hz. The forced maximum width and height reach 8192 pixels, with configurations such as 8192 x 1080 at 60 Hz or 1080 x 8192 at 60 Hz. It is compatible with a wide range of refresh rates, from 23.98 up to 240 Hz. It supports HDR10 and HLG, compliant with SMPTE ST 2084 and ST 2084 standards. 2086.

EDID support allows standard resolutions up to 3840 x 2160 at 60 Hz, as well as custom resolutions. It also complies with HDCP 1.3. It does not support interlaced video signals.

Technical characteristics

  • 4 x DP1.4 inputs
  •  Resolution:
    • Max. resolution: 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz (forced)
    • Min resolution: 800 x 600 @ 60 Hz
  • Max. width / height (forced):
    • Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
    • Max. height: 8192 pixels (1080 x 8192 @ 60 Hz)
  • Frame rates: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
  • HDR:
    • HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards
    • HLG
  • EDID management:
    • Support standard resolutions, up to 3840 x 2160 @ 60 Hz
    • Support custom input resolutions
  • HDCP: HDCP 1.3 compliant
  • Interlaced signal inputs: not supported
  • Compatability: MX Series LED display controllers, including MX2000 Pro and MX6000 Pro
