Outdoor, SMD2727, ≥5500 nit, ≤3840 Hz, 900 x 100 mm, 2,8 kg

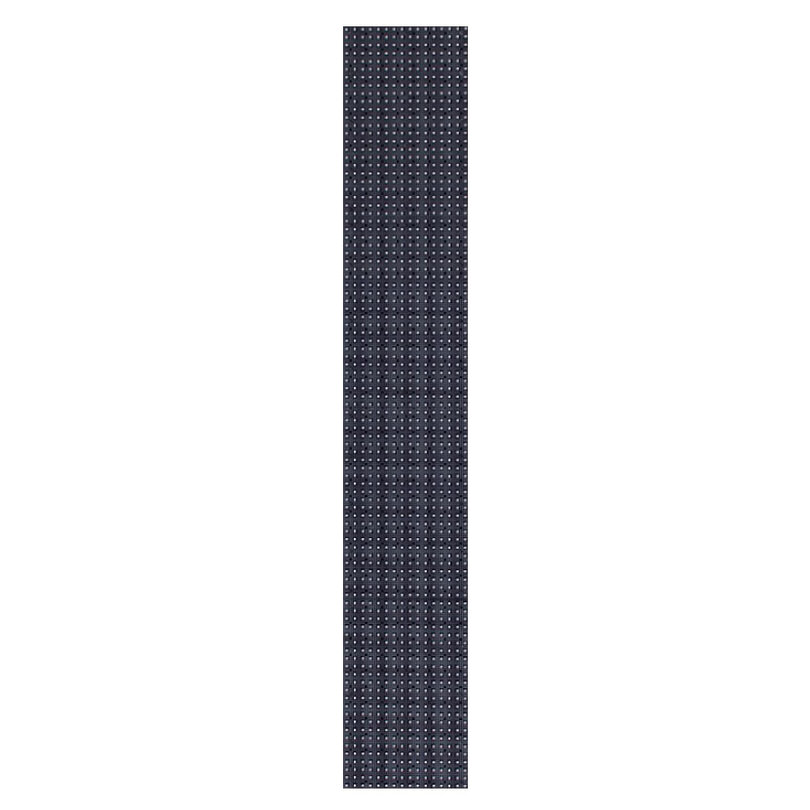

Rectangular P6.25 LED display with 900 x 100 mm cabinet, SMD2727 LED, for outdoor installations (5500 nit), IP65.

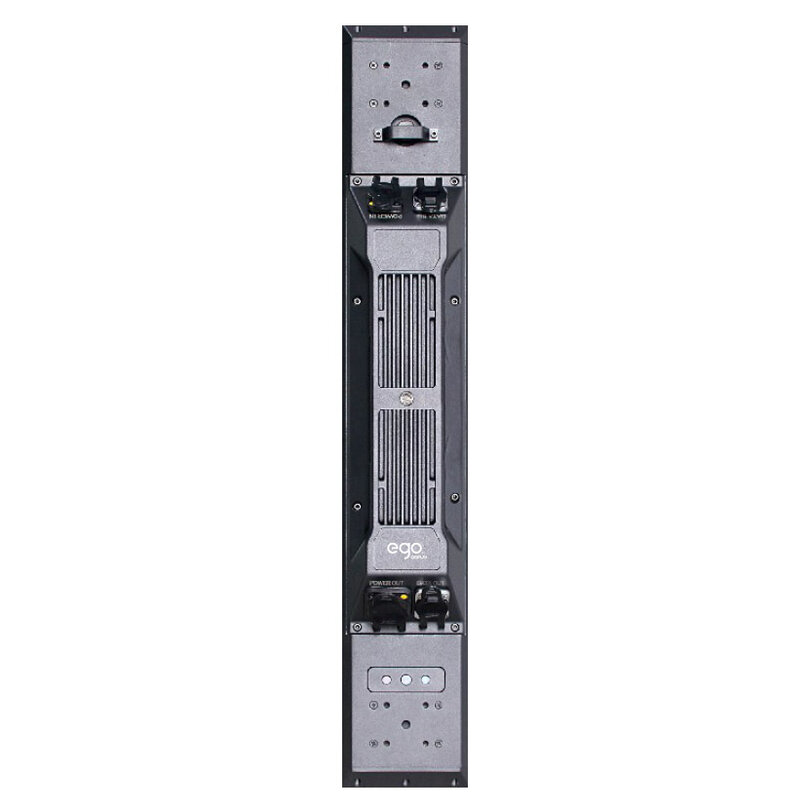

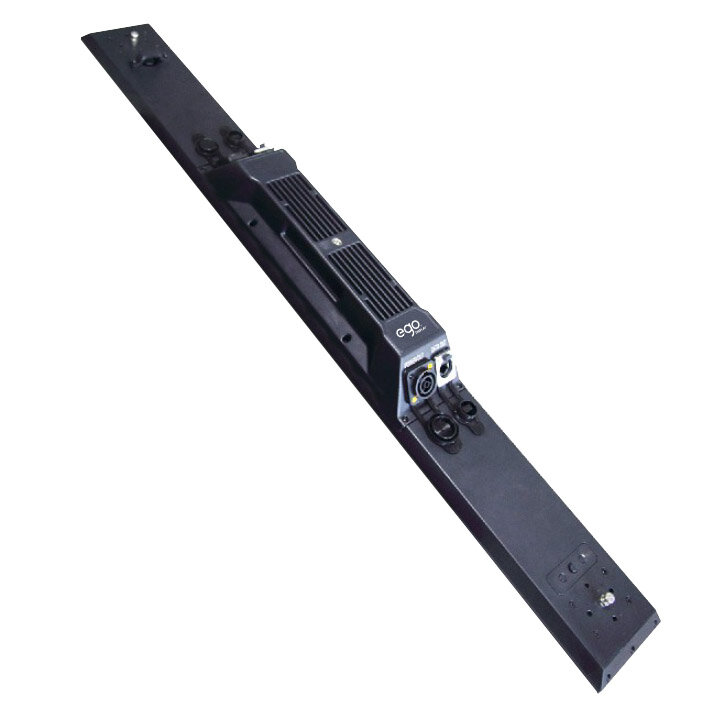

Thin and light cabinet composed of 2 modules (pixel brick) of 450 x 100 mm each. Its shape allows greater creative freedom and flexibility in installation. Integrated power supply and receiving card.
A display of this type represents a creative and flexible solution, suitable for artistic, scenographic or architectural installations in internal and external environments. Some examples of applications are exhibitions (to create bright and interactive artworks), to decorate building facades with visual effects, etc.
Technical characteristics
| Pixel pitch |
6.25 mm |
| Dimension |
900 x 100 mm |
| LED type |
SMD2727 |
| Module size |
450 x 100 mm
|
| Module resolution |
72 x 16 pixel |
| Panel resolution |
144 x 16 pixel |
| Physical density |
2304 pixel/m2 |
| Brightness |
≥ 5500 cd/m2 |
| Max. power consumption |
70 W/m2 |
| Ave. power consumption |
25 W/m2 |
| Weight |
2.8 kg/panel |
| Refresh rate |
≤ 3840 Hz |
| Control mode |
synchronous display with control PC by DVI |
| Protection level |
IP65 indoor |
