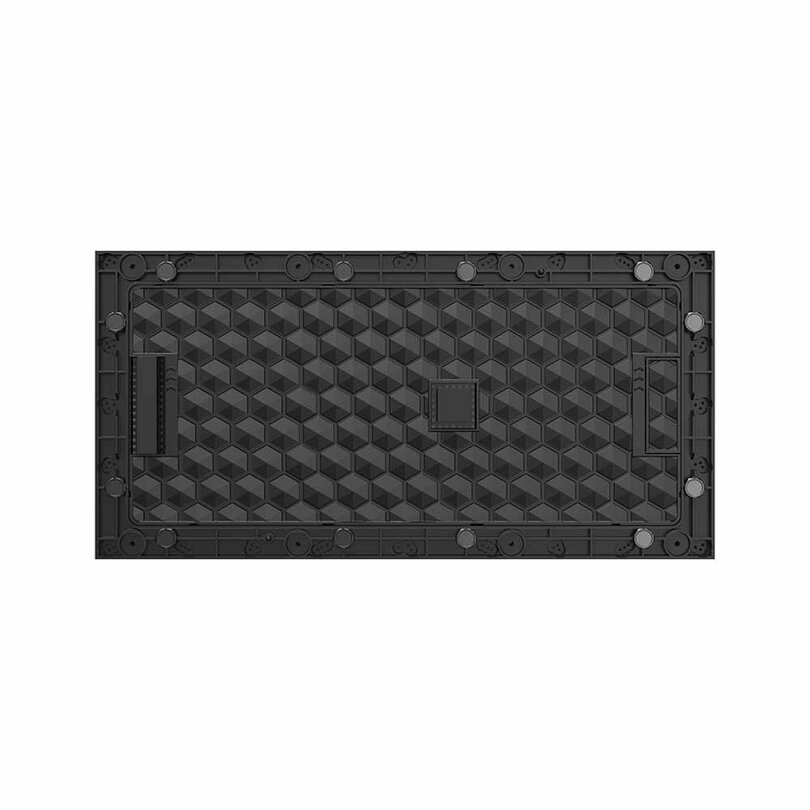

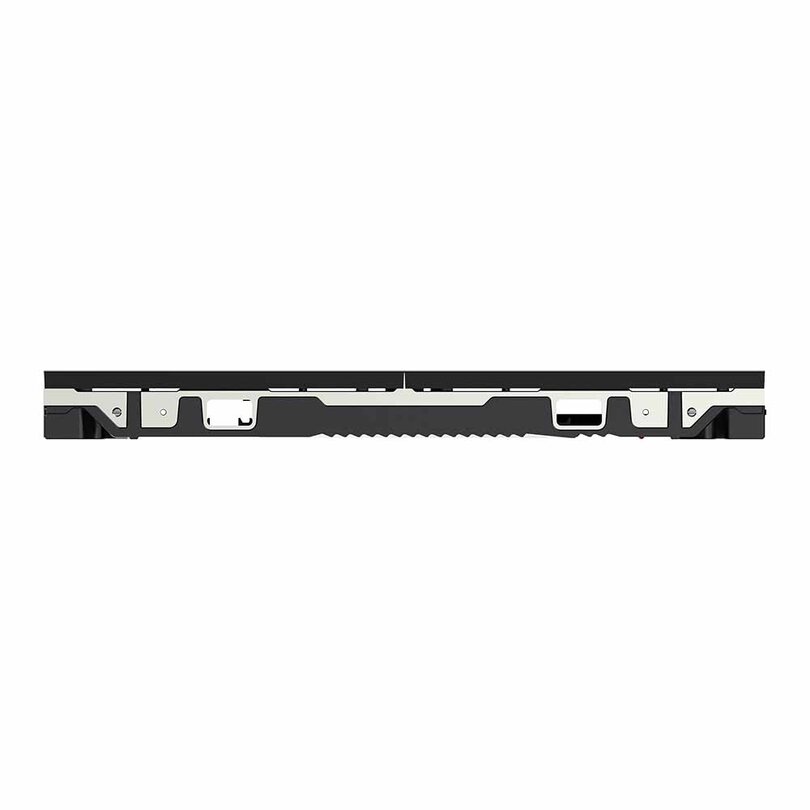

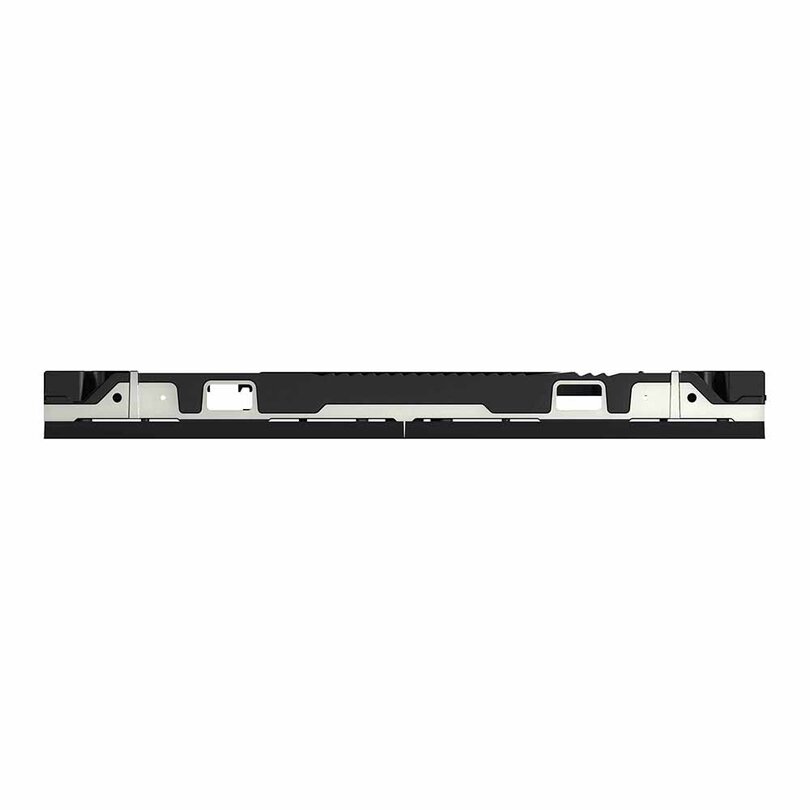

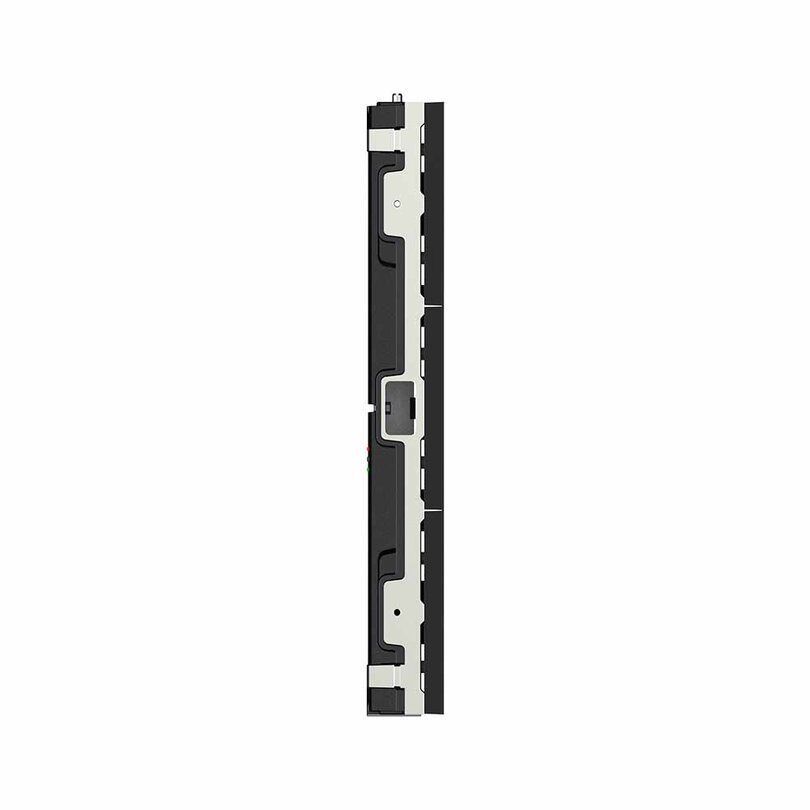

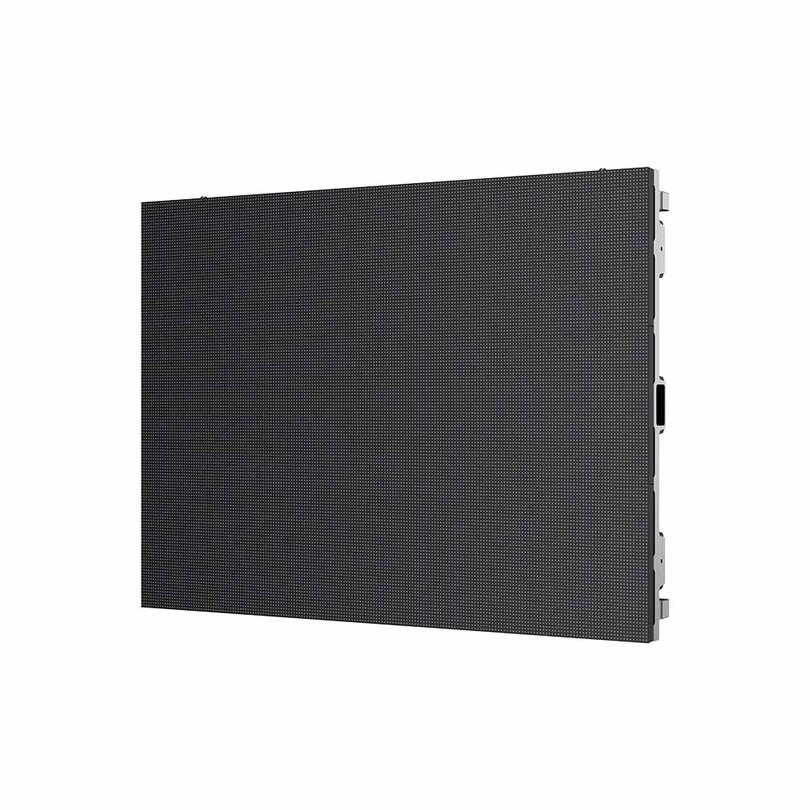

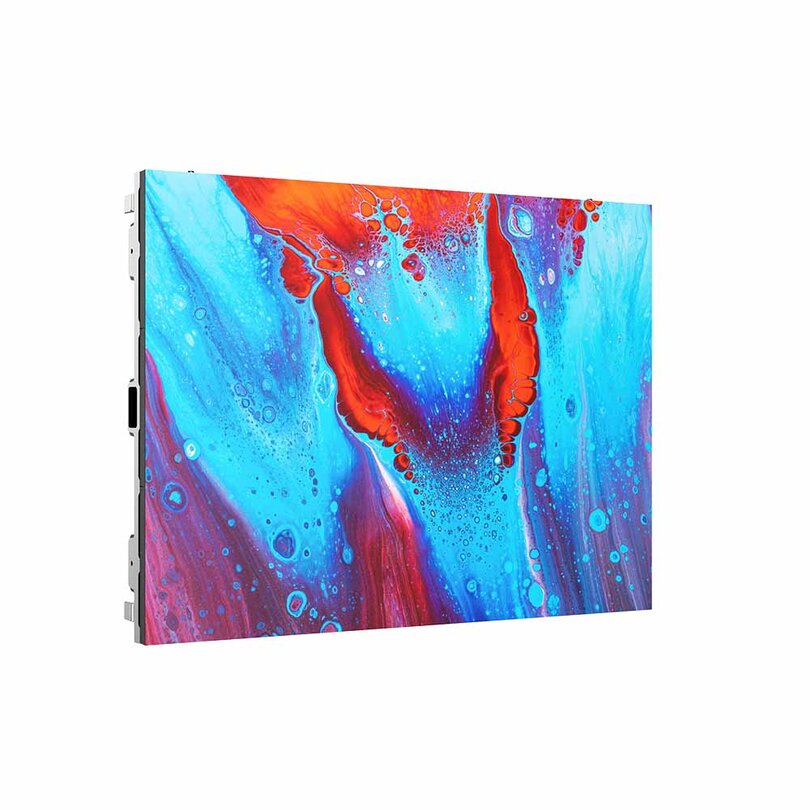

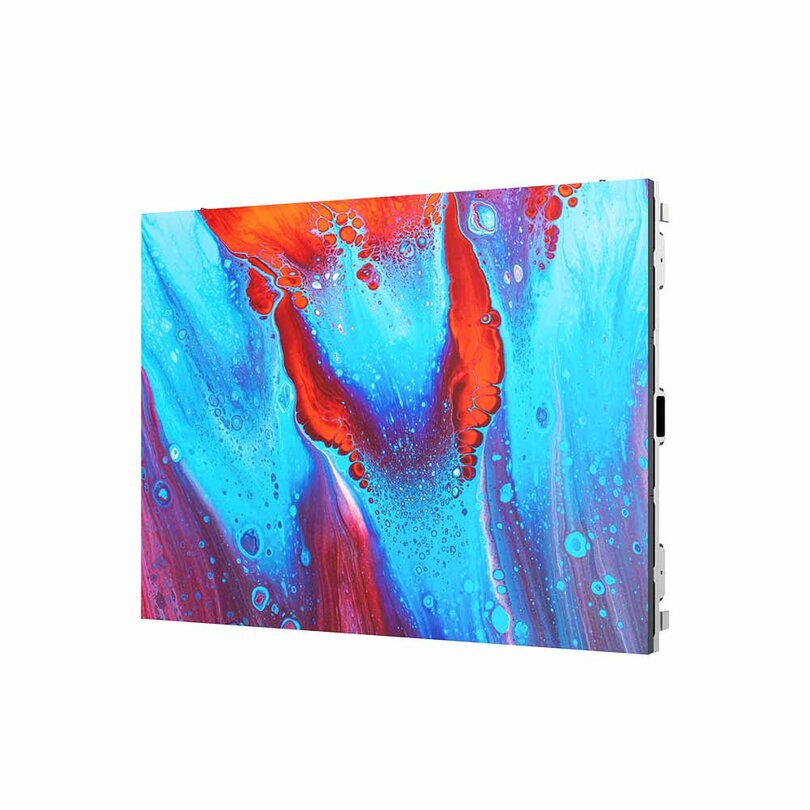

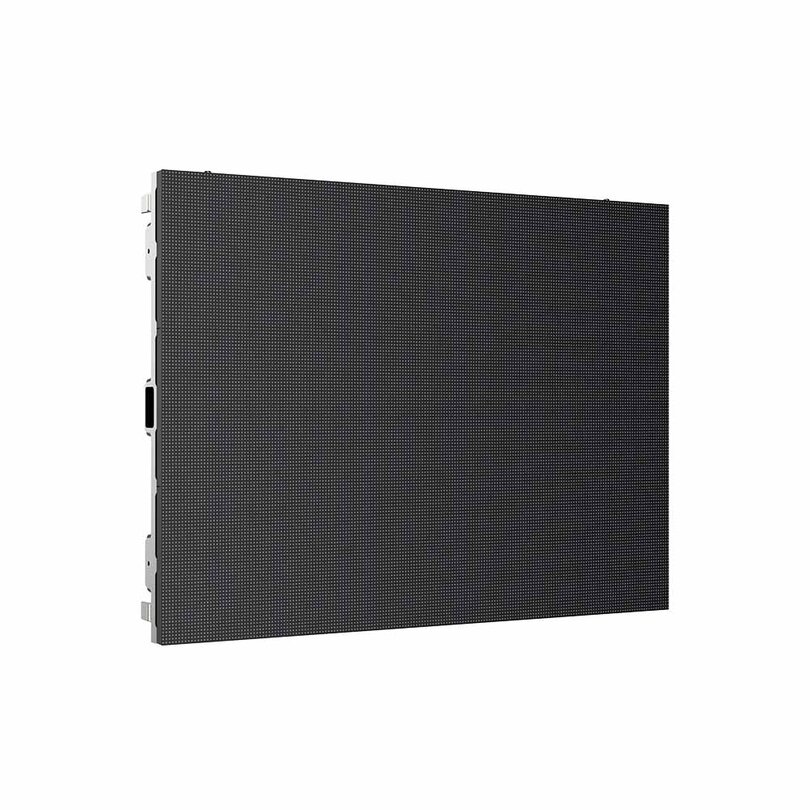

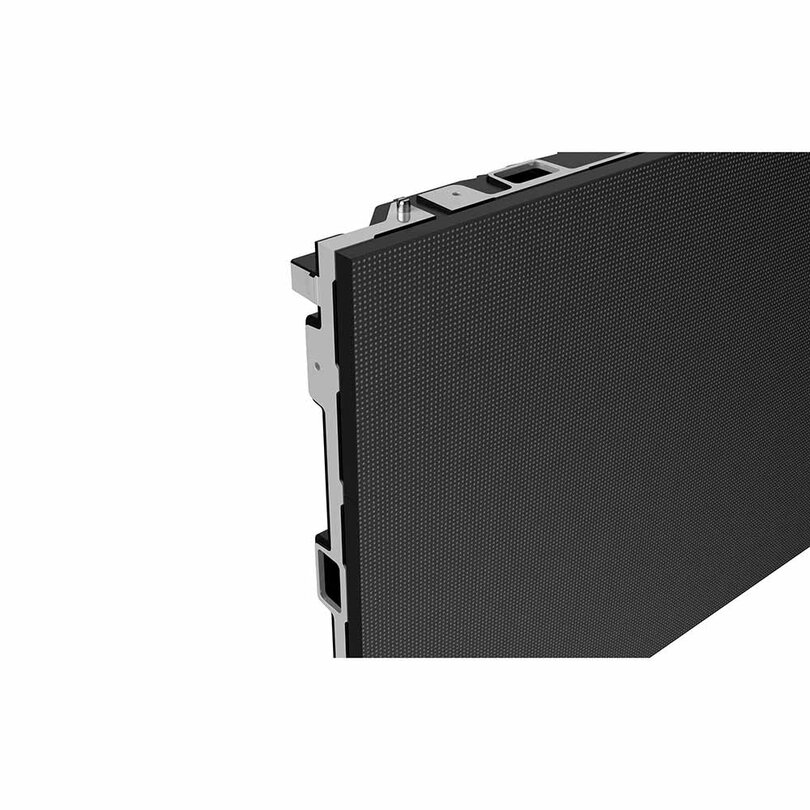

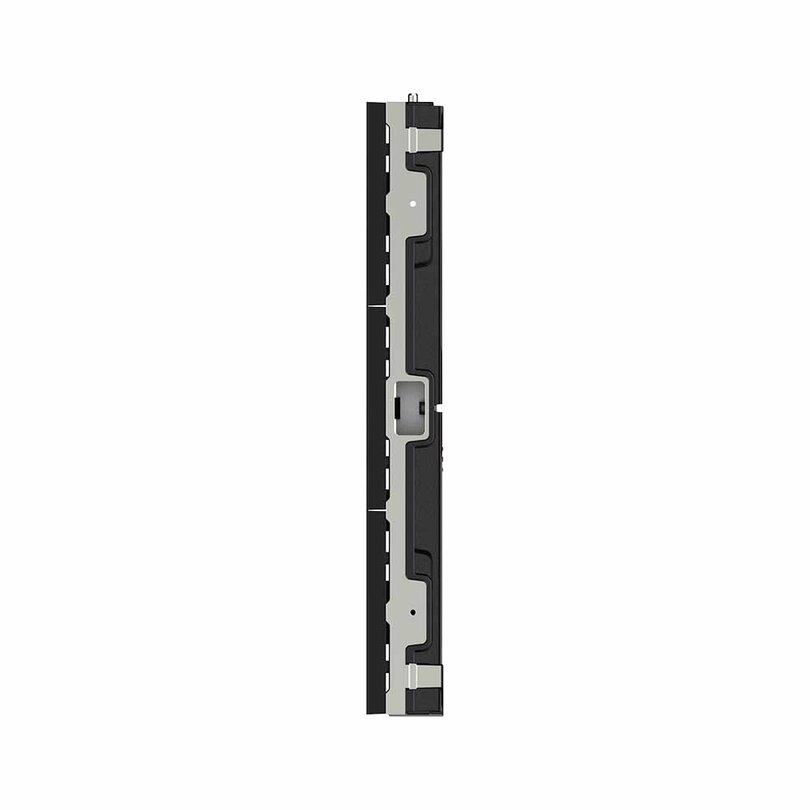

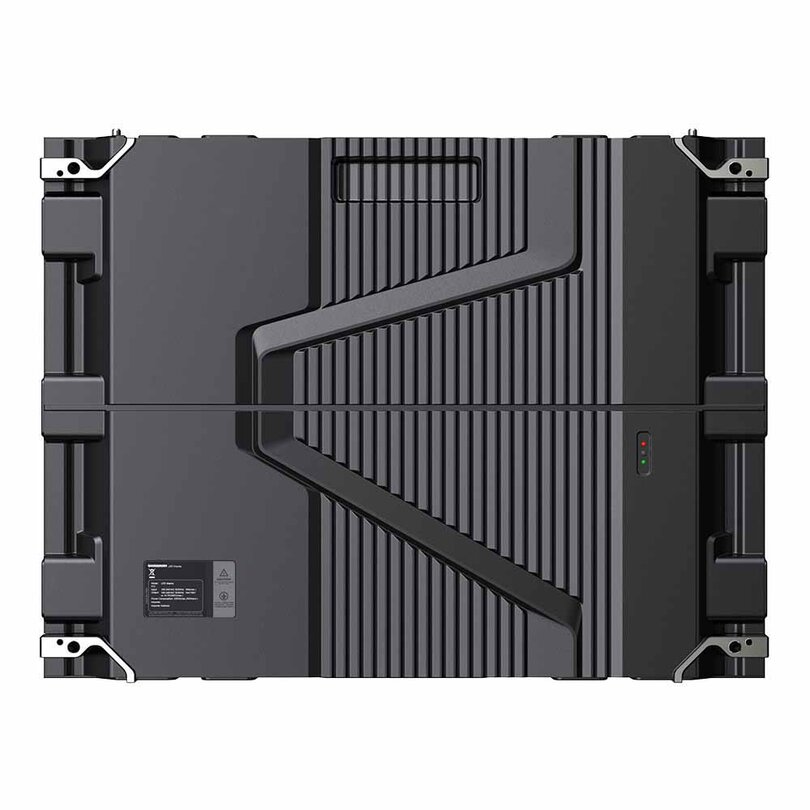

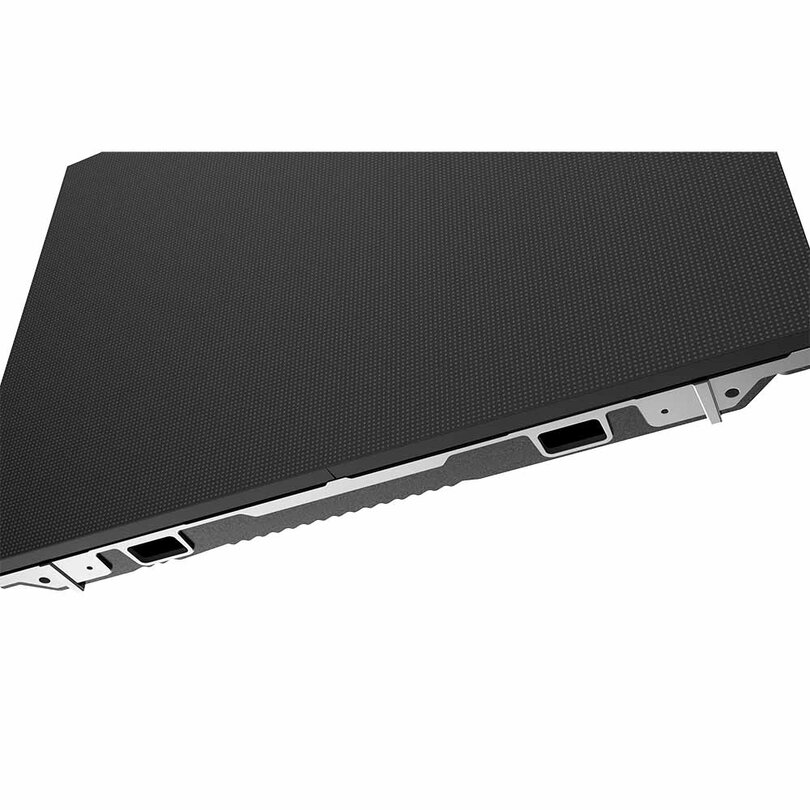

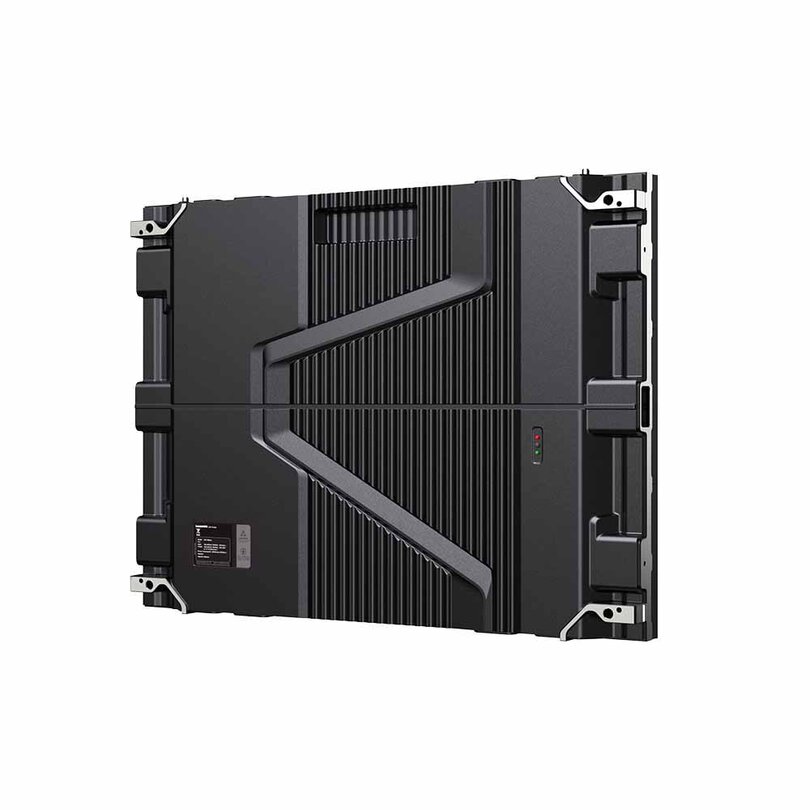

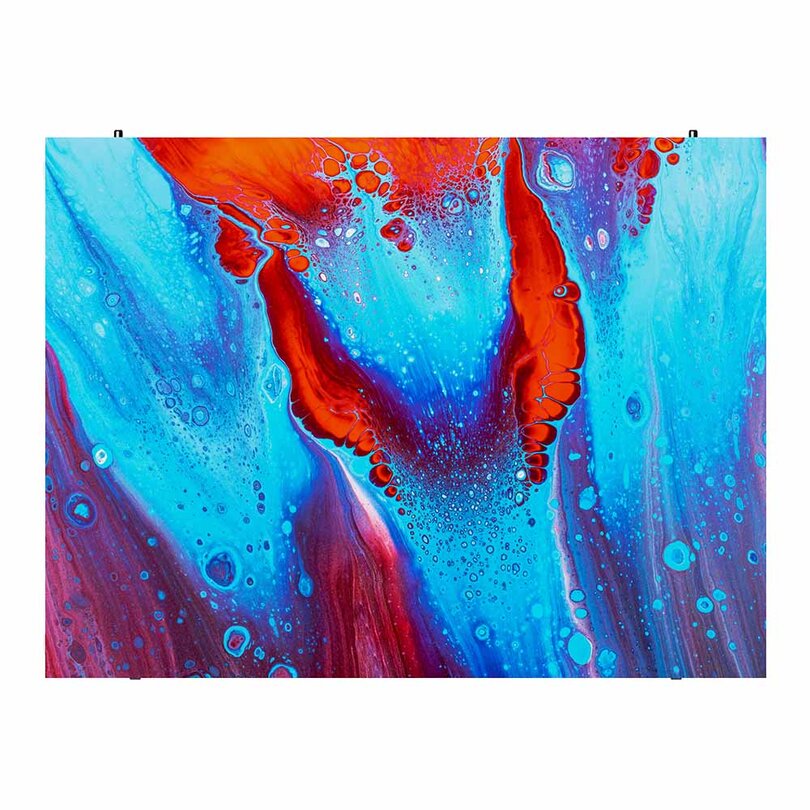

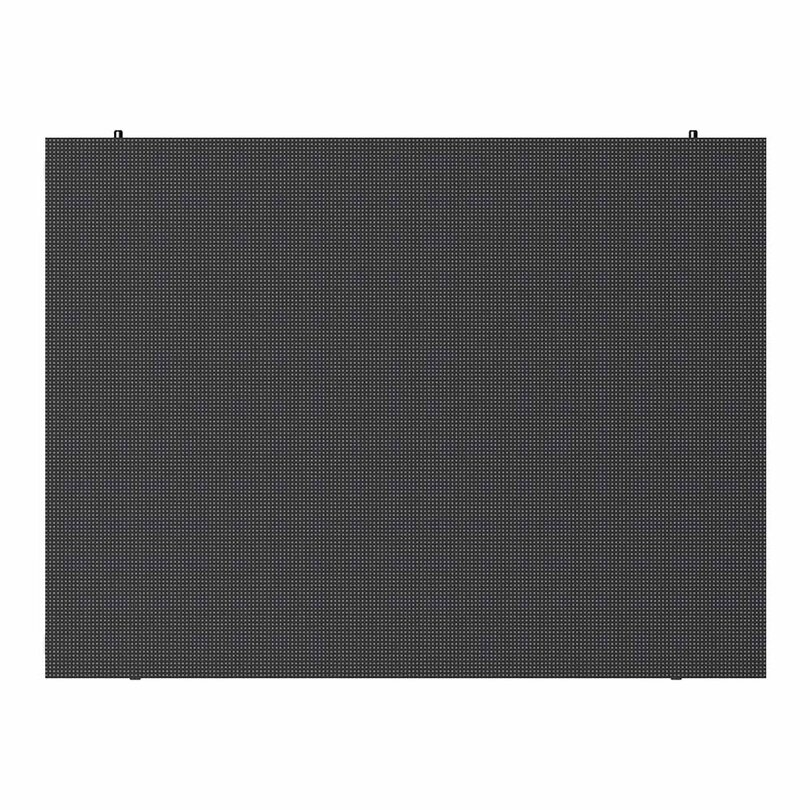

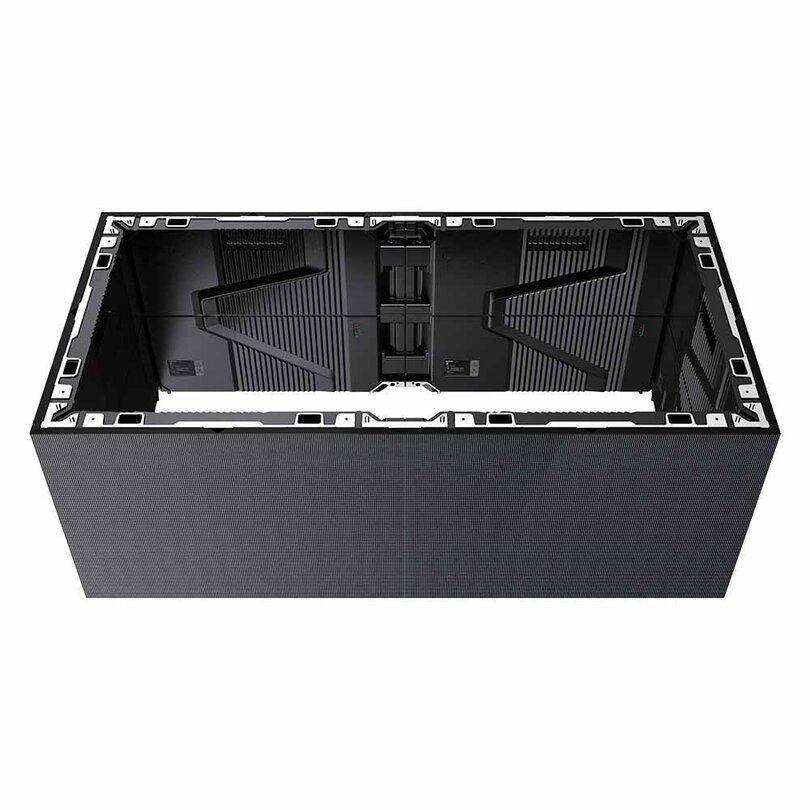

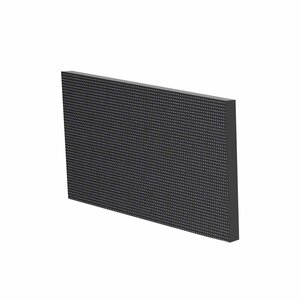

LED-EASYHP-P2.5 is a 2.5 mm pitch indoor LED panel (IP30 rated for front protection) that balances visual quality and versatility with a resolution of 256 x 192 pixels per cabinet and a pixel density of 160,000 pixels per square meter. The panel measures 640 x 480 x 61.5 mm and weighs 7.8 kg, making it relatively light for its size and easy to install.
It uses SMD 2121 LEDs, with a maximum brightness of 600 nits and a contrast ratio of 5000:1, ensuring vivid colors. The 14-bit grayscale and 4200 Hz refresh rate contribute to excellent visual fluidity, reducing flickering and improving image quality.

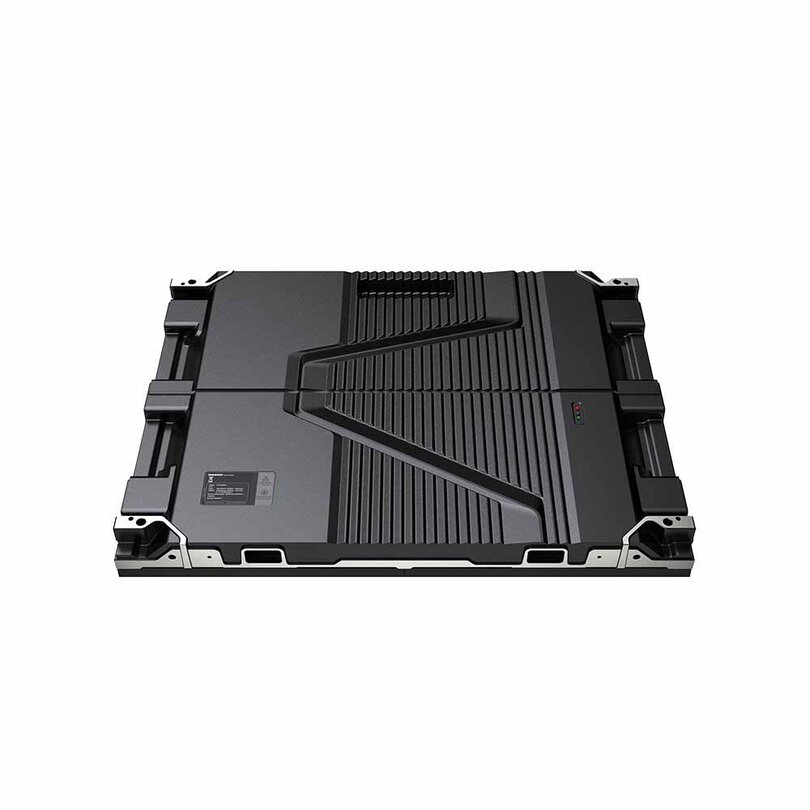

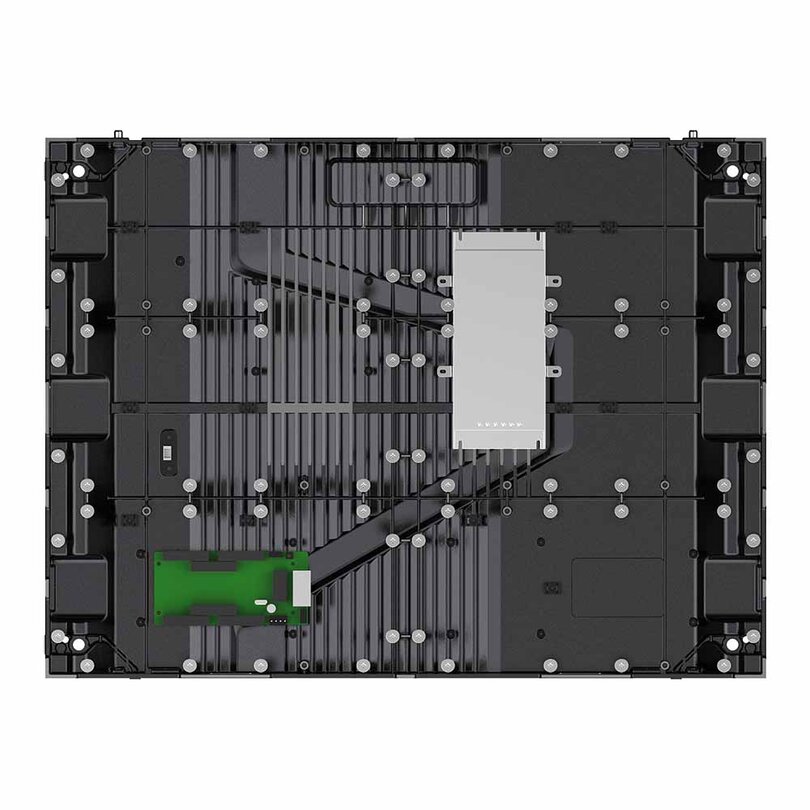

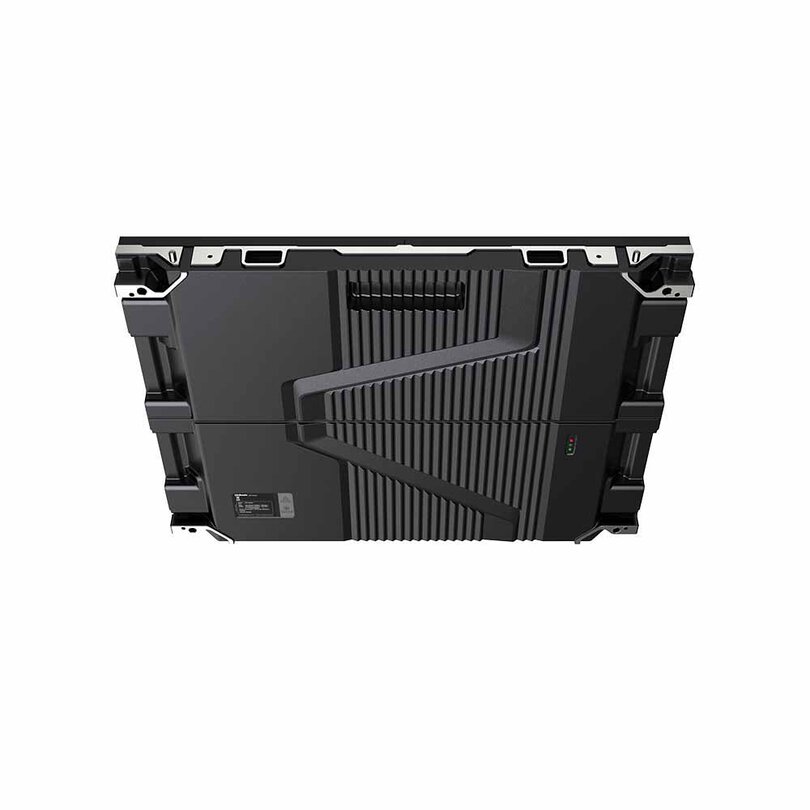

Energy efficiency is another strong point of the EASYHP-P2.5, with a maximum consumption of 110 W per panel and an average of 33 W, supported by an advanced heat dissipation system. The special energy conservation technology reduces power consumption by 30%, improving the stability and lifespan of the system.

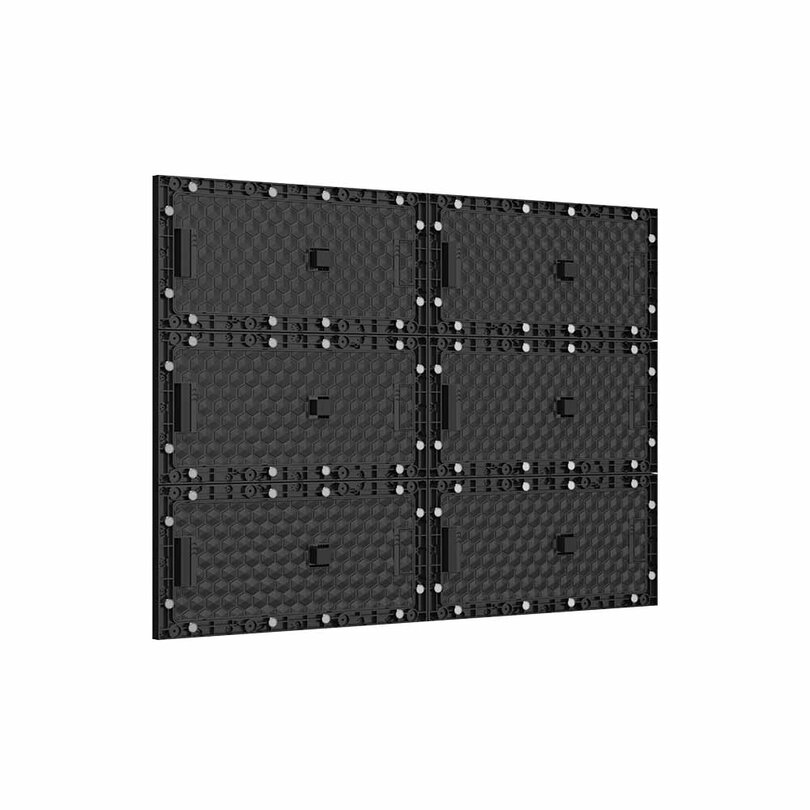

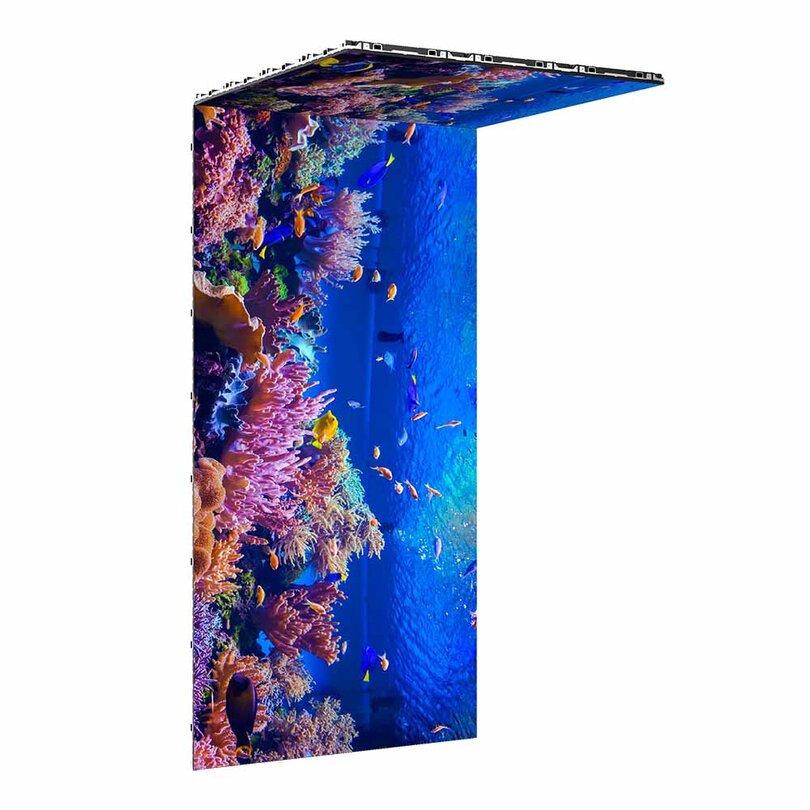

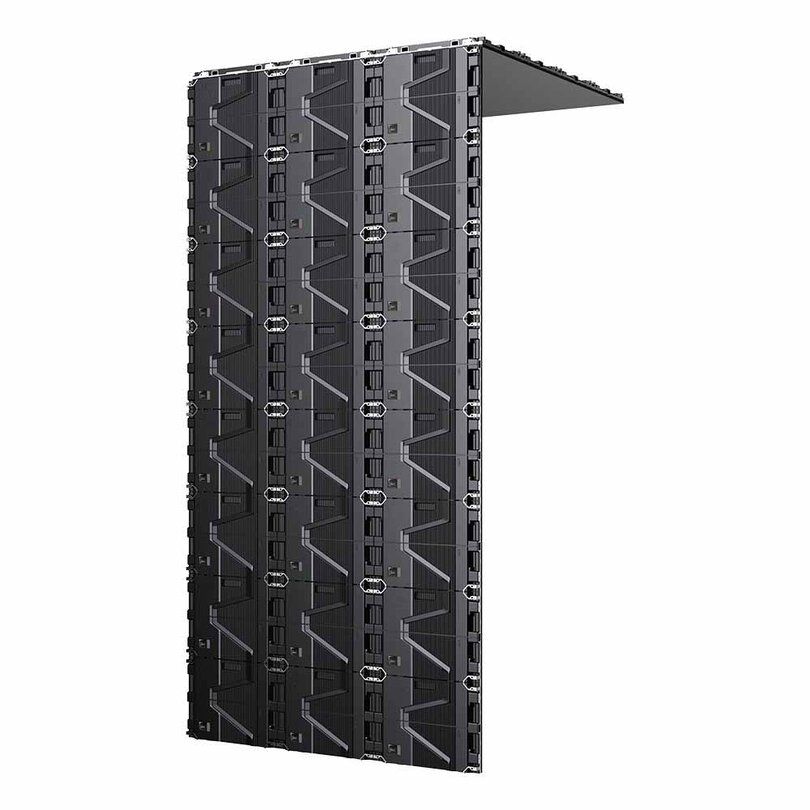

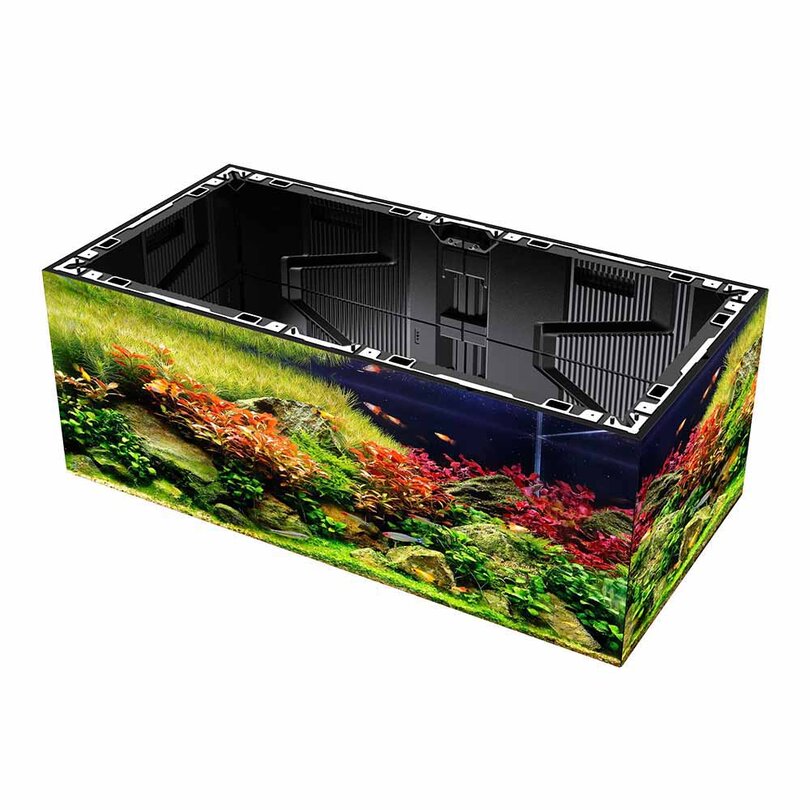

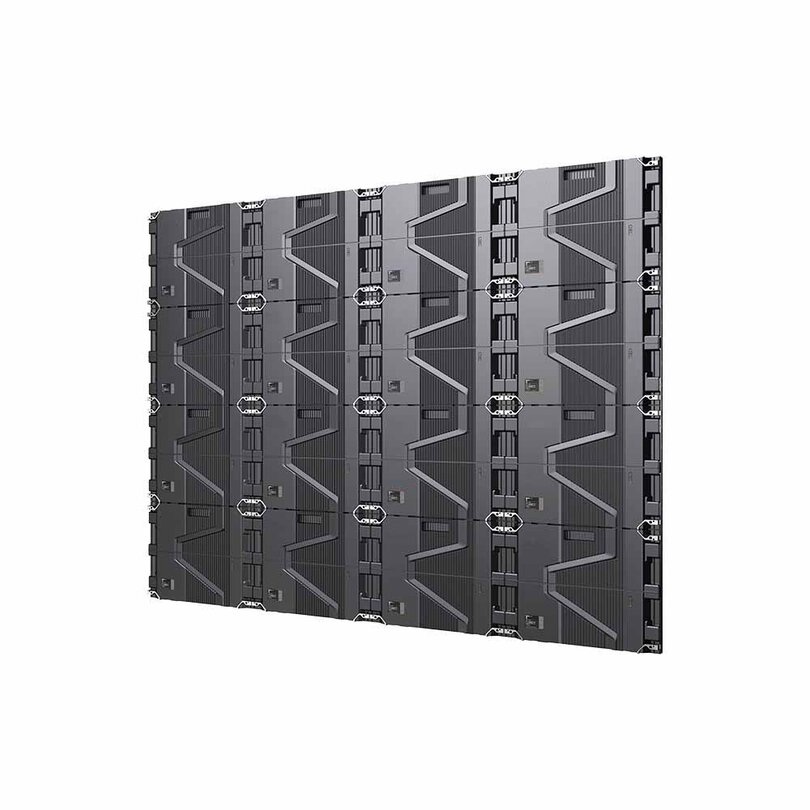

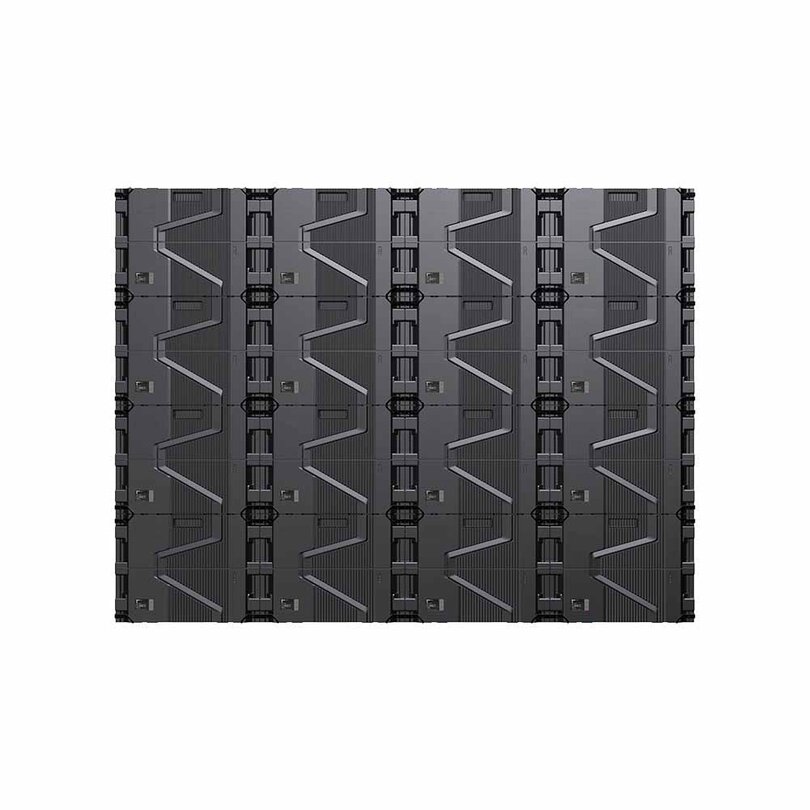

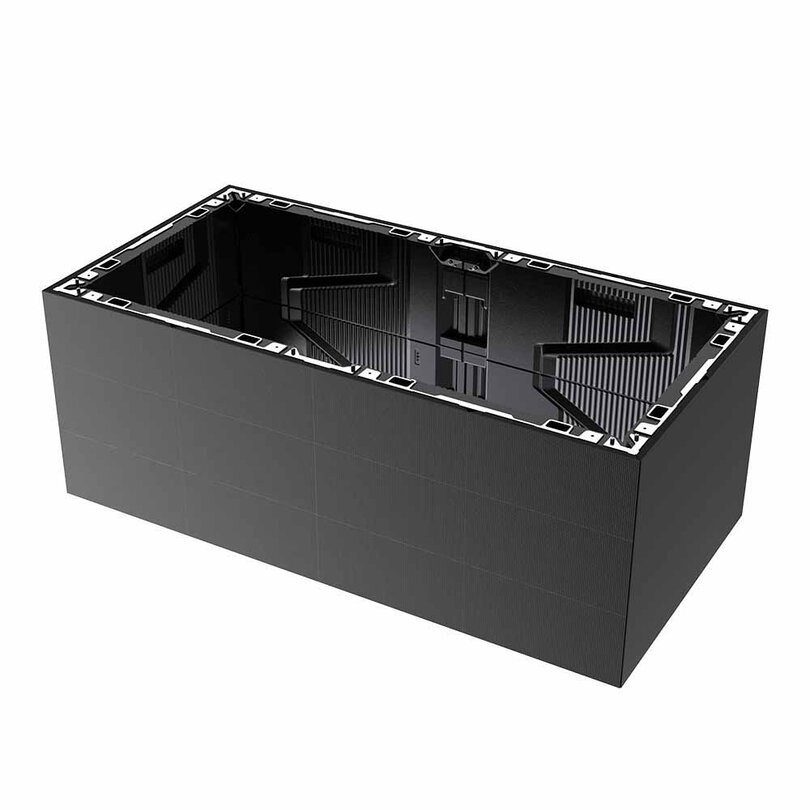

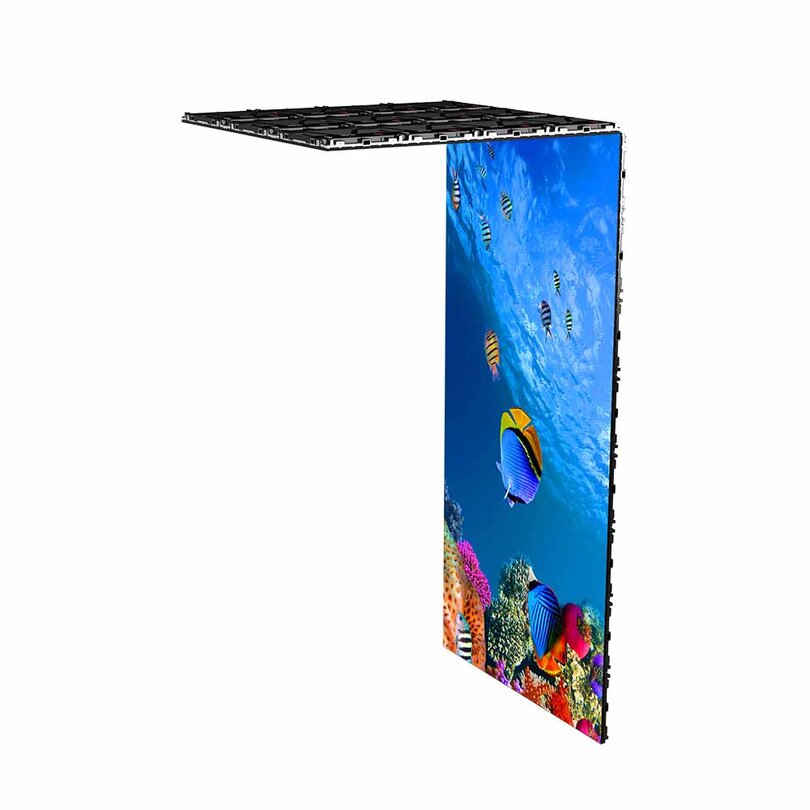

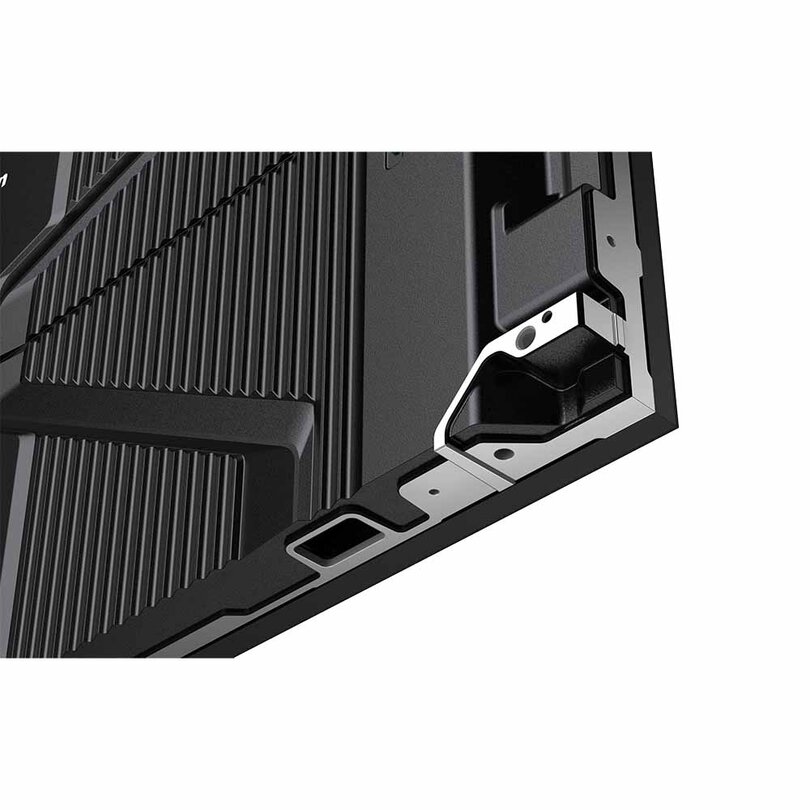

Thanks to its installation flexibility, it can be mounted in different configurations, with adjustments to ensure a perfectly flat surface.

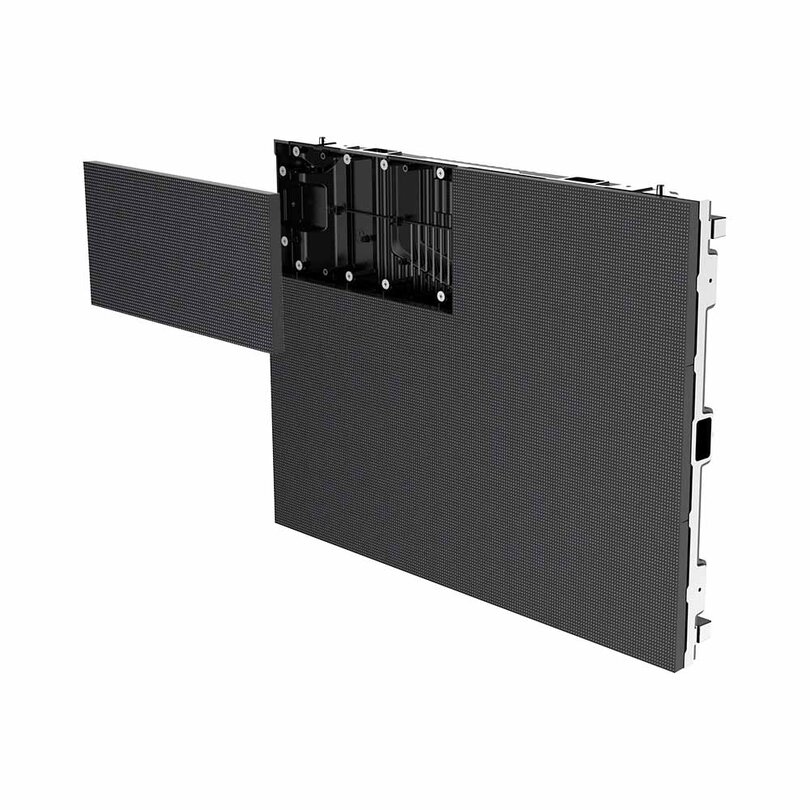

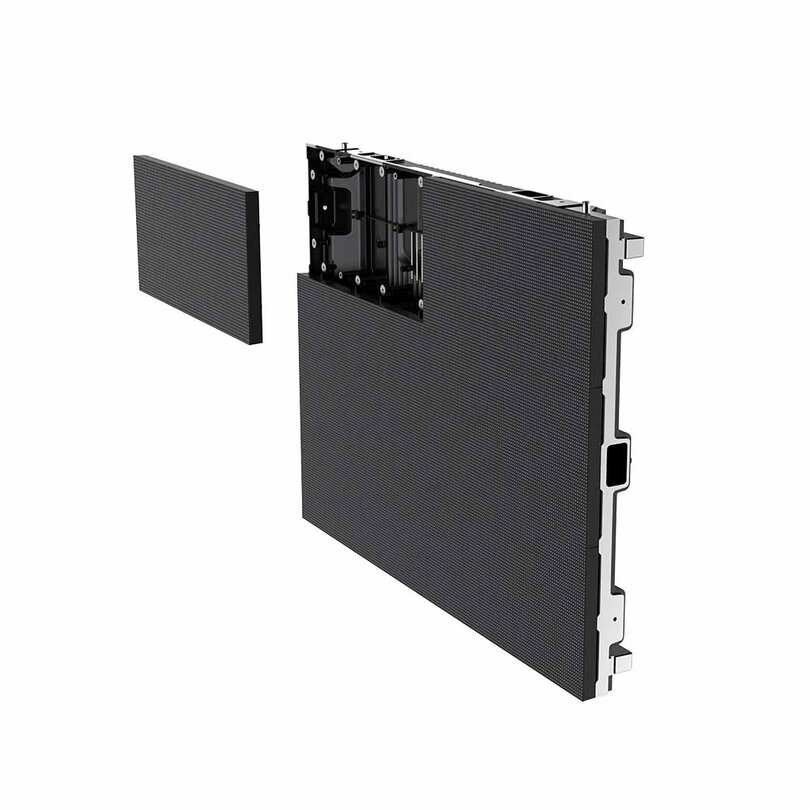

The EASYHP-P2.5 is ideal for commercial and professional applications that require a display with excellent visual performance, reliability and simplified maintenance.
