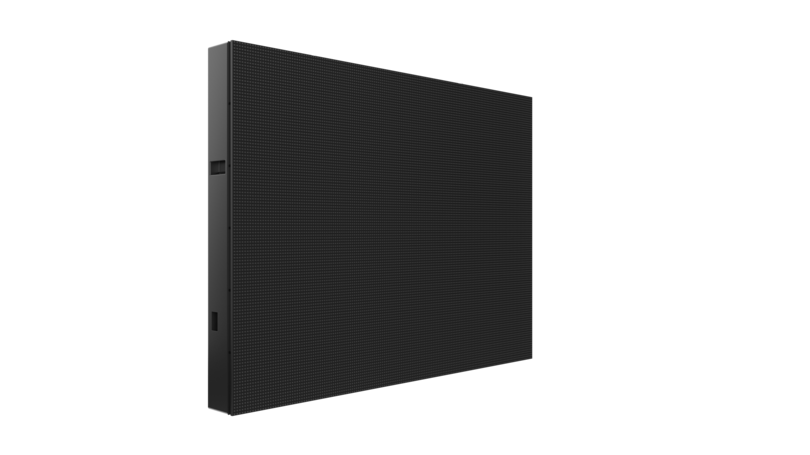

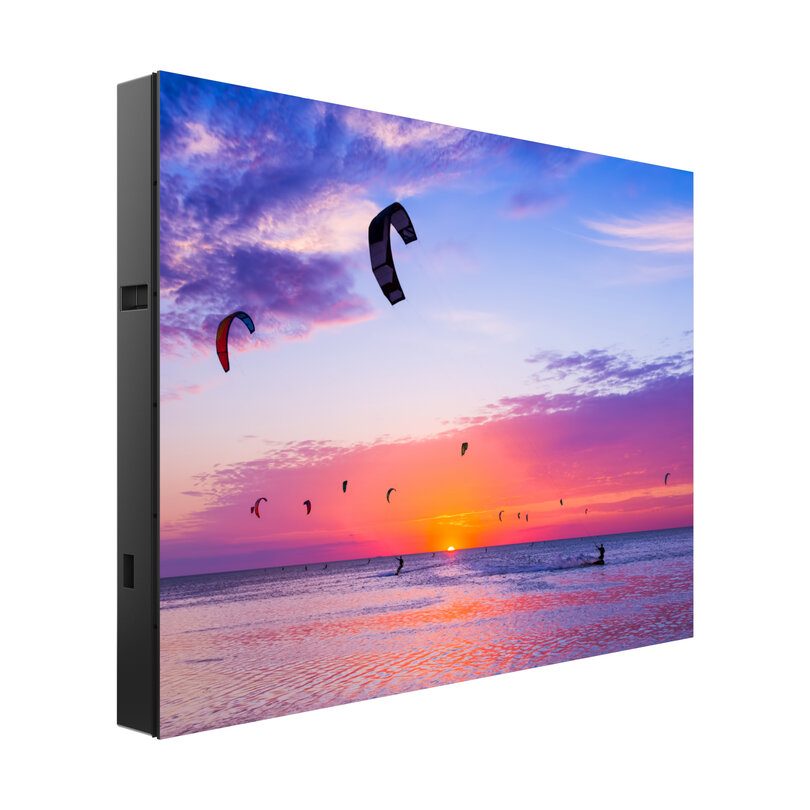

New generation P4 LED display with 1280 x 960 mm steel cabinet usable in extreme atmospheric and environmental conditions (IP65), ideal mix of quality, exceptional visual performance and affordable price. It features 5000 nits brightness, a high refresh rate of 3840 Hz, 14 bit grayscale and 160° ultra-wide viewing angle.
Ideal for digital signage, shows, transit centers, street furniture, sports, etc.
Technical characteristics
|
Physical parameter |
LED type |
SMD 3-in-1 1921 |
|
Pixel Pitch |
4 mm |
|
|
Panel dimensions (W x H x D) |
1280 x 960 x 100 mm |
|
|
Module dimensions (W x H) |
320 x 160 mm |
|
|
Pixel per panel |
320 x 240 |
|
|
Panel weight |
30 kg |
|
|
Panel material |
steel |
|
|
Optoelectronic parameter |
Brightness |
5000 nit |
|
Refresh rate |
≥ 3840 Hz |
|
|
Gray scale |
14 bit |
|
|
Contrast ratio |
4500:1 |
|
|
Color temperature |
7500 K |
|
|
Viewing angle (H/V) |
160° / 160° |
|
|
Driving type |
1 / 10 |
|
|
AC operating voltage |
200 - 240 VAC |
|
|
Power consumption (max. / avg.) |
750 / 250 W/m2 |
|
|
Application parameter |
Storage temperature |
-40 to 60 °C |
|
Operating temperature |
-20 to 50 °C |
|
|
Storage humidity |
10 - 90% RH |
|
|
Operating humidity |
10 - 90% RH |
|
|
IP rating (front / rear) |
IP65 / IP21 |
|
|
Module maintenance |
rear |
|
|
PSU & others maintenance |
rear |
|
|
Panel installation type |
fixed / rear |
