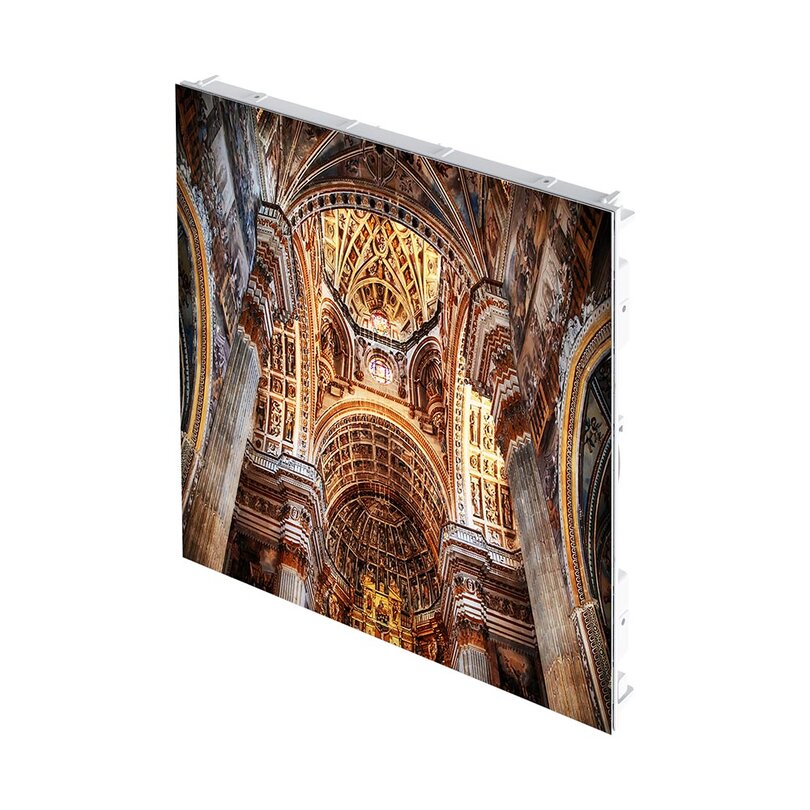

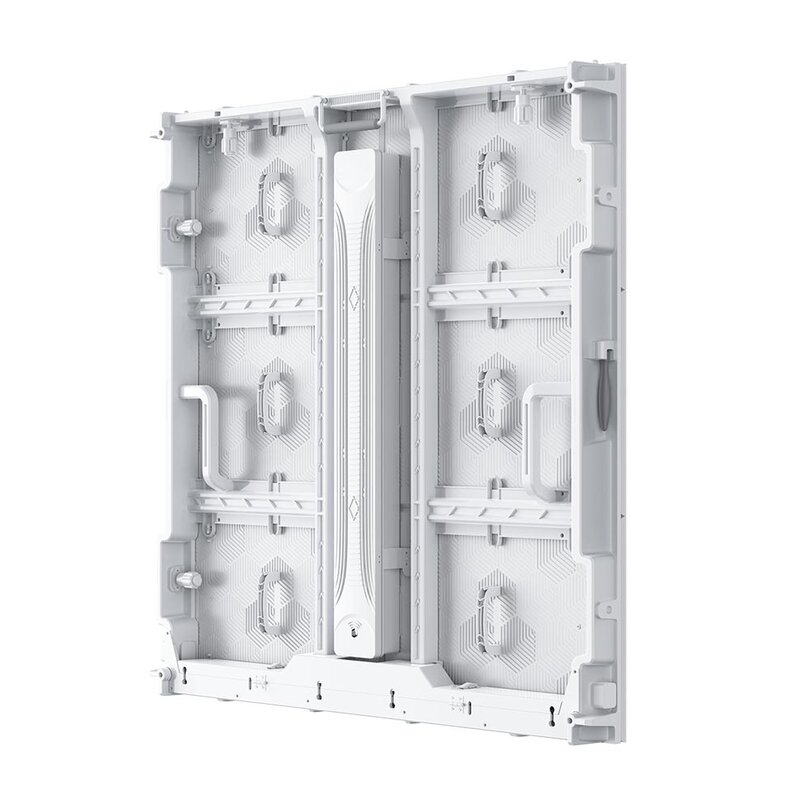

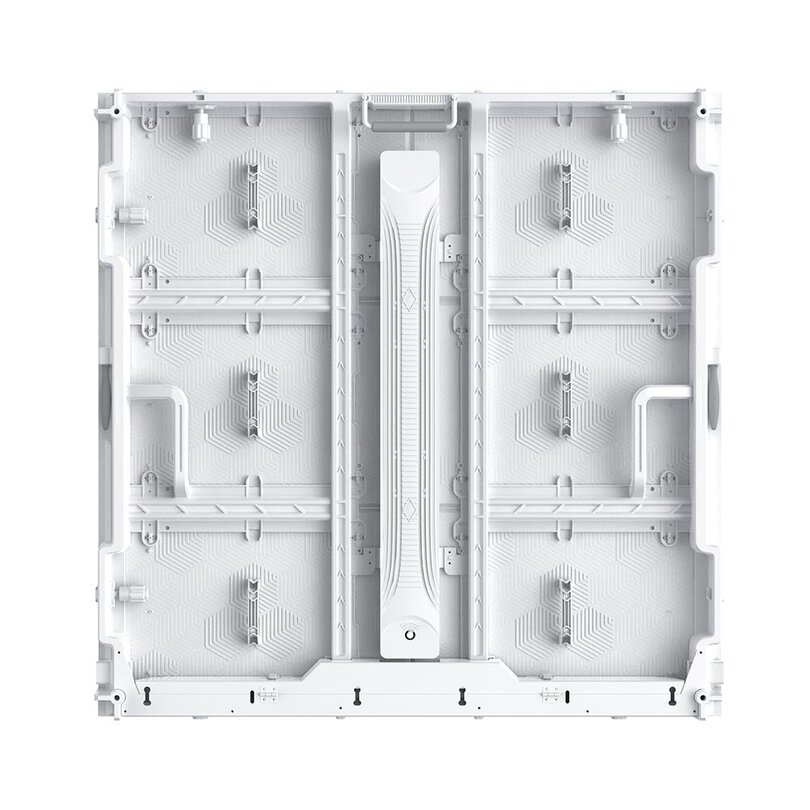

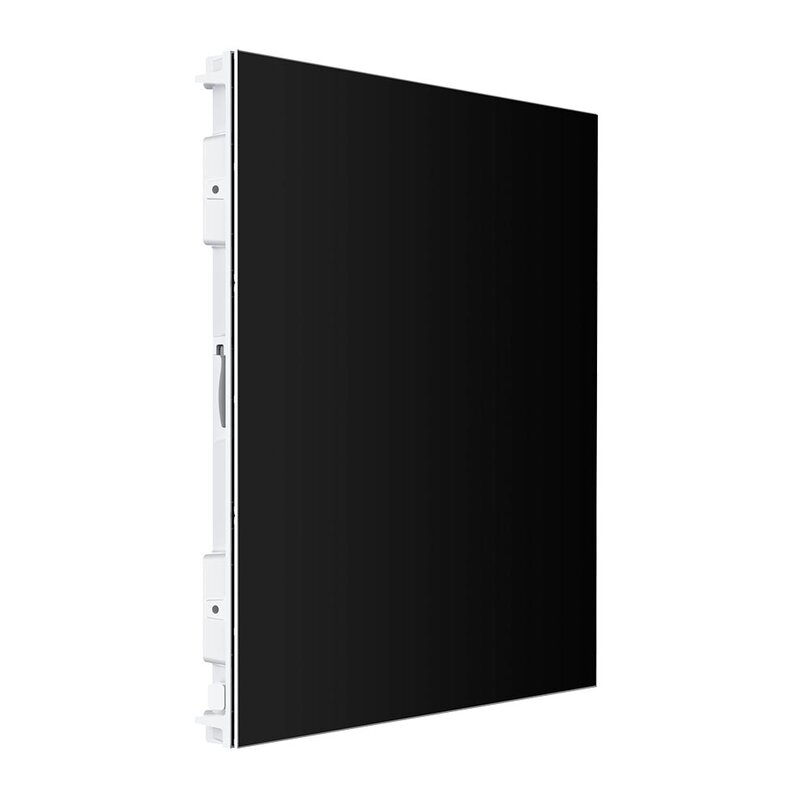

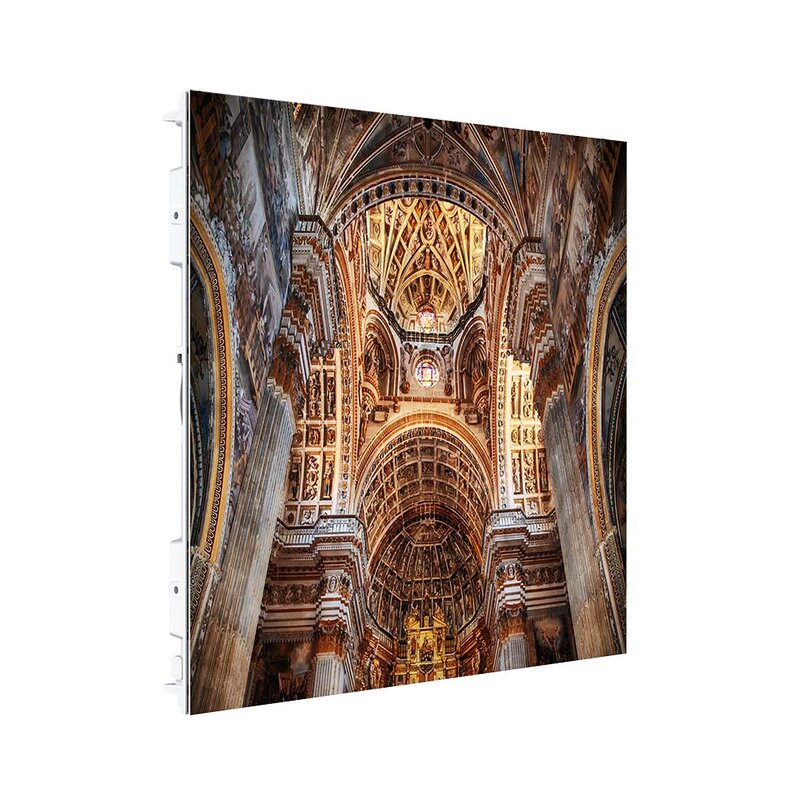

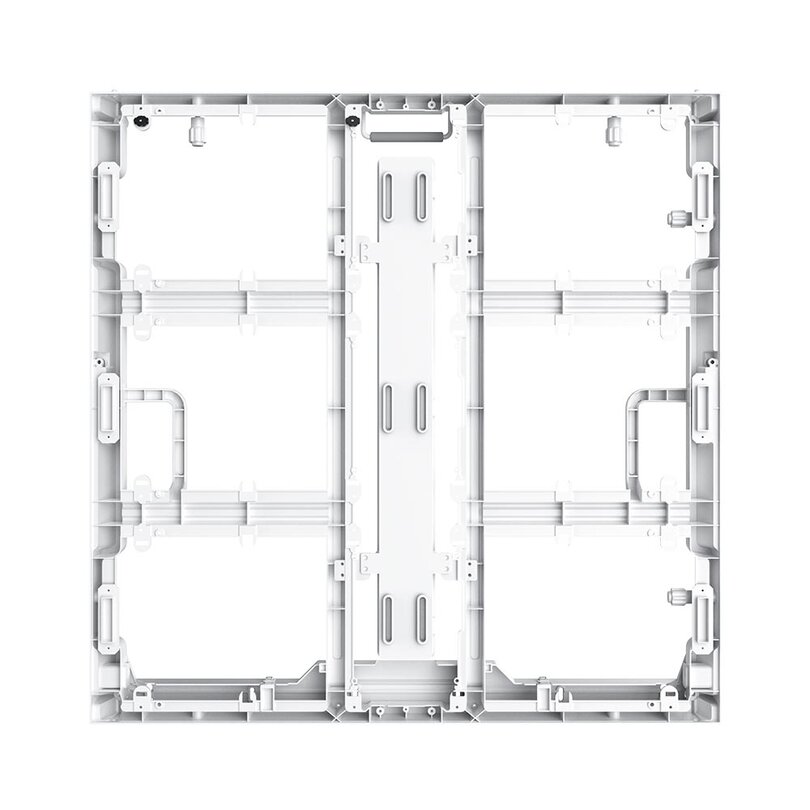

MK2 version of the well-known EGO display EasyOUT P5 LED panel, equipped with a 960 x 960 mm aluminum cabinet that can be used in extreme weather and environmental conditions (IP66), an ideal mix of quality, exceptional visual performance and affordable price.
It features a brightness of 6500 nits, a high refresh rate of 3840 Hz and 16-bit grayscale.

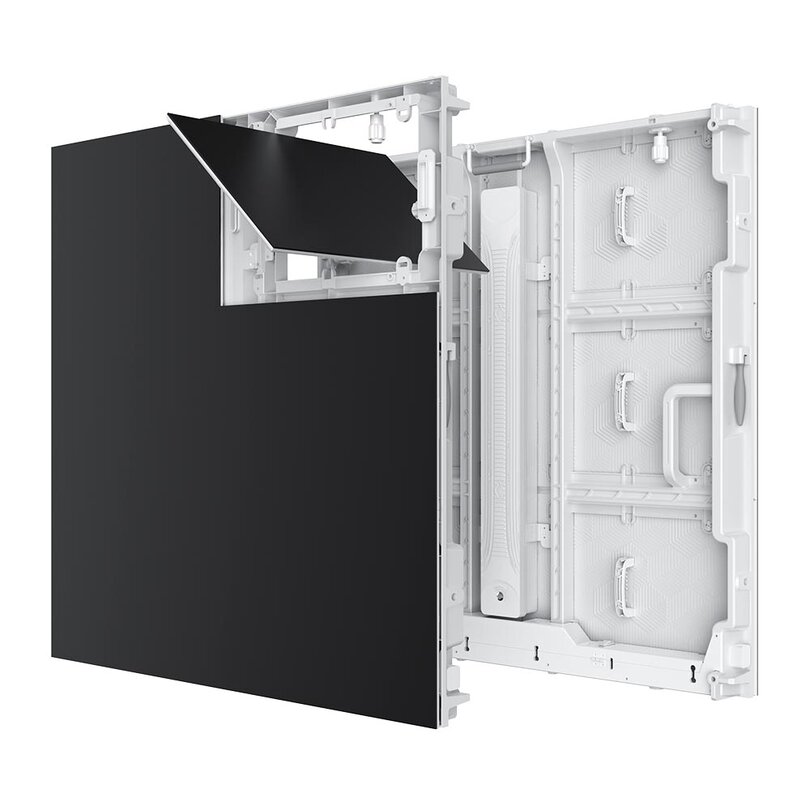

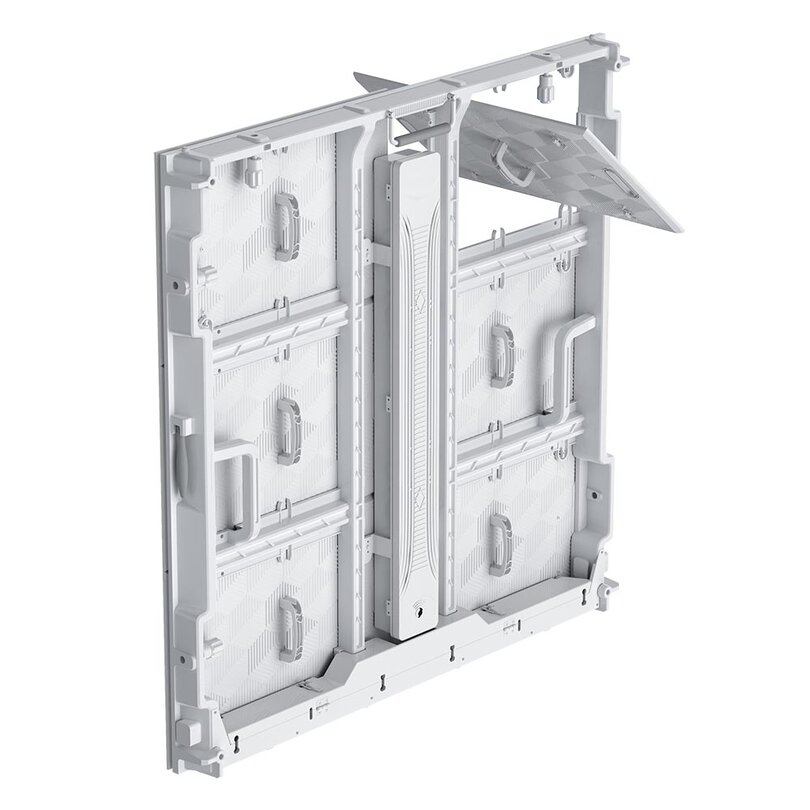

Maintenance is both front and rear.
User benefits
Areas of use
Technical characteristics
| Physical parameter | |
| LED type | SMD 3-in-1 2727 |
| Pixel Pitch | 5.7 mm |

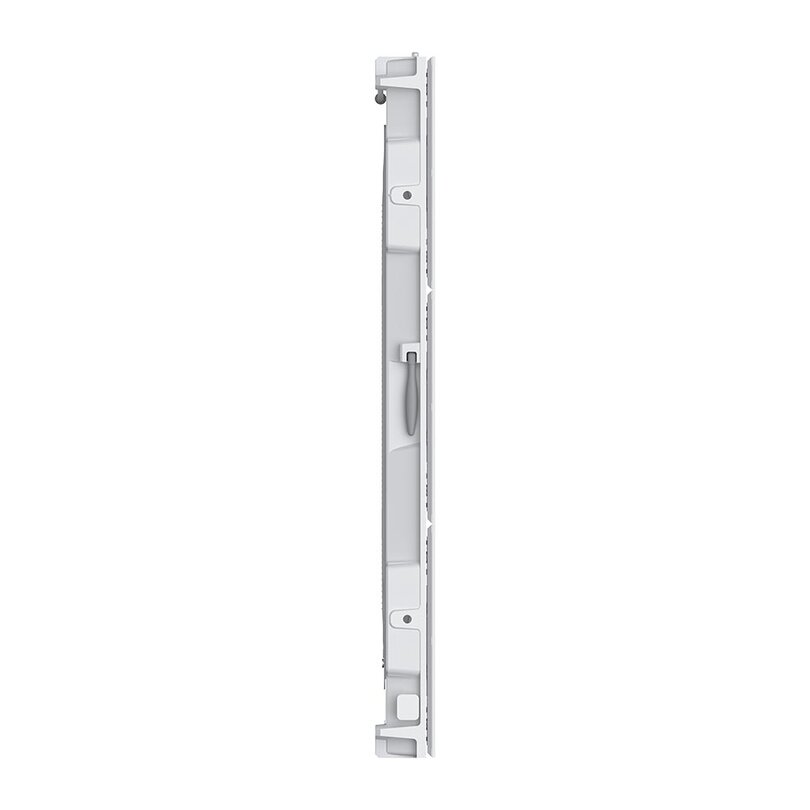

| Panel dimensions (W x H x D) | 960 x 960 x 86 mm |

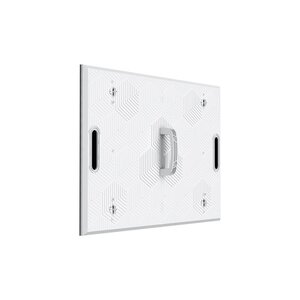

| Module dimensions (W x H) | 480 x 320 mm |
| Pixel per panel | 168 x 168 |
| Panel weight | 25 kg |

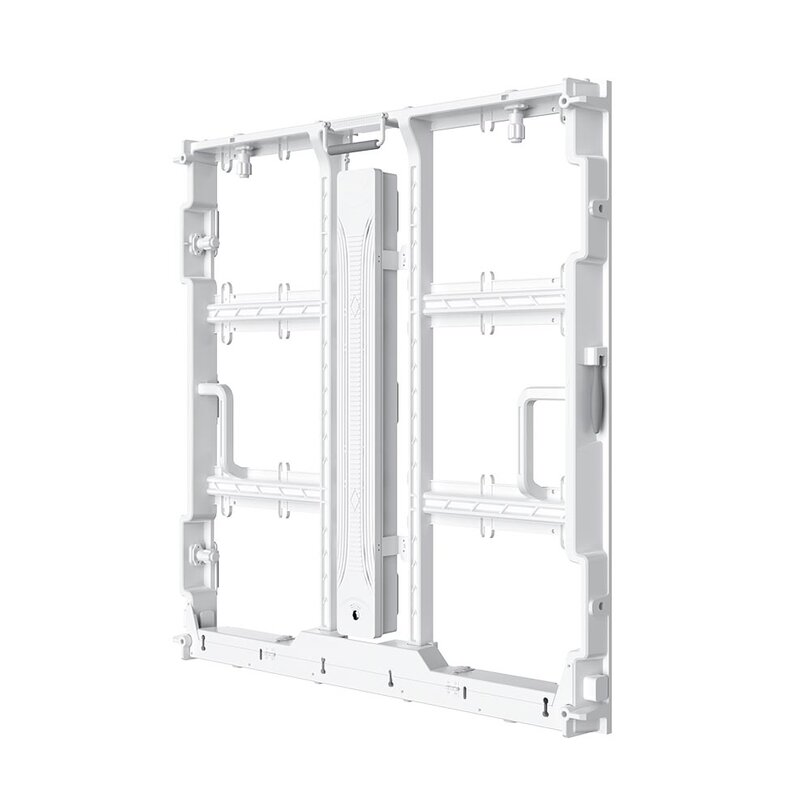

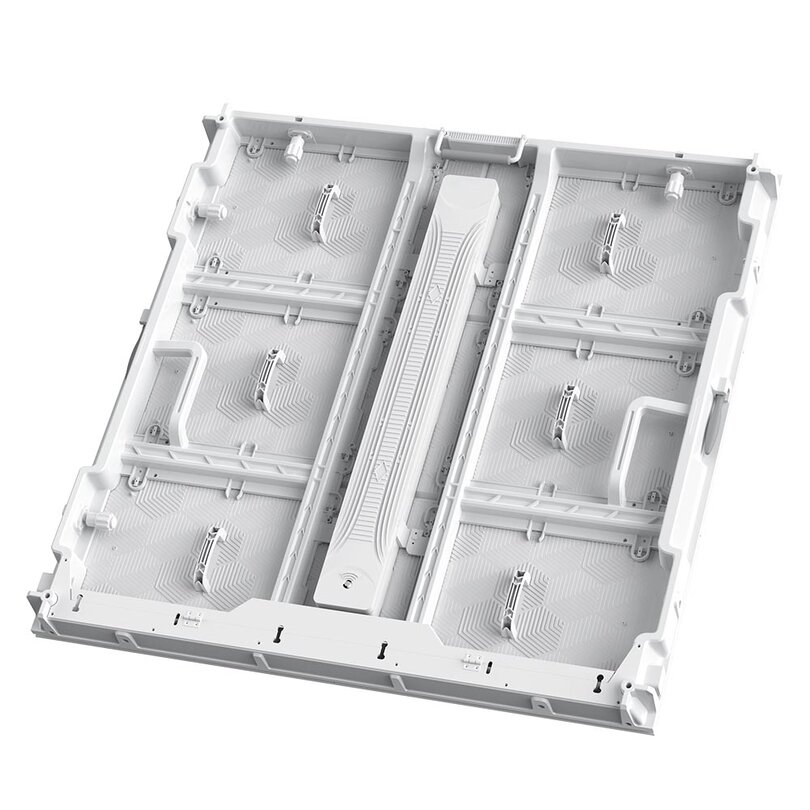

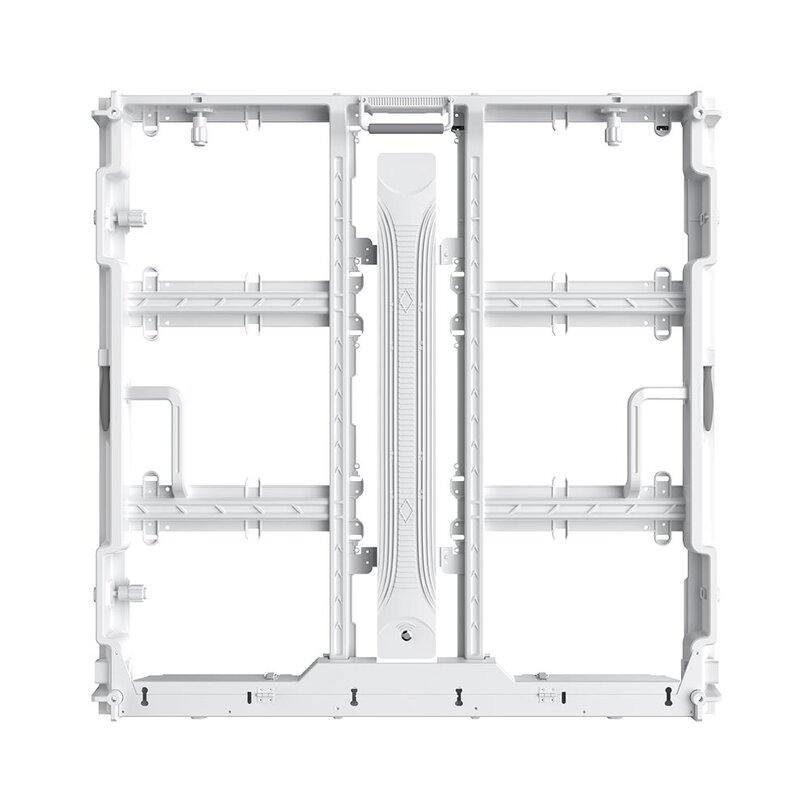

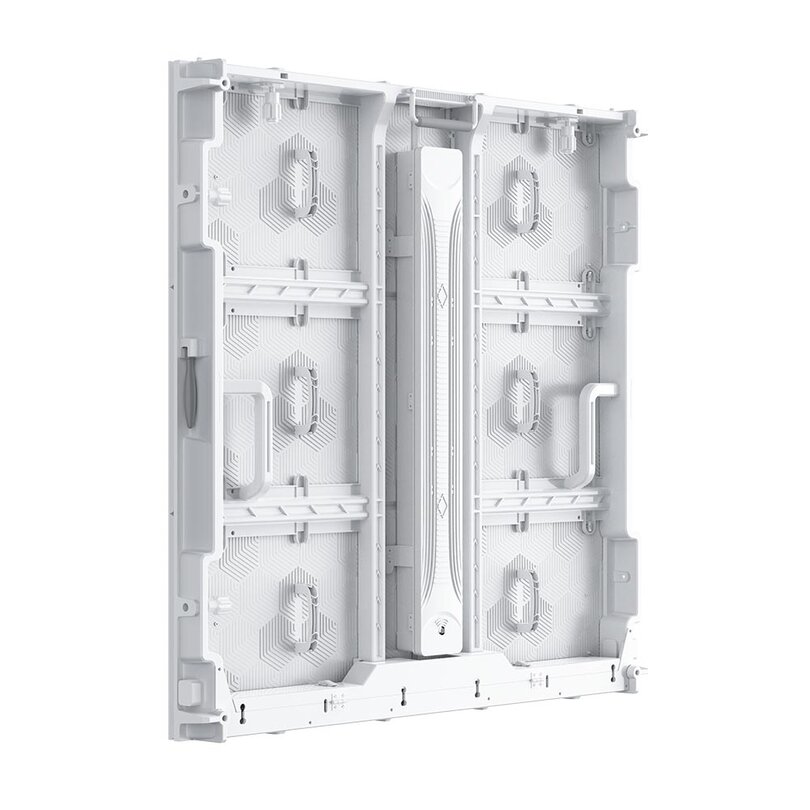

| Panel material | die-casting aluminum |
| Optoelectronic parameter | |
| Brightness | 6500 nit |
| Refresh rate | 3840 Hz |
| Gray scale | 16 bit |
| Contrast ratio | 10,000:1 |
| Color temperature | 6500 K |
| Viewing angle (H/V) | 140° / 120° |
| Driving type | 1/7 |
| AC operating voltage | 100 - 240 VAC |
| Power consumption (max. / avg.) | 550 / 186 W/m2 |
| Application parameter | |
| Storage temperature | -40 to 80 °C |
| Operating temperature | -20 to 60 °C |
| Storage humidity | 10 to 90% RH |
| Operating humidity | 10 to 90% RH |
| IP rating (front / rear) | IP66 / IP66 |
| LED lifetime | 100,000 h |
| Module maintenance | front / rear |
| PSU & others maintenance | front / rear |
| Panel installation type | fixed |
| Certification | CE, ETL, FCC |
