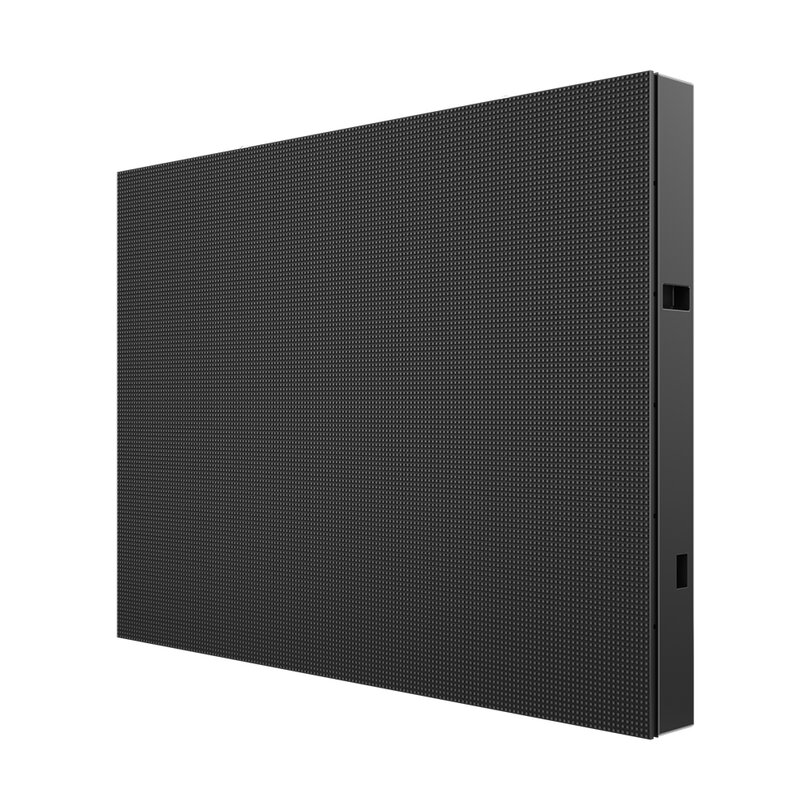

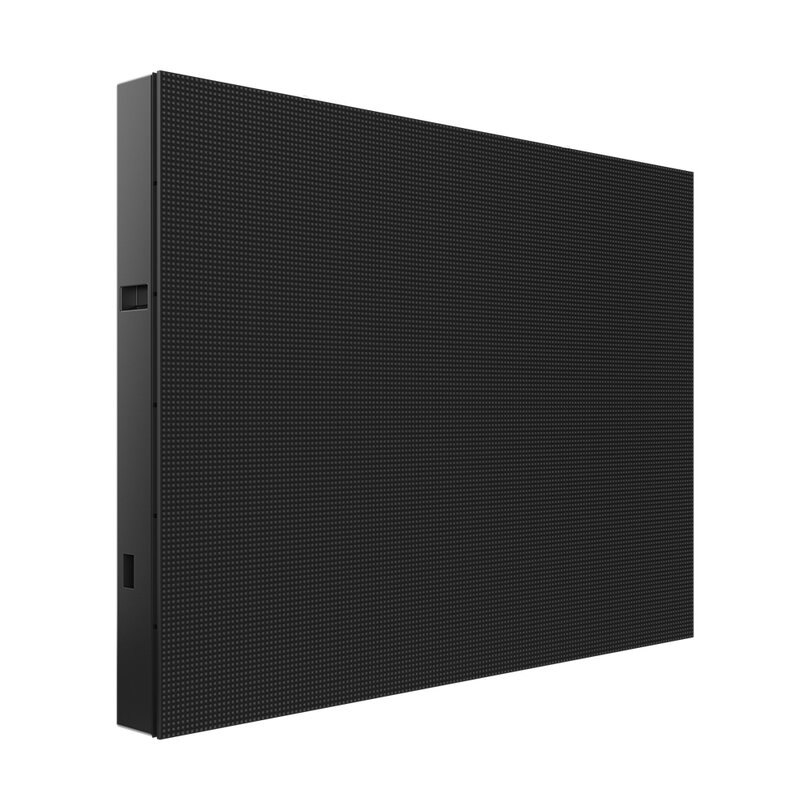

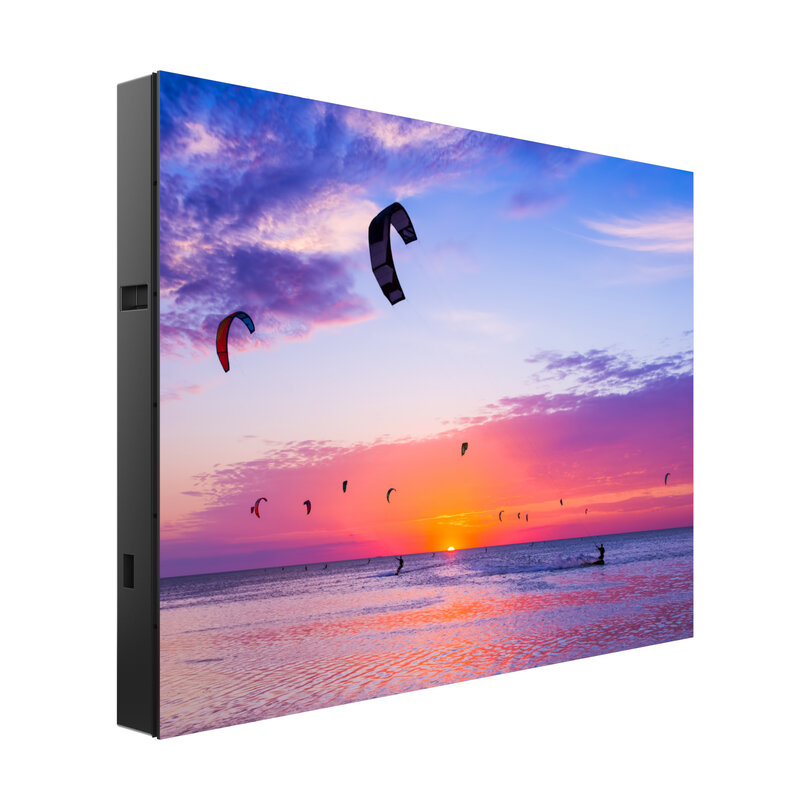

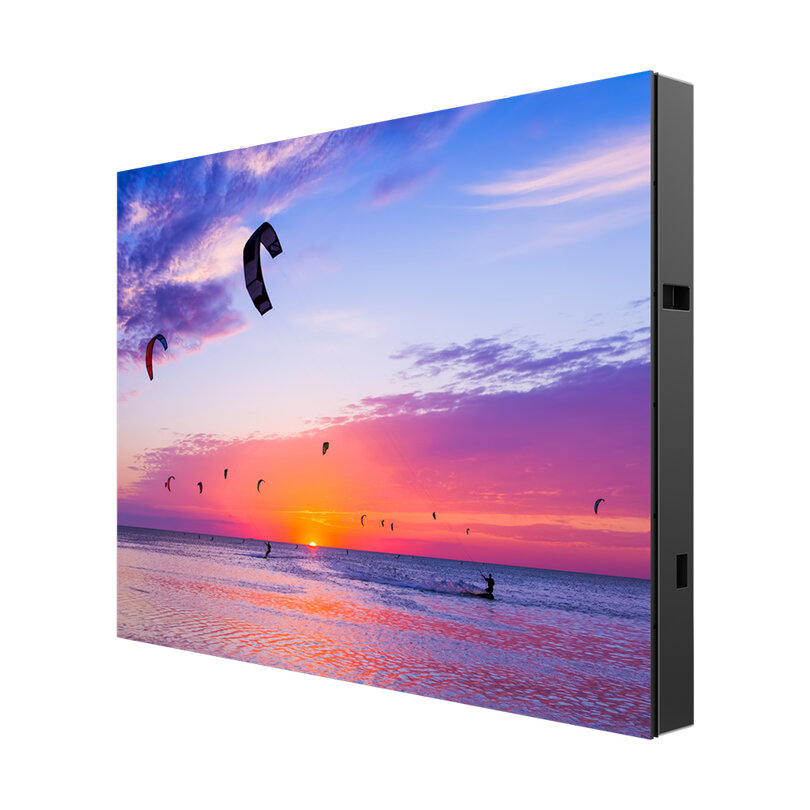

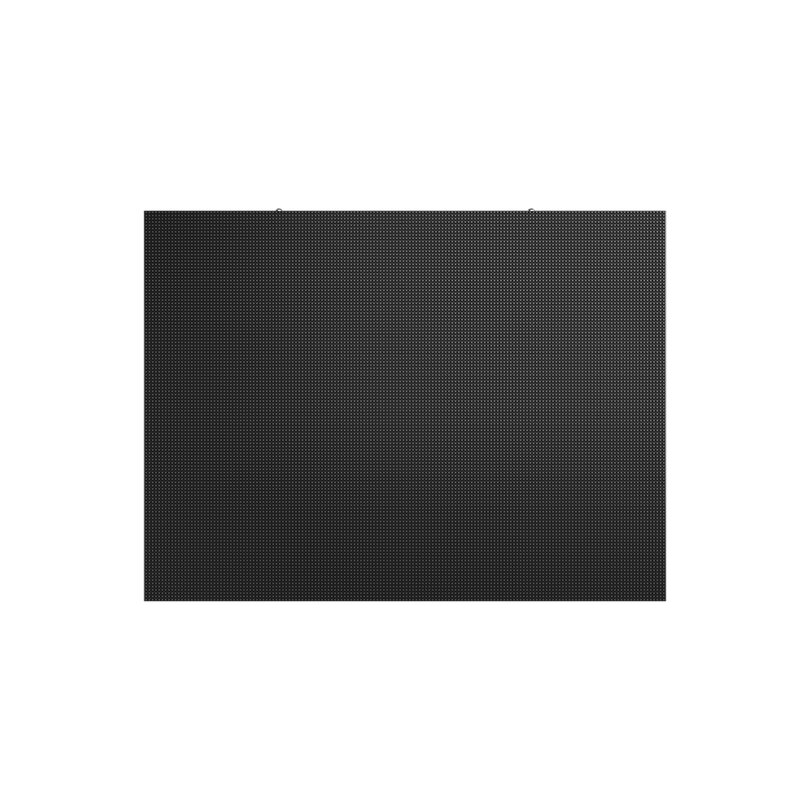

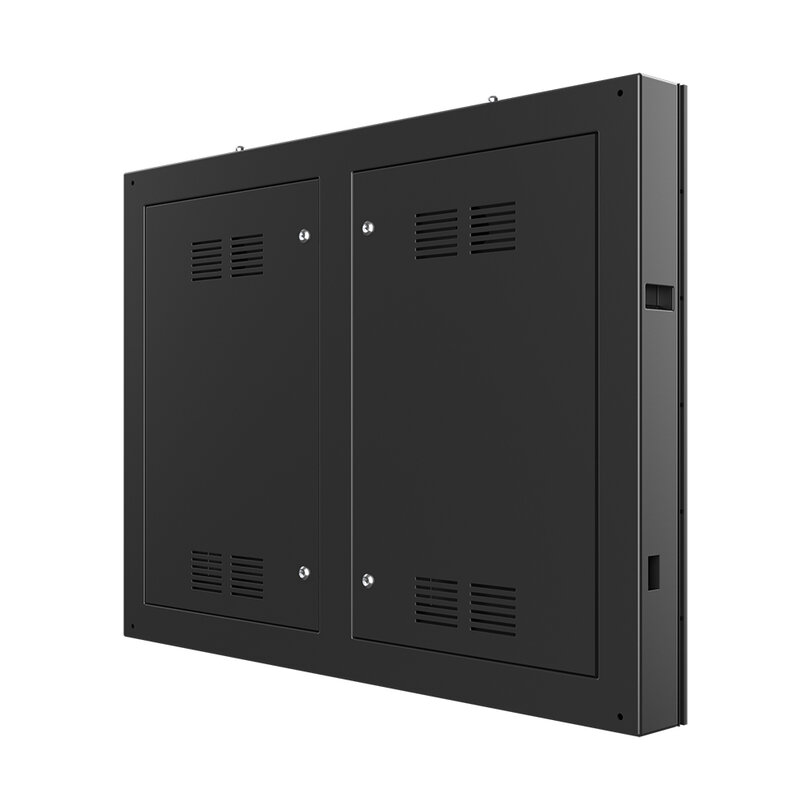

New generation P6.66 LED display with 1280 x 960 mm steel cabinet usable in extreme atmospheric and environmental conditions (IP65), ideal mix of quality, exceptional visual performance and affordable price. It features 5000 nits brightness, a high refresh rate of 3840 Hz, 14 bit grayscale and 160° ultra-wide horizontal viewing angle.
Ideal for digital signage, shows, transit centers, street furniture, sports, etc.
Technical characteristics
| Physical parameter | |
| LED type | SMD 3-in-1 1921 |
| Pixel Pitch | 6.66 mm |

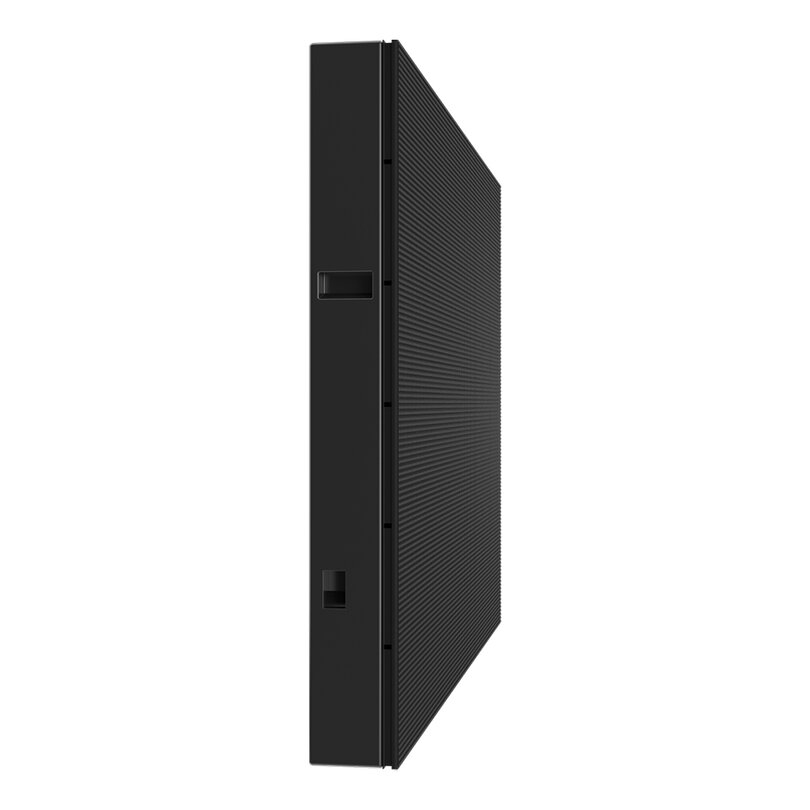

| Panel dimensions (W x H x D) | 1280 x 960 x 100 mm |
| Module dimensions (W x H) | 320 x 160 mm |
| Pixel per panel | 192 x 144 |
| Panel weight | 30 kg |
| Panel material | steel |
| Optoelectronic parameter | |
| Brightness | 5000 nit |
| Refresh rate | ≥ 3840 Hz |
| Gray scale | 14 bit |
| Contrast ratio | 6000:1 |
| Color temperature | 7500 K |
| Viewing angle (H/V) | 160° / 110° |
| Driving type | 1/6 |
| AC operating voltage | 200 - 240 VAC |
| Power consumption (max. / avg.) | 750 / 250 W/m2 |
| Application parameter | |
| Storage temperature | -40 to 60 °C |
| Operating temperature | -20 to 50 °C |
| Storage humidity | 10 - 90% RH |
| Operating humidity | 10 - 90% RH |
| IP rating (front / rear) | IP65 / IP21 |

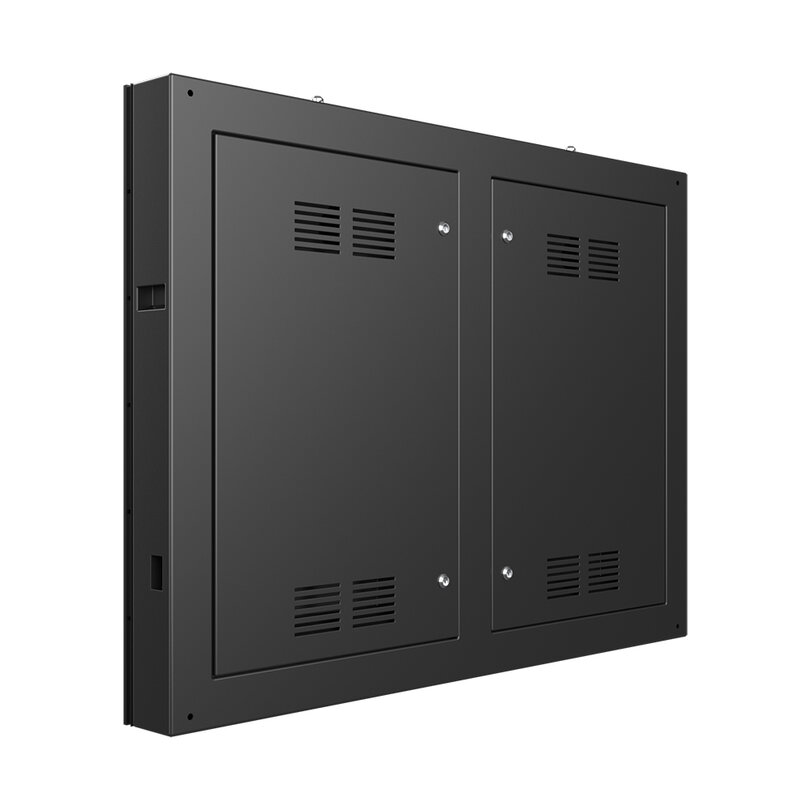

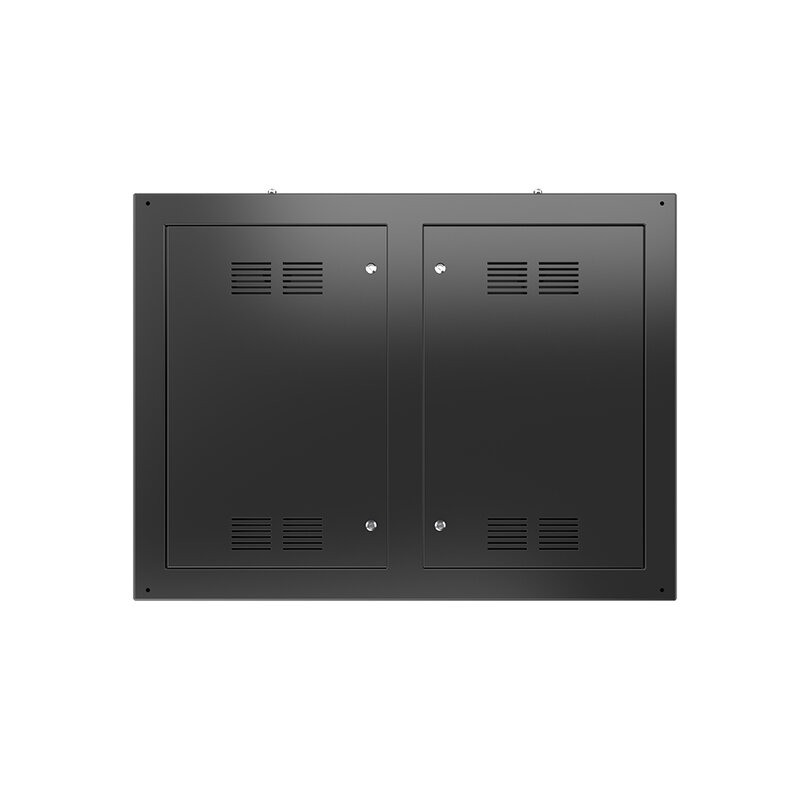

| Module maintenance | rear |
| PSU & others maintenance | rear |
| Panel installation type | fixed / rear |
