P3.91 front LEDdisplay fixed aluminum - P3.91, indoor, fixed front LED display, front maintenance, SMD2020, ≥ 1000 nit, 3840 Hz, 1000 x 250 mm, 5.8 kg, aluminium

Ask for price

SKU: FIX01-P3.91I-F-ALU

Ask for price To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

P3.91, indoor, fixed front LED display, front maintenance, SMD2020, ≥ 1000 nit, 3840 Hz, 1000 x 250 mm, 5.8 kg, aluminium

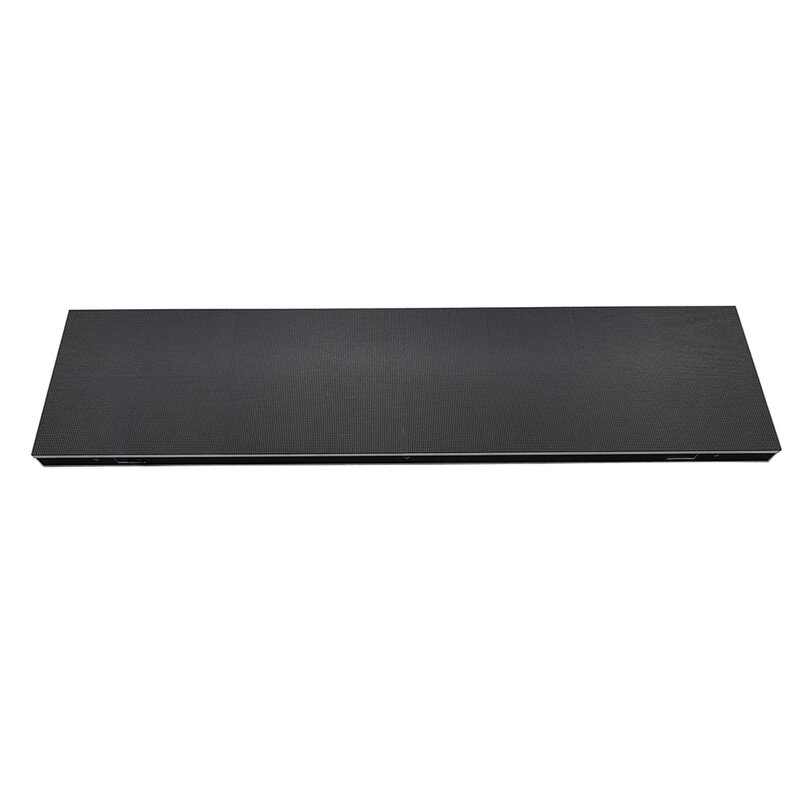

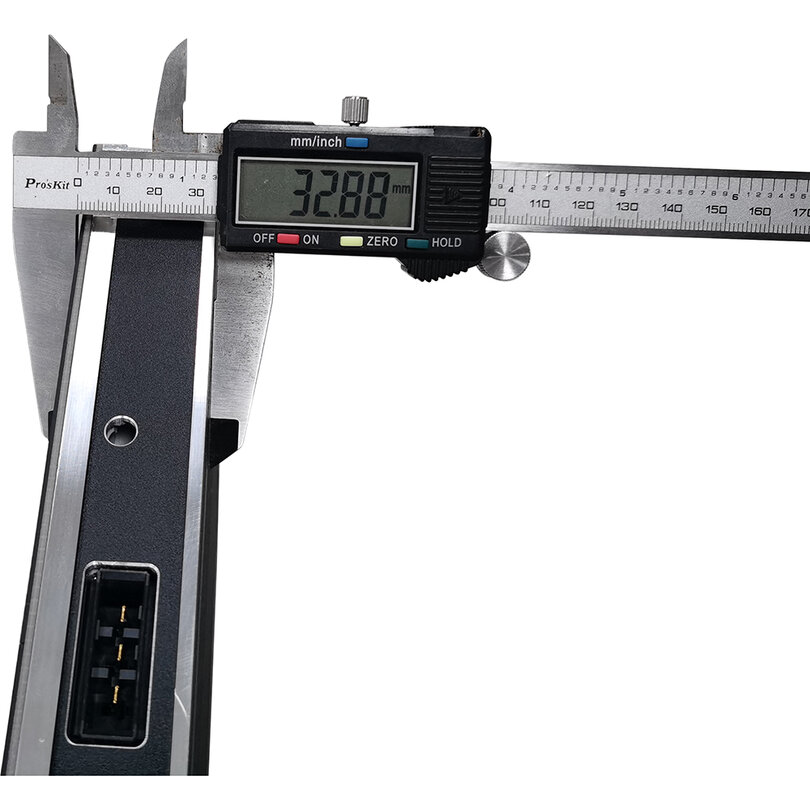

P3.91 LED display with 1000 x 250 mm aluminum cabinet, SMD2020, IC CFD435, for indoor fixed installations. It boasts ≥ 1000 nits brightness and greater than 10,000:1 contrast. The cabinet is only 33 mm thick and weighs 5.8 kg. The 250 x 250 mm magnetic modules are arranged on a single side and each cabinet mounts 4 of them in line.

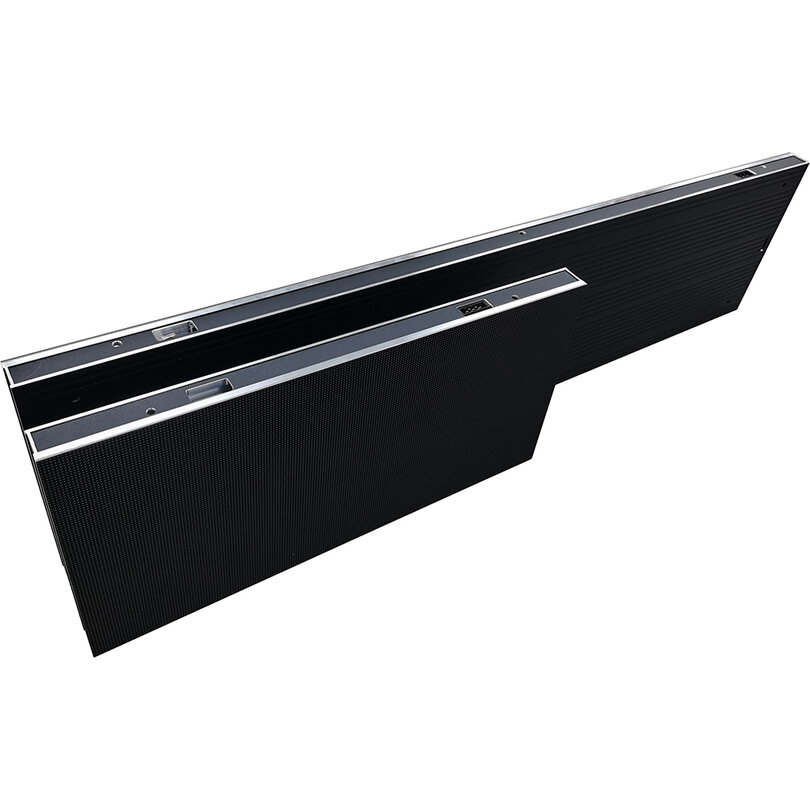

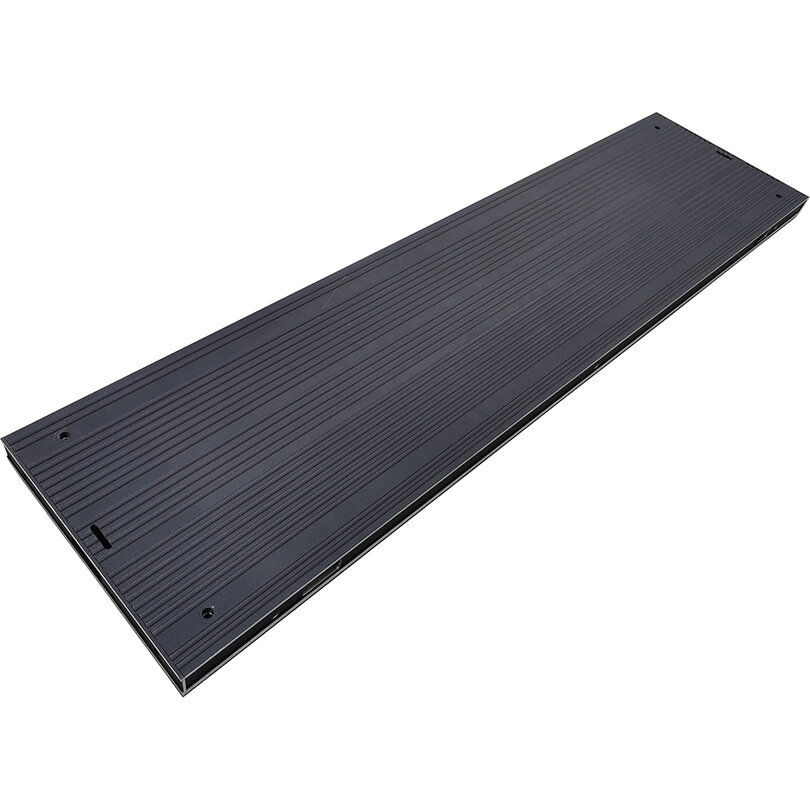

The rear part of the chassis houses the receiving card, the HUB board and the power supply. The cabinets hook together in a very simple way using a special tool supplied and the Aquiline Lock hooks.
The high refresh rate of 3840 Hz ensures an excellent viewing experience, allowing you to take photos and record camera displays without seeing scan lines. Furthermore, the grayscale is 16-bit. The wide viewing angle is 160° horizontally and 160° vertically.

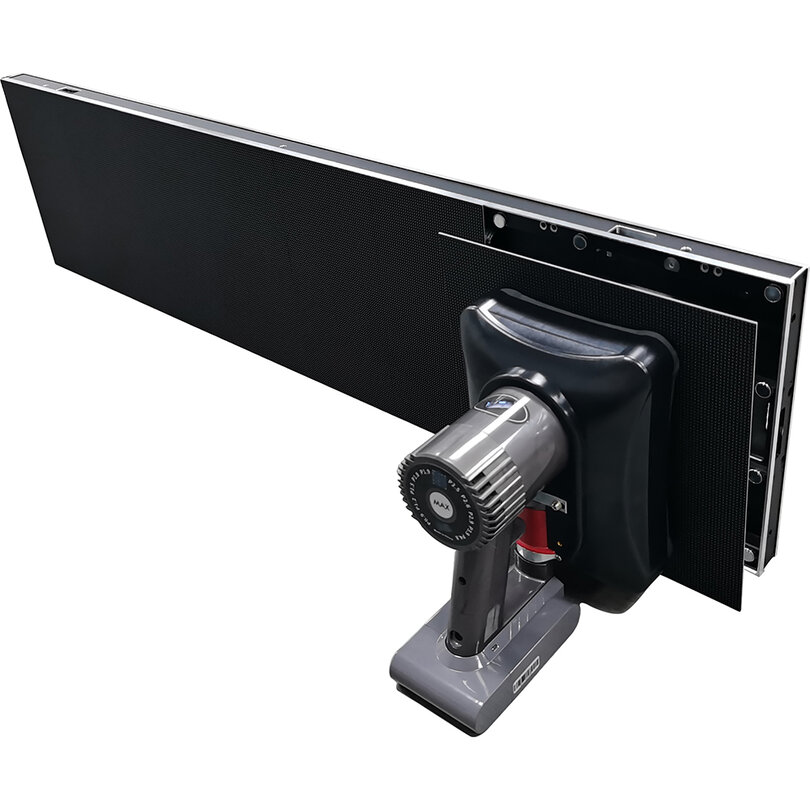

Finally, maintenance is frontal (the modules can be easily removed with the suction tool) and installation is very simple.

Technical specifications

Pixel Pitch: 3.91 mm
Physical density: 65,536/m²
LED shape: SMD2020
LED configuration: 1R1G1B
Drive mode: 1/16 scan
Module size: 250 x 250 mm
Cabinet resolution: 256 x 64
Cabinet size: 1000 x 250 x 33 mm
Cabinet weight: 5.8 kg
Brightness: ≥ 1000 cd/m²
Contrast: ≥ 10,000:1
Viewing angle (H/V): 160° / 160°
Min. view distance: 3.91 m
Gray scale: 16 bit
Color capacity: 281 trillion
Maximum power: 650 W/m²
Average power: 100 - 200 W/m²
Drive IC: CFD435
Input voltage: 110 - 220 V_AC 50/60 Hz
Refresh rate: ≥ 3840 Hz
Working temperature: -20～+50 ℃
Maintenance: full front service
Operating humidity: 10 - 90% RH
Life span: 100,000 hours
IP rating (front/rear): IP40/IP21
