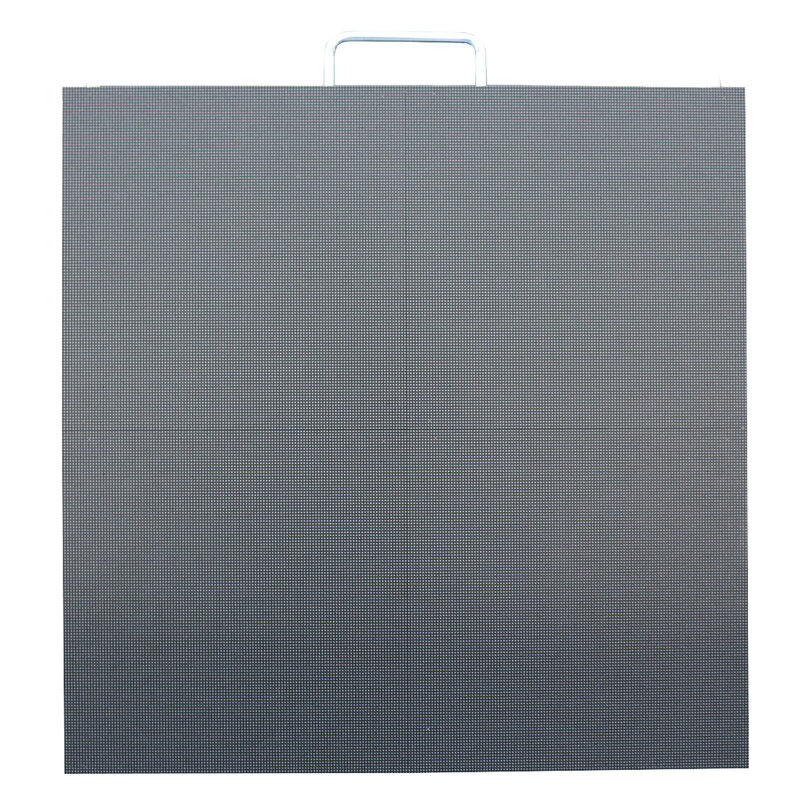

480 x 480mm P1.5 HD LED Panel, SMD1010 1R1G1B LED, MBI5153 IC, for indoor use (1000 nits).
This type of display offers very high resolution and superior image clarity compared to larger pitches.

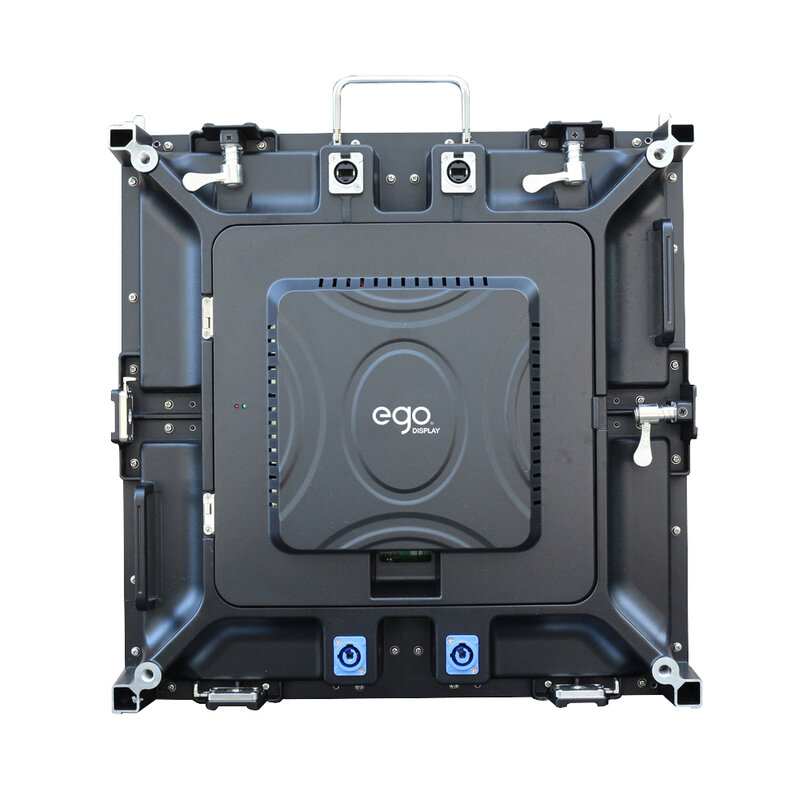

The cabinet is based on a robust die-cast aluminum structure, adopts an easy-to-mount pivot for precise alignment and a quick safety lock. The high refresh rate of 3840 Hz ensures an excellent viewing experience.
Areas of use
Technical characteristics
| Pixel Pitch | 1.5 mm |
| IC | MBI5153 |
| Dimension | 480 x 480 mm |
| LED type | SMD1010 |
| LED configuration | 1R1G1B |
| Panel resolution | 320 x 320 pixel |
| Physical density | 444,444 pixel/m2 |
| Brightness | ≥ 1000 cd/m2 |
| Scan method | 1/32 scan |
| Max. power consumption | 600 W/tile |
| Ave. power consumption | 200 W/tile |
| Weight | 7 kg/panel |
| Refresh rate | ≤ 3840 Hz |
| Contrast | ≥ 2000:1 |
| Control mode | synchronous display with control PC by DVI |
| Protection level | IP31 / IP31, indoor |
