Indoor, IC MB15153, SMD2020, ≥1200 nit, ≥2700 Hz, 500 x 500 mm, 8.8 kg

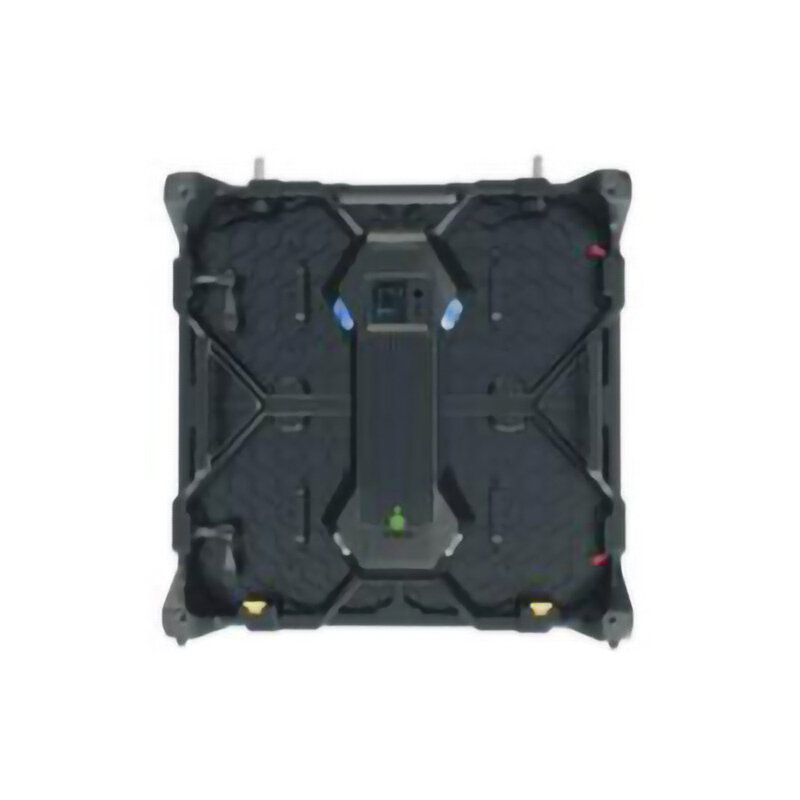

P2.84 LED display with 500 x 500 mm cabinet, SMD2020 LED, MB15153 IC for indoor use (1200 nits).
The size of the single module is 250 x 250 mm, with a resolution of 88 x 88 pixels, while the cabinet resolution is 176 x 176 pixels. The contrast is 2000: 1 and the viewing angle is 140° both horizontally and vertically. The pitch of 2.84 mm suggests a minimum viewing distance of about 2 m. The brightness is adjustable from 0 to 100%.
The synchronization method is with PC and the control distance is 100 m with CAT cable, 500 m with multi-mode fiber and 15 km with single-mode fiber.
Technical characteristics
Module specification
- Pixel pitch: 2.84 mm
- Pixel configuration: 1R1G1B
- Type of LED: SMD2020
- Module size: 250 x 250 mm
- Module resolution: 88 x 88 pixel
Cabinet specification
- Pixel density: 123,904 dots/m2
- Size of cabinet: 500 x 500 x 100 mm
- Cabinet resolution: 176 x 176
- Module quantity per cabinet: 4 pcs.
- Cabinet weight: 8.8 kg
Screen parameters
- Brightness: 1500 nit
- Driving mode: 1/22 scan
- Brightness after calibration: ≥ 1200 cd/m2
- Contrast: 2000:1
- View angle (H x V): 140° x 140°
- Minimum view distance: 2 m
- Gray scale: ≥ 13 bit
- Max power consumption: 210 W/pc.
- Average power consumption: 70 W/pc.
- Work voltage: 90 - 260 VAC
- Frame frequency: up to 75 Hz
- Driver IC: MB15153
- Refresh rate: ≥ 2700 Hz
- Brightness adjustment: 0 - 100%
- Gamma Correction (0 - 5.0)
- Color temperature: 6500 - 9000 K
- Control mode: synchronization with PC
- Control distance: UTP CATSE 100 m, multi-mode fiber 500 m, single mode fiber 15 km
- Stock temperature: -40 to 85 °C
- Operating temperature: -30 to 50 °C
- Operating humidity: 10 - 90% RH
- Life span: 100,000 h
- MTBF: 5000 h
- IP rating (front / rear): IP31 / IP31
- Flatness of the screen: ≤ 1 mm
- Dot out of control rate: 0.00001
