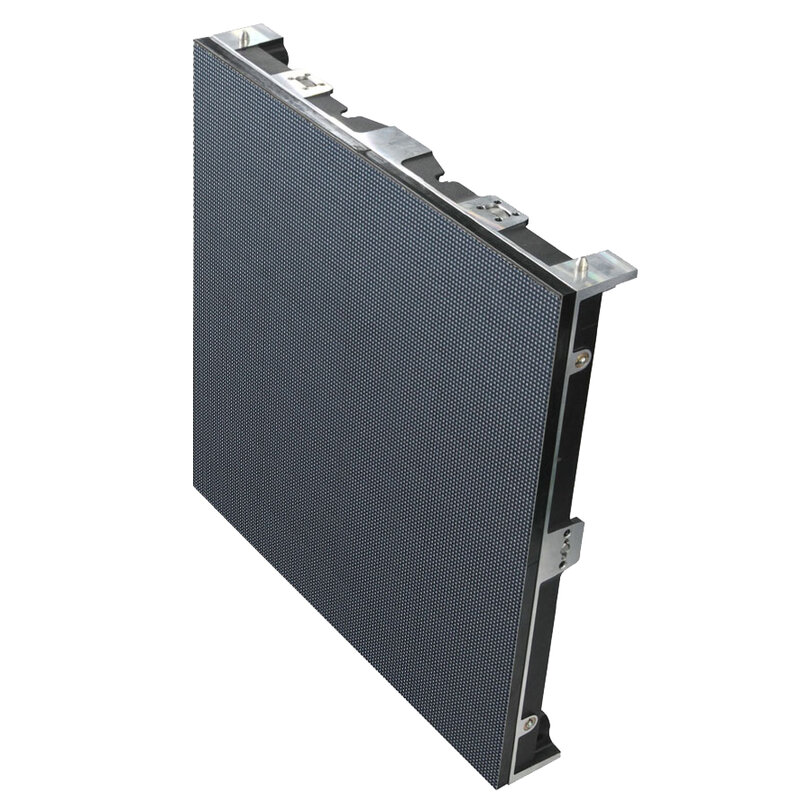

P3.91 rental LED panel 500 x 500 mm, SMD2020 1R1G1B LED, IC IC CFD435A, for indoor use (1000 nits).

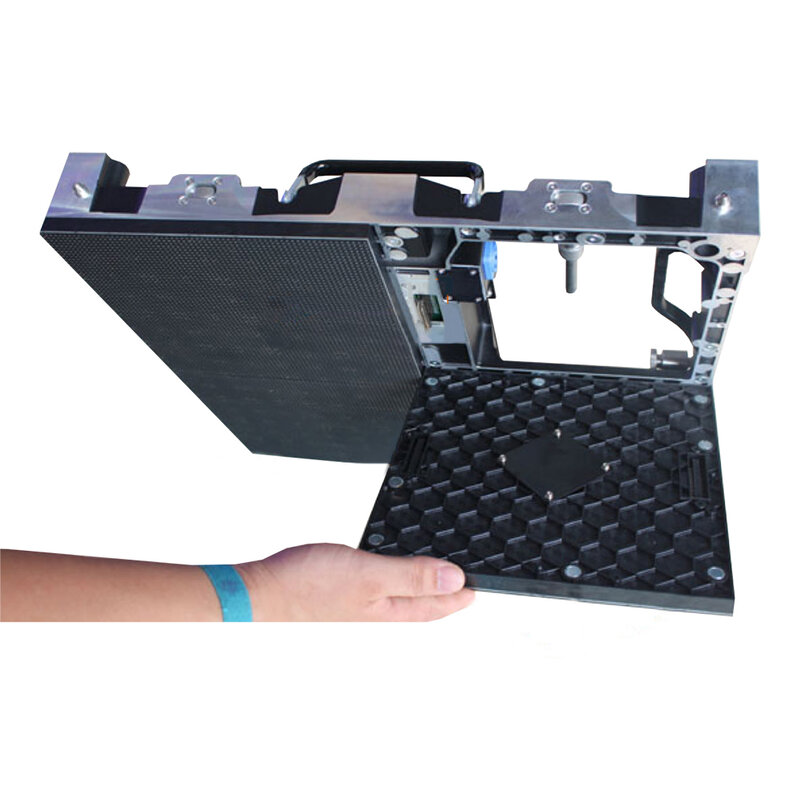

The cabinet adopts pins for precise alignment, a built-in handle for easy and safe transportation and the LED module is magnetically fixed. The high refresh rate of 3840 Hz ensures an excellent visual experience. Front maintenance.
Areas of use
Technical characteristics
| Dimension | 500 x 500 mm |
| LED configuration | 1R1G1B |
| Pixel Pitch | 3.91 mm |
| IC | CFD435A |
| LED type | SMD2020 |
| Cabinet resolution | 168 x 168 pixel |
| Physical density | 65,536 pixel/m2 |
| Brightness | ≥ 1200 cd/m2 |
| Scan method | 1/16 |
| Max. power consumption | 800 W/m2 |
| Ave. power consumption | 200 - 300 W/m2 |
| Weight | 8 kg/pc |
| Refresh rate | ≤ 3840 Hz |
| Contrast | ≥ 5000:1 |
| Maintenance | module front service |
| Protection level | IP43 / IP31 |
