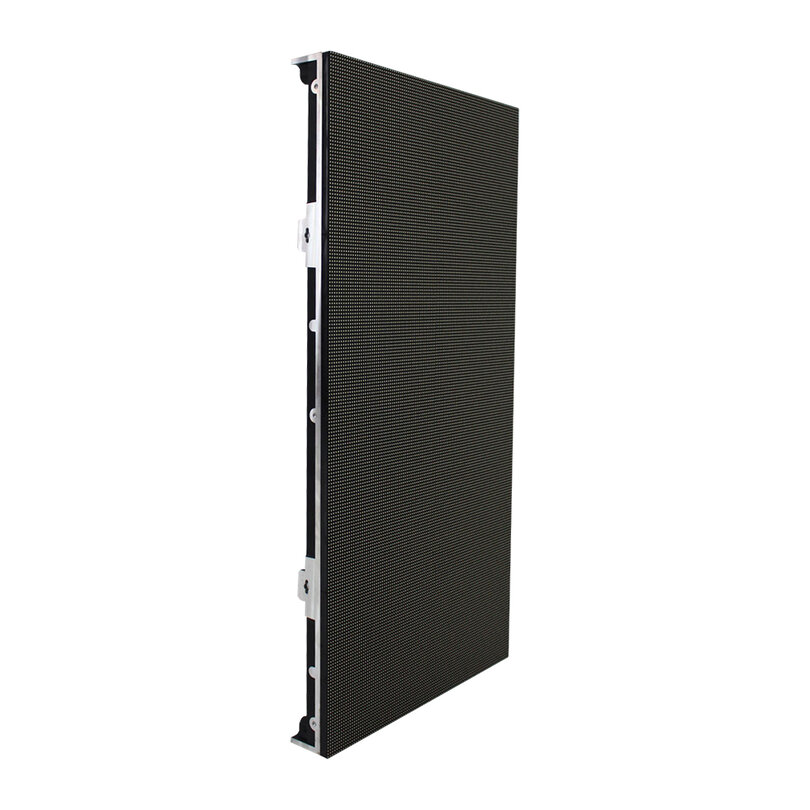

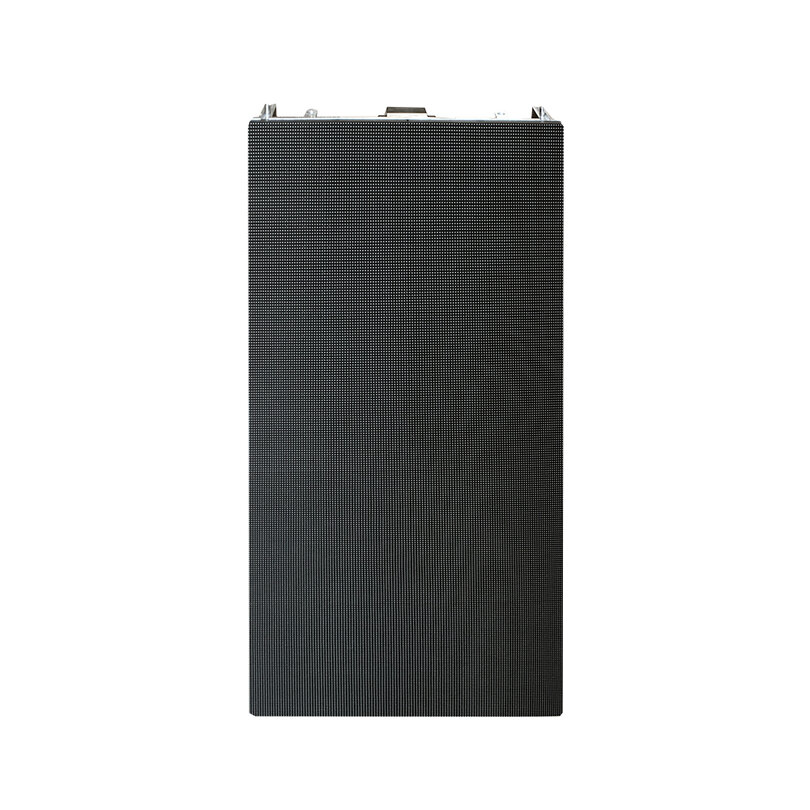

500 x 1000 mm P4.81 rental LED display, SMD2121 1R1G1B LED, IC MBI5124, for indoor use (1500 nit).

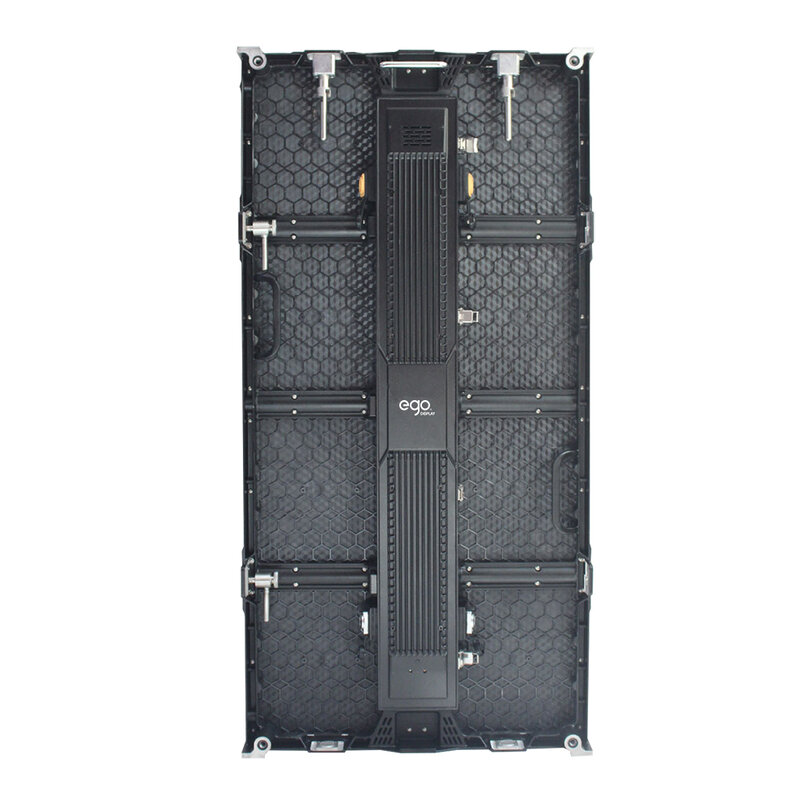

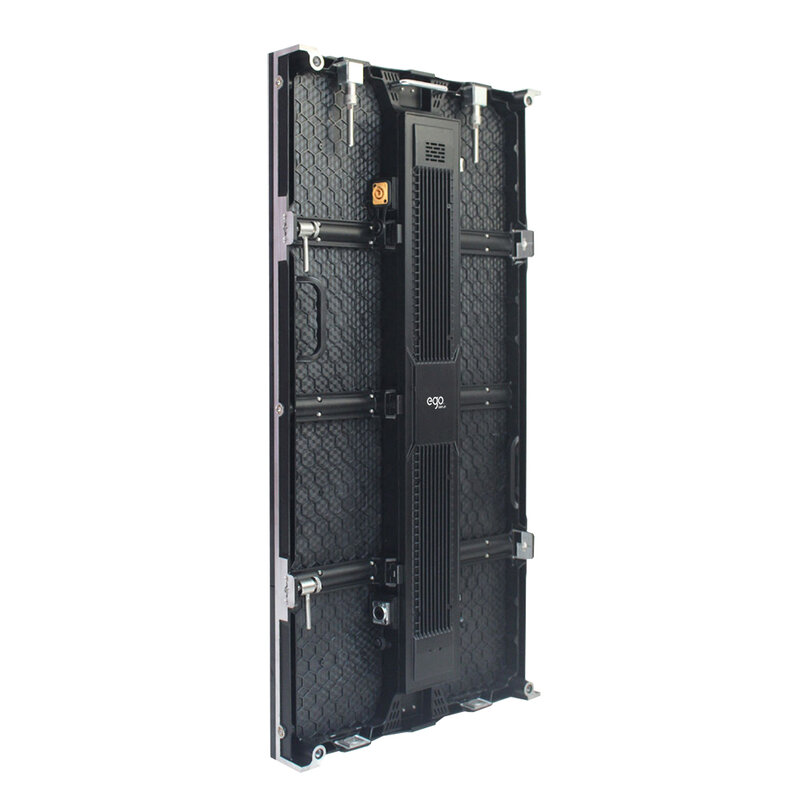

The cabinet is made of a sturdy die-cast aluminum structure and offers fast security locking.
It can be used in a variety of indoor events such as concerts, festivals, temporary events ecc.
Users benefits
Areas of use
Technical characteristics
| Pixel pitch | 4.81 mm |
| IC | MBI5124 |
| LED type | SMD2121 |
| LED configuration | 1R1G1B |
| Panel resolution | 104 x 208 pixel |
| Physical density | 43,264 pixel/m2 |
| Brightness | ≥ 1500 cd/m2 |
| Scan method | 1/13 scan |
| Max. power consumption | 900 W/m2 |
| Ave. power consumption | 300 W/m2 |
| Refresh rate | ≤ 1920 Hz |
| Contrast | ≥ 4000:1 |
| Control mode | synchronous display with control PC by DVI |
| Protection level | IP31 / IP31, indoor |
| Dimension | 500 x 1000 mm |
| Weight | 13.5 kg/panel |
