Outdoor, IC MBI5124, SMD1415, ≥4200 nit, ≤1920 Hz, 500 x 500 mm, 8.5 kg

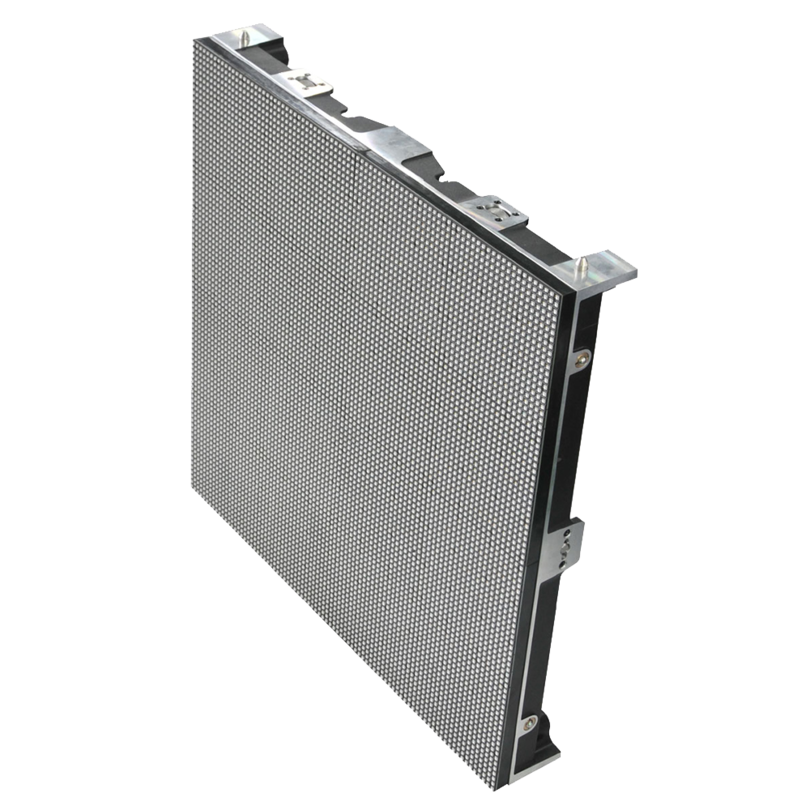

500 x 500 mm P2.6 rental LED display, SMD1415 1R1G1B LED, IC MBI5124, for outdoor use (4200 nit).

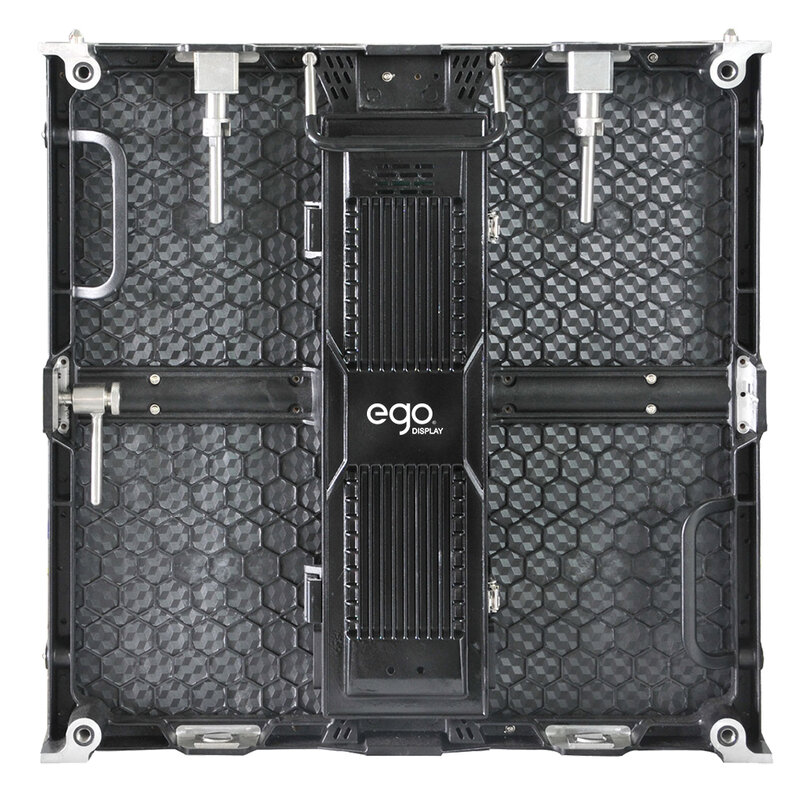

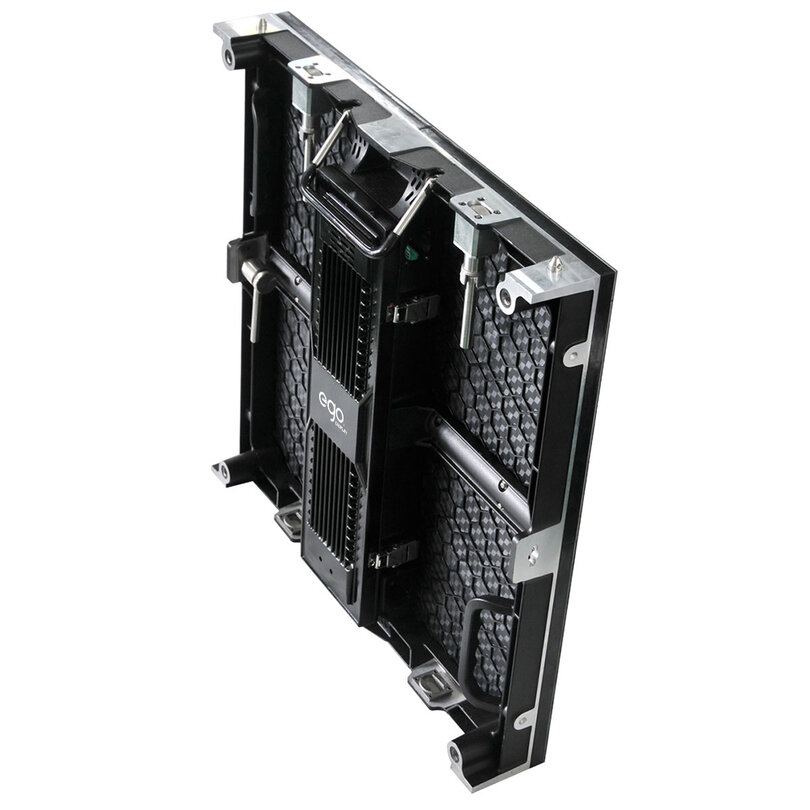

The cabinet is characterized by a robust die-cast aluminum structure and thanks to the IP65/IP54 certification it can be used both indoor and outdoor.
Designed for temporary rental, this display can be used as a basic LED wall element for corporate events and outdoor presentations, musical performances, concerts, festivals, nightclubs,
art exhibitions etc.
Technical characteristics
| IC |
MBI5124 |
| Dimension |
500 x 500 x 78 mm |
| LED configuration |
1R1G1B
|
| Pixel pitch |
2.6 mm |
| LED type |
SMD1415 |
| Panel resolution |
192 x 192 pixel |
| Physical density |
147,456 pixel/m2 |
| Brightness |
≥4200 cd/m2 |
| Scan method |
1/32 |
| Max. power consumption |
300 W/panel |
| Ave. power consumption |
100 W/panel |
| Weight |
8.5 kg/panel |
| Refresh rate |
≤ 1920 Hz |
| Contrast |
≥2000:1 |
| Control mode |
synchronous display with control PC by DVI |
| Protection level |
IP65/IP54, outdoor |
